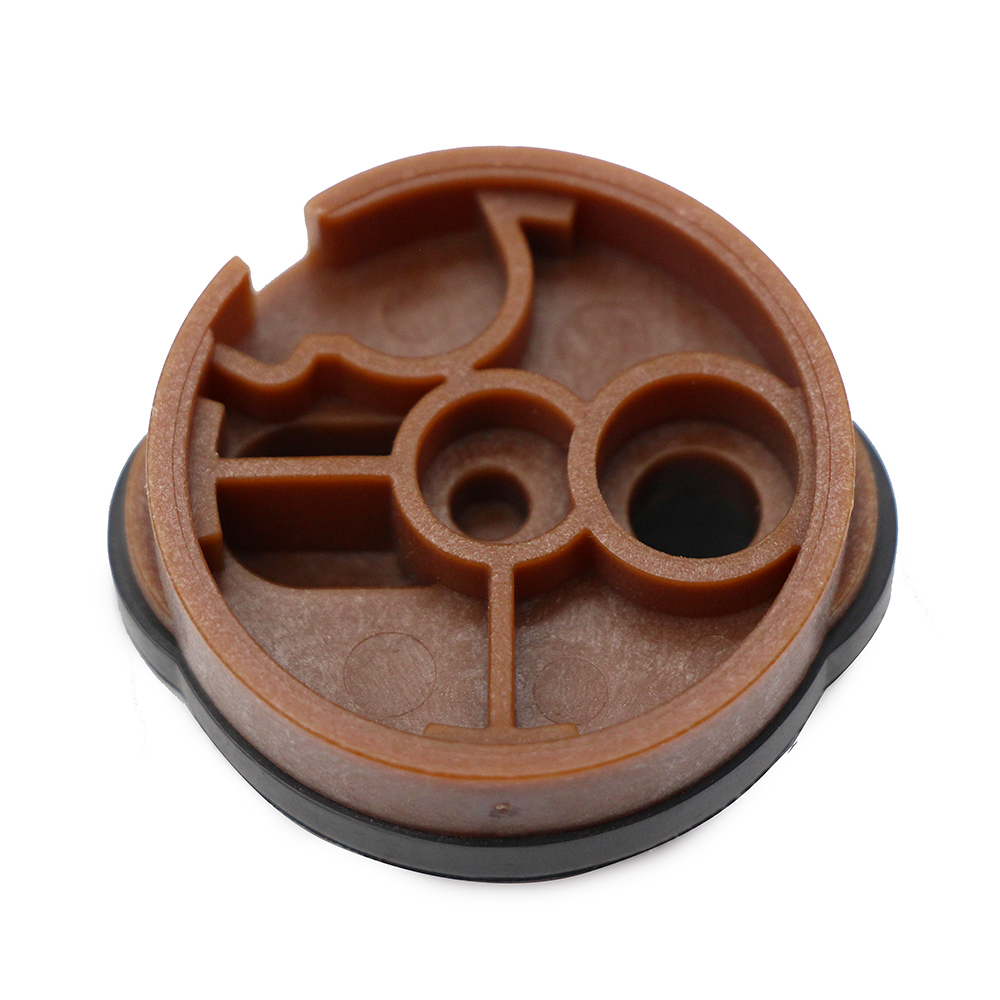

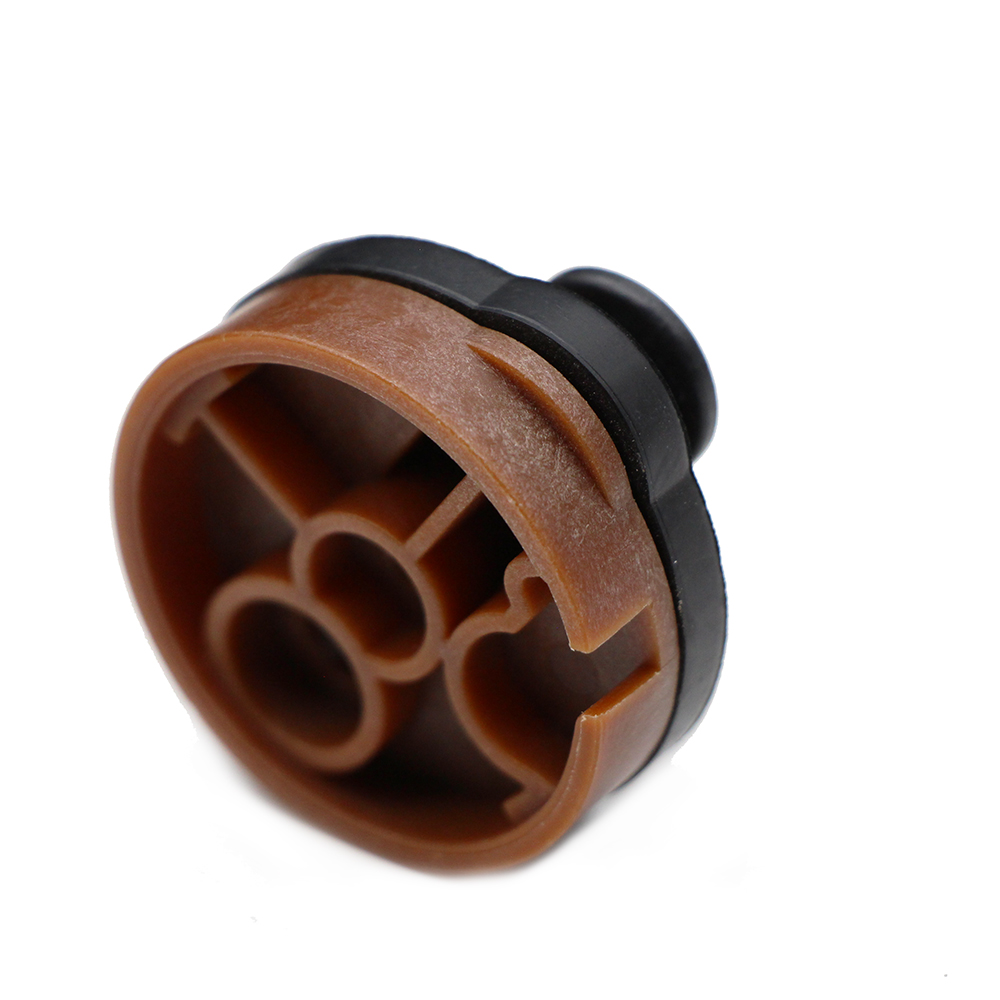

Product Installation Instructions for Fuel Pump and Oil Filter Strainer for Marine Applications

Compatible Models: F25, F30, F35, F40, F50, F60
Part Numbers: 892267510, 892267523, 892267534, 898101239

Preparation:

Before starting the installation, please gather the following tools:

1. Socket Wrench Set – For removing and securing bolts.
2. Screwdriver Set – Both flathead and Phillips to access screws.
3. Pliers – For gripping and reaching into tight spaces.
4. Fuel Hose Clamps – To secure the fuel lines.
5. Fuel Line Wrench – To safely disconnect fuel lines without causing damage.
6. Cleaning Rags – To clean any spills and keep the work area tidy.
7. Safety Goggles – To protect your eyes during installation.
8. Gloves – For hand protection against fuel and debris.
9. Torque Wrench – For ensuring bolts are tightened to manufacturer specifications.
10. Replacement Parts – Ensure you have the new fuel pump and oil filter strainer ready to install.

Installation Steps:

1. Disconnect the Battery: Safety first; disconnect the battery to prevent any electrical hazards.

2. Remove the Old Fuel Pump and Oil Filter Strainer:

   • Use the socket wrench to remove any bolts or screws holding the unit in place.
   • Carefully disconnect the fuel lines using the fuel line wrench.

3. Install the New Fuel Pump and Oil Filter Strainer:

   • Position the new components where the old ones were located.
   • Reattach the fuel lines, ensuring they are secure using fuel hose clamps.

4. Check for Leaks:

   • Once installed, reconnect the battery and turn on the ignition (do not start the engine).
   • Check for any fuel leaks around the connections.

5. Test the Installation:

   • Start the engine and monitor its operation. Ensure it runs smoothly without any abnormal sounds or issues.

6. Final Inspection:

   • After testing, inspect all connections one last time for security and proper positioning.

Maintenance Tips:

• Regularly check the fuel filter and pump for any signs of wear.
• Schedule periodic maintenance to ensure efficient operation of the marine engine.

Disclaimer: These instructions are meant to provide a general guideline for installation. Always refer to the specific service manual for detailed instructions compatible with your equipment.
