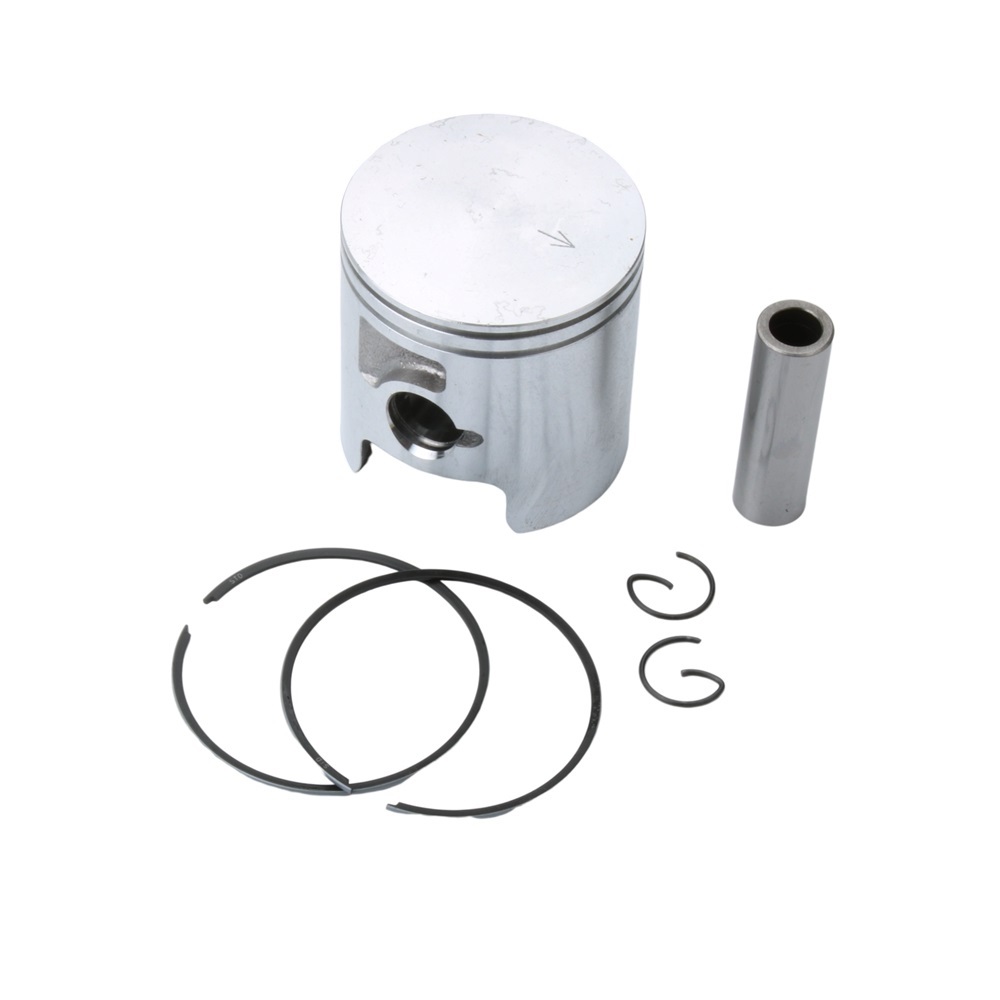

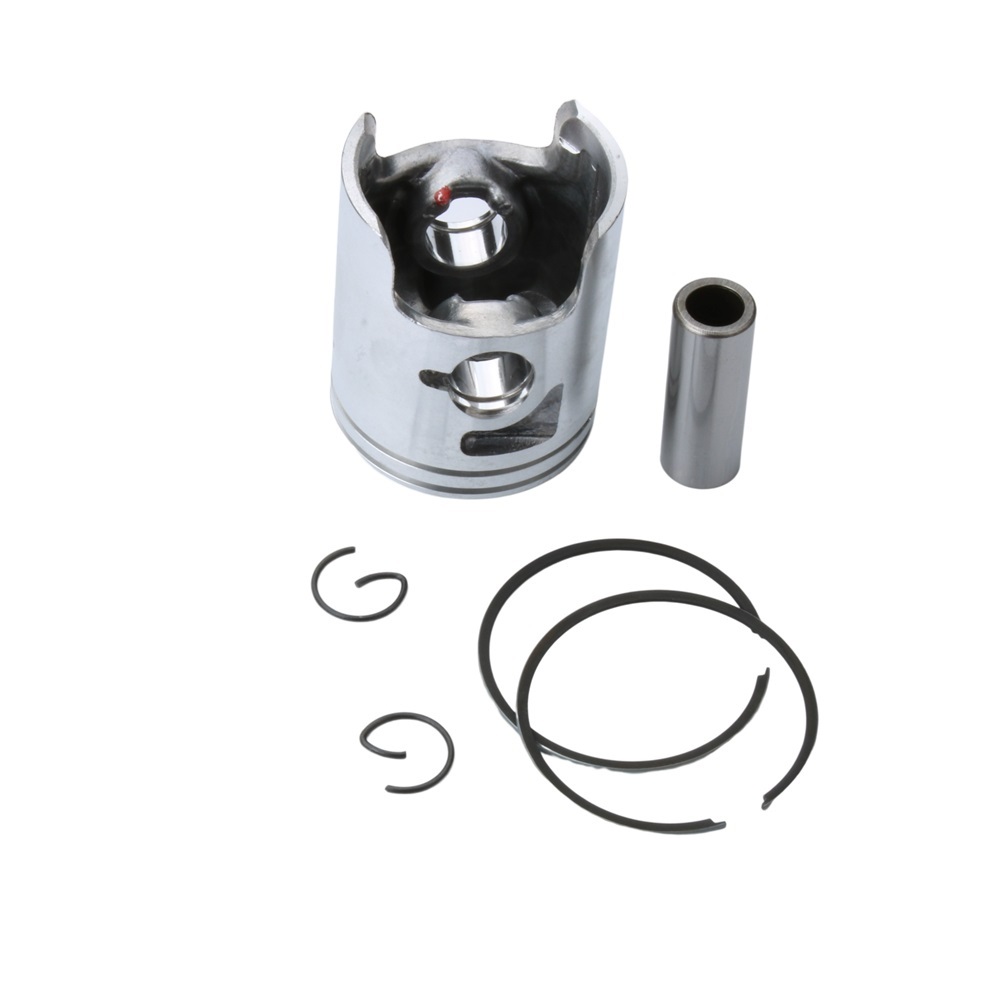

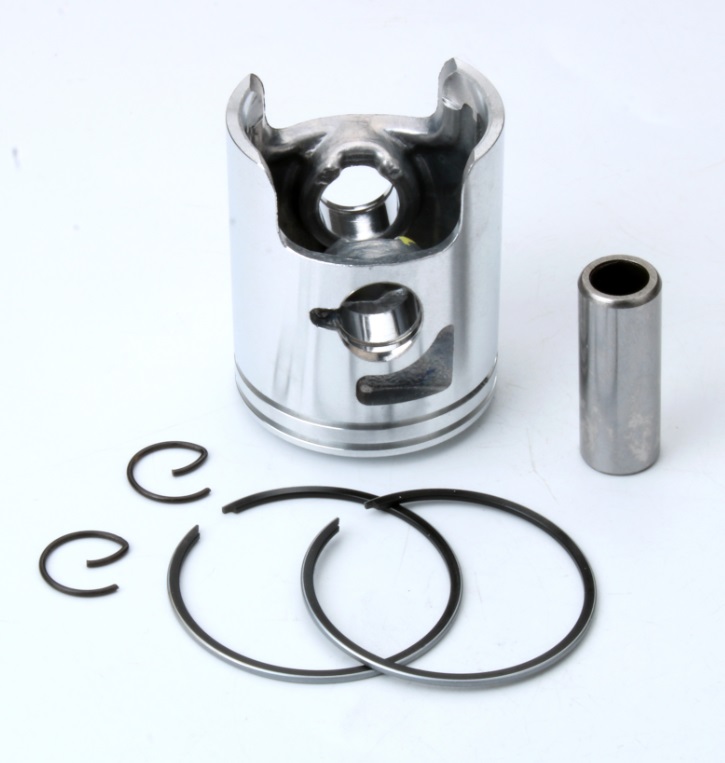

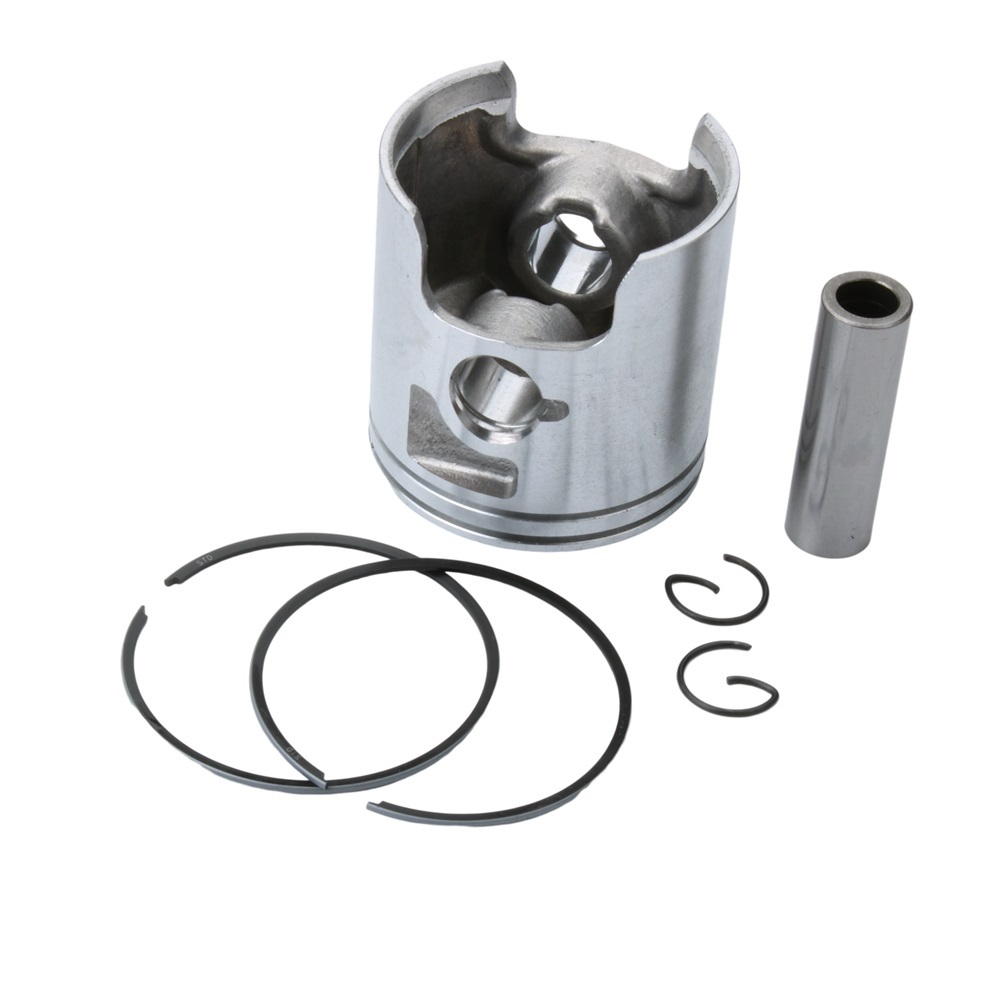

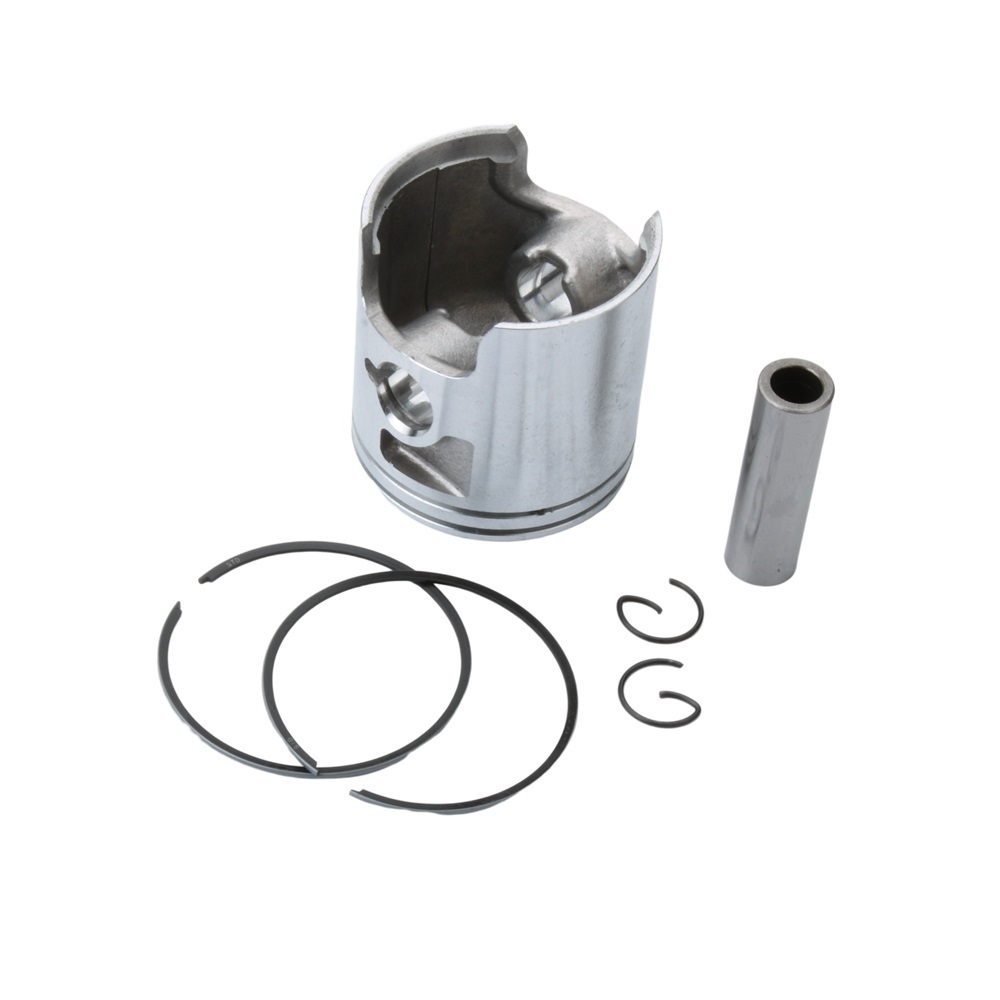

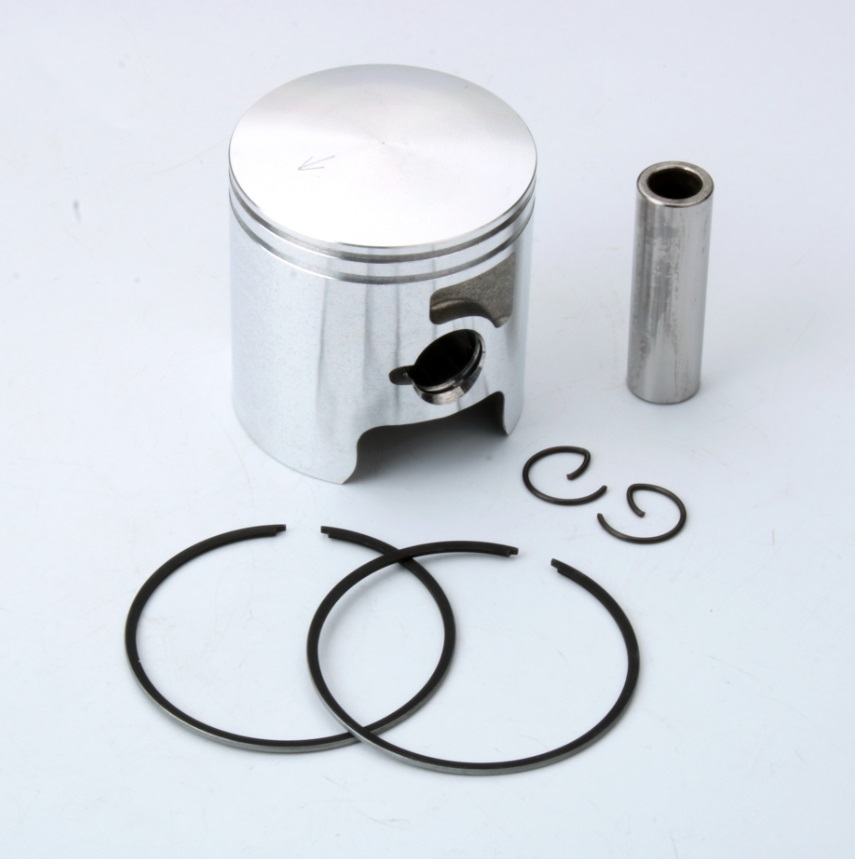

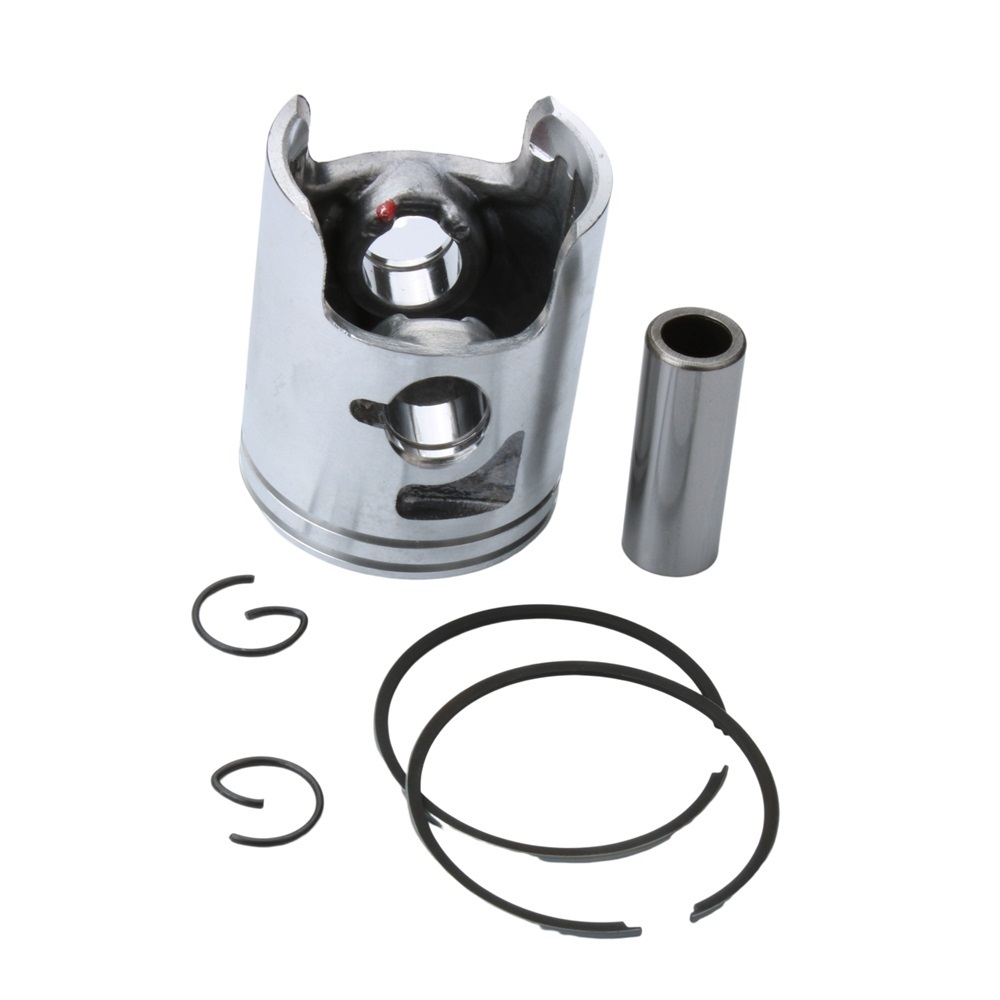

Installation Instructions for Piston Kit for 50cc and 70cc 2-Stroke Motorbike Engines

Tools and Materials Needed:

1. Socket Set: To remove bolts and nuts from the engine casing.
2. Screwdriver Set: For any screws that may be present.
3. Piston Ring Compressor Tool: To properly fit the piston rings onto the piston during installation.
4. Torque Wrench: To ensure correct torque specifications are followed when tightening components.
5. Gasket Sealant: To ensure a tight seal when reassembling the engine.
6. Clean Cloth/Rags: For cleaning surfaces and components during the installation process.
7. Engine Oil: For lubricating internal components during assembly.
8. Safety Gear: Gloves and goggles to protect yourself while working.

Installation Steps:

1. Preparation:

   • Make sure the engine is cool and clean. Disconnect the battery to avoid any electrical issues.

2. Remove the Engine Cover:

   • Use the socket set to remove the bolts securing the engine cover. Carefully set aside the cover.

3. Remove the Old Piston:

   • Disconnect any necessary components (e.g., connecting rod, cylinder) to access the old piston. Remove the old piston by undoing the retaining clips.

4. Install the New Piston:

   • Take the new piston and ensure that the piston rings are correctly positioned on the piston using the piston ring compressor tool.
   • Slide the piston into the cylinder carefully. Ensure it is aligned properly.

5. Reassemble the Engine:

   • Replace the cylinder and connect any disassembled parts, ensuring all seals and gaskets are in place. Apply gasket sealant if needed.
   • Use the torque wrench to tighten all bolts to the manufacturer’s specified torque settings.

6. Final Checks:

   • Double-check all connections and components to ensure that everything is secure.
   • Reconnect the battery and replace the engine cover.

7. Testing:

   • Start the engine and check for smooth operation. Listen for any unusual sounds that may indicate improper installation.

Final Notes:

• Follow all safety guidelines during installation.
• Ensure that you have read the product manual for any specific instructions related to your motorbike model.

By following these instructions, you'll be able to successfully install your Piston Kit and enhance the performance of your 2-stroke motorbike engine. Enjoy your ride!
