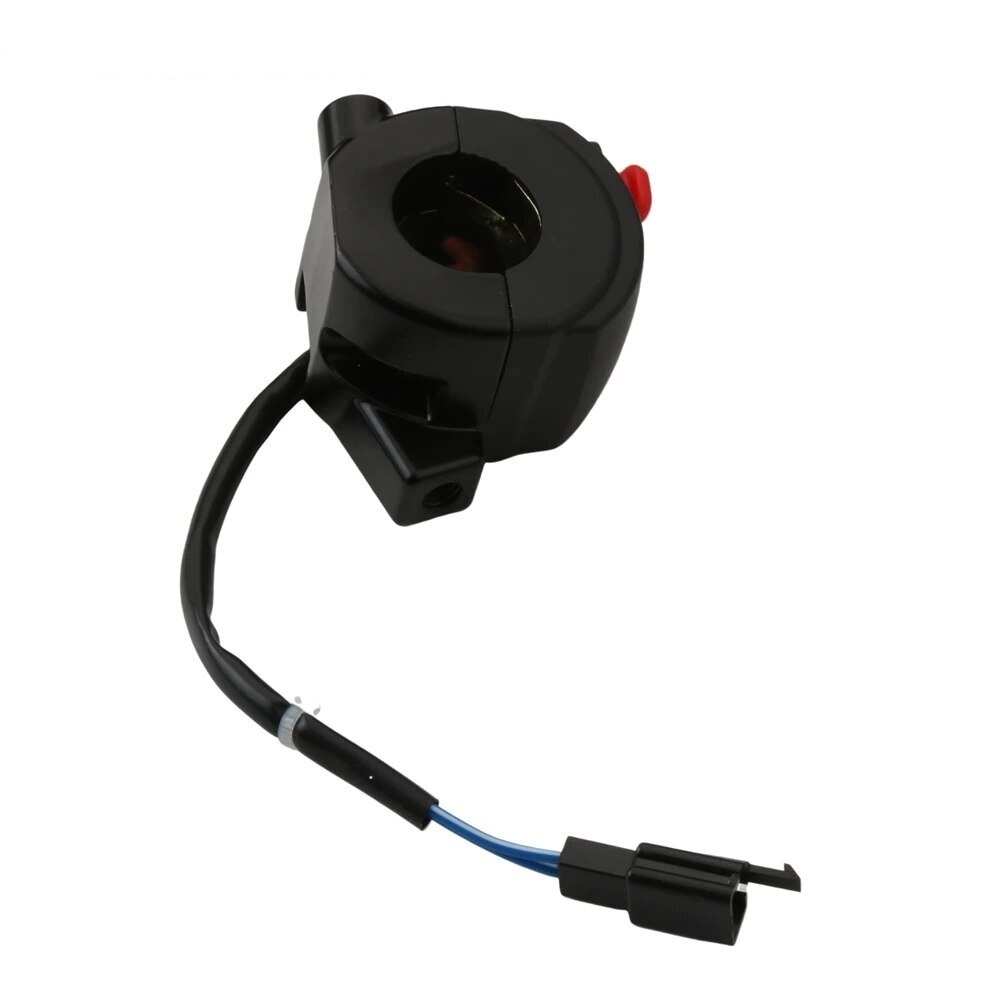

Installation Instructions for the Universal Handlebar Start Switch Button Kit (Model 5XW-H3975-00)

Tools Required:

1. Screwdriver Set (Philips and Flathead)
2. Metric Wrenches or Socket Set
3. Wire Cutters/Strippers
4. Electrical Tape
5. Zip Ties (optional, for neat wiring)
6. Safety Gloves (recommended)

Installation Steps:

1. Preparation:

   • Ensure your motorbike is turned off and parked on a stable surface.
   • Disconnect the battery to prevent any electrical short circuits during installation.

2. Remove the Old Switch:

   • Using the appropriate screwdriver, remove the screws holding the old start switch in place.
   • Carefully disconnect the wiring by unscrewing the connectors or simply unplugging them from their sockets.

3. Wire Preparation:

   • Use wire cutters/strippers to prepare the wires if they need to be trimmed or stripped for better connectivity.
   • Ensure that the ends of the wires are clean and free of any insulation before connecting.

4. Connect New Switch:

   • Align the wires from the Universal Handlebar Start Switch with your bike’s wiring harness.
   • Connect the corresponding wires; usually, it will be color-coded (consult the provided wiring diagram if available).
   • Secure the connections using electrical tape for added safety and insulation.

5. Mount the New Switch:

   • Position the new handlebar start switch in the desired location.
   • Secure it in place using screws from the old switch or the ones provided in your kit. Tighten them with the screwdriver or wrench.

6. Finalize and Test:

   • Double-check all connections to ensure they are secure.
   • Reconnect the battery and turn on the motorcycle.
   • Test the new start switch to confirm proper functionality.

7. Clean Up:

   • If necessary, use zip ties to tidy up any loose wiring around the handlebars for a clean look.
   • Dispose of any old components and packaging responsibly.

Conclusion:
You have successfully installed your Universal Handlebar Start Switch Button Kit. Enjoy enhanced functionality and improved aesthetics on your electric motorbike!
