Motorcycle Engine Cylinder Kit Installation Instructions

Product Overview:

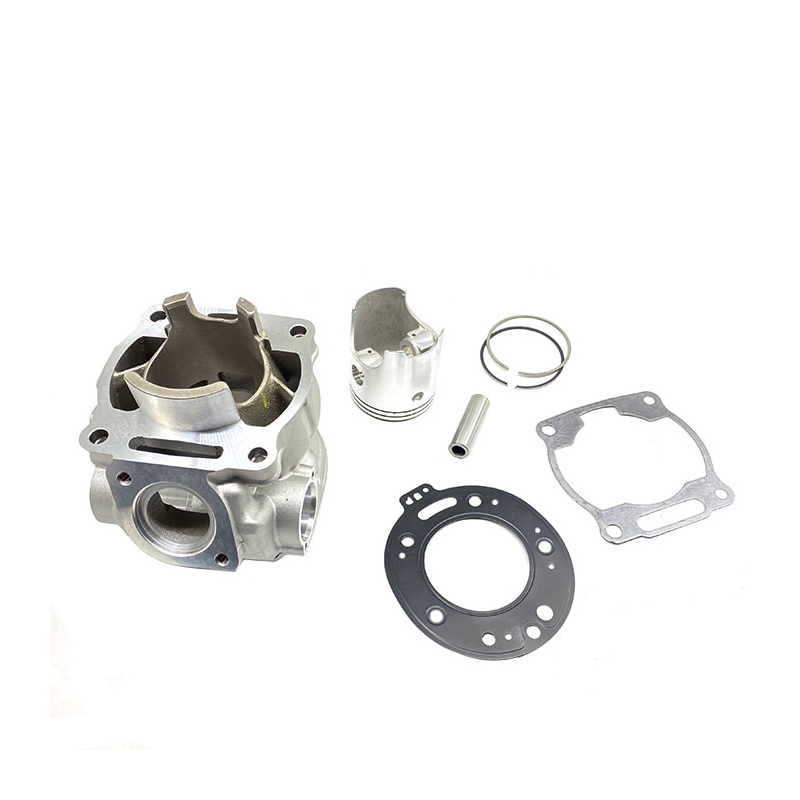

This Motorcycle Engine Cylinder Kit features a 66.8mm piston ring and is compatible with a variety of motorcycle models, designed for 2T engines. It enhances power output and performance, making it an ideal upgrade for better throttle response and acceleration.

Tools Required:

1. Socket wrench set (including metric sizes)
2. Torque wrench
3. Screwdriver set (flathead and Phillips)
4. Piston ring compressor (if necessary)
5. Clean shop rag or lint-free cloth
6. Engine oil for lubrication
7. Gasket scraper (for removing old gasket material)
8. Sealant (if recommended)
9. Safety glasses and gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and the ignition is turned off.
   • Remove the seat and any body panels necessary to access the engine.

2. Disassemble the Engine:

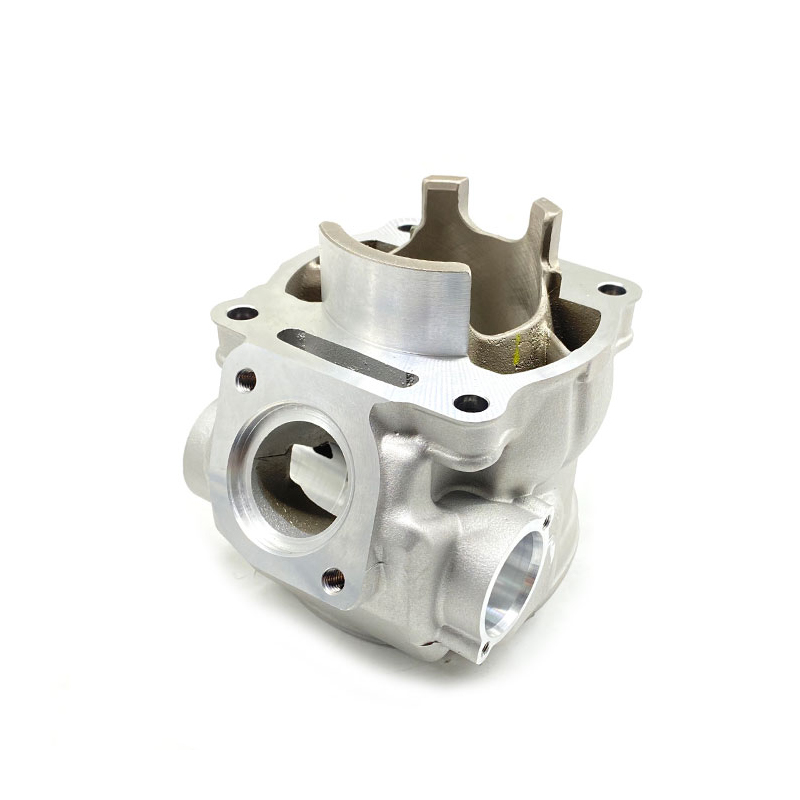

   • Remove the existing cylinder by unscrewing the bolts and carefully lifting it off.
   • Take out the old piston and piston rings, noting their arrangement for reference.

3. Clean the Components:

   • Use a gasket scraper to remove any old gasket material from the cylinder base and head.
   • Wipe all surfaces clean with a shop rag to ensure a proper seal.

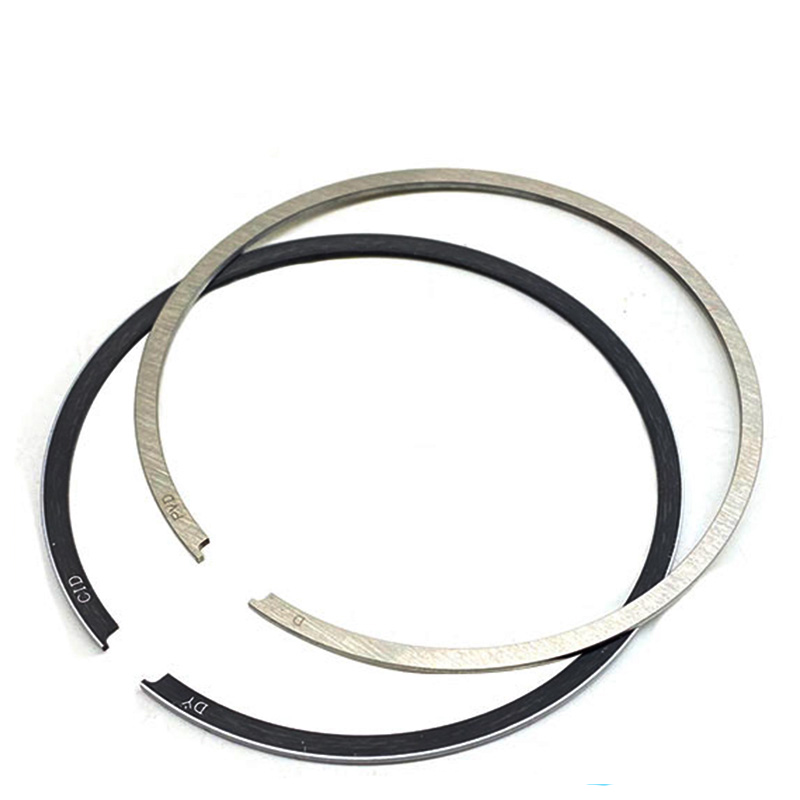

4. Install New Piston Rings:

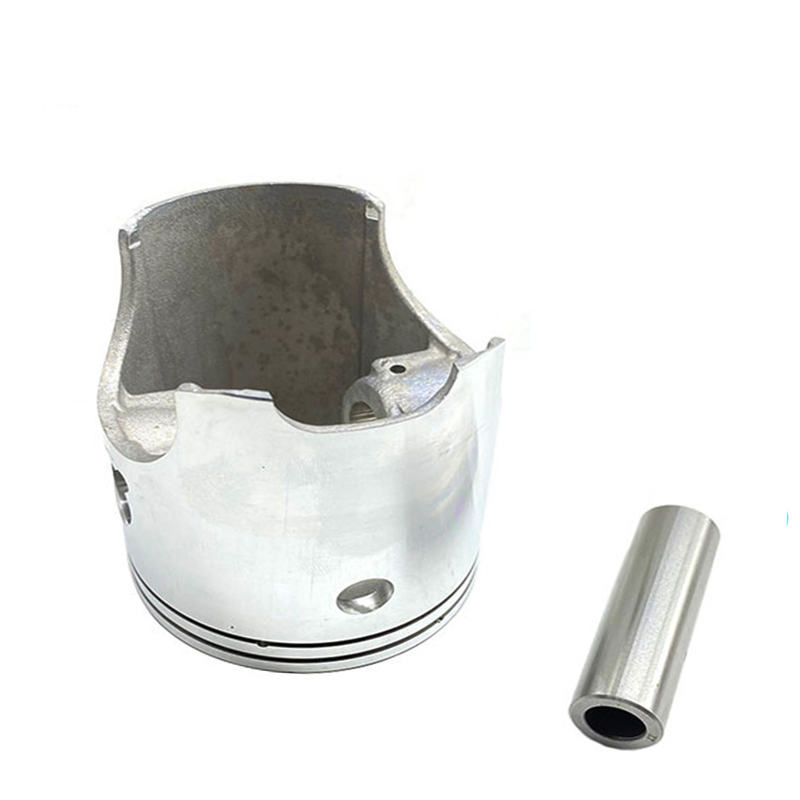

   • Lubricate the new piston and rings with engine oil.
   • Install the piston rings onto the piston, ensuring they are properly seated and aligned.

5. Reassemble the Cylinder:

   • Place the piston into the cylinder and carefully slide the cylinder over the piston.
   • Use a piston ring compressor if needed to help fit the cylinder over the piston.

6. Install the New Gasket:

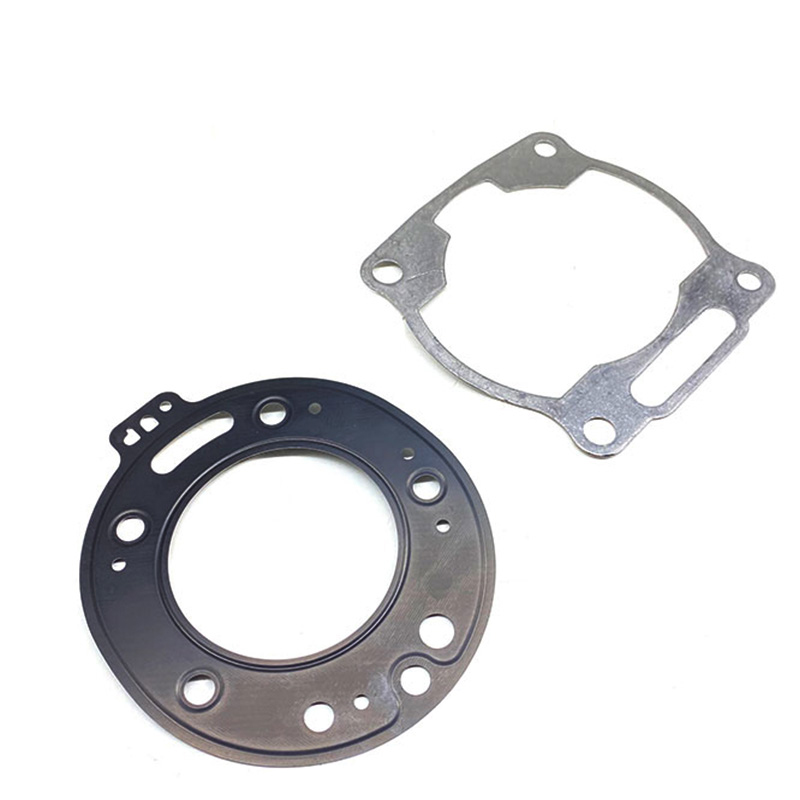

   • Place the new gasket onto the cylinder base, ensuring all holes are aligned.

7. Secure the Cylinder:

   • Tighten the cylinder bolts in a crisscross pattern to ensure even pressure. Use a torque wrench to tighten to manufacturer specifications.

8. Final Assembly:

   • Reattach any body panels or components removed during disassembly.
   • Ensure all bolts are secure and the area is clean.

9. Test the Motorcycle:

   • Start the motorcycle and let it idle for a few minutes.
   • Check for any leaks and listen for unusual sounds.

Safety Precautions:

• Always wear safety glasses and gloves during installation.
• Make sure the motorcycle is turned off and cool to the touch before beginning work.

For any questions or additional support, please feel free to contact our customer service. Enjoy your enhanced riding experience!
