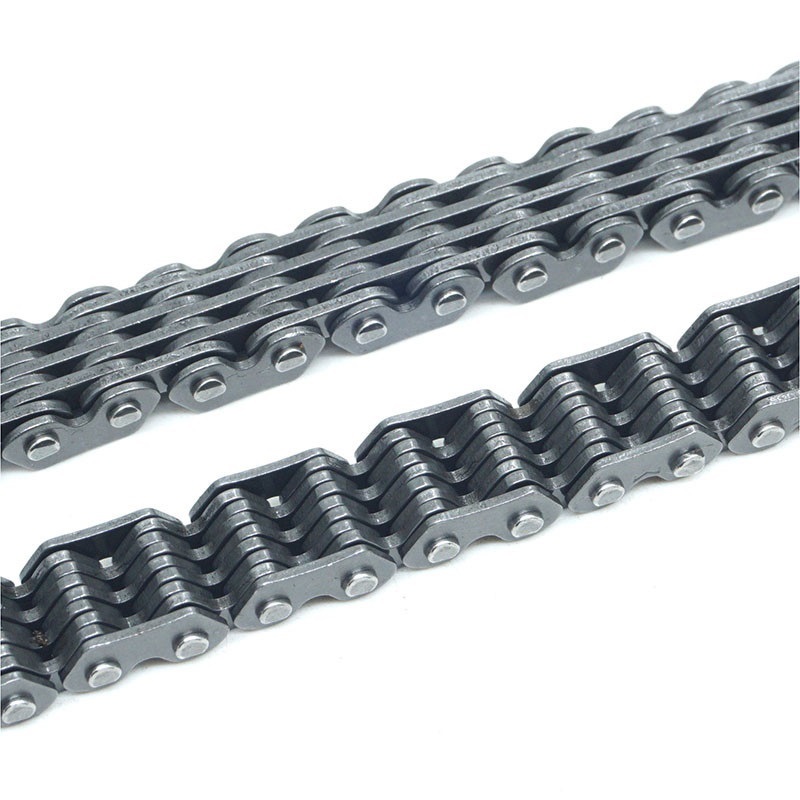

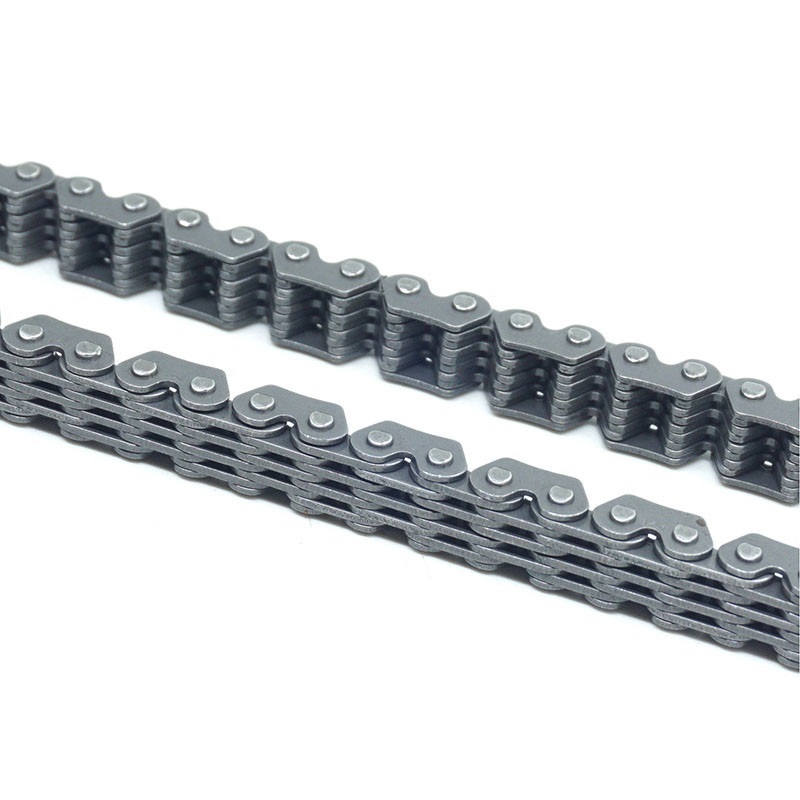

Installation Instructions for Engine Camshaft Timing Chain

Compatible Models:

• S LS650 (1986-2004)
• Boulevard S40 (2005-2015)

Tools Needed:

1. Socket Set - Various sizes (typically 8mm-18mm)
2. Torque Wrench - To ensure the proper tightening of bolts
3. Screwdrivers - Flathead and Phillips head
4. Pliers - Needle-nose pliers or regular pliers
5. Chain Breaker Tool - For removing or adjusting the timing chain if necessary
6. Gasket Scraper - To clean any residues from previous installations
7. Engine Oil - For lubrication during installation
8. Shop Towels - For cleaning and protecting engine surfaces
9. Safety Glasses & Gloves - For personal protection during the installation process
10. Service Manual - Reference for specific torque settings and installation procedures

Installation Steps:

1. Preparation: Ensure the vehicle is on a flat surface and securely lifted. Disconnect the battery terminals to avoid any electrical issues.

2. Remove the Necessary Components: Depending on your vehicle model, remove any components obstructing access to the camshaft timing chain, such as the engine cover, air intake, or other accessories.

3. Inspect Existing Parts: Check for any wear or damage to adjacent components. Replace gaskets if necessary to prevent leaks.

4. Install Timing Chain: Follow the specific instructions in your vehicle’s service manual to install the new camshaft timing chain. Ensure the chain is properly aligned according to timing marks.

5. Reassemble: Once the chain is installed, reassemble any components that were removed. Use a torque wrench to tighten bolts to the specified settings in the service manual.

6. Final Checks: Reconnect the battery and start the engine. Monitor for any unusual noises or performance issues.

7. Dispose of Old Components: Properly dispose of or recycle any old parts to minimize environmental impact.

Maintenance Tip:

Regular checks and timely replacements of the timing chain can significantly extend the lifespan of your engine and reduce overall maintenance costs.

Note:

These instructions are meant for individuals with basic mechanical knowledge. If you are unsure about any step in the process, seek professional assistance to ensure a proper and safe installation.
