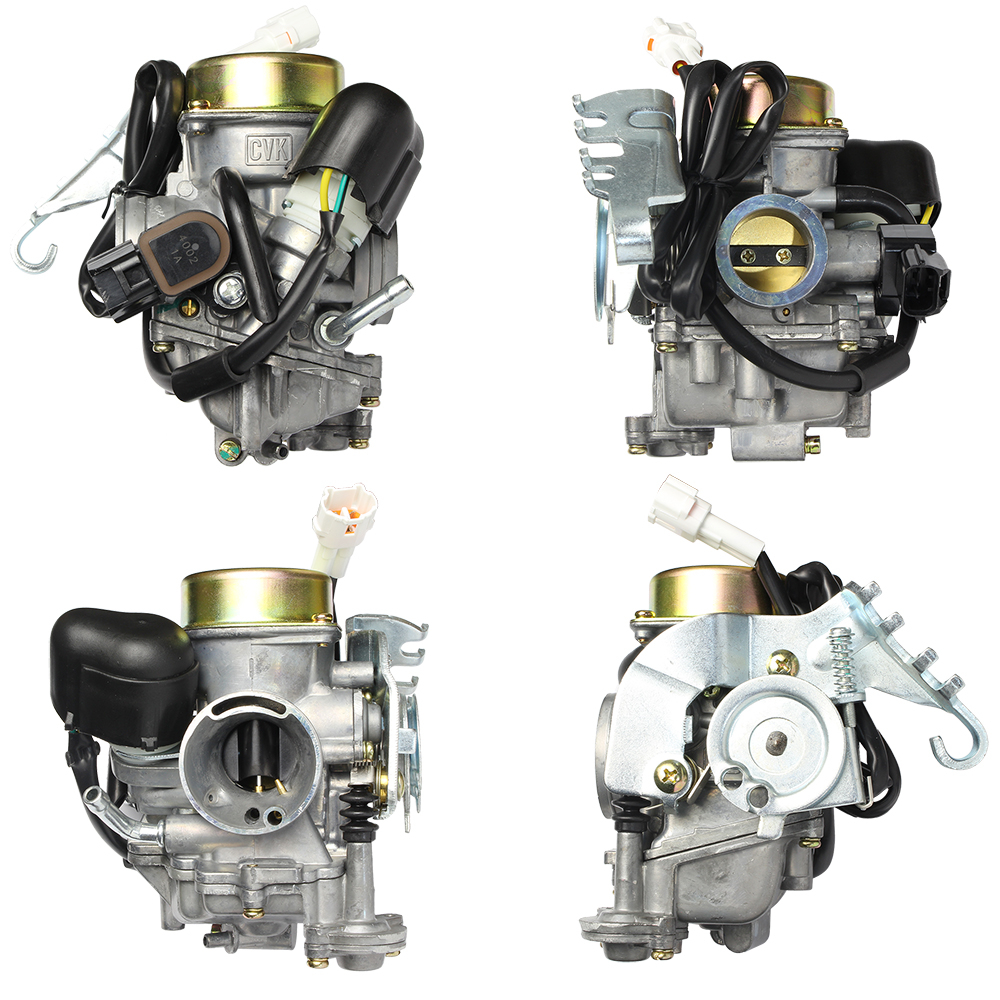

Product Installation Instructions for Electric Choke Compatible Motorcycle Carburetor (100cc to 150cc ATVs)

Tools Required:

1. Screwdrivers:

   • Flathead screwdriver
   • Phillips screwdriver

2. Wrenches:

   • Adjustable wrench
   • Socket set (with the appropriate sizes for your ATV)

3. Pliers:

   • Needle-nose pliers
   • Regular pliers

4. Fuel Line Tool:

   • Fuel line cutter (optional, for easier removal)

5. Safety Gear:

   • Gloves
   • Safety goggles

6. Technical Manual (optional):
   -ATV service manual for reference

Installation Steps:

1. Preparation:

   • Ensure the ATV is on a stable surface.
   • Disconnect the battery for safety.
   • Remove any seat or panels necessary to access the carburetor.

2. Remove the Old Carburetor:

   • Disconnect the fuel lines using pliers or the fuel line tool.
   • Unbolt the old carburetor from the engine using wrenches.
   • Detach any linkage to the throttle and choke.

3. Install the New Carburetor:

   • Position the new electric choke carburetor in place.
   • Secure it with the bolts, ensuring it is tight but not over-tightened.
   • Reconnect the throttle and choke linkage.

4. Connect Fuel Lines:

   • Attach the fuel lines to the new carburetor.
   • Ensure there are no kinks and that connections are secure.

5. Electrical Connection:

   • Connect the electric choke wiring per the instructions provided in the product manual. Make sure the connections are tight and appropriately insulated.

6. Final Checks:

   • Reconnect the battery.
   • Check for any fuel leaks.
   • Ensure all connections are secure and properly fastened.

7. Testing:

   • Start the ATV and let it idle for a few minutes.
   • Check the throttle response and make adjustments if necessary.

Once installation is complete, enjoy your improved ride with the new electric choke compatible carburetor! If you encounter any issues during installation, refer to the ATV service manual or consult a professional mechanic.
