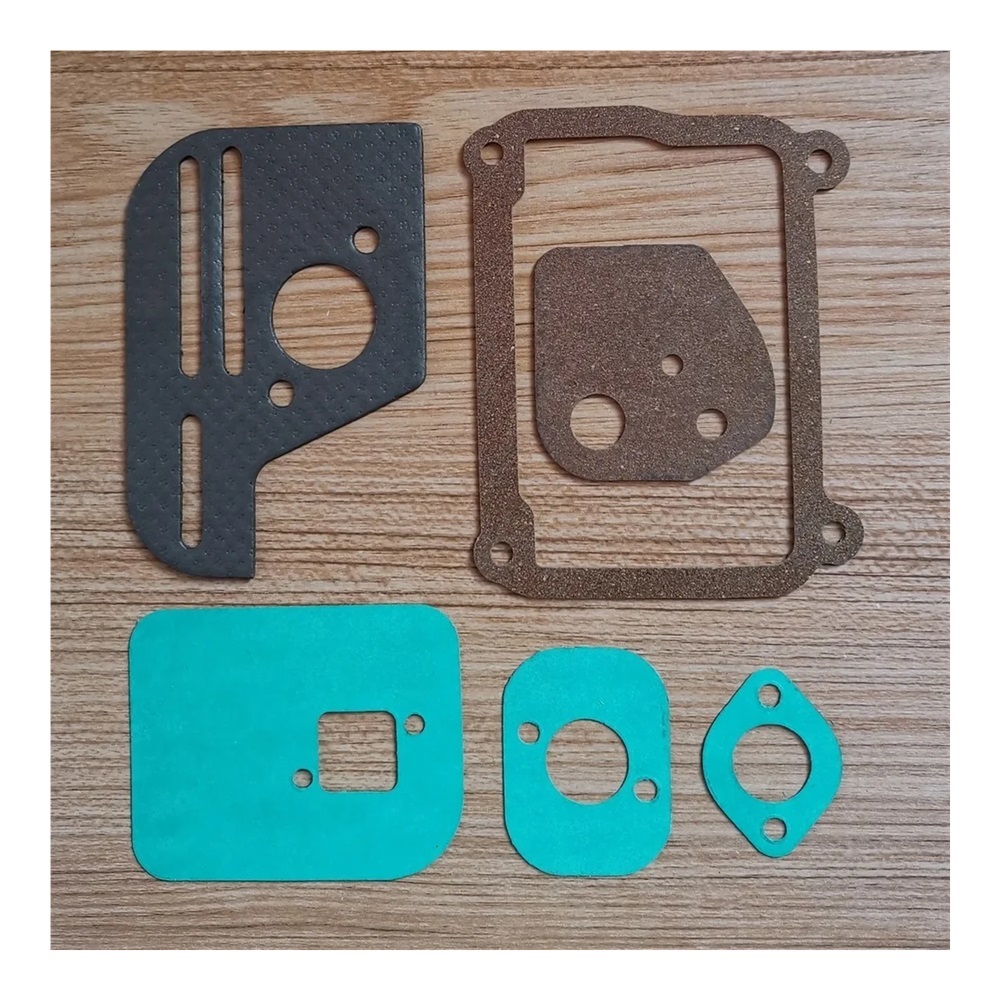

Installation Instructions for the 5 Piece Gasket Set Suitable for GX100 Engine

Tools Required:

-Socket wrench set
-Torque wrench

• Screwdrivers (flathead and Phillips)
  -Pliers
  -Clean rags or cloths
• Gasket scraper or blade
• Engine oil (for lubricating gaskets)
• Safety gloves

Installation Steps:

1. Preparation:

   • Ensure the engine is cool before beginning the installation.
   • Disconnect the battery to avoid any electrical issues.

2. Remove Old Components:

   • Use the socket wrench to remove the components where the gaskets will be installed.
   • Carefully remove old gaskets and any debris with a gasket scraper. Ensure the surfaces are clean and free from contaminants.

3. Check the Engine Surface:

   • Inspect the engine surfaces for any damage or wear. Use a clean rag to wipe the surfaces thoroughly.

4. Apply Engine Oil:

   • Lightly coat the surface of the new gaskets with engine oil. This helps to create a better seal and makes future removal easier.

5. Install New Gaskets:

   • Align the new gaskets with the mounting holes on the engine and carefully press them into place.
   • Ensure that the gaskets sit flat without any wrinkles or misalignment.

6. Reattach Components:

   • Replace the components that were removed earlier, ensuring they are positioned correctly over the new gaskets.
   • Use the torque wrench to tighten the bolts or screws to the manufacturer’s specified torque settings to avoid any leaks.

7. Final Checks:

   • Double-check all connections and ensure everything is secure.
   • Reconnect the battery.

8. Testing:

   • Start the engine and allow it to idle for a few minutes.
   • Inspect the installation areas for any signs of leaking.

By following these steps, you can effectively install the gasket set and ensure your GX100 engine operates efficiently with enhanced performance and durability. Happy DIYing!
