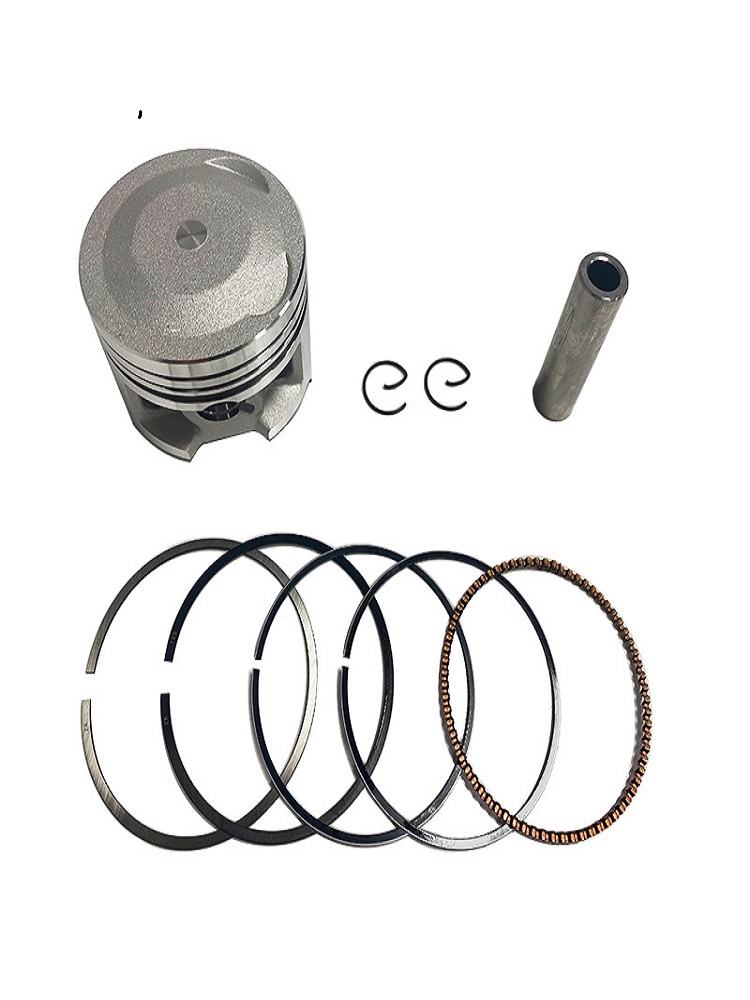

Motorcycle Engine Parts Compatible Piston Ring Kit Installation Instructions

Compatible Models:

-XR250
-XR250L
-XR250R

Year Range:

• 1987 to 2004

Tools Required:

1. Socket Set - To remove and install the engine components.
2. Torque Wrench - To ensure proper tightening of bolts to manufacturer specifications.
3. Piston Ring Compressor - To aid in the installation of the piston into the cylinder without damaging the rings.
4. Screwdriver Set - For various screws and fasteners in the assembly.
5. Pliers - For handling small parts and securing components.
6. Gasket Scraper - To clean old gasket material from the cylinder head and engine case.
7. Oil - Engine oil for lubrication during installation.
8. Rag or Shop Towels - For cleaning and wiping hands during the process.
9. Safety Gear - Gloves and goggles to protect yourself during installation.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and the engine has cooled down.
   • Disconnect the battery and drain the engine oil.

2. Remove the Engine Components:

   • Use the socket set to remove the bolts securing the cylinder head and cylinder.
   • Carefully lift off the cylinder and head.

3. Piston Removal:

   • Use the appropriate tools to remove the old piston from the connecting rod.
   • Clean the area thoroughly, removing old oil and debris.

4. Install New Piston Rings:

   • Carefully install the new piston rings onto the new piston, ensuring they are correctly aligned.
   • Use a piston ring compressor to compress the rings.

5. Piston Installation:

   • Insert the new piston into the cylinder while it is still secured to the piston.
   • Align the piston pin and secure it according to manufacturer specifications.

6. Reassemble Engine Components:

   • Reinstall the cylinder and cylinder head, ensuring all gaskets are intact and properly seated.
   • Tighten all bolts to the specified torque using a torque wrench.

7. Final Checks:

   • Reconnect any removed components and the battery.
   • Fill the engine with the appropriate oil.

8. Start the Engine:

   • Start the motorcycle and check for any leaks or irregular sounds.

Note:

Following these instructions carefully will ensure a successful installation of the piston ring kit. For best results, consult the motorcycle's service manual for specific torque specifications and additional procedures.
