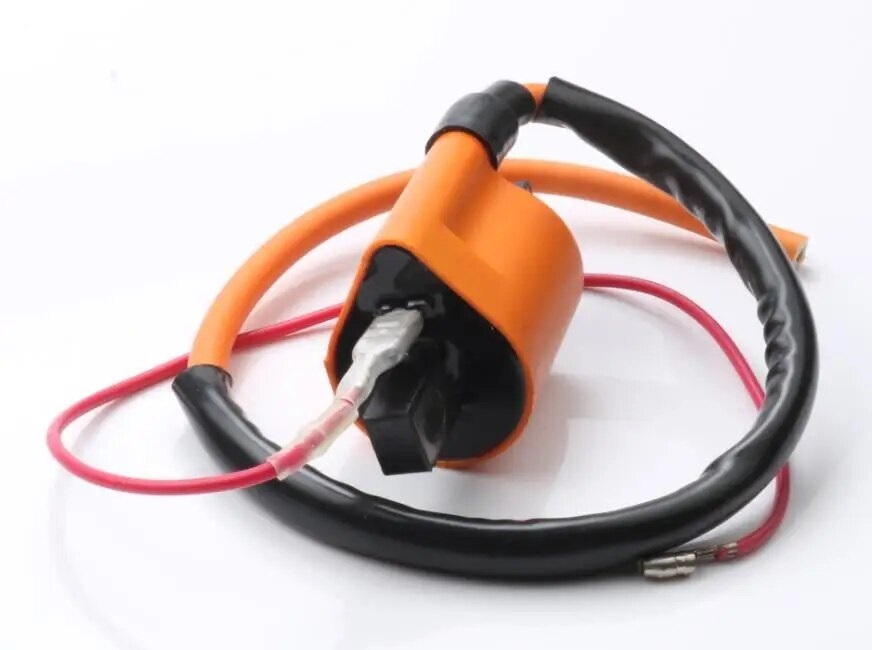

Installation Instructions for Ignition Coil Compatible with 50cc Scooters (2002-2011)

Overview:
This ignition coil is designed specifically for 50cc scooters from 2002 to 2011. It ensures seamless installation and improved performance, enhancing ignition efficiency for a smoother engine start and more responsive acceleration.

Tools Required:

1. Screwdriver Set (Phillips and Flathead)
2. Socket Wrench Set
3. Pliers
4. Wire Cutters/Strippers
5. Torque Wrench (if necessary)
6. Safety Goggles
   7.Gloves

Installation Steps:

1. Safety First:

   • Before starting the installation, ensure the scooter is on a stable surface.
   • Disconnect the battery to prevent any electric shock or short circuit.

2. Remove the Old Ignition Coil:

   • Locate the existing ignition coil on your scooter.
   • Use the appropriate screwdriver or socket to remove any screws or bolts securing the ignition coil.
   • Disconnect the wiring harness by gently pulling on the connectors. If needed, use wire cutters/strippers to help with this process.

3. Install the New Ignition Coil:

   • Position the new ignition coil in place, aligning it with the mounting holes.
   • Secure the ignition coil using the screws or bolts you previously removed, tightening them appropriately with a socket wrench.

4. Reconnect the Wiring:

   • Carefully connect the wiring harness to the new ignition coil. Ensure that all connections are tight and secure to prevent any electrical issues.

5. Reconnect the Battery:

   • Once the installation is complete, reconnect the battery, ensuring that the positive and negative terminals are attached correctly.

6. Test the Installation:

   • Start the scooter to check for proper functionality. Observe the engine performance; it should start smoothly and show improved acceleration response.

7. Final Check:

   • Inspect all connections and ensure everything is secured. This will enhance the stability and longevity of the ignition coil.

Conclusion:
By following these instructions and using the necessary tools, you can easily replace the ignition coil in your 50cc scooter, ensuring better performance and reliability on your rides. Enjoy your improved riding experience!
