Installation Instructions for Stator Coil Compatible with VN900 Vulcan 900 Classic LT & Custom

Product Overview:

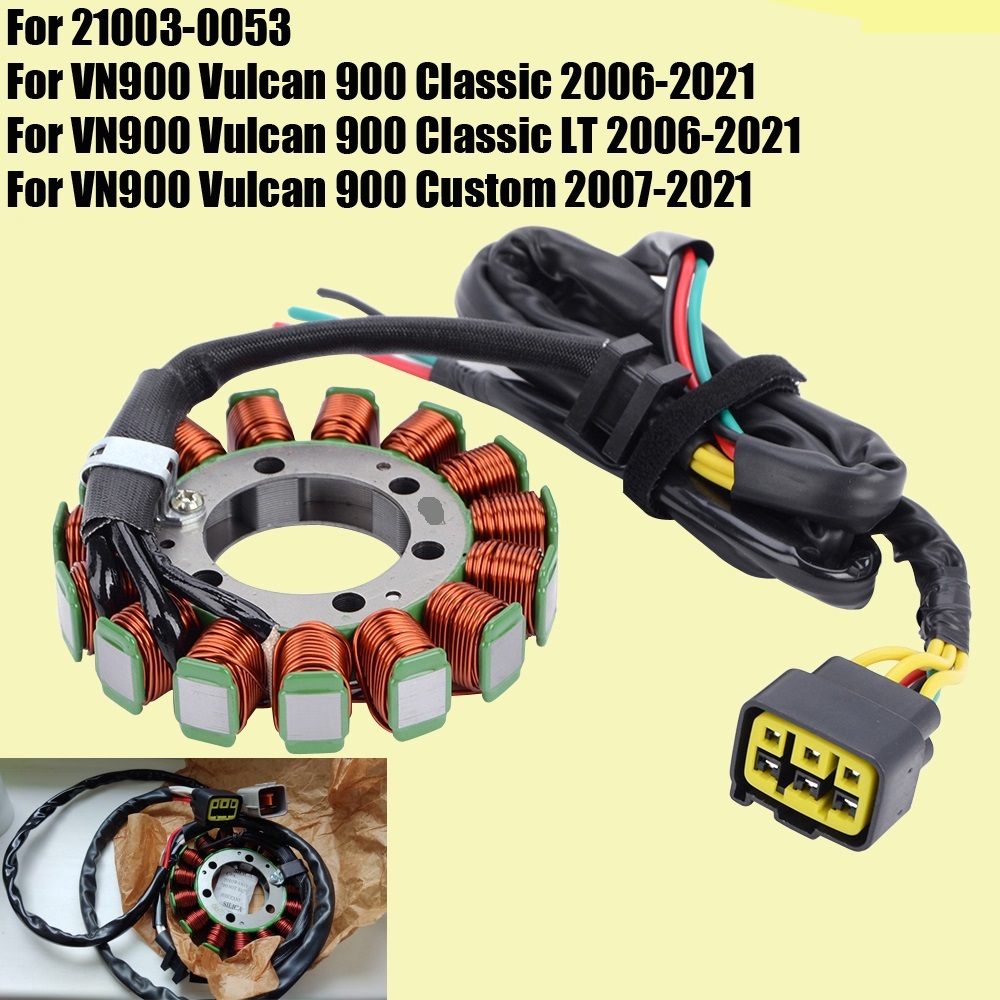

This stator coil is specifically designed for VN900 Vulcan 900 Classic LT (2006-2021) and Custom (2007-2021) models, ensuring a perfect fit and optimal performance. It serves as a compatible replacement for the original generator coil part number 21003-0053 .

Tools Needed:

1. Socket Wrench Set - For removing engine covers and securing bolts.
2. Torque Wrench - To ensure bolts are tightened to the manufacturer's specifications.
3. Screwdriver Set - Flathead and Phillips screwdrivers for various fasteners.
4. Pliers - To assist with electrical connectors and wire management.
5. Wire Strippers - If any wiring needs to be modified or spliced.
6. Multimeter - To test electrical continuity and ensure proper installation.
7. Clean Cloth or Rag - For cleaning surfaces before installation.

Step-by-Step Installation Guide:

1. Preparation:

   • Disconnect the negative terminal of the battery to ensure safety.
   • Place the bike on a stable surface and elevate it if necessary.

2. Remove Components:

   • Remove any necessary bodywork or components obstructing access to the stator cover.
   • Use the socket wrench to unbolt the stator cover and carefully set it aside.

3. Disconnecting the Old Stator:

   • Take note of the wiring connections or label them for easier installation.
   • Carefully disconnect the old stator coil from the electrical connectors.

4. Installing the New Stator Coil:

   • Position the new stator coil in place, ensuring it aligns correctly with the mounting holes.
   • Connect the electrical connectors for the new stator coil as per the notes taken earlier.

5. Reassemble:

   • Replace the stator cover and secure it using the socket wrench.
   • Reinstall any components or bodywork that were removed earlier.

6. Final Checks:

   • Double-check all connections to ensure they are snug and secure.
   • Reconnect the negative terminal of the battery.
   • Use a multimeter to test for continuity and proper electrical function.

7. Test Ride:

   • Start the motorcycle and check for any unusual sounds or warning lights.
   • Take a short ride to ensure the stator coil is functioning correctly and providing the necessary electrical output.

Note:
Always refer to the motorcycle's service manual for specific details regarding torque specifications and any model-specific procedures. If in doubt, consider consulting with a professional mechanic.
