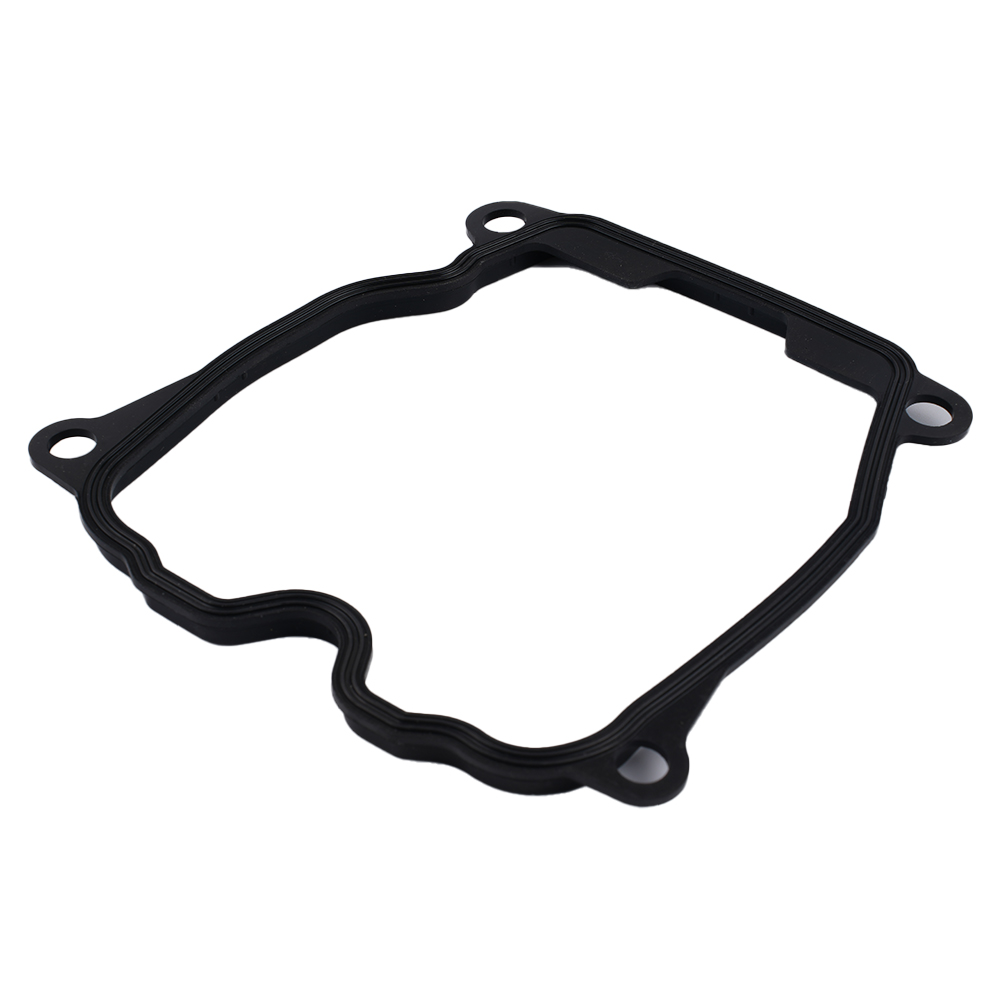

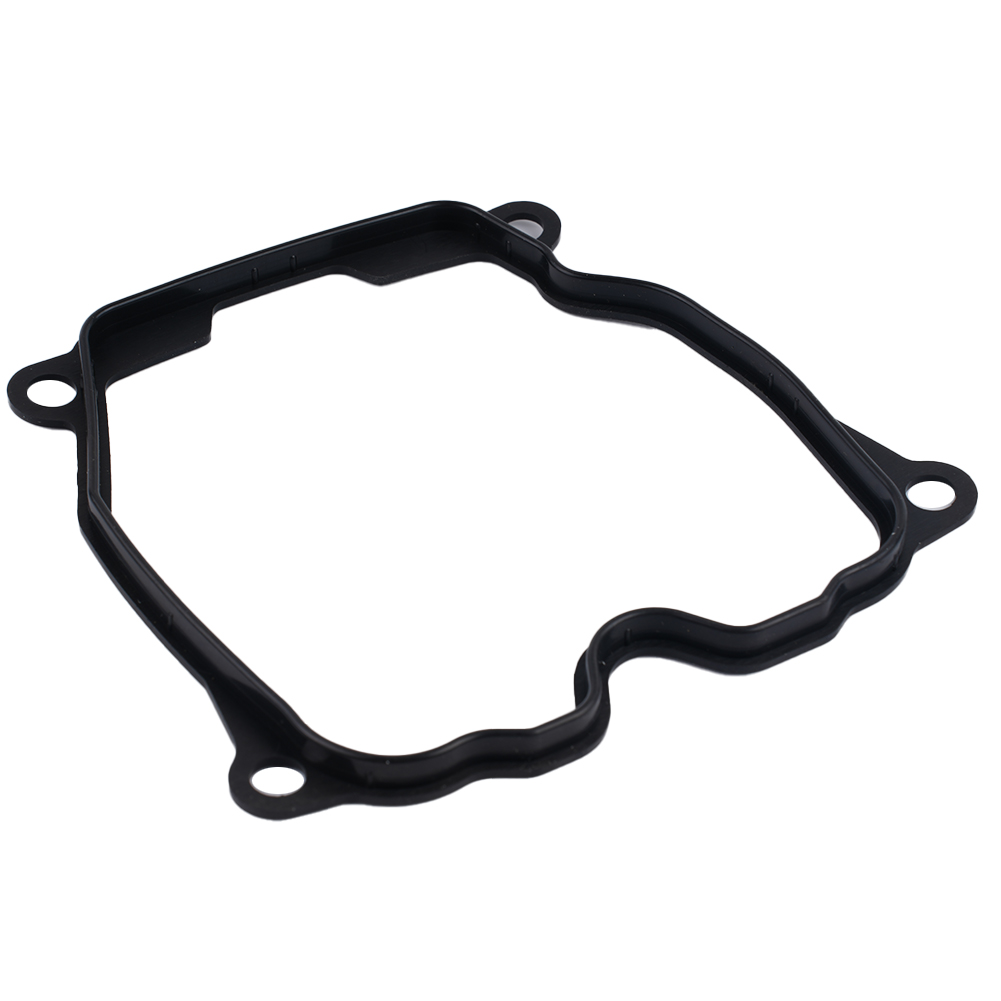

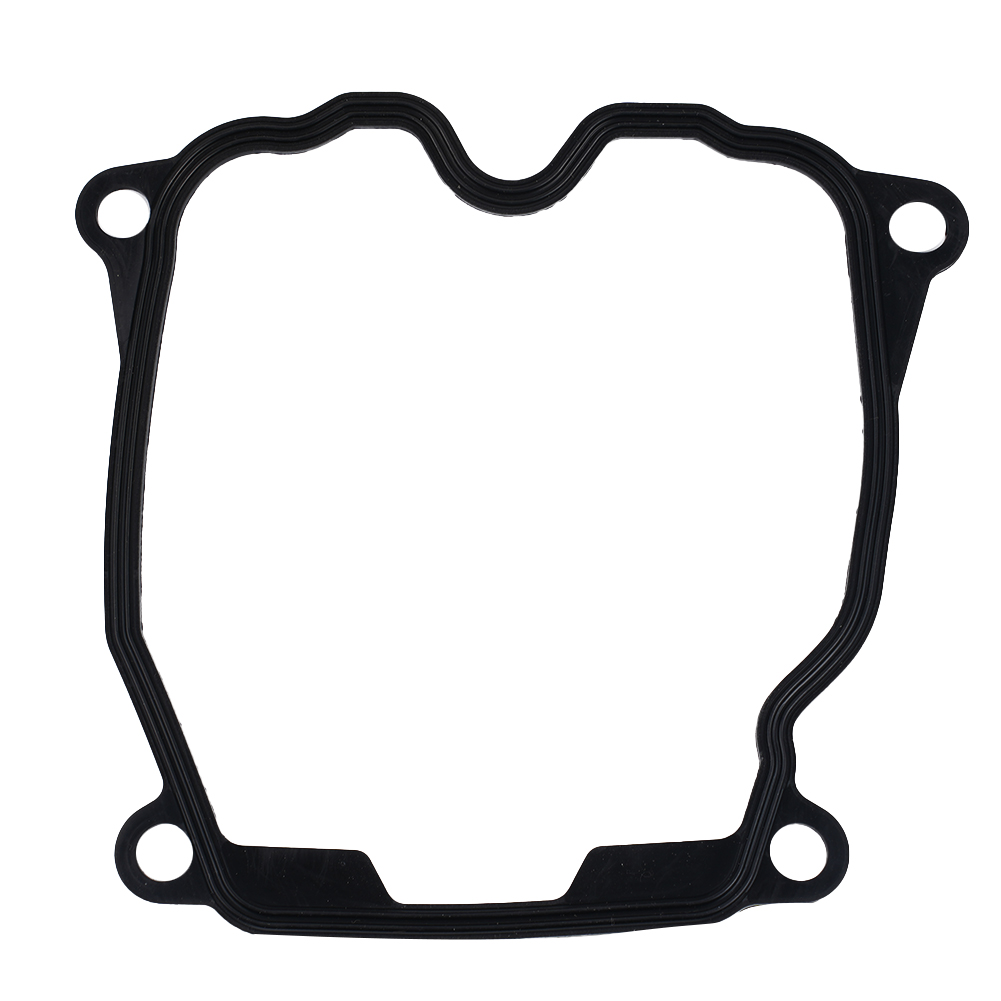

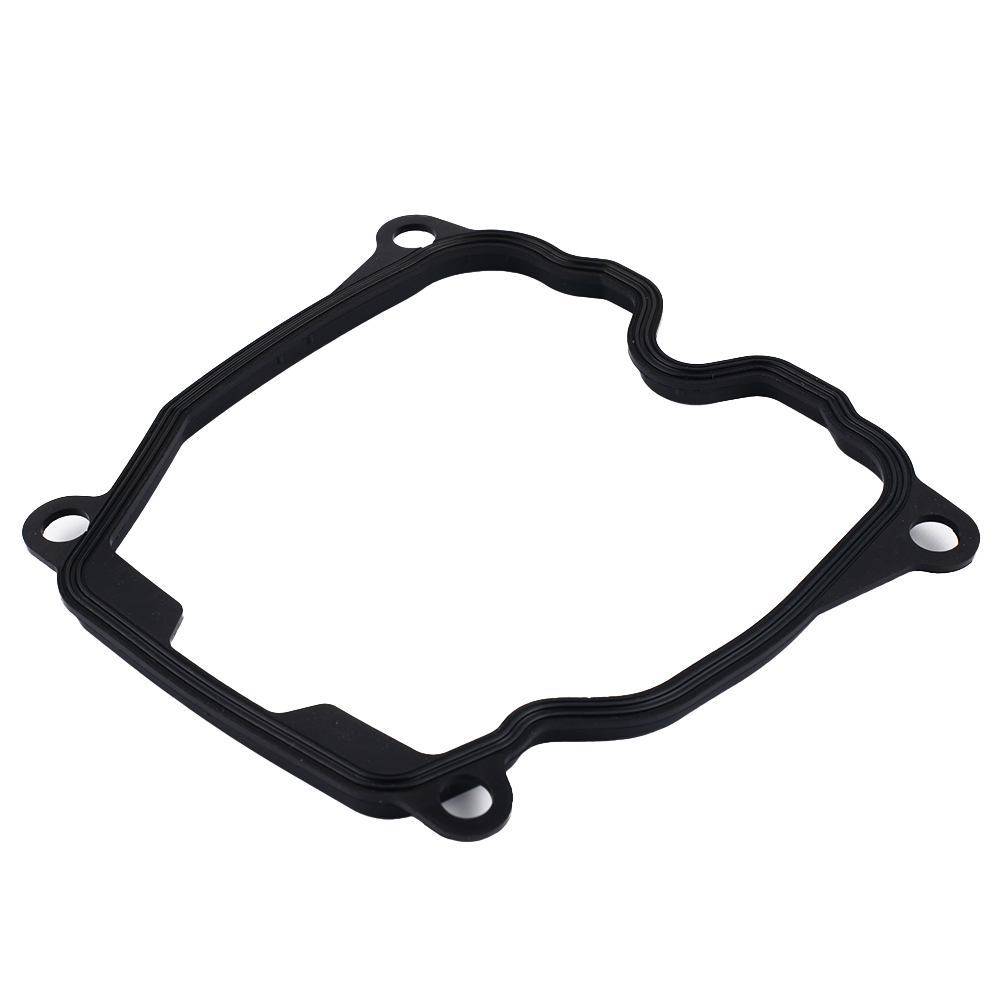

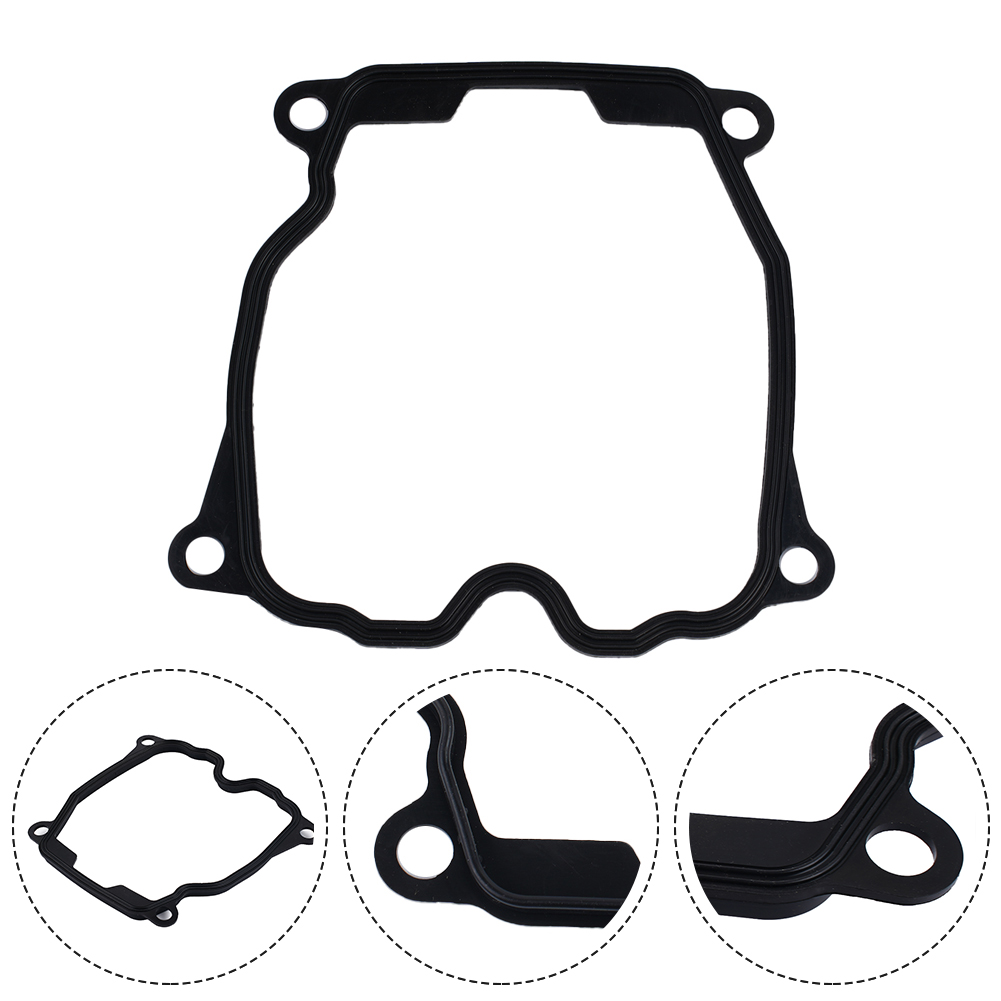

Product Installation Instructions for Compatible Valve Cover Gasket 420630260

Compatibility:

This valve cover gasket is designed for various ATV/UTV models, including 400, 500, 650, 800, and 1000, covering most models from 2003 to 2018.

Tools Required:

Before you begin the installation, please gather the following tools:

1. Socket Wrench Set - For removing and installing the bolts on the valve cover.
2. Torque Wrench - To ensure the bolts are tightened to the manufacturer's specifications.
3. Screwdrivers (Flathead and Phillips) - For removing any additional screws or fasteners.
4. Gasket Scraper or Razor Blade - To clean the surface of the old gasket material from the engine.
5. Clean Cloth or Shop Towels - For cleaning surfaces and wiping off any oil or debris.
6. Engine Degreaser - Optional, but recommended to clean the area around the valve cover.
7. Safety Goggles and Gloves - For personal protection during the installation process.

Installation Steps:

1. Preparation:

   • Ensure the engine is cool before starting the installation.
     -Disconnect the battery to prevent any electrical issues during the process.

2. Remove the Old Valve Cover:

   • Using the socket wrench, remove the bolts securing the valve cover.
   • Carefully lift the valve cover off, ensuring not to damage any surrounding components.

3. Clean the Surface:

   • Use the gasket scraper or razor blade to remove any remnants of the old gasket from the valve cover and engine surface.
   • Wipe the area clean with a cloth to ensure good adhesion for the new gasket.

4. Install the New Gasket:

   • Place the new gasket onto the valve cover, ensuring it fits properly.
   • If your kit includes a bonnet gasket, ensure it is correctly positioned as well.

5. Reattach the Valve Cover:

   • Carefully align the valve cover back onto the engine.
   • Reinsert the bolts and hand-tighten them first.
   • Use the torque wrench to tighten the bolts to the manufacturer’s specifications in a crisscross pattern to ensure even sealing.

6. Final Checks:

   • Inspect the installation to ensure everything is properly aligned and secured.
   • Reconnect the battery.

7. Testing:

   • Start the engine and check for any oil leaks around the valve cover area.
   • Allow the engine to reach operating temperature and recheck for any signs of leakage.

Conclusion:

Following these steps will ensure the proper installation of the Compatible Valve Cover Gasket 420630260, leading to a successful seal and protection for your ATV/UTV’s engine. Enjoy your ride with confidence!
