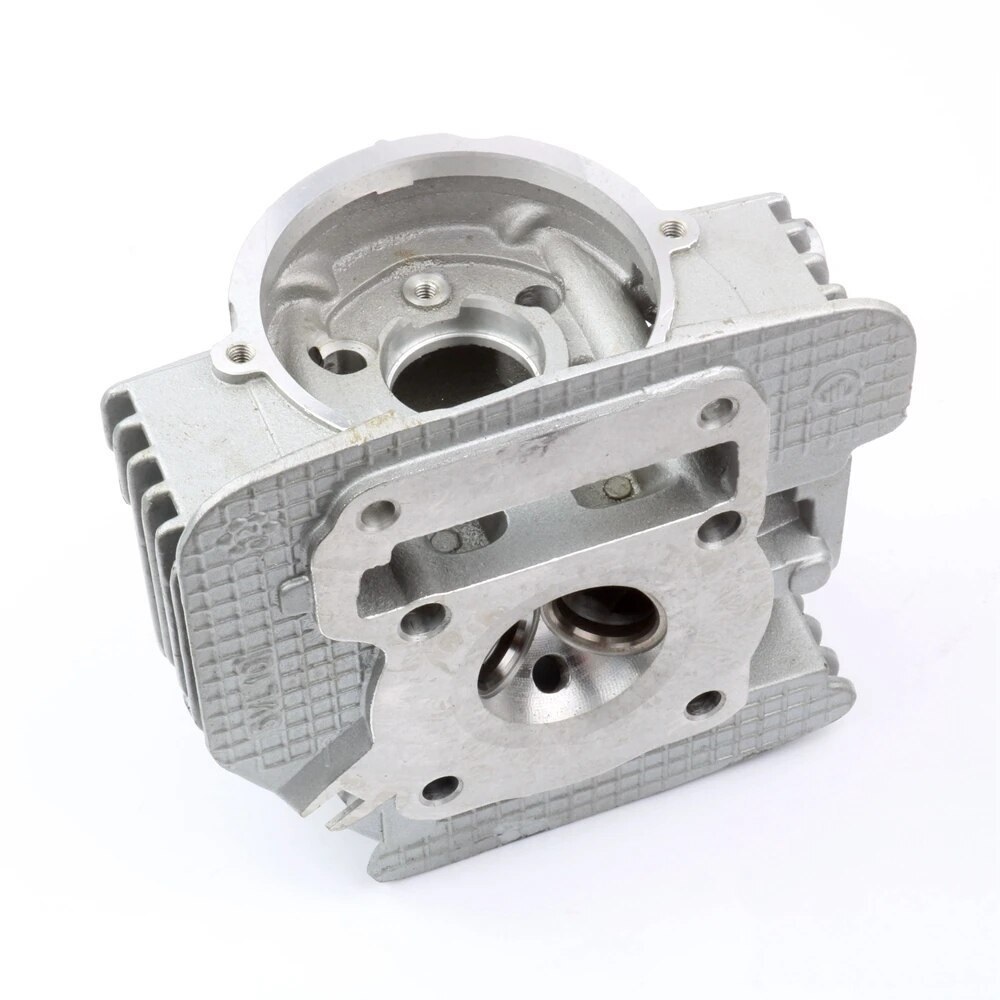

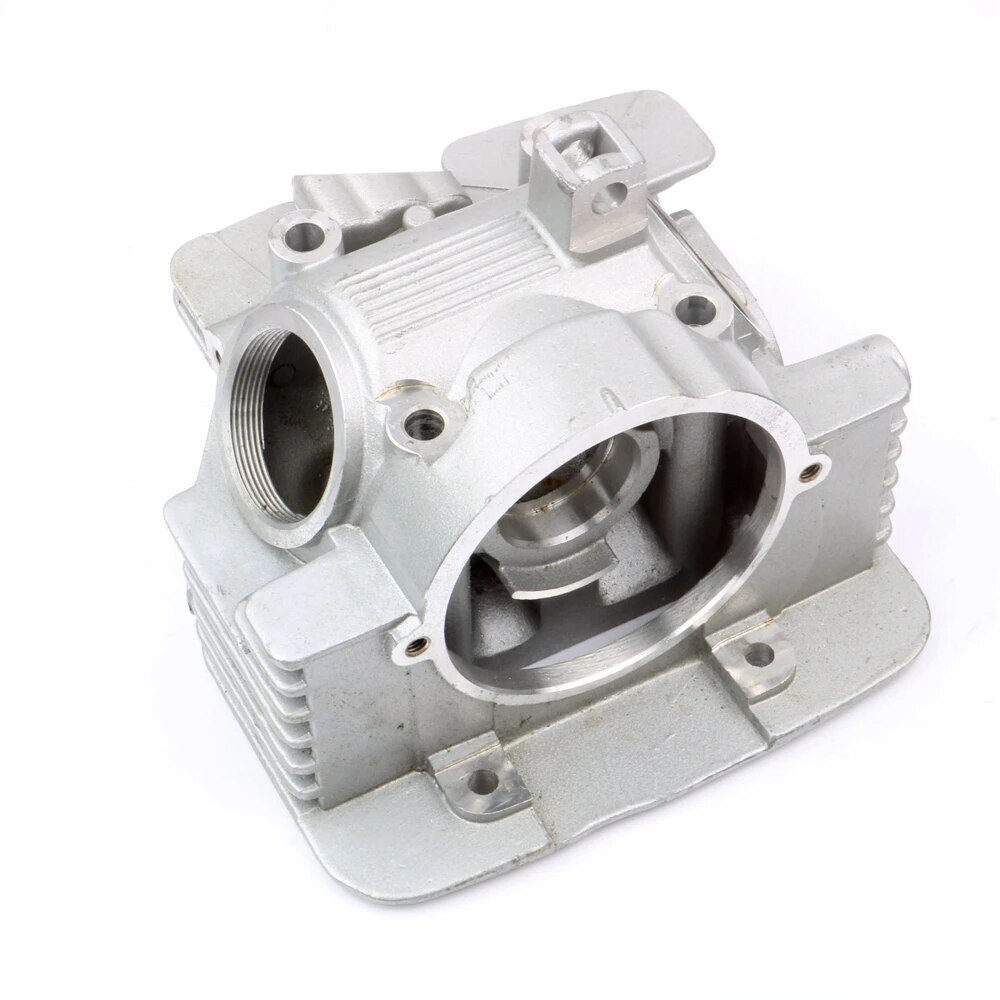

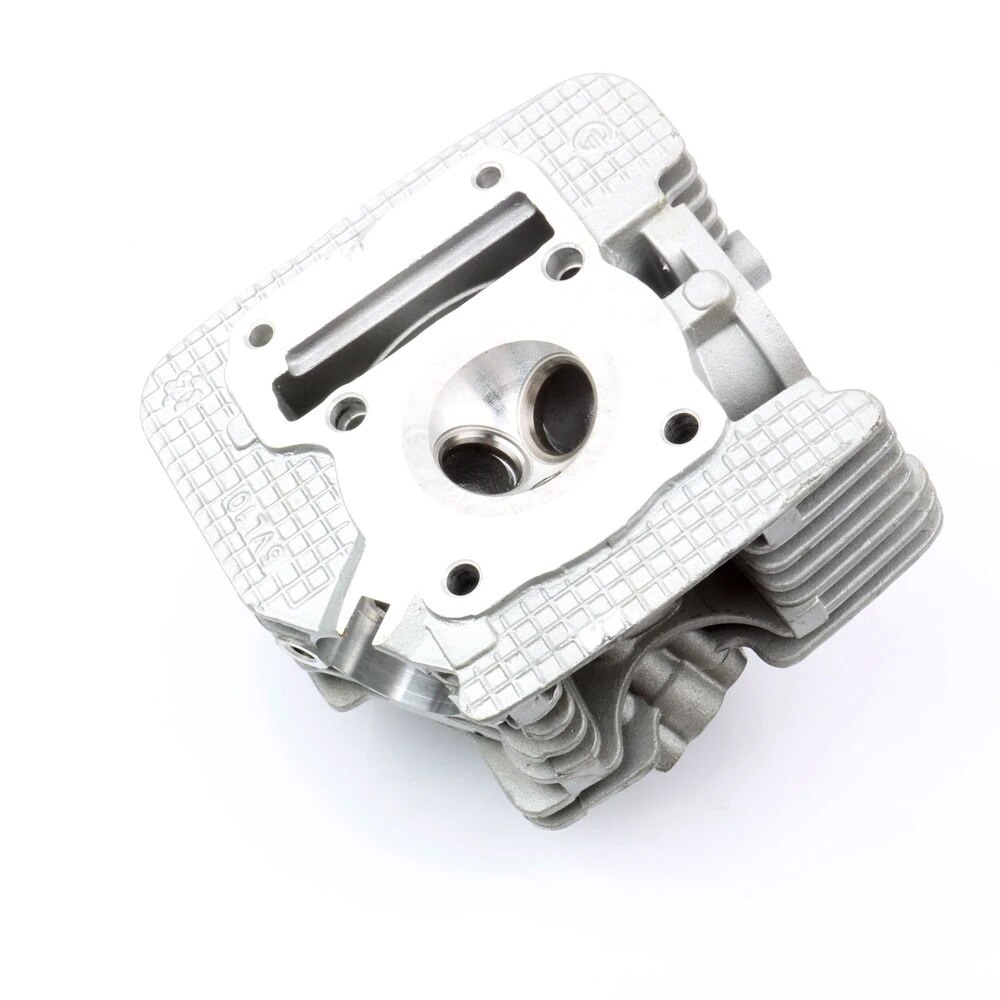

Product Installation Instructions for 125cc Motorcycle Engine Cylinder Head Model 5VL-E1111-01

Tools Required:

1. Socket Wrench Set
2. Torque Wrench
3. Screwdriver Set (Philips and Flathead)
4. Allen Wrenches
5. Gasket Scraper
   6.Clean Rags
6. Engine Oil or Assembly Lubricant
7. Safety Goggles
   9.Gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable and level surface.
   • Disconnect the battery to prevent any electrical issues.

2. Remove the Old Cylinder Head:

   • Drain the engine coolant and oil to avoid spills.
   • Carefully remove any components that obstruct access to the cylinder head (like the exhaust, intake manifold, and any accessory components).
   • Using the socket wrench, loosen and remove the bolts holding the old cylinder head in place. Keep track of the bolts for reinstallation.

3. Clean the Surface:

   • Use the gasket scraper to remove any old gasket material from the cylinder block and head.
   • Wipe the surfaces thoroughly with clean rags to ensure no debris remains.

4. Install New Cylinder Head:

   • Place the new cylinder head (Model 5VL-E1111-01) onto the engine block.
   • Apply a thin layer of engine oil or assembly lubricant to the new gasket to ensure a good seal.
   • Align the bolt holes and insert the bolts by hand, then tighten them in a crisscross pattern using the torque wrench to the manufacturer's specifications.

5. Reconnect Removed Components:

   • Reinstall the intake manifold, exhaust, and any other components that were removed.
   • Ensure all hoses and fittings are properly connected without any leaks.

6. Final Checks:

   • Refill the engine with oil and coolant as necessary.
   • Reconnect the battery.
   • Start the engine and let it idle for a few minutes while checking for any leaks or unusual sounds.

7. Test Drive:

   • Take the motorcycle for a short test ride to ensure everything is functioning properly.
   • Monitor engine performance and check again for leaks after the ride.

Safety Tips:

• Always wear safety goggles and gloves during installation.
• If you encounter any issues or are unsure about any steps, consult a professional mechanic.

By following these instructions, you can successfully install the 125cc Motorcycle Engine Cylinder Head Model 5VL-E1111-01 and ensure optimal performance for your motorbike.
