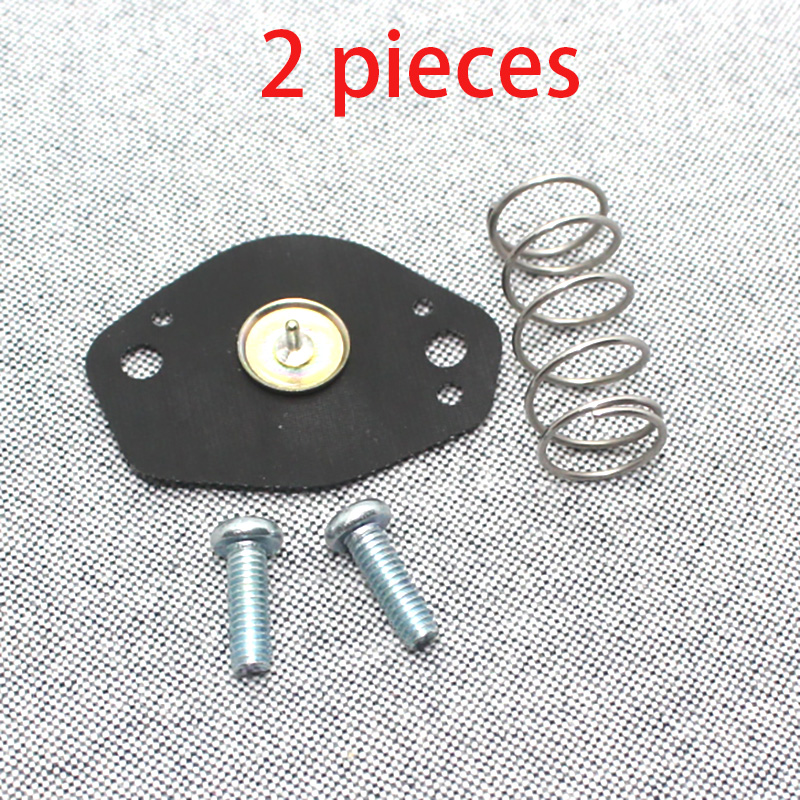

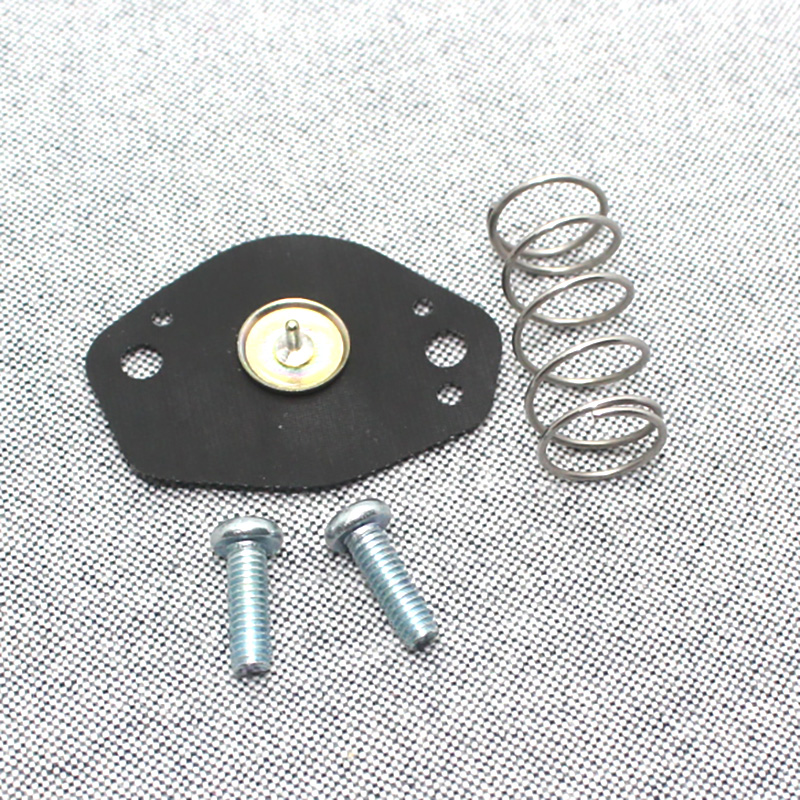

Product Installation Instructions for Carburetor Air Cut Off Valve Diaphragm

Compatibility:
This air cut off valve diaphragm is compatible with various motorcycles and ATVs, including S DRZ 125, 400, SV 650, VL 1500, 800, and LTZ series.

Tools Required:

1. Screwdriver Set - For removing and securing screws on the carburetor.
2. Wrench Set - To loosen or tighten any nuts and bolts.
3. Pliers - For handling small components or clamps.
4. Clean Rag - To clean surfaces before installation.
5. Torque Wrench (optional) - To ensure proper tightening of screws and bolts.
6. Replacement Gaskets (if necessary) - Ensure a proper seal when reassembling.
7. Safety Goggles - For eye protection during the installation process.
8. Gloves - To protect your hands and maintain cleanliness.

Installation Steps:

1. Preparation

   • Ensure the motorcycle or ATV is on a stable surface.
   • Disconnect the battery for safety before starting the installation.

2. Remove the Carburetor

   • Use the screwdriver to remove any screws securing the carburetor.
   • Disconnect any hoses or cables attached to the carburetor using pliers or a wrench as necessary.

3. Install the Air Cut Off Valve Diaphragm

   • Carefully remove the old diaphragm (if applicable) and clean the area.
   • Place the new air cut off valve diaphragm in the designated position within the carburetor.

4. Reassemble the Carburetor

   • Reattach the carburetor to the engine, ensuring all components are securely in place.
   • Tighten all screws or bolts using the wrench while avoiding overtightening.

5. Reconnect Hoses and Cables

   • Reconnect any hoses and cables that were disconnected during removal.

6. Reattach the Battery

   • Once everything is securely in place, reconnect the battery.

7. Test the Vehicle

   • Start the engine and allow it to idle. Check for any unusual noises or leaks.
   • Take the vehicle for a short test ride to ensure proper function and performance.

Maintenance Tips:

• Regularly check the condition of the air cut off valve diaphragm for wear and tear.
• Clean the carburetor regularly to maintain optimal performance.
• Replace the diaphragm as needed for continued efficiency.

By following these instructions and keeping the necessary tools on hand, you can successfully install the Carburetor Air Cut Off Valve Diaphragm and improve your vehicle's performance.
