Installation Instructions for the Universal Rear Seat Support Bracket

Tools Required:

1. Socket wrench set (including various sizes)
2. Screwdriver set (flathead and Phillips)
3. Torque wrench
4. Allen key set
5. Safety goggles
6. Work gloves

Installation Steps:

1. Preparation:

   • Ensure that you have all the necessary tools ready.
   • Place the motorcycle on a stable surface and engage the kickstand.
   • Wear safety goggles and gloves for protection.

2. Remove Existing Seat:

   • Use the appropriate size socket wrench to remove the bolts securing the existing seat to the subframe.
   • Carefully lift and remove the seat, set it aside.

3. Align the Support Bracket:

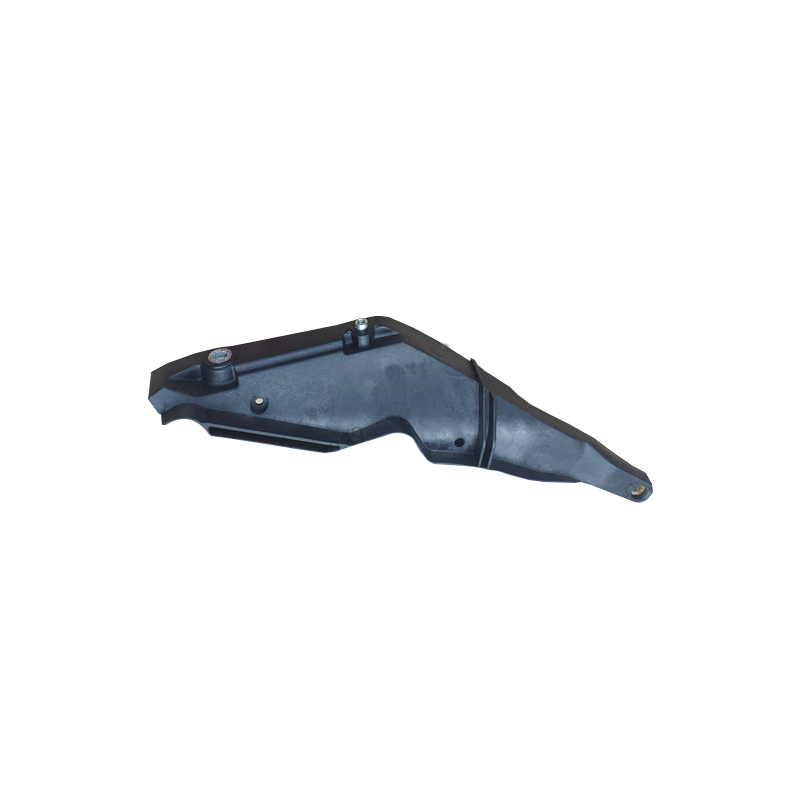

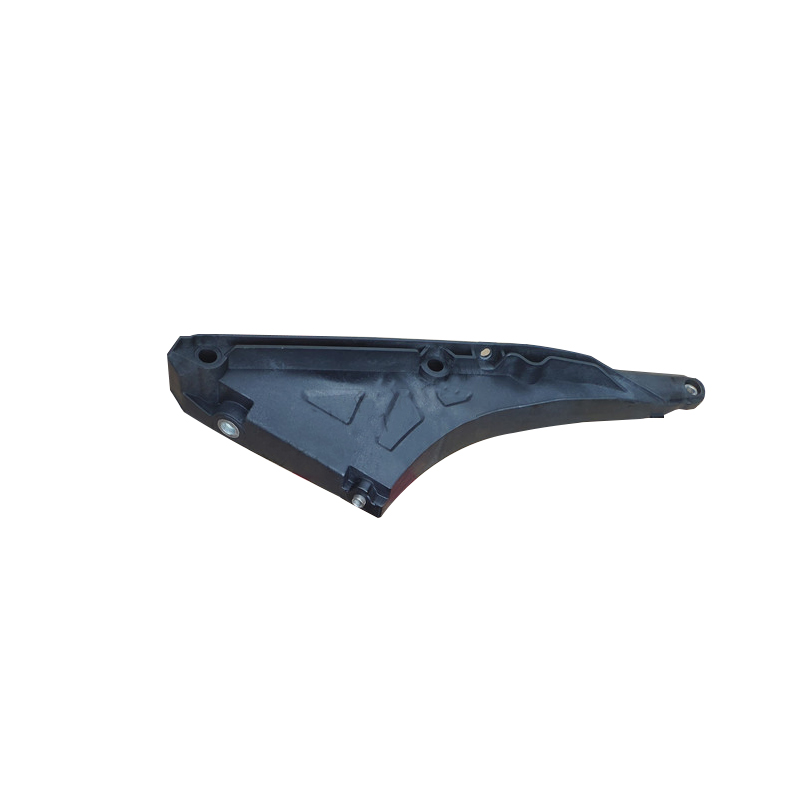

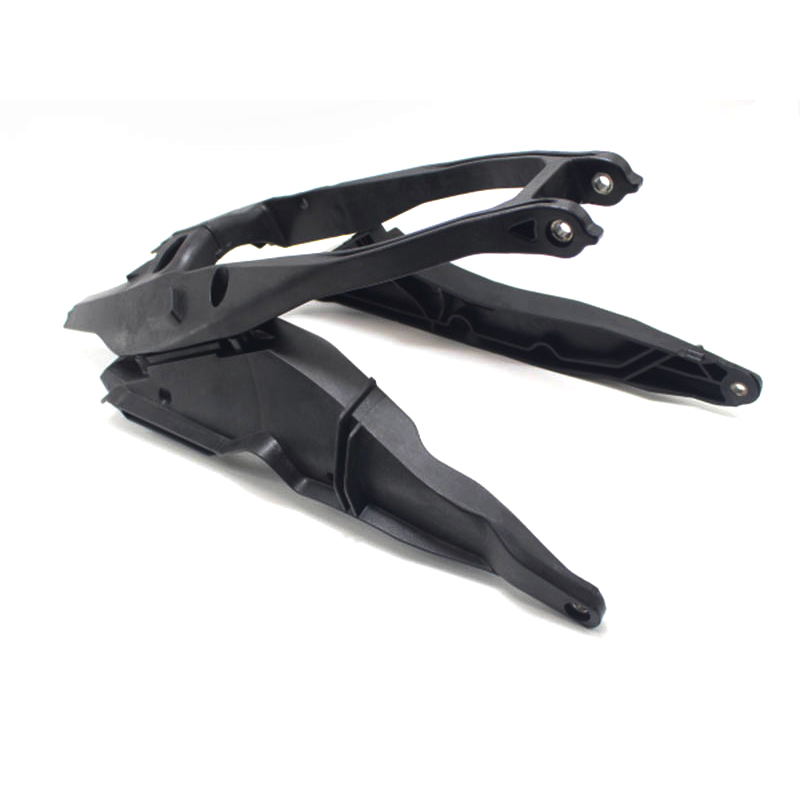

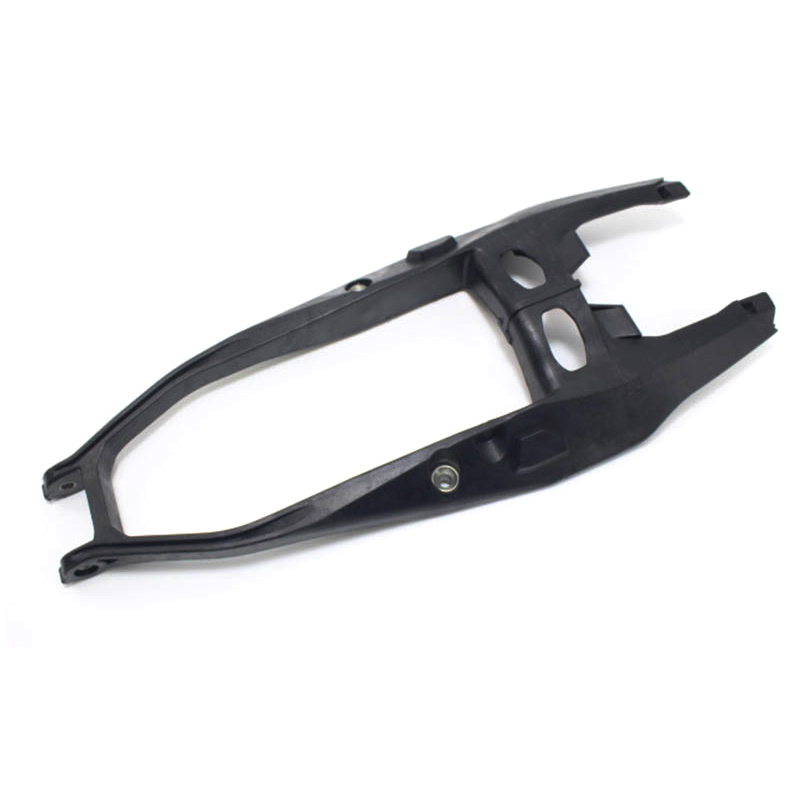

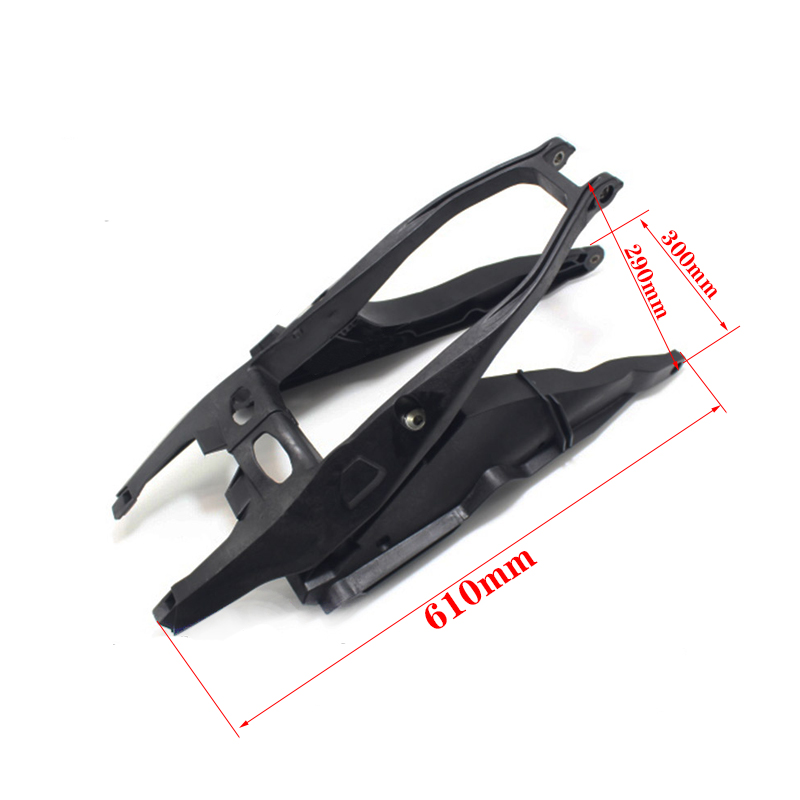

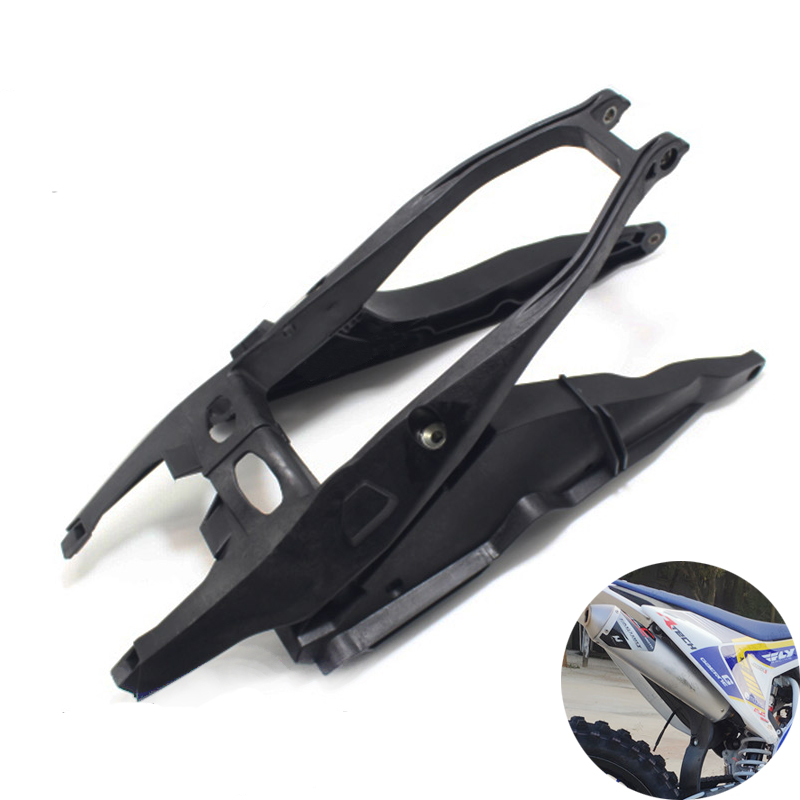

   • Position the Universal Rear Seat Support Bracket in the intended area on the subframe.
   • Ensure that the bracket aligns correctly with the bolt holes.

4. Secure the Bracket:

   • Insert the provided bolts through the bracket into the subframe holes.
   • Hand-tighten the bolts initially to hold the bracket in place.

5. Tighten the Bolts:

   • Using the torque wrench, tighten the bolts to the manufacturer's recommended torque specifications. Be sure not to overtighten to avoid damage.

6. Reattach the Seat:

   • Position the seat back onto the motorcycle, aligning it with the newly installed support bracket.
   • Secure the seat with the original bolts using the socket wrench.

7. Final Checks:

   • Ensure that all bolts are tightly secured.
   • Double-check that the support bracket is firmly in place.

8. Test the Installation:

   • Before riding, gently tug on the seat to confirm that it is secured properly and that the support bracket is functioning as intended.

By following these steps, you can install the Universal Rear Seat Support Bracket safely and effectively, enhancing your off-road motorcycle's performance and ride comfort.
