Installation Instructions for Needle Jet Holder for PWK Carburetor

Overview

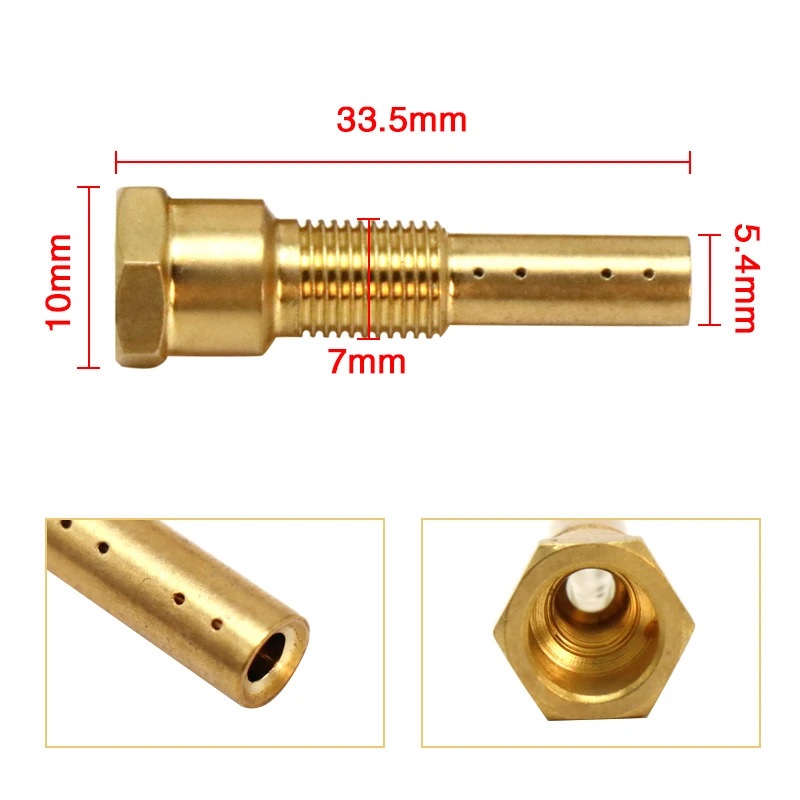

This Needle Jet Holder is compatible with PWK Carburetors and offers a range of hole sizes (8, 12, 16, 18, 20, 24, 30) to meet your various needs. The precision manufacturing ensures a perfect fit between the needle jet and the carburetor, improving fuel mixing efficiency.

Required Tools
Before you begin the installation, please make sure you have the following tools ready:

1. Screwdriver Set

   • Flathead screwdriver
   • Phillips screwdriver

2. Wrench Set

   • Adjustable wrench
   • Socket set (if needed for specific bolts)

3. Pliers

   • Needle-nose pliers (for finer adjustments)

4. Cleaning Supplies
   -Carburetor cleaner spray
   -Clean cloth/rags

5. Torque Wrench (optional)

   • For ensuring proper tightening of screws

Installation Steps

1. Preparation

   • Ensure your motorcycle or ATV is turned off and parked on a stable surface. Disconnect the battery to avoid any electrical issues during installation.

2. Remove the Carburetor

   • Using the screwdriver and wrench, carefully detach the carburetor from the intake manifold. Take note of how the components are aligned for easier reassembly.

3. Clean the Carburetor

   • Use the carburetor cleaner to clean any residues or buildup inside and around the carburetor. This will provide a clean surface for the new needle jet holder.

4. Install the Needle Jet Holder

   • Select the appropriate needle jet holder size based on your carburetor specifications (8, 12, 16, 18, 20, 24, or 30).
   • Align the holder with the needle jet opening and press it into place.

5. Reassemble the Carburetor

   • Carefully reattach the carburetor to the motorcycle or ATV. Ensure all screws and bolts are tightened securely.
   • Use a torque wrench if needed to adhere to the manufacturer’s specifications.

6. Reconnect the Battery

   • Once everything is securely fastened, reconnect the battery.

7. Testing

   • Start the engine and test the performance. Make necessary adjustments if needed for optimal operation.

Conclusion
Installation of the Needle Jet Holder is straightforward and can be accomplished without professional skills. By following these instructions, you will enhance the performance of your motorcycle or ATV. Enjoy your ride!
