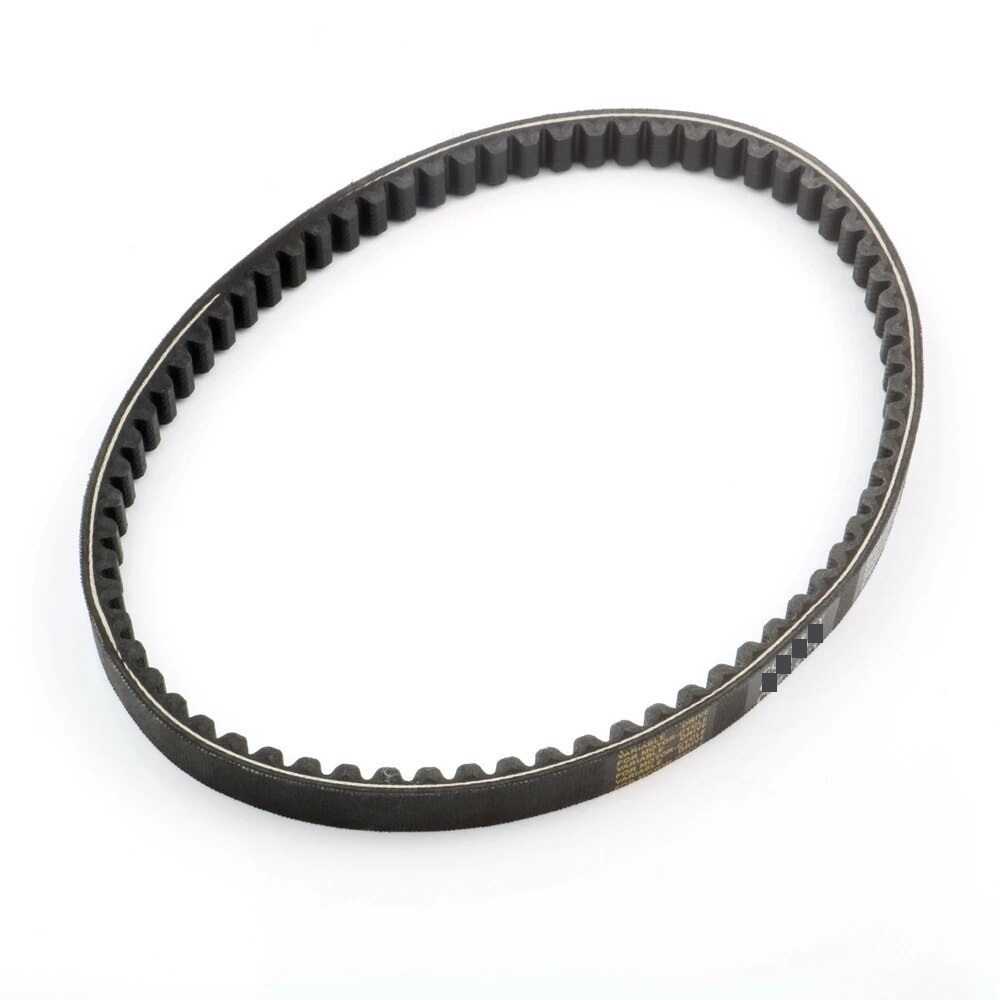

Installation Instructions for Drive Belt CVT for 50cc Scooter Engine Parts Model 668 16.5 28

Tools Required:

1. Socket Wrench Set - For removing and securing bolts.
2. Screwdriver Set - To remove any screws that may be holding components in place.
3. Pliers - For gripping and manipulating small parts.
4. Torque Wrench - To ensure that bolts are tightened to the manufacturer's specifications.
5. Gloves - To protect your hands during installation.
6. Safety Glasses - To protect your eyes from any debris.

Installation Steps:

1. Preparation:

   • Ensure the scooter is on a stable surface.
   • Disconnect the battery to prevent any electrical issues during installation.

2. Remove the Cover:

   • Use the socket wrench and screwdriver to carefully remove any bolts and screws securing the belt cover.

3. Inspect the Old Drive Belt:

   • Take a moment to inspect the old drive belt and note how it is positioned. This will help you during the installation of the new belt.

4. Remove the Old Drive Belt:

   • Carefully stretch and remove the old drive belt from the pulleys. Use your pliers if necessary to help with gripping.

5. Install the New Drive Belt:

   • Position the new drive belt (Model 668 16.5 28) onto the pulleys as per the notes you took during the removal of the old belt. Ensure that it sits properly in the grooves.

6. Reassemble the Cover:

   • Replace the belt cover and secure it using the bolts and screws you removed earlier. Be sure to tighten them securely but do not overtighten, as this can cause damage.

7. Reconnect the Battery:

   • Reattach the battery and ensure all connections are secure.

8. Test the Scooter:

   • Start the scooter and test for proper operation, ensuring smooth acceleration and power output.

Conclusion:

Following these steps will ensure a successful installation of the Drive Belt CVT for your 50cc scooter. If you encounter any complications, refer to your scooter's manual or consult a professional mechanic. Enjoy your improved riding experience!
