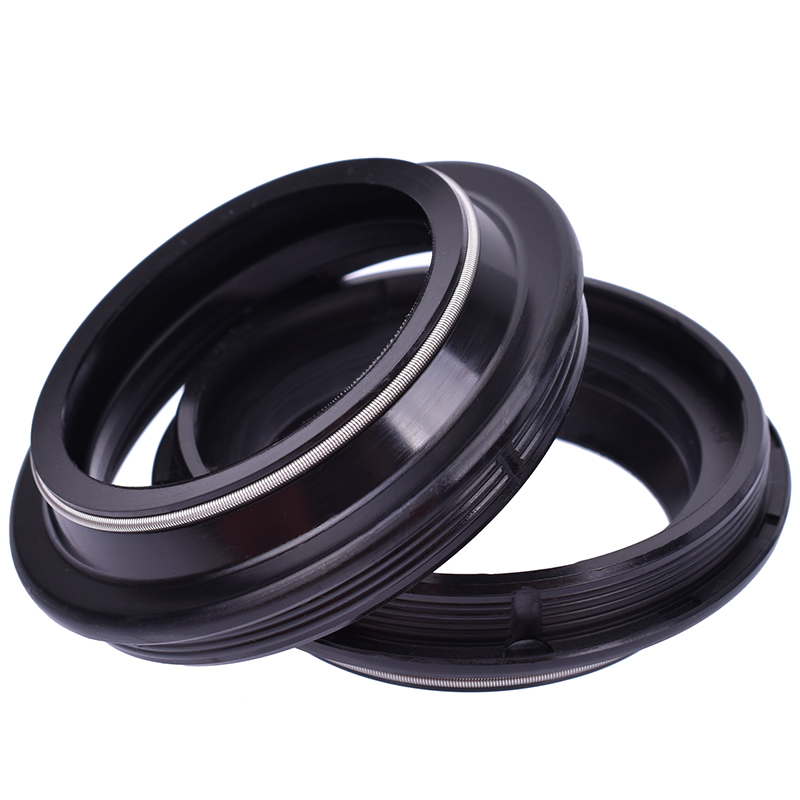

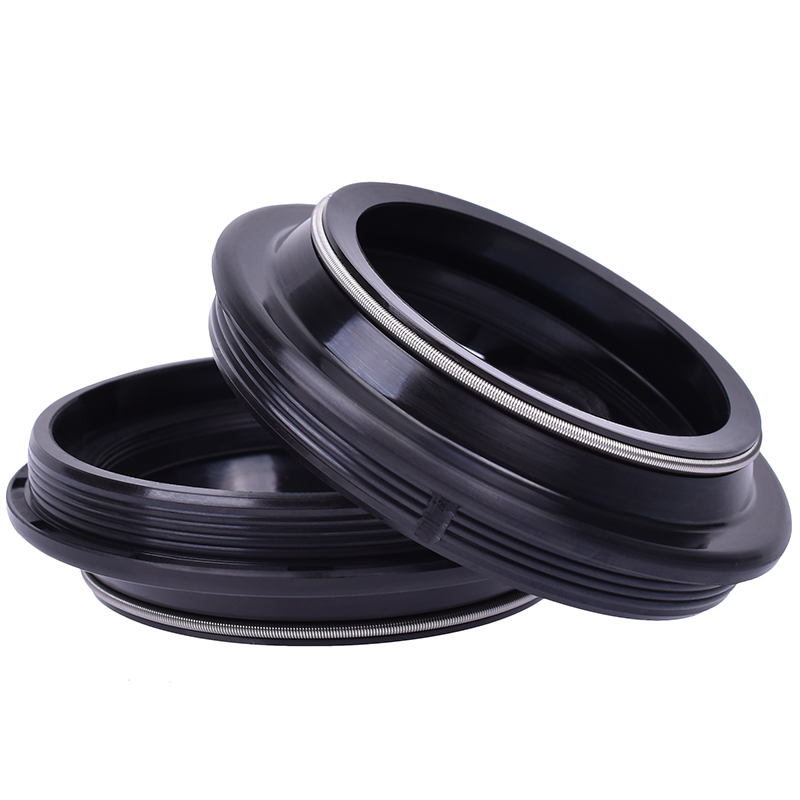

Product Installation Instructions for Dust Cover for Front Fork Oil Seal

Compatibility:
This dust cover is designed for VT750 and Spirit 750 series motorcycles, specifically compatible with models such as VT750 and VFR750.

Tools Required:

1. Phillips screwdriver
2. Flathead screwdriver
3. Adjustable wrench
4. Allen key set (if applicable)
5. Torque wrench
6. Rubber mallet or soft hammer
   7.Clean rag or cloth
7. Motorcycle jack or stand (for stability)

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is parked on a flat and stable surface.
   • Use a motorcycle jack or stand to elevate the front of the motorcycle for easier access to the front forks.

2. Remove Front Wheel:

   • Use the appropriate tools (usually a socket or an Allen key) to remove the front wheel nuts or bolts.
   • Carefully take off the front wheel and set it aside.

3. Remove Old Dust Cover:

   • Locate the old dust cover on the front fork.
   • Use a flathead screwdriver to gently pry off the old dust cover. You may need to tap it lightly with a rubber mallet for easier removal.

4. Clean the Area:

   • Wipe the area around the fork seals with a clean rag to remove any dirt or debris. This step is crucial to ensure a proper seal and extend the life of the new dust cover.

5. Install New Dust Cover:

   • Position the new dust cover (41x54x11mm) over the fork seal.
   • Using your hand, press down firmly and evenly until the dust cover is securely placed in position. For added assurance, lightly tap around the edges with a rubber mallet.

6. Reinstall Front Wheel:

   • Carefully place the front wheel back onto the fork.
   • Ensure it is aligned properly, then reattach the nuts or bolts. Use the torque wrench to tighten them to the manufacturer’s specifications.

7. Final Check:

   • Give the new dust cover a visual check to ensure it is seated correctly.
   • Ensure that all tools are removed from the working area and that the motorcycle is secure on the stand.

8. Test Ride:

   • Once everything is reassembled, take the motorcycle out for a short test ride.
   • Observe for any unusual noises or handling issues. If everything feels stable, the installation is complete!

Note: Always refer to your motorcycle’s service manual for specific instructions and torque specifications related to your model.
