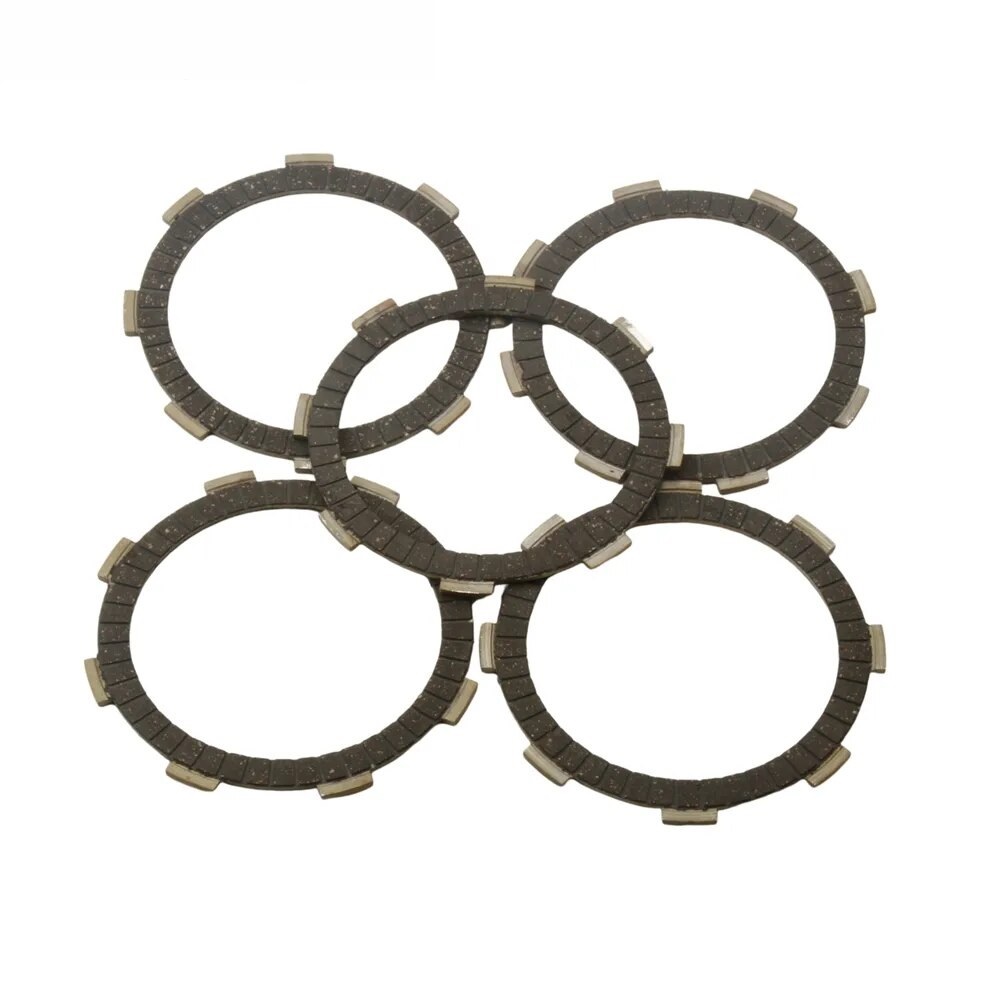

Installation Instructions for Friction Plates for 4-Stroke Motorcycles

Tools Required:

1. Socket Wrench Set: To remove and tighten the bolts securing the engine cover or clutch cover.
2. Torque Wrench: To ensure bolts are tightened to the manufacturer's specifications.
3. Screwdrivers: Both flathead and Phillips-head screwdrivers may be needed for various screws.
4. Pliers: Helpful for holding or manipulating small components during installation.
5. Clip Remover Tool (if applicable): For removing any retaining clips without damage.
6. Clean Cloth or Rags: To wipe away old oil and dirt from the components.
7. Motor Oil: For lubricating the new friction plates before installation.
8. Safety Goggles and Gloves: To protect yourself while working on the motorcycle.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and the ignition is off.
   • Gather all necessary tools.

2. Remove the Engine/Clutch Cover:

   • Use the socket wrench to remove the bolts securing the cover.
   • Carefully lift the cover off, taking note of any gaskets or seals that might need replacement.

3. Take Out Old Friction Plates:

   • Remove the old friction plates from the clutch basket.
   • Inspect for wear and tear and clean any debris from the assembly.

4. Install New Friction Plates:

   • Before installation, lightly coat the new friction plates with motor oil for better lubrication.
   • Place the new friction plates into the clutch basket, ensuring they are seated properly.

5. Reassemble Engine/Clutch Cover:

   • Carefully reattach the engine/clutch cover.
   • Ensure all gaskets and seals are in place, then tighten the bolts using the torque wrench to the specified setting.

6. Final Checks:

   • Inspect and ensure everything is securely fastened.
   • Start the motorcycle and check for any unusual noises or fluid leaks.

7. Dispose of Old Parts:

   • Properly dispose of the old friction plates and any other waste materials.

Reminder: Always refer to your motorcycle’s service manual for specific instructions and torque specifications to ensure proper installation.
