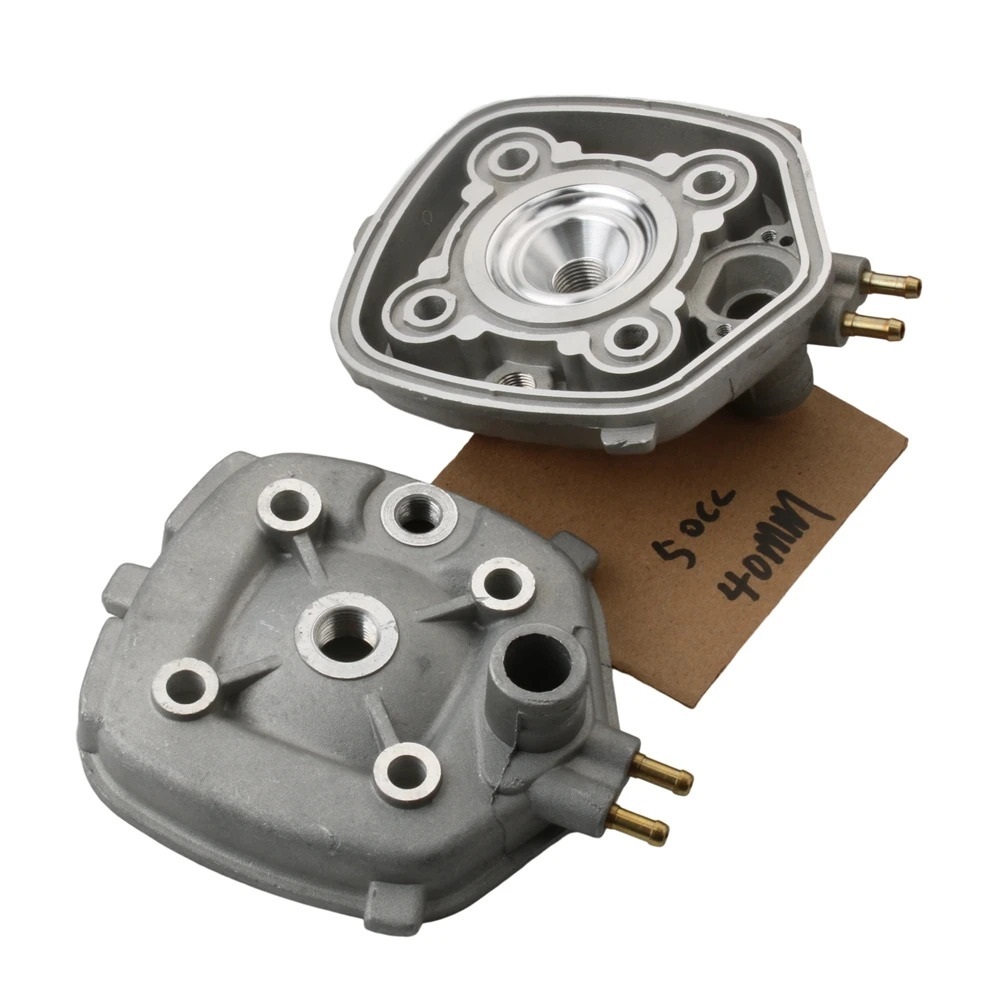

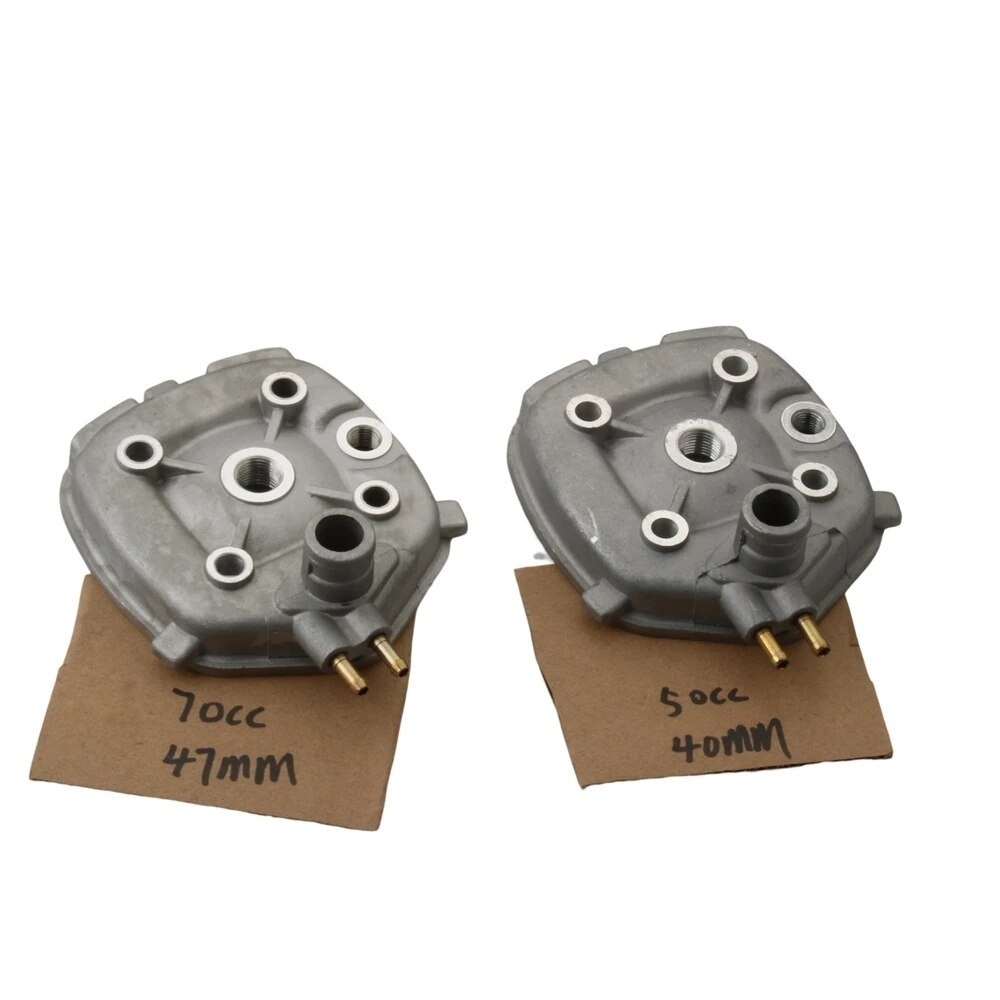

Product Installation Instructions for Cylinder Head for 50cc to 70cc 2-Stroke Scooter Engines

Tools Required:

1. Socket Wrench Set - To remove and install bolts and nuts securely.
2. Torque Wrench - To ensure the correct torque specifications are met during installation.
3. Screwdriver Set - For removing and tightening screws on the assembly.
4. Pliers - For gripping and manipulating small components.
5. Gasket Scraper - To remove any old gasket material from the engine surface.
6. Cleaning Cloths - For cleaning surfaces and ensuring a clean installation area.
7. Gloves - To keep your hands clean and protected during the installation process.

Installation Steps:

1. Preparation:

   • Make sure the scooter is on a stable surface and has cooled down completely.
   • Disconnect the battery (if applicable) to prevent any electrical issues.

2. Remove the Old Cylinder Head:

   • Using the socket wrench, carefully loosen and remove the bolts securing the old cylinder head.
   • Gently lift the old head away from the engine. You may need to remove any attached components first.

3. Clean the Surface:

   • Use the gasket scraper to remove any residual gasket material from the engine surface.
   • Wipe the area clean with a cleaning cloth to ensure a good seal with the new cylinder head.

4. Install the New Cylinder Head:

   • Place the new cylinder head onto the engine, aligning it properly with any guide pins or holes.
   • Install the new gasket (if provided) according to the manufacturer's instructions.

5. Secure the Cylinder Head:

   • Using the socket wrench, hand-tighten the bolts first, then use the torque wrench to tighten them to the specified torque settings provided in the manual.
   • Ensure all bolts are tightened evenly to avoid any leaks.

6. Reconnect Any Components:

   • If you had to remove any additional components, reattach them in reverse order of removal.

7. Final Checks:

   • Double-check all bolts and connections to ensure everything is secure.
   • Reconnect the battery (if applicable).

8. Test the Engine:

   • Start the engine and let it idle.
   • Check for any leaks and listen for abnormal sounds.

Conclusion:

Following these installation instructions will help you successfully replace the cylinder head on your scooter engine. Make sure to consult the specific manuals for your scooter model for additional details or specifications. Enjoy your enhanced scooter performance!
