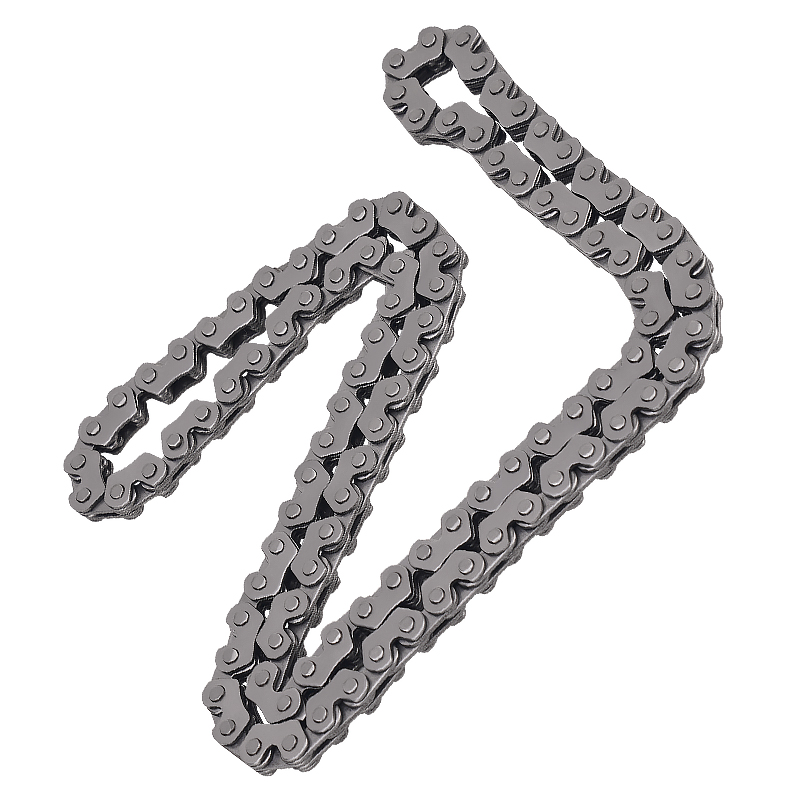

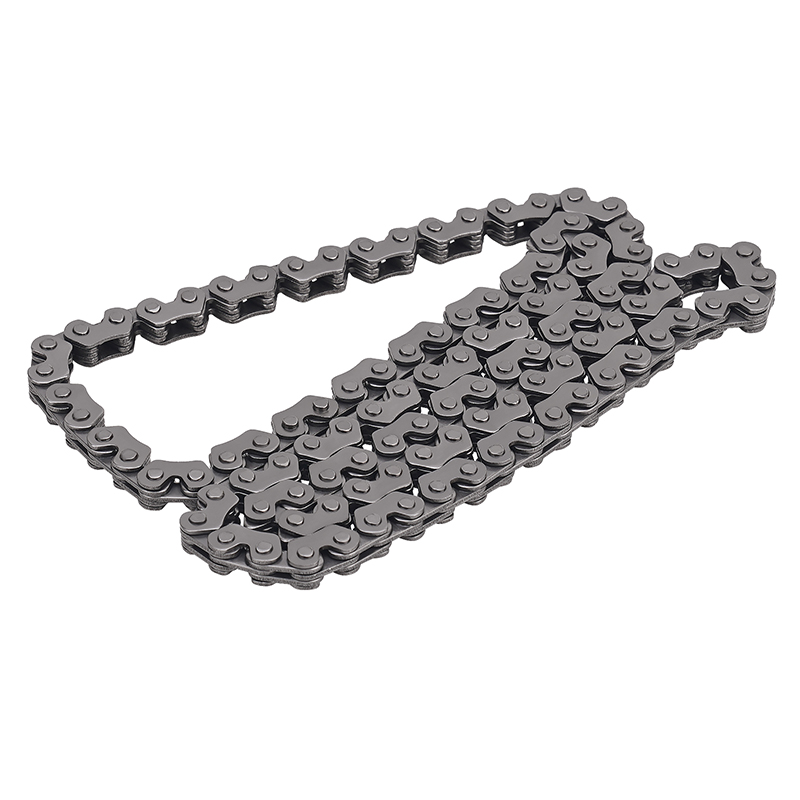

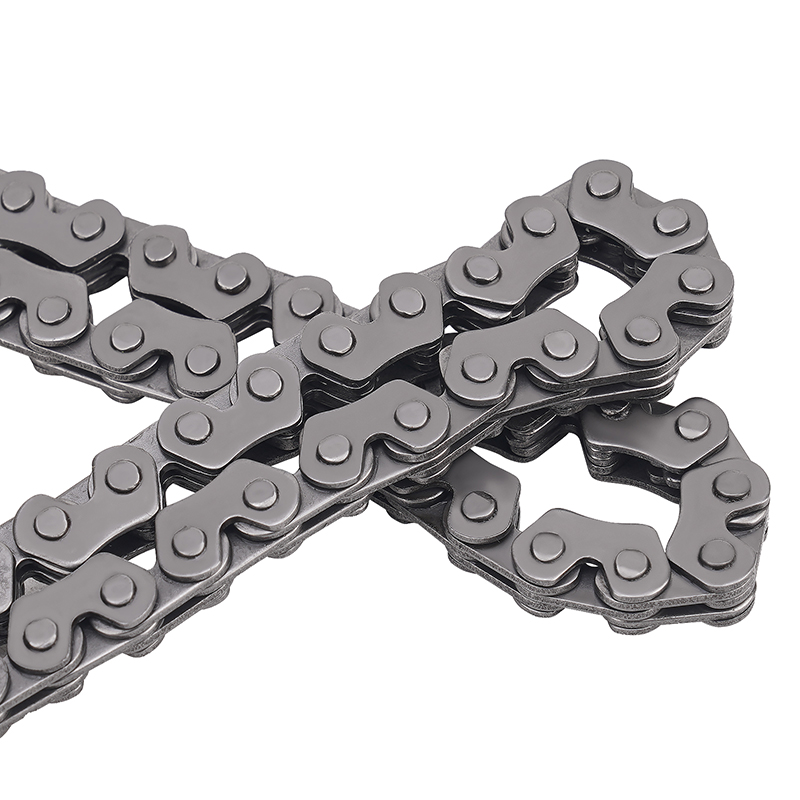

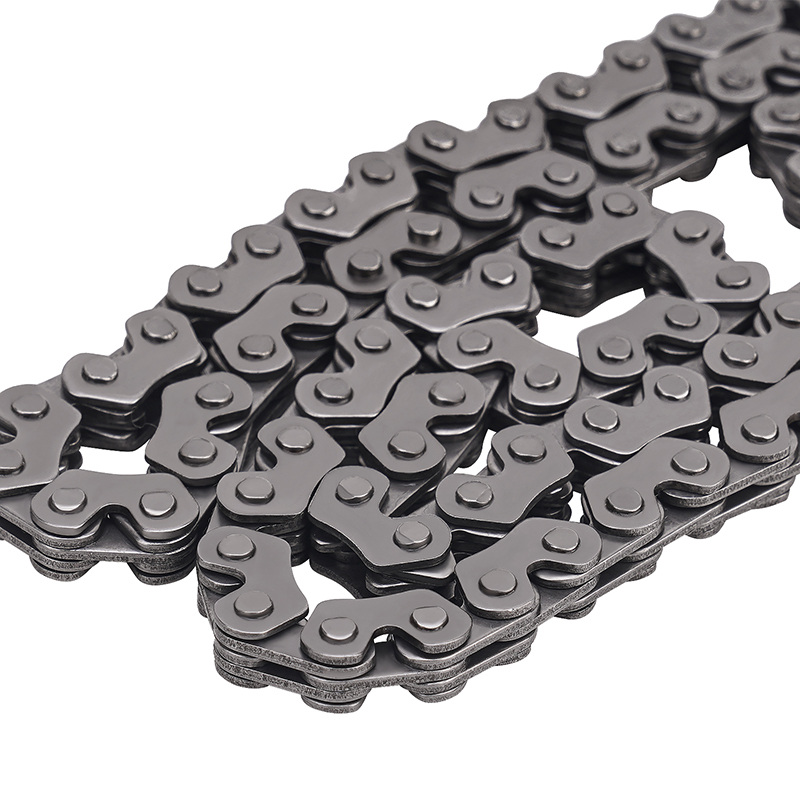

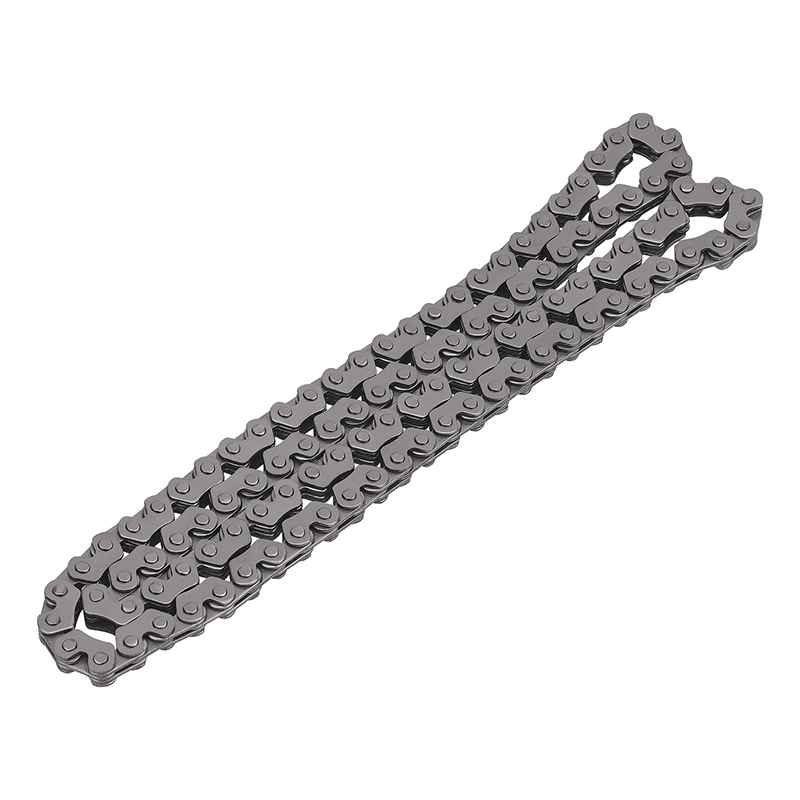

Product Installation Instructions for Motorcycle Crankshaft Cam Timing Chain (106 Links)

Compatibility:
This timing chain is designed for various 250cc motorcycle models, including ZR, Balius II, and ZXR.

Required Tools and Materials:

1. Tools Needed:
   -Socket wrench set
   -Torque wrench

   • Screwdriver set (both flat and Phillips)
     -Pliers
   • Chain breaker tool (if necessary)
   • Rags or cloth for cleanliness
   • Safety goggles
   • Gloves

2. Materials:

   • New Motorcycle Crankshaft Cam Timing Chain (106 Links)
   • Lubricant or engine oil for chain installation
   • Replacement gaskets (if applicable)
   • Cleaners/degreasers for the motorcycle parts

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and secured properly.
   • Disconnect the battery to avoid any electrical issues.
   • Remove any necessary components to access the timing chain (e.g., cover plates).

2. Removing the Old Timing Chain:

   • Locate the existing timing chain and carefully remove it using the socket wrench.
   • Use pliers to detach the chain from the sprockets if necessary.
   • If applicable, replace gaskets to prevent leaks during reassembly.

3. Installing the New Timing Chain:

   • Lubricate the new timing chain with engine oil to ensure smooth operation.
   • Carefully thread the new timing chain onto the sprockets, ensuring it fits snugly.
   • Use a chain breaker tool if you need to adjust the length or connections of the chain.

4. Reassembly:

   • Reattach any components that were removed during the process, ensuring all bolts are tightened to the manufacturer's torque specifications using a torque wrench.
   • Double-check that the timing chain is aligned correctly and is free from obstructions.

5. Final Checks:

   • Reconnect the motorcycle battery.
   • Start the engine and allow it to idle, listening for any unusual noises that may indicate improper installation.
   • Test ride the motorcycle to ensure everything is functioning correctly.

Safety Precautions:

• Always wear safety goggles and gloves while working on the motorcycle.
• Make sure to work in a well-ventilated area and keep your workspace clean to avoid accidents.

Following these instructions will help ensure a successful installation of your Motorcycle Crankshaft Cam Timing Chain, significantly enhancing your motorcycle's performance and efficiency.
