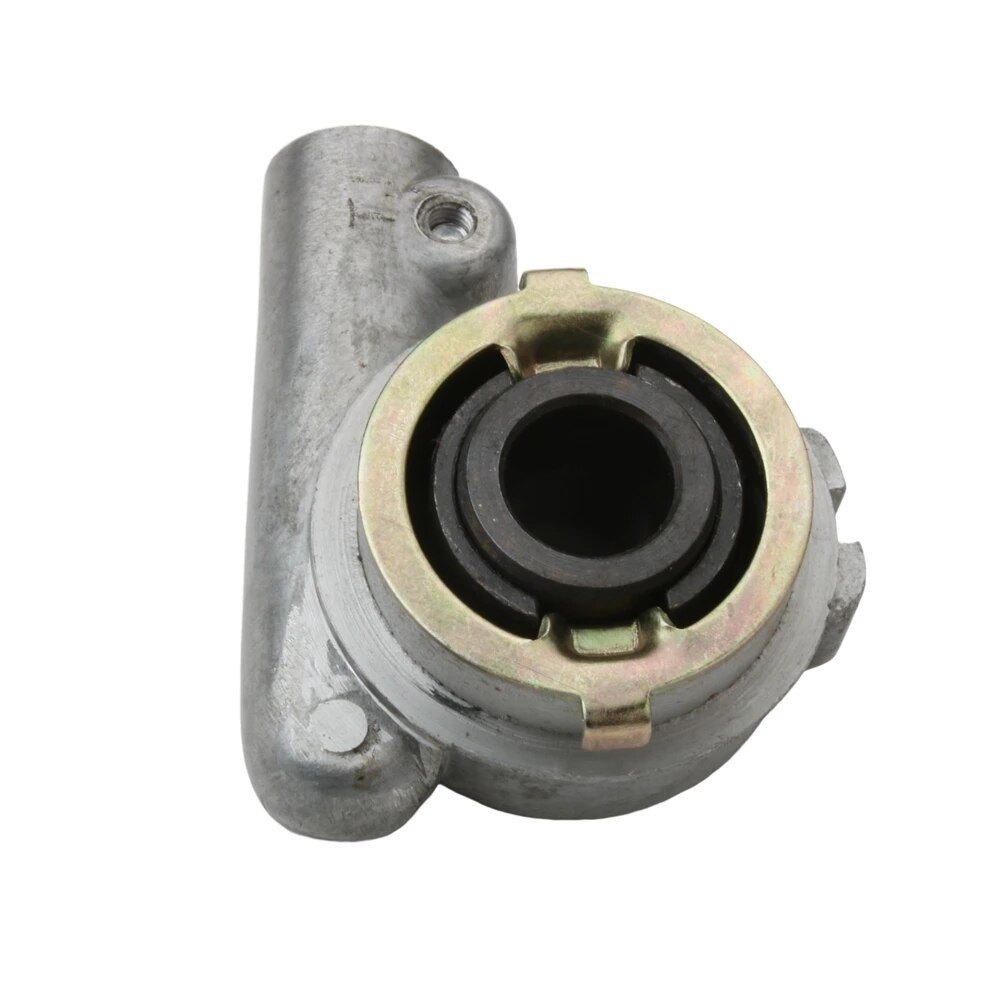

Installation Instructions for the 15mm Motorcycle Speedometer Gear Box Assembly

Compatible Models:

• CBT125
• CB250
  -CM400
  -CB400

Required Tools:

1. Flathead screwdriver
2. Phillips screwdriver
3. Socket wrench set (metric)
4. Torque wrench
5. Pliers
   6.Clean rag or cloth
6. Lubricant (optional)

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is parked on a flat surface and the ignition is turned off.
   • Gather all required tools mentioned above.

2. Remove Existing Gear Box:

   • Use the appropriate socket wrench to remove any bolts securing the old speedometer gear box.
   • Carefully disconnect the speedometer cable and any electrical connections associated with the gear box.

3. Install the New Gear Box:

   • Align the new 15mm speedometer gear box with the mounting points on your motorcycle.
   • Connect the speedometer cable to the new gear box, ensuring it is securely attached.
   • If necessary, apply a small amount of lubricant to make connections smoother.

4. Secure the Gear Box:

   • Use the socket wrench to fasten the bolts, securing the gear box in place.
   • Ensure all connections are tight but be cautious not to overtighten, as this may damage the components.

5. Test the Installation:

   • Before taking your motorcycle out on the road, turn on the ignition and check that the speedometer is functioning properly.
   • If you notice any discrepancies, recheck your connections to ensure everything is secure.

6. Final Check:

   • Wipe down any excess lubricant or debris with a clean rag.
   • Double-check that all tools are removed from the work area and that no parts have been left loose.

By following these instructions, you should successfully install the 15mm motorcycle speedometer gear box assembly with ease, enhancing the performance and look of your motorcycle. Enjoy your ride safely!
