Product Installation Instructions for Gasket Set for Motorcycle Engine Cylinder Crankcase Cover

Compatibility:

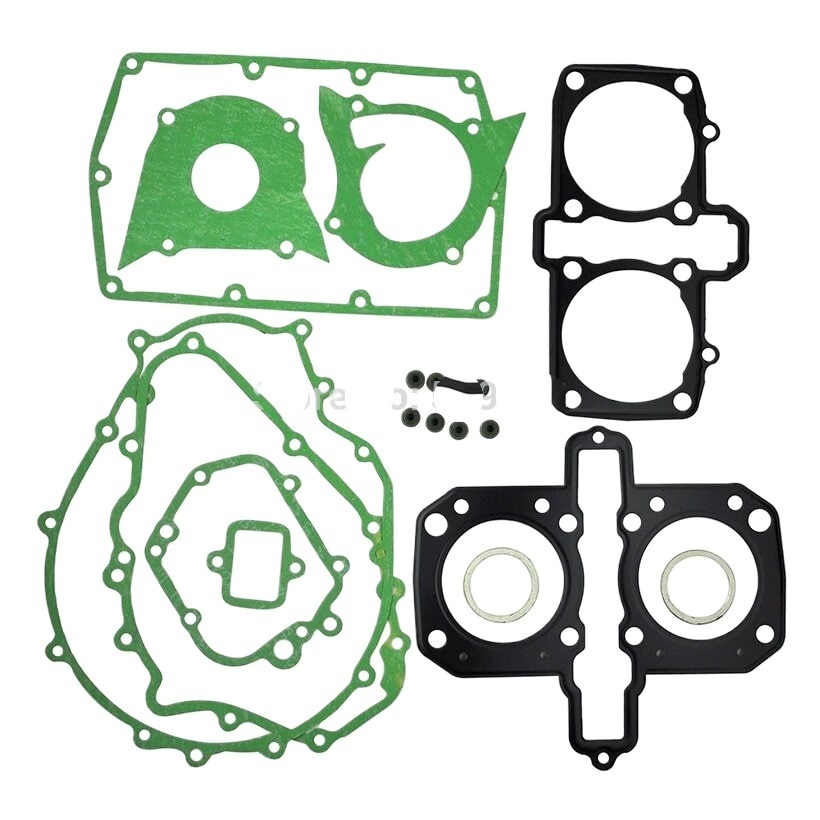

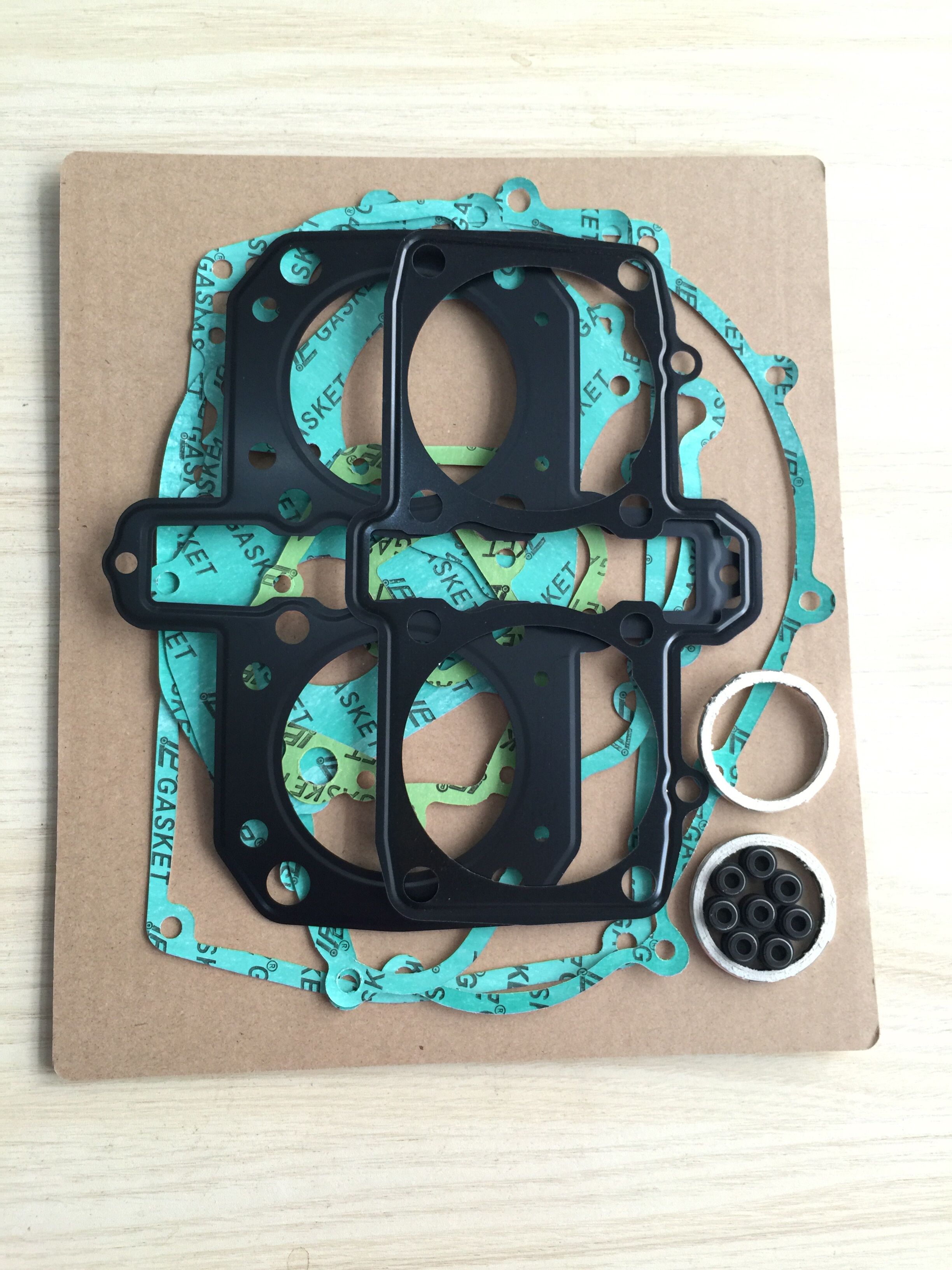

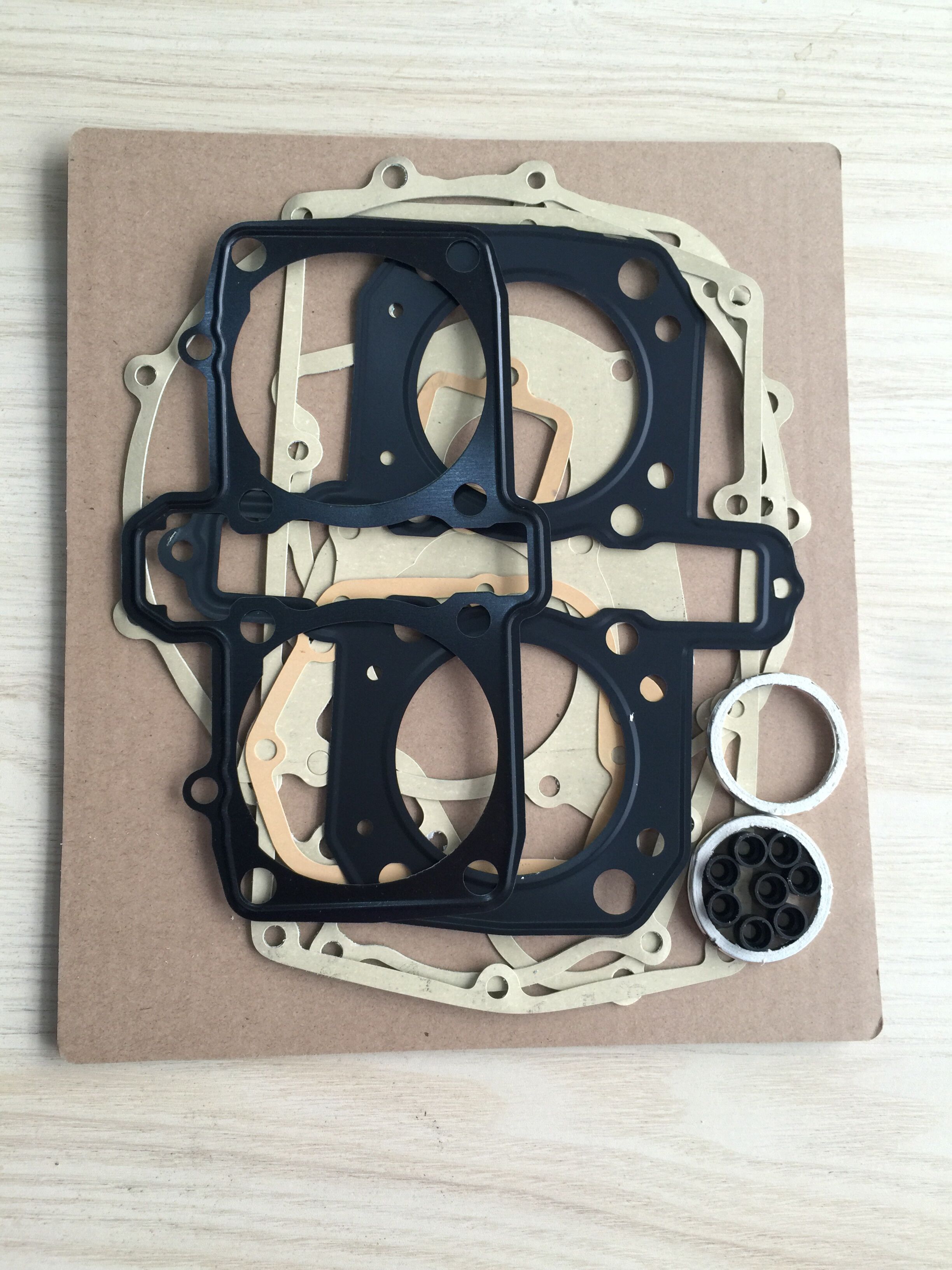

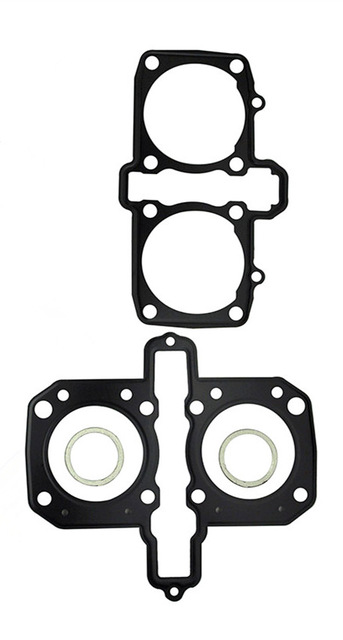

This gasket set is specifically designed for the following models:

• KLE500 (85-95)
• EN450 (85-90)
• ER500
  -EN500
  -Vulcan 500
  -EX500

Performance Enhancement:

Replacing old gaskets effectively prevents leaks, improving engine efficiency and stability during operation.

Installation Requirements:

To ensure a smooth installation process, please prepare the following tools:

1. Wrenches or Socket Set: To remove and tighten bolts.
2. Torque Wrench: To ensure bolts are tightened to the specified torque settings.
3. Screwdrivers: Flat and Phillips head, for any additional screws.
4. Pliers: For gripping and manipulating components.
5. Scraper or Chisel: To remove old gasket material from engine surfaces.
6. Clean Rags: For cleaning surfaces and wiping excess oil or debris.
7. Engine Oil: For lubricating the new gaskets before installation.
8. Safety Gear: Gloves and goggles for protection during installation.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable and level surface.
   • Disconnect the battery to avoid any electrical hazards.

2. Removal of Old Components:

   • Use the appropriate wrench or socket to remove the crankcase cover.
   • Carefully scrape off the old gasket material from the surfaces, taking care not to scratch or damage them.

3. Clean Surfaces:

   • Wipe the mating surfaces with a clean rag to remove any debris or old gasket residue.

4. Install New Gaskets:

   • Place the new gaskets from the gasket set onto the prepared surfaces.
   • Apply a thin layer of engine oil to the gaskets for better sealing.

5. Reassemble:

   • Carefully reposition the crankcase cover and align it with the bolt holes.
   • Use the wrench or socket to hand-tighten the bolts in a crisscross pattern.

6. Final Tightening:

   • Use a torque wrench to tighten the bolts to the manufacturer’s specified torque settings, again following a crisscross pattern.

7. Reconnect Battery:

   • Reconnect the battery and ensure all electrical connections are secure.

8. Test:

   • Start the motorcycle and check for any leaks around the newly installed gaskets.

By following these instructions, you will ensure that your new gasket set is installed correctly, enhancing the performance and reliability of your motorcycle engine.
