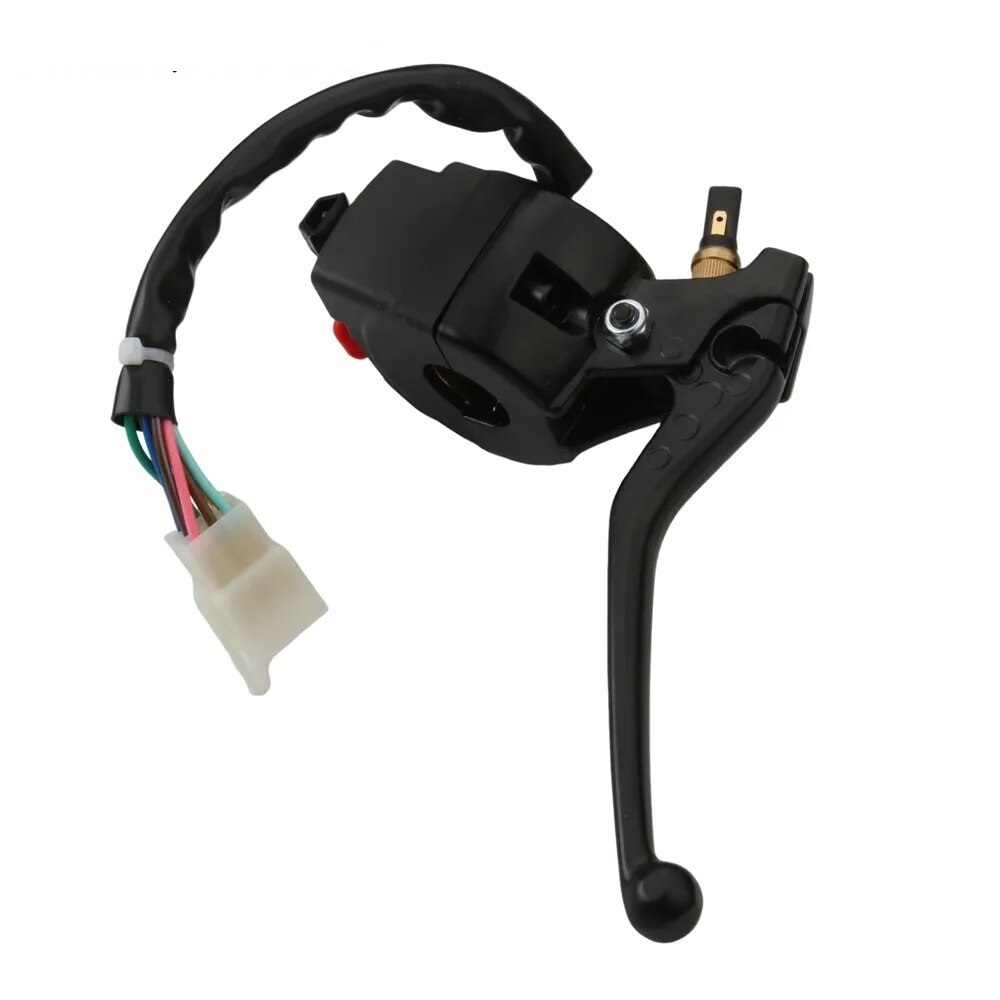

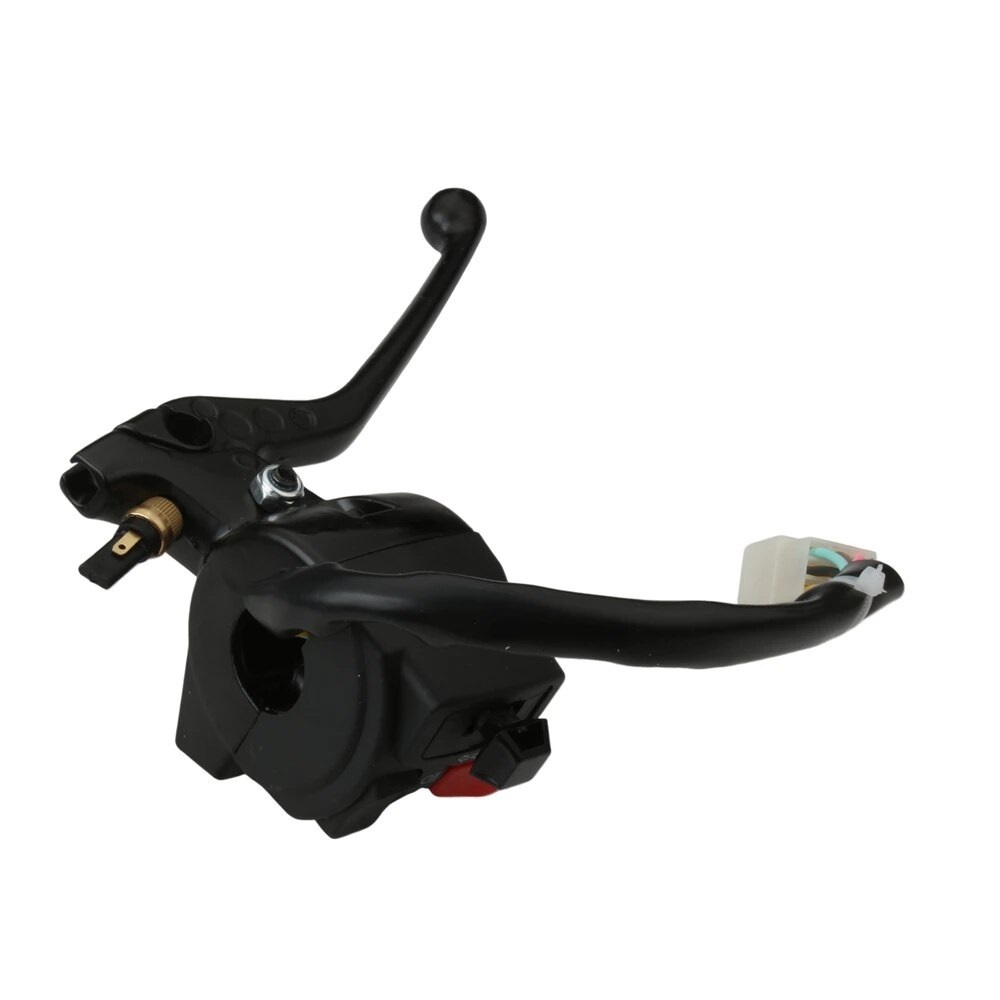

Product Installation Instructions for Left Handlebar Control Switch Assembly

Compatible Models:
This Left Handlebar Control Switch Assembly is specifically designed for 50cc scooters and is compatible with the following models: Jog, BWS, Booster, Slider, Stunt, Ae-r-ox, Ni-tro.

Tools Required for Installation:
Before you begin the installation process, ensure you have the following tools ready:

1. Philips screwdriver
2. Flathead screwdriver
3. Socket wrench or adjustable wrench
4. Pliers
5. Wire stripper/crimper (if needed)
6. Electrical tape (optional, for securing connections)

Installation Steps:

1. Preparation

   • Ensure the scooter is turned off and parked on a stable surface.
   • Disconnect the battery for safety reasons.

2. Remove the Old Handlebar Control Switch

   • Using the Philips screwdriver, remove the screws securing the old control switch assembly to the handlebar.
   • Carefully detach any electrical connectors associated with the old assembly.

3. Install the New Handlebar Control Switch

   • Align the new left handlebar control switch assembly with the mounting points on the handlebar.
   • Connect the electrical connectors from the new assembly to the corresponding connectors on the scooter. Ensure a secure fit.

4. Secure the Assembly

   • Once connected, use the Philips screwdriver to secure the new assembly in place with the screws you removed earlier.

5. Testing

   • Reconnect the battery and test the functionality of the throttle, horn, and turn signals to make sure everything is working properly.

6. Final Adjustments

   • If necessary, adjust the handlebar assembly for comfort and accessibility while riding.

7. Cleanup

   • Ensure that all tools are put away and that the working area is clean.

Important Notes:

• If you encounter any issues during installation, refer to the detailed installation guide that comes with the product.
• For best results, consider consulting a professional mechanic if you're unsure about any step of the installation process.

Enjoy your enhanced riding experience with your newly installed Left Handlebar Control Switch Assembly!
