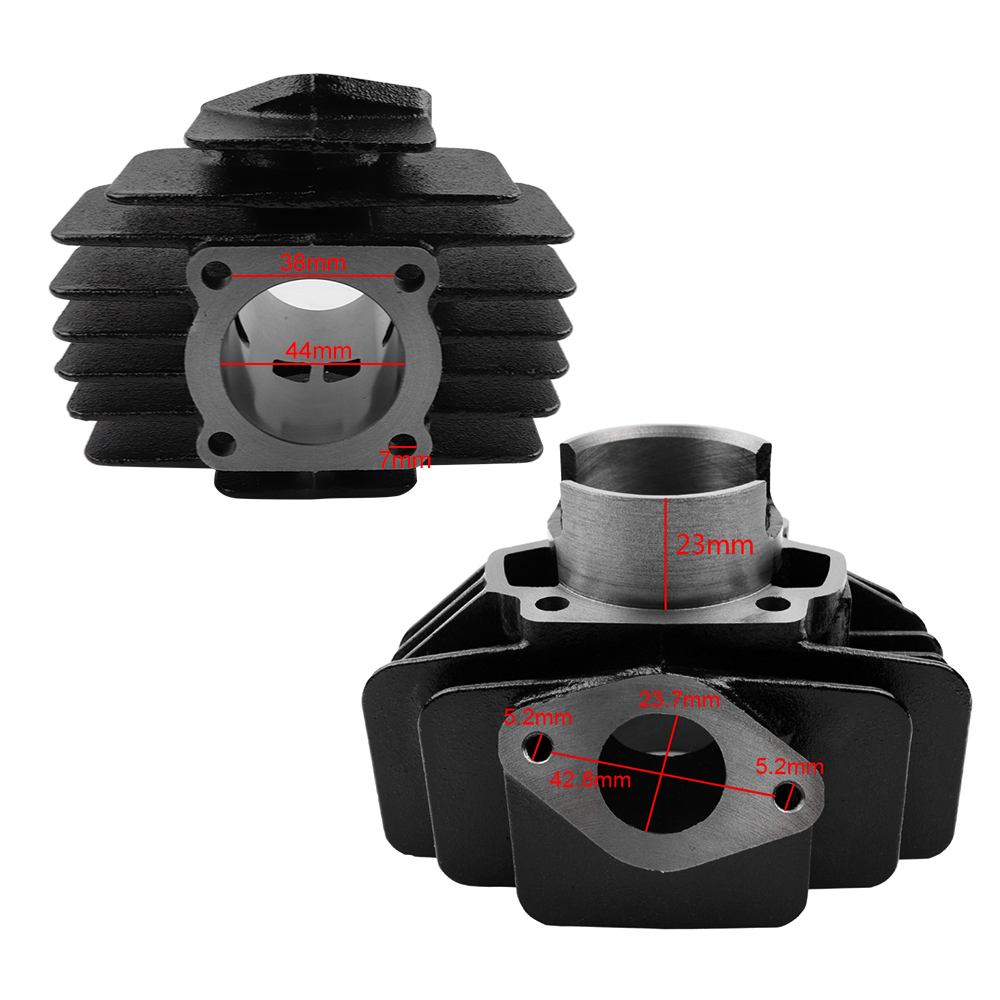

Product Installation Instructions for the 44mm Big Bore Cylinder Piston Rings Gasket Rebuild Kit for PW50, QT50, PW60 Peewee Kids Dirt Bikes

Preparation: Tools Required

Before you begin the installation process, ensure you have the following tools ready:

1. Socket Wrench Set - To remove and install bolts and nuts securely.
2. Phillips and Flathead Screwdrivers - For drilling out screws and lever adjustments.
3. Pliers - Handy for gripping and twisting components as needed.
4. Torque Wrench - To ensure that bolts are tightened to the manufacturer’s specifications.
5. Gasket Scraper or Putty Knife - For removing old gaskets and ensuring surfaces are clean.
6. Cleaning Rag - To wipe off any debris or oil from the parts.
7. Engine Oil or Lubricant - To lubricate moving parts during reinstallation.
8. Set of Allen Keys - If your bike has Allen screws.
9. Measuring Tape - To check dimensions if needed.

Installation Steps

1. Preparation: Start by ensuring you have the right kit for your specific model PW50, QT50, or PW60. Clear your workspace and gather the above tools.

2. Remove Existing Components:

   • Begin by safely removing the seat and any side panels if necessary.

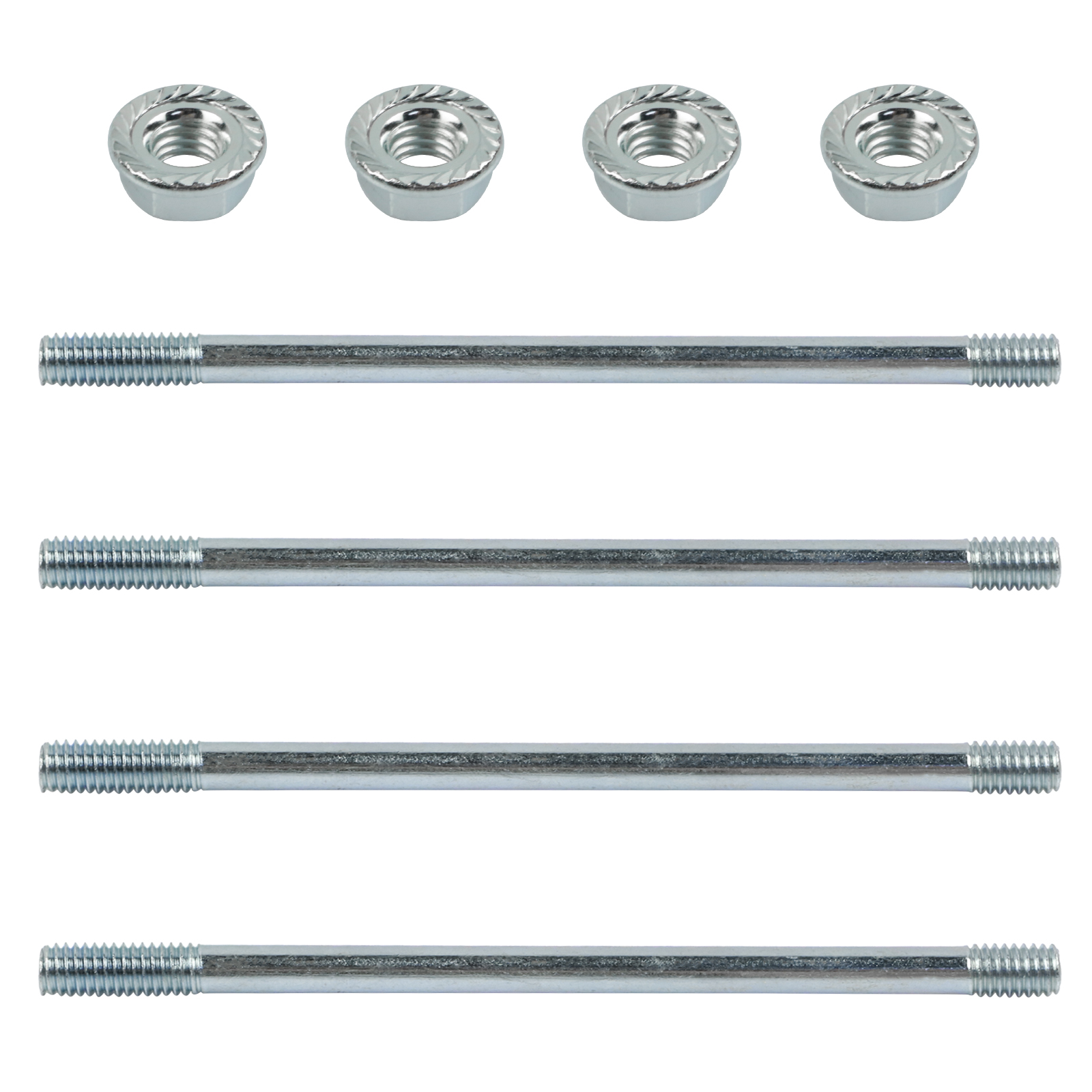

   • Using the socket wrench, carefully remove the bolts and nuts securing the existing cylinder and piston assembly.

3. Clean the Surfaces:

   • Utilize the gasket scraper to remove any remnants of the old gasket material from the surfaces.
   • Wipe everything down with a cleaning rag to ensure a clean installation.

4. Install New Gasket:

   • Position the new gasket provided in the rebuild kit onto the engine block, ensuring proper alignment.

5. Install the Cylinder and Piston:

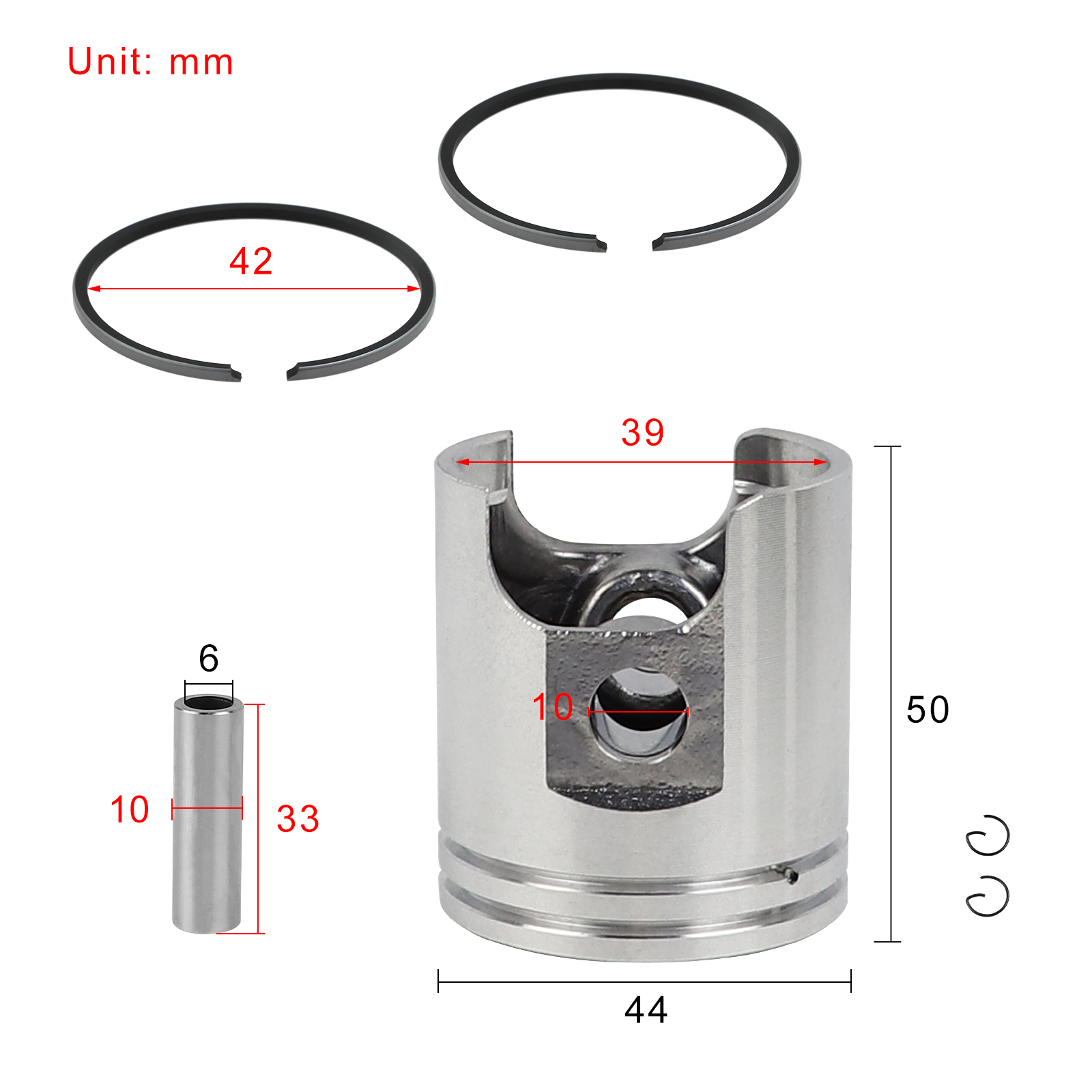

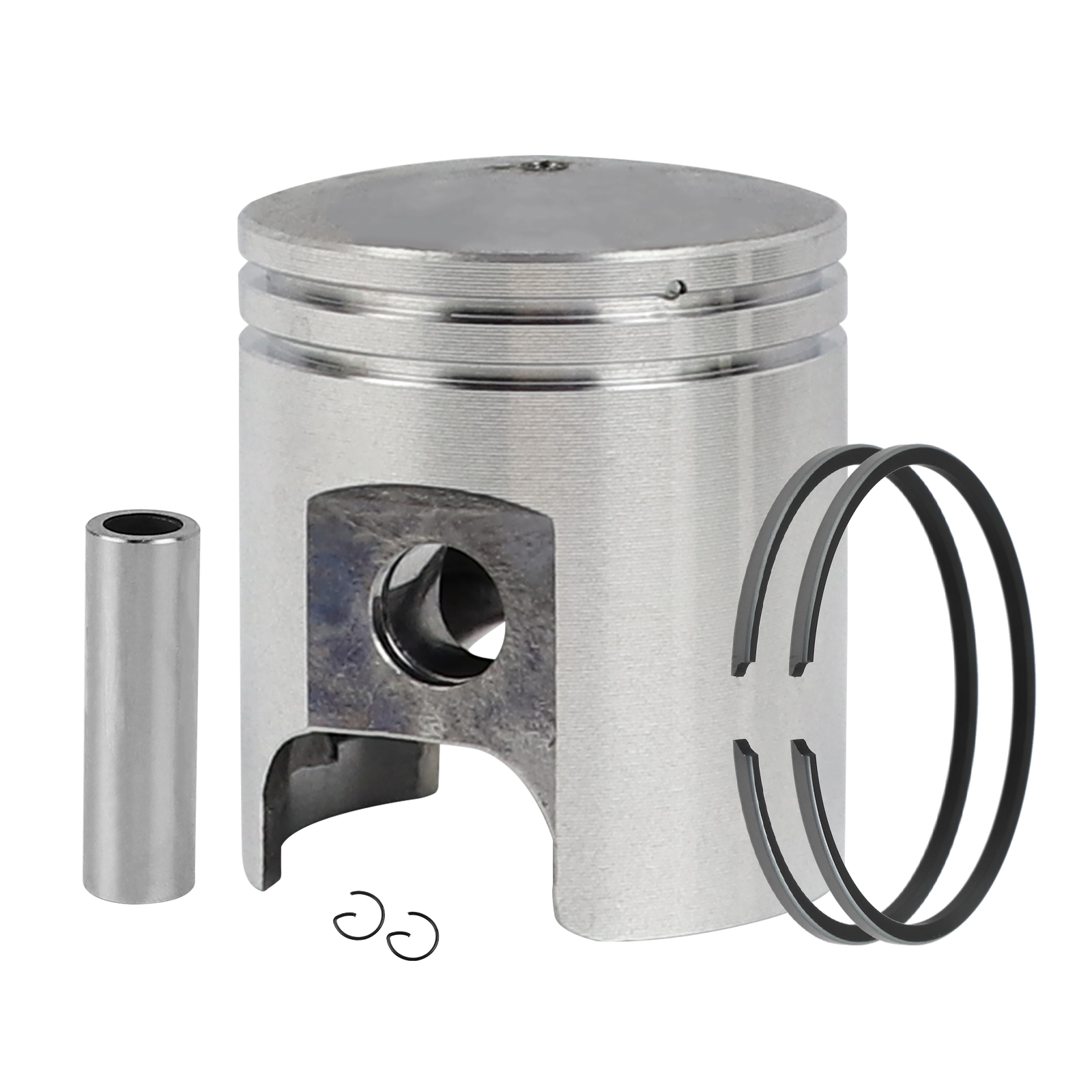

   • Insert the piston into the cylinder, ensuring that it is lubricated for smooth operation.

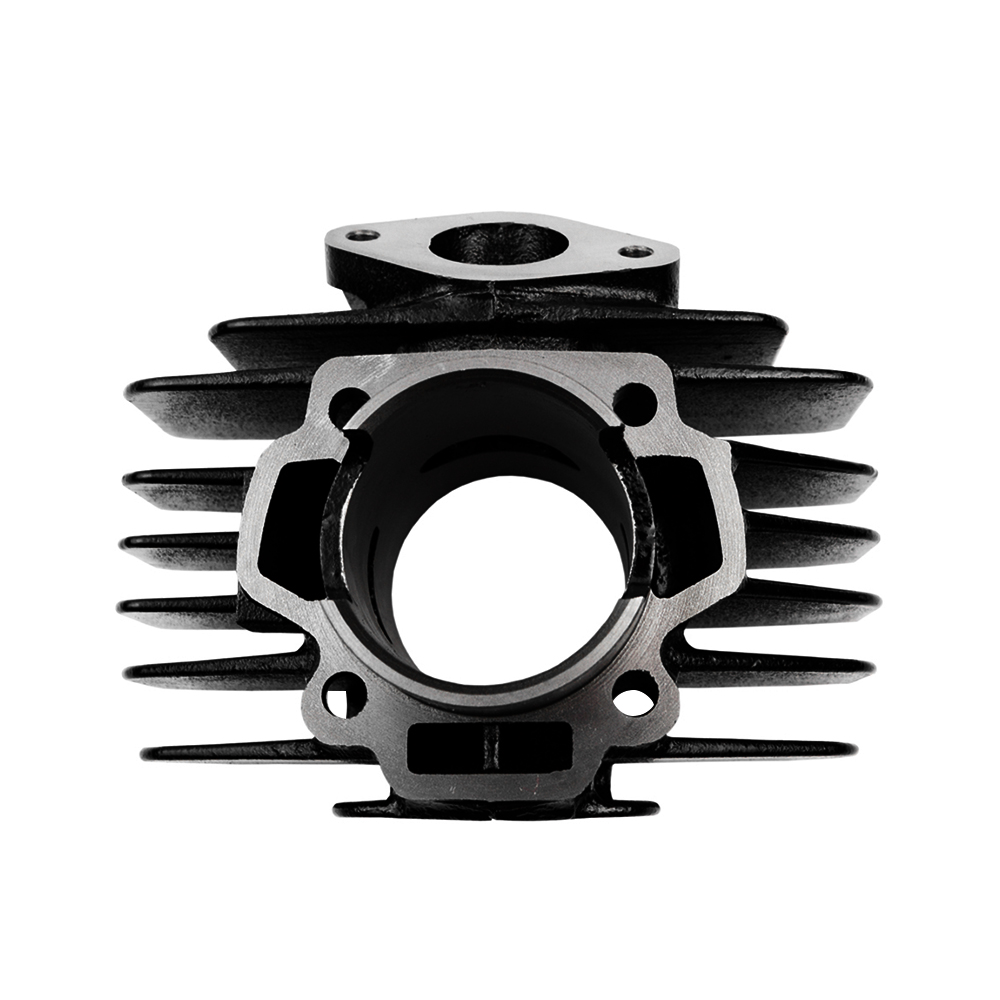

   • Carefully position the cylinder over the piston and gasket, then secure it with the bolts.

6. Tighten Bolts:

   • Use the torque wrench to tighten the bolts according to the manufacturer's specifications to avoid over-tightening which could lead to damage.

7. Reassemble Other Components:

   • Reattach any side panels and the seat that were removed earlier.

8. Final Check:

   • Ensure all components and bolts are secure. Check that there are no loose parts before starting up the bike.

9. Testing:

   • Start the engine and allow it to idle. Check for any leaks or irregular sounds. Take the bike for a short test ride to ensure everything is functioning smoothly.

By following these steps and using the necessary tools, you can successfully install the 44mm Big Bore Cylinder Piston Rings Gasket Rebuild Kit, enhancing the performance and durability of your child's dirt bike. Enjoy the improved ride!
