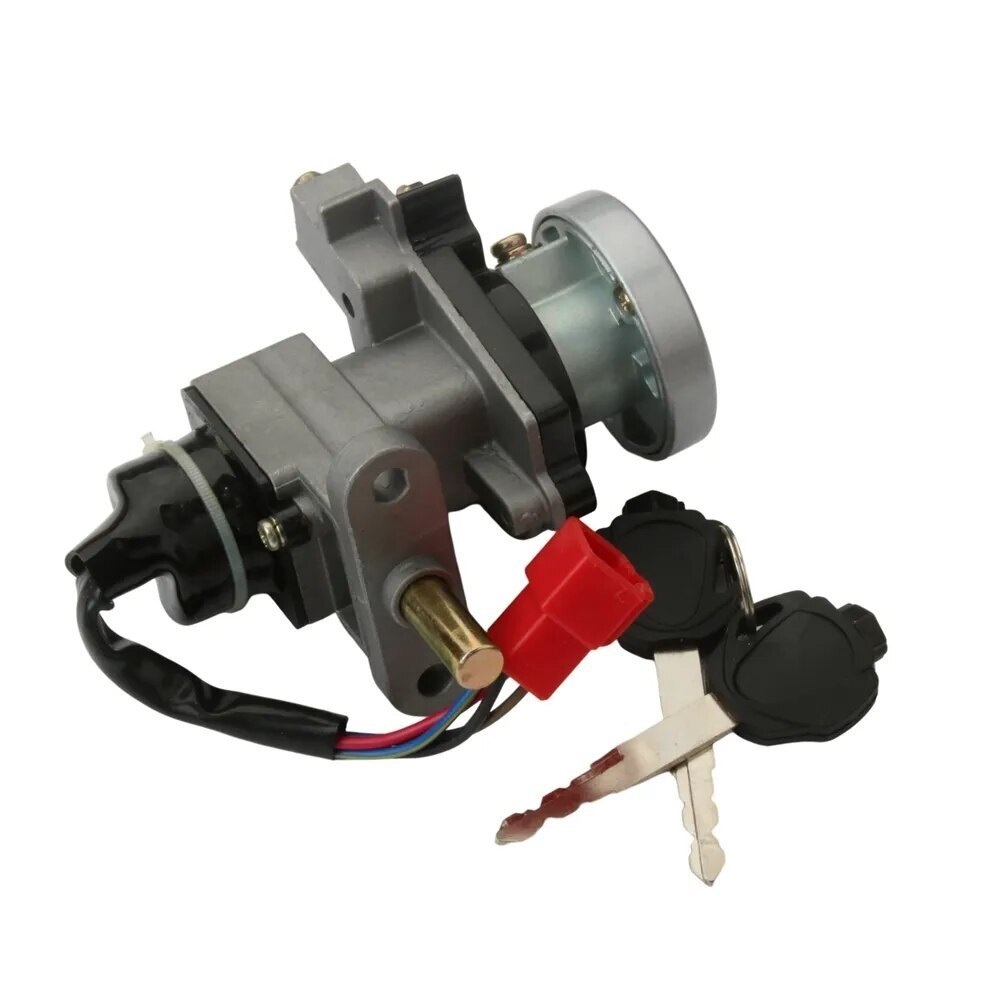

Installation Instructions for Ignition Switch Set Lock for 125cc BWS Zuma Compatible Motorcycle Parts

Overview:
The Ignition Switch Set Lock is designed specifically for 125cc BWS Zuma motorcycles to enhance security and reduce theft risk. This installation guide provides step-by-step instructions to help you easily replace your ignition switch.

Tools Needed:

1. Phillips screwdriver
2. Flathead screwdriver
3. Wire cutter/stripper
4. Electrical tape
5. Pliers
6. Torque wrench (if applicable)

Installation Steps:

1. Preparation:

   • Ensure your motorcycle is parked on a flat, stable surface.
   • Disconnect the battery to avoid any electrical short circuits during installation.

2. Remove the Existing Ignition Switch:

   • Locate the ignition switch on your motorcycle.
   • Use the Phillips screwdriver to remove the screws securing the ignition switch.
   • Carefully pull out the existing ignition switch and disconnect the wiring harness.

3. Connect the New Ignition Switch:

   • Take your new ignition switch and connect the wiring harness, ensuring that all connections are secure and in the correct position.
   • If wires need to be cut or stripped, use the wire cutter/stripper to prepare the wires before connecting.

4. Secure the Ignition Switch:

   • Position your new ignition switch in place and align it with the mounting holes.
   • Use the Phillips screwdriver to reinstall the screws, ensuring they are tightened appropriately (use a torque wrench if necessary).

5. Reconnect the Battery:

   • Reconnect the motorcycle battery, ensuring that the positive and negative terminals are correctly attached.

6. Test the Ignition Switch:

   • Turn the key in the ignition switch to ensure that it operates correctly.
   • Check that the motorcycle starts and powers up without any issues.

7. Final Touches:

   • Use electrical tape to wrap up any exposed wiring for added protection.
   • Ensure that all components are secure and positioned correctly.

Conclusion:
Your new ignition switch set lock is now installed and ready for use. Enjoy the enhanced security of your 125cc BWS Zuma motorcycle, and ride with peace of mind.

Important Note: If you encounter any difficulties during installation, please consult a professional mechanic to ensure proper installation and optimal function.
