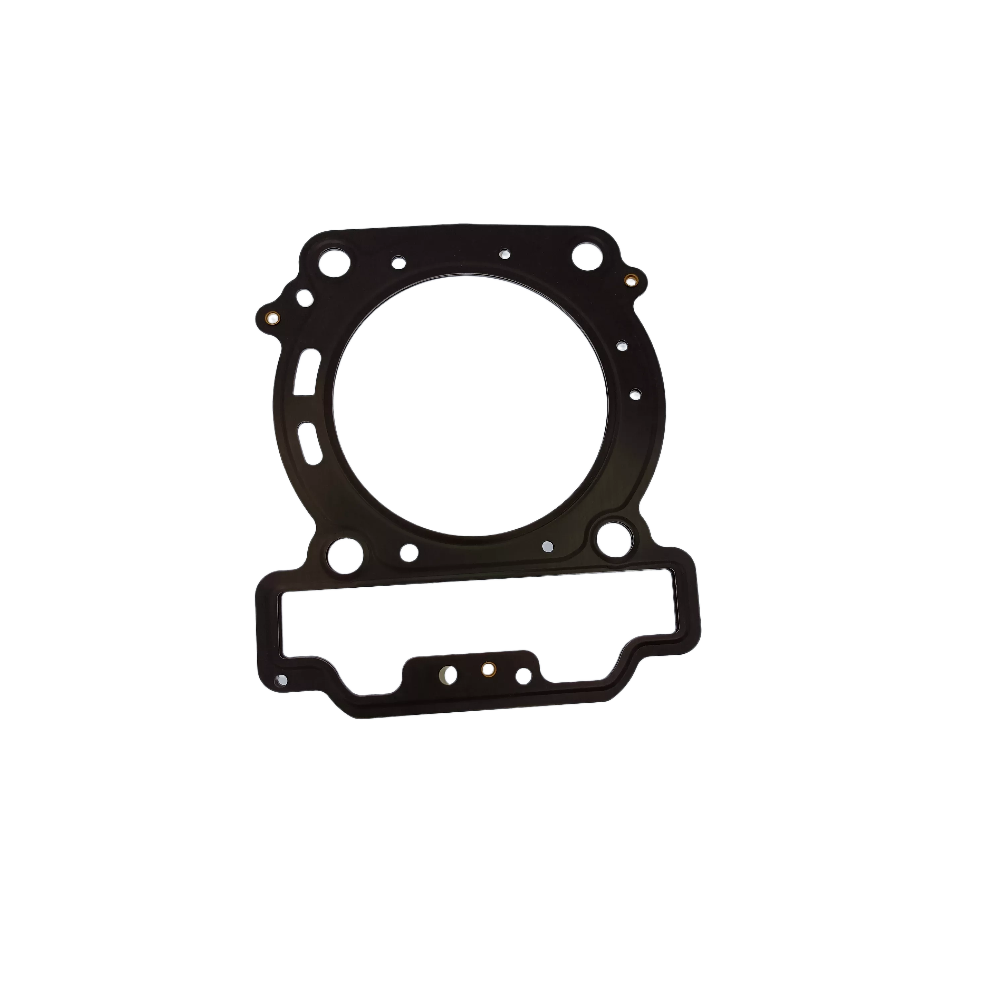

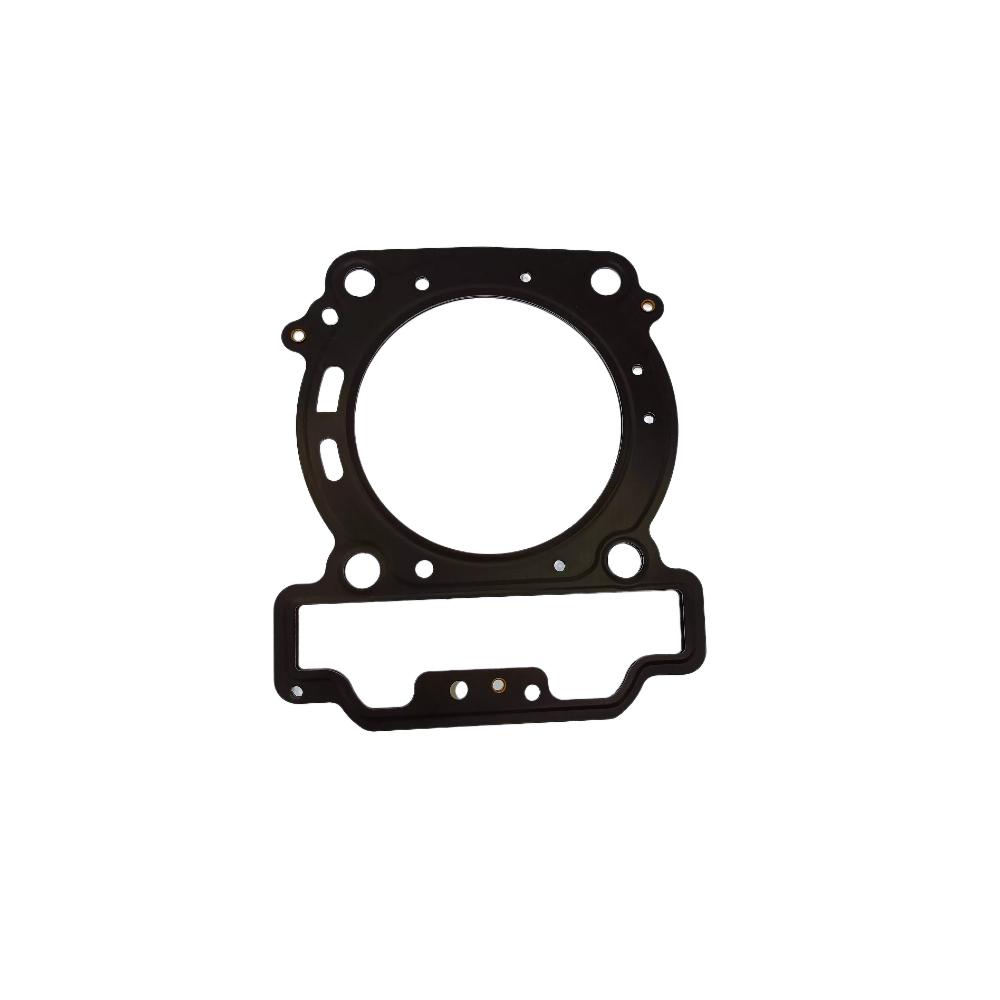

Installation Instructions for 1 Piece Motorcycle Cylinder Gasket for CF800 Z8 X8 ATV UTV Parts

Tools Required:

1. Socket Wrench Set
2. Torx and Phillips Screwdriver Set
3. Torque Wrench
4. Gasket Scraper or Razor Blade
   5.Cleaning Rag
5. Engine Oil or Gasket Sealant (if recommended)
6. Safety Gloves and Goggles

Installation Steps:

1. Preparation:

   • Ensure your ATV/UTV is parked on a flat surface and the engine is cold.
   • Disconnect the battery to prevent any electrical issues during installation.

2. Remove the Old Gasket:

   • Use a gasket scraper or razor blade to carefully remove the old cylinder gasket from the surface. Ensure no remnants are left behind to avoid interference with the new gasket.

3. Clean the Surfaces:

   • Wipe the cylinder head and engine block surfaces with a cleaning rag to remove any debris or oil. Ensure the surfaces are smooth and clean for proper sealing.

4. Install the New Gasket:

   • Place the new cylinder gasket onto the clean surface, ensuring it is correctly aligned with all holes and openings.

5. Reattach the Cylinder Head:

   • Carefully position the cylinder head back onto the engine block over the new gasket.

6. Tighten Bolts:

   • Using a torque wrench, tighten the bolts in a criss-cross pattern to the manufacturer’s specified torque settings. This ensures even pressure across the gasket.

7. Final Checks:

   • Double-check that all bolts are securely tightened. Reconnect any components that were removed.

8. Reattach the Battery:

   • Reconnect the battery and perform a visual inspection to ensure everything is in place.

9. Test Run:

   • Start the engine and allow it to run for a few minutes. Check for any leaks around the gasket area to ensure a proper seal.

Note: It’s recommended to refer to your ATV/UTV’s service manual for specific torque settings and installation guidelines. Always prioritize safety and wear gloves and goggles during installation.
