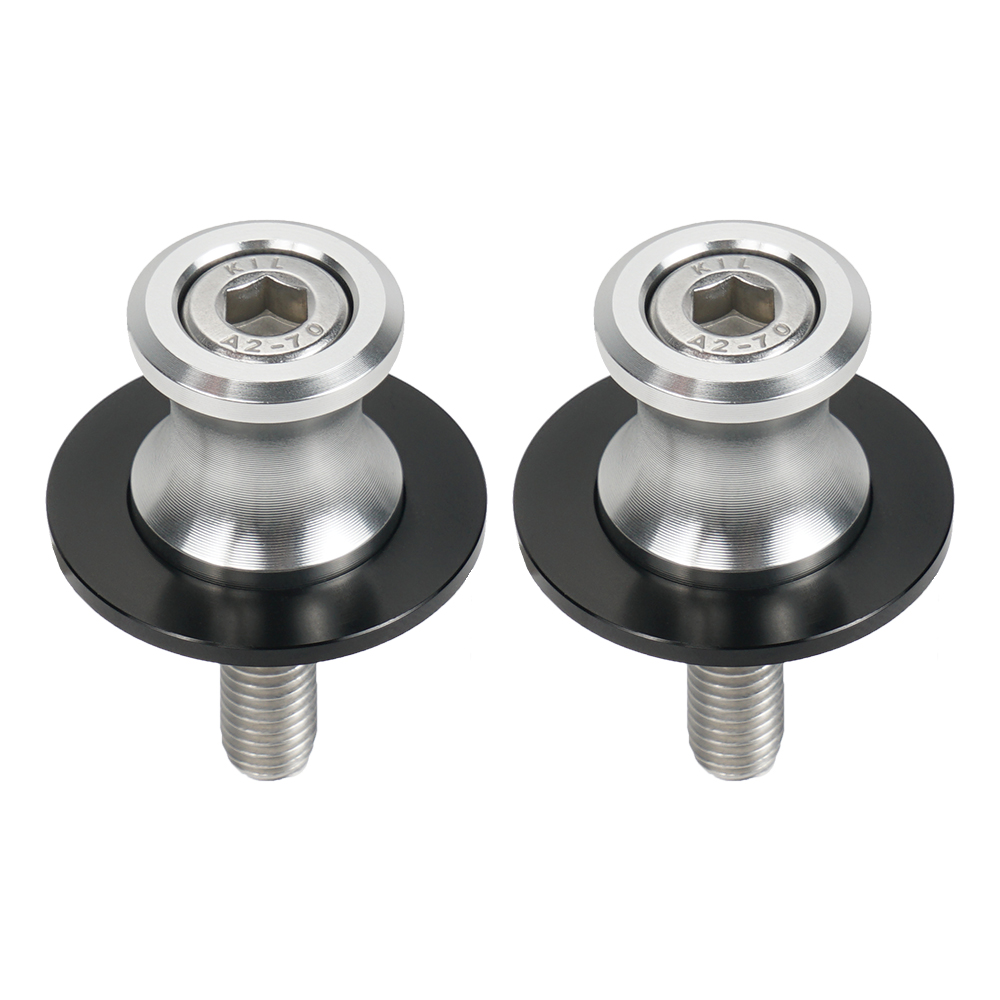

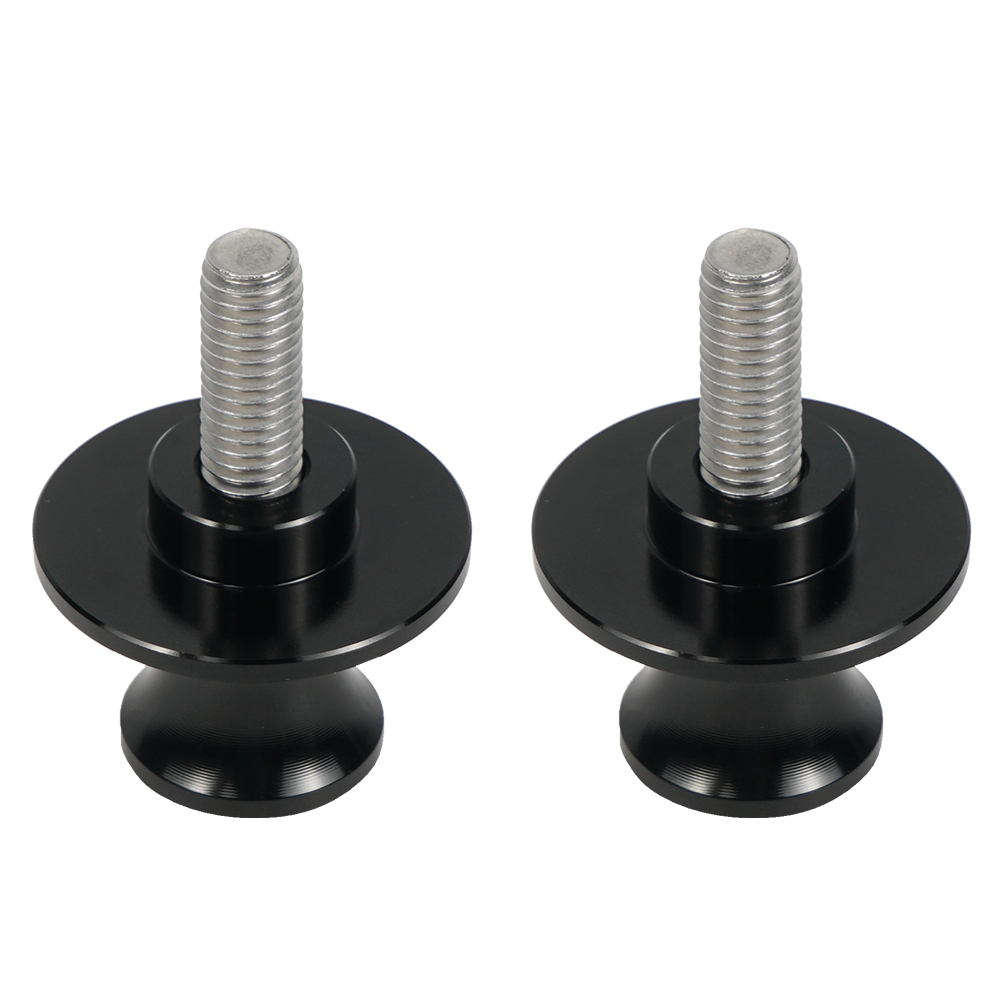

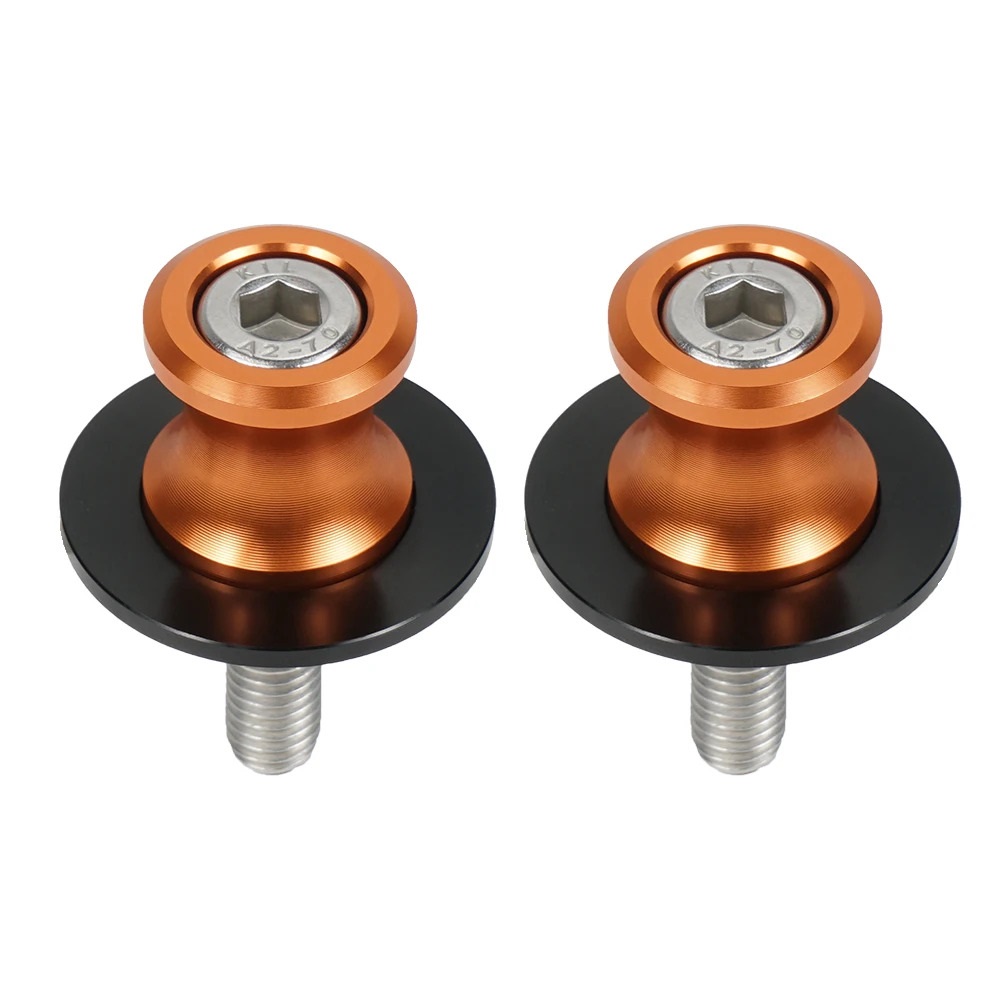

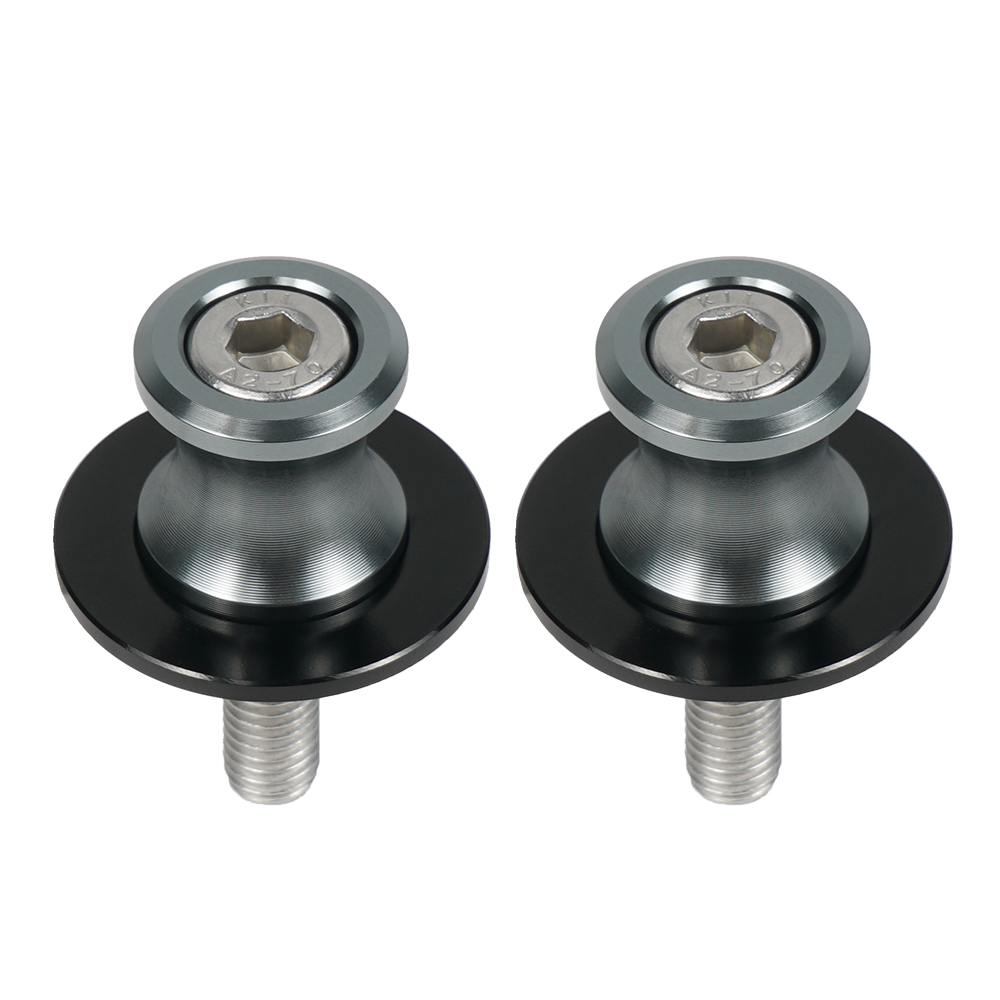

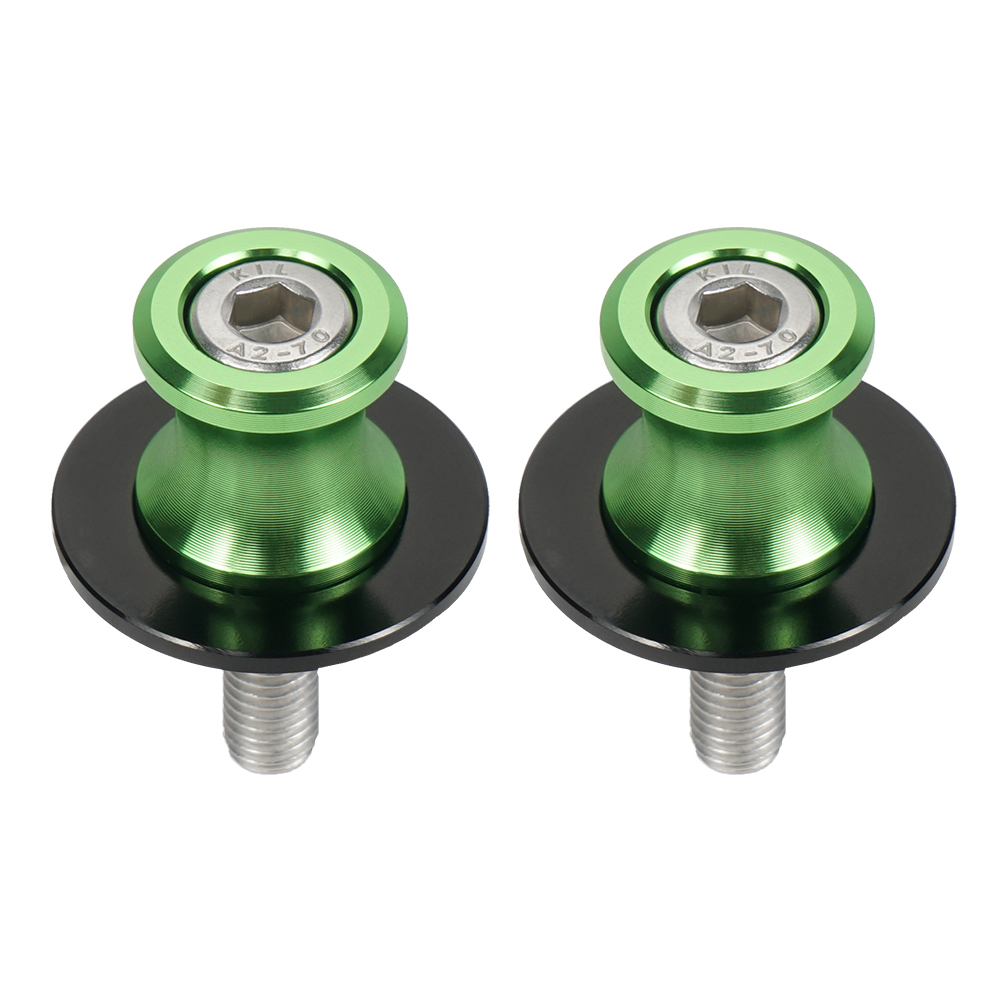

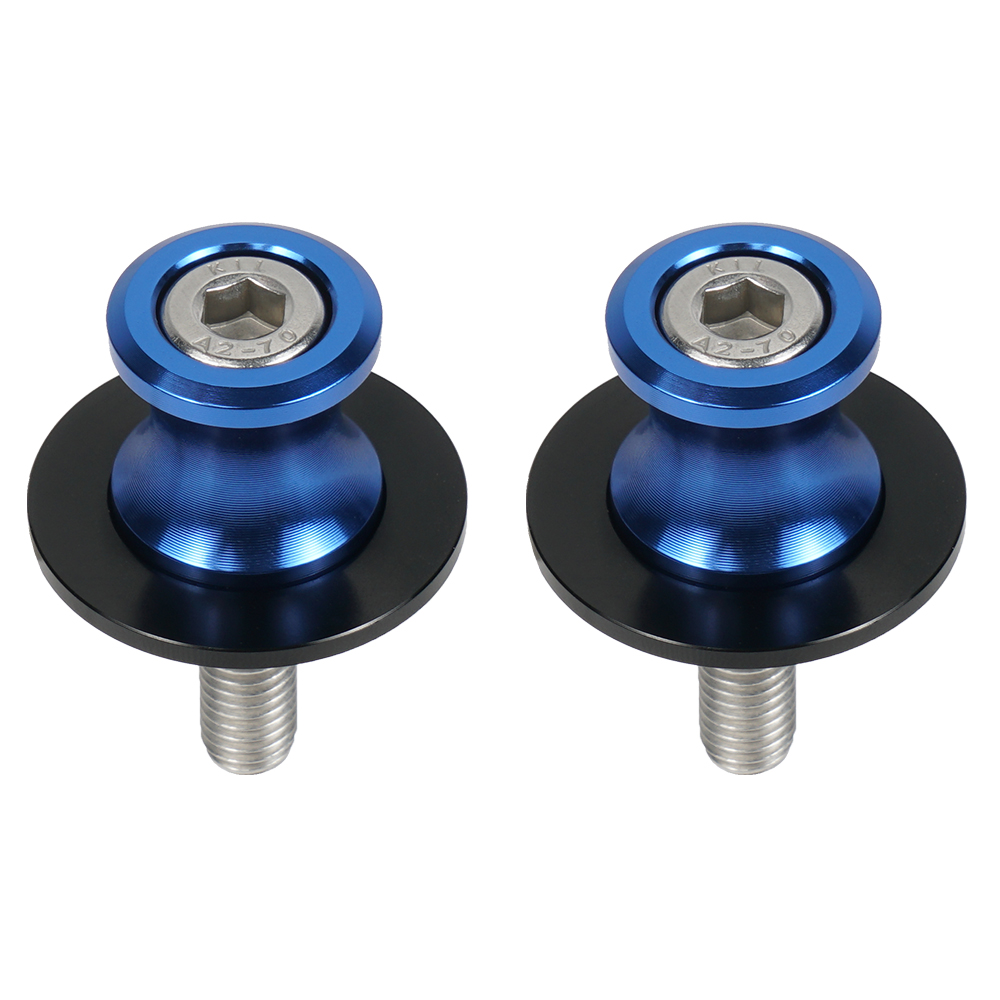

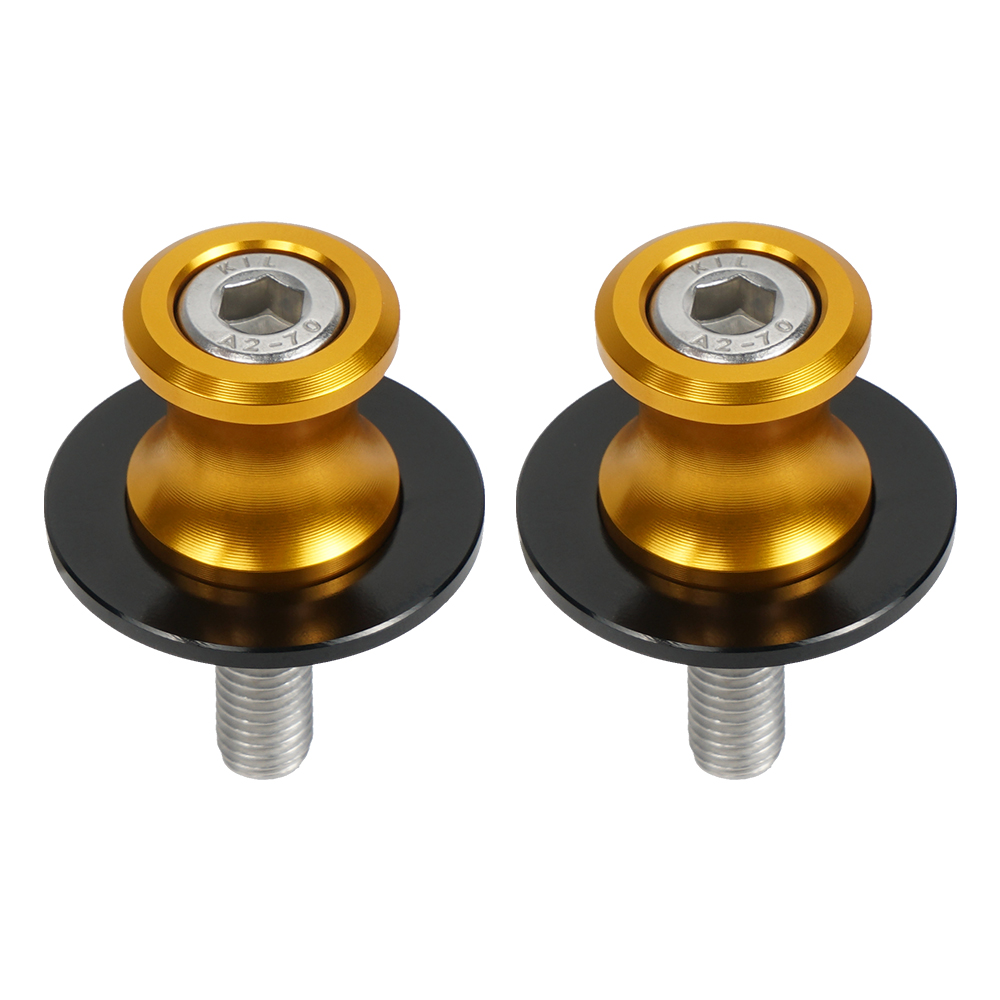

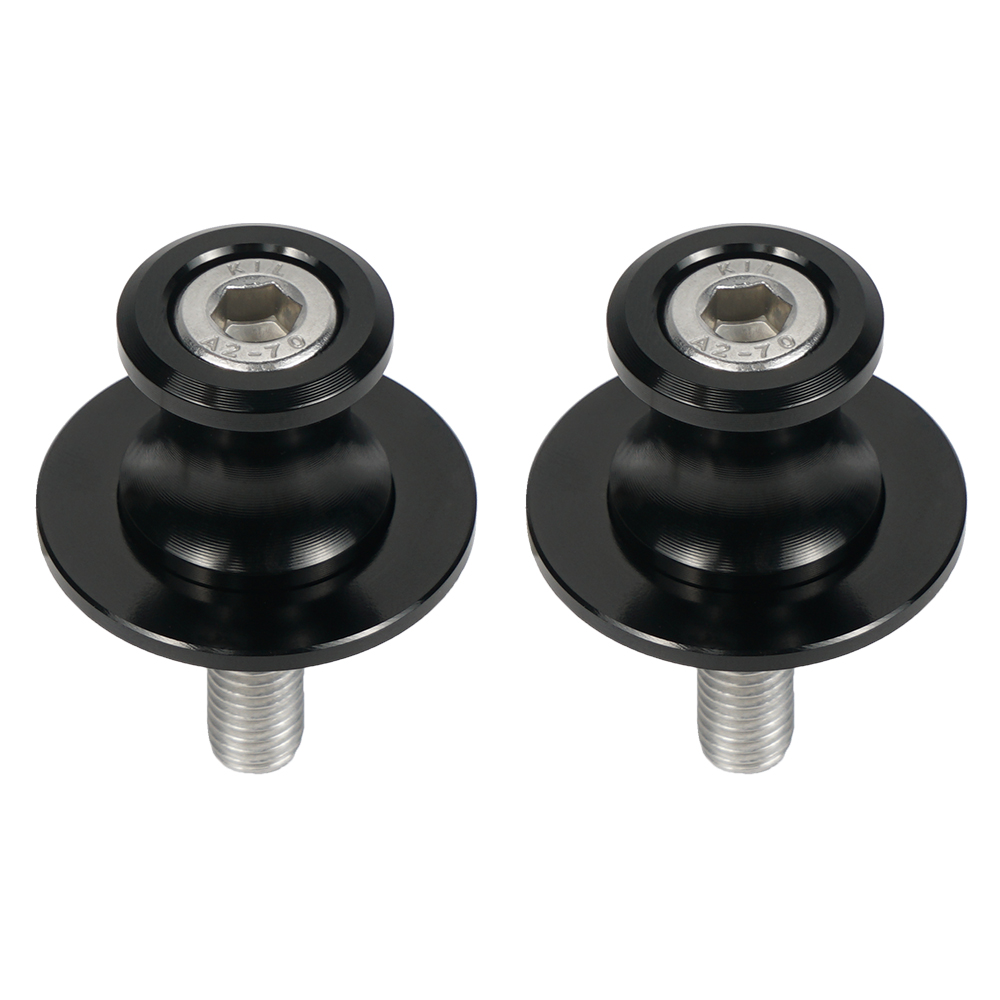

Universal 8mm Swingarm Spools Sliders Installation Instructions

Tools Required:

• 8mm Socket or Wrench
  -Torque Wrench
• Phillips Screwdriver
• Flathead Screwdriver
• Lubricant (optional, for threaded bolts)
• Cloth or Towel (for cleaning surfaces)

Installation Steps:

1. Preparation:

   • Ensure your motorcycle is parked on a flat surface and the engine is turned off.
   • Gather all the necessary tools mentioned above.
   • If applicable, clean the area around the swingarm where you will be installing the spools to remove any dirt or debris.

2. Identify the Mounting Points:

   • Locate the swingarm on your motorcycle. Identify the factory-installed holes designed for spool sliders.
   • Consult your motorcycle’s manual if you are unsure about the specific locations.

3. Align the Spools:

   • Take the Universal Swingarm Spools and align them with the identified mounting points on the swingarm.
   • Ensure that the spools are oriented correctly, as per the design.

4. Insert the Bolts:

   • Insert the provided bolts through the spools and into the swingarm mounting holes.
   • Hand-tighten the bolts first to ensure proper alignment.

5. Tighten the Bolts:

   • Use the 8mm socket or wrench to tighten the bolts to the recommended torque settings.
   • A torque wrench can be adjusted to the motorcycle manufacturer’s specifications for added precision.
   • Make sure not to overtighten, as this can damage the swingarm.

6. Final Checks:

   • Double-check that both spools are securely fastened to the swingarm.
   • Clean any excess lubricant or debris from around the installation area using a cloth.

7. Testing:

   • Gently test the installation by pulling on the spools to ensure they are firmly attached.
   • Check for any movement or instability.

8. Safety Reminder:

   • Always wear protective gear and take necessary precautions when working on your motorcycle.

Congratulations! You have successfully installed your Universal 8mm Swingarm Spools Sliders. Enjoy the added protection and enhanced look of your sports bike. If you have any questions during installation, consult a professional mechanic or refer to the motorcycle manual.
