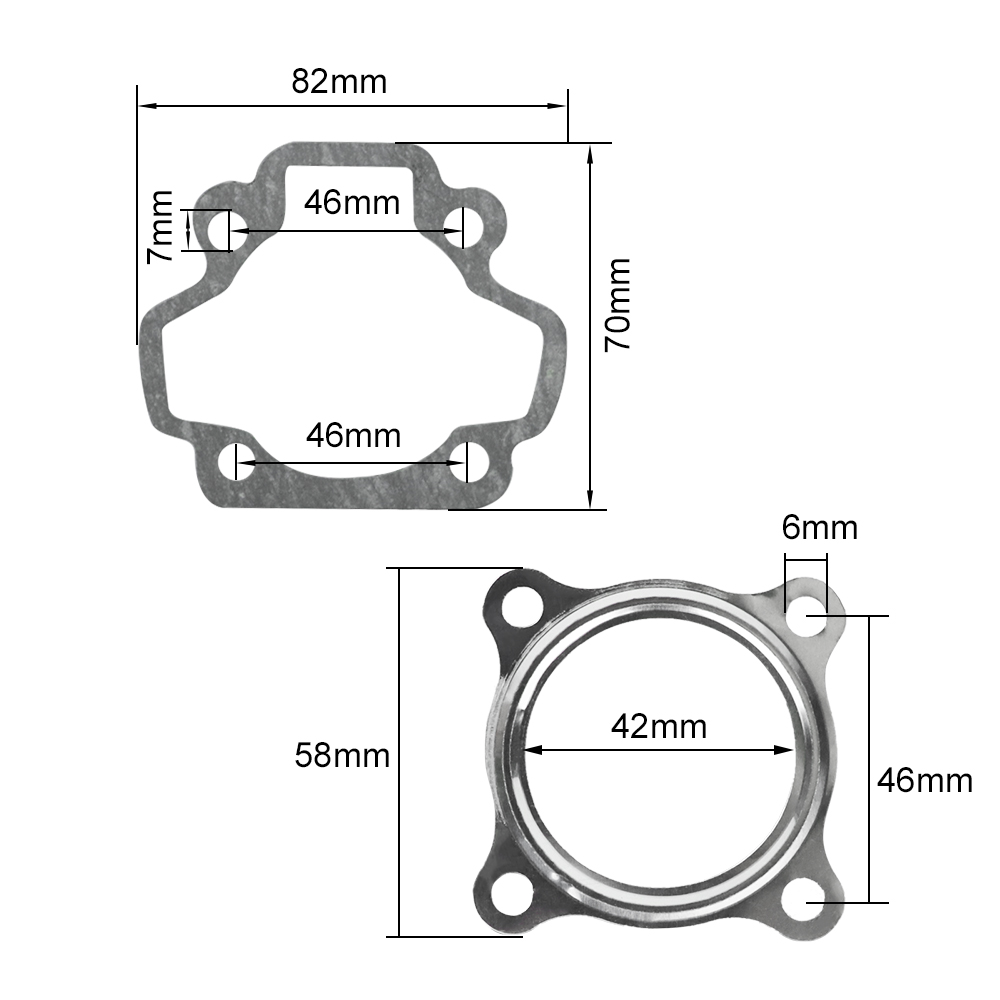

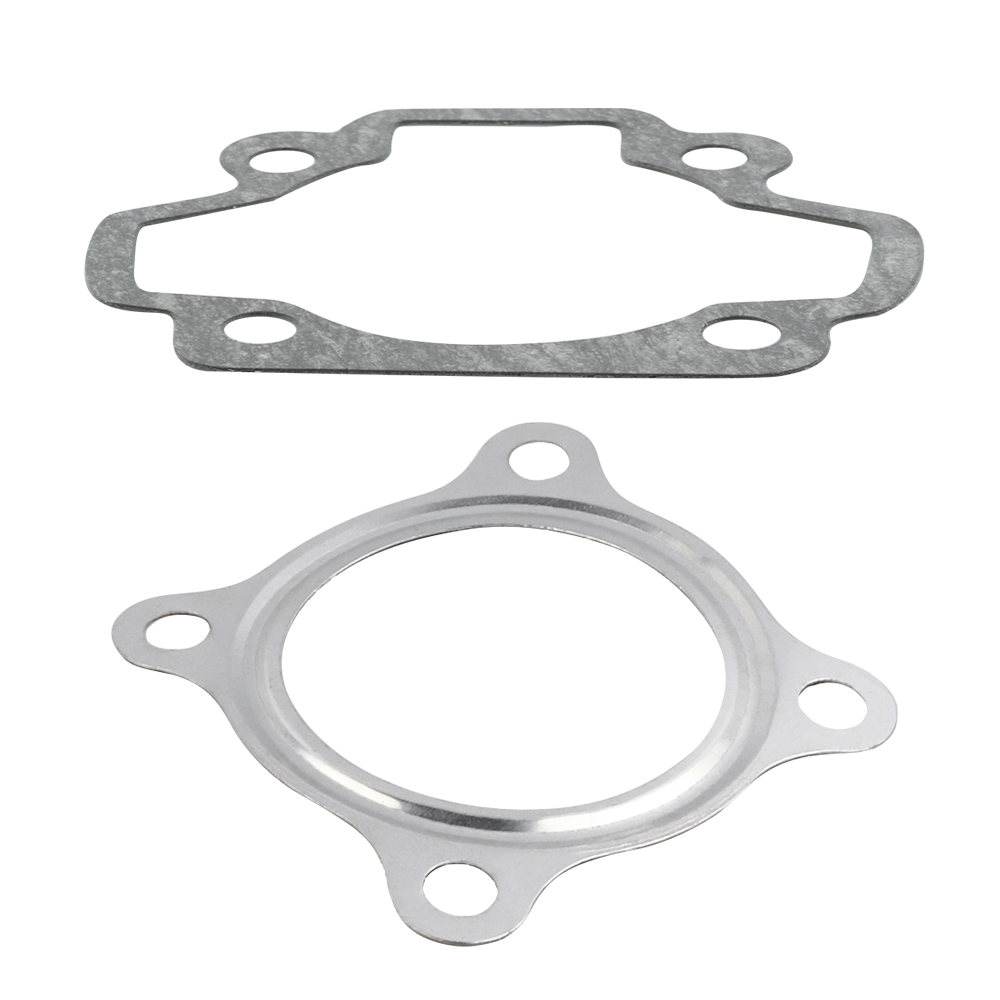

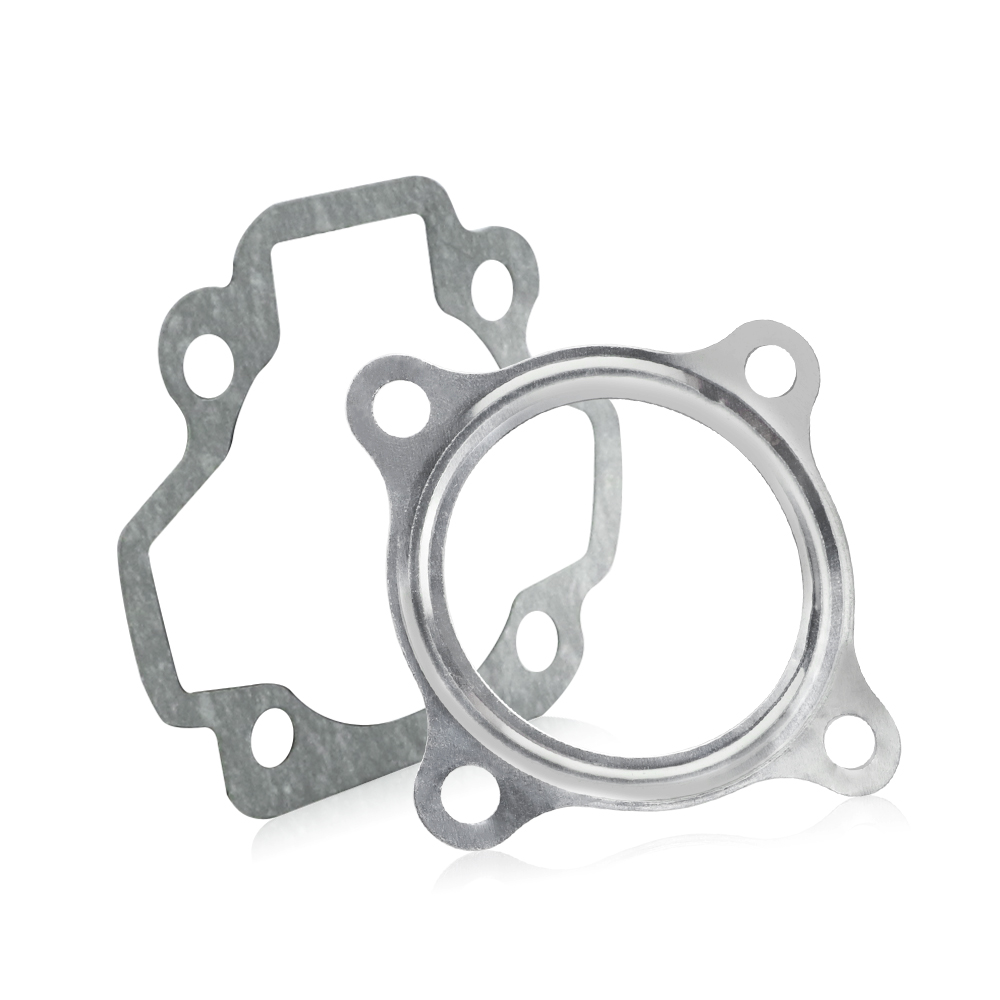

Installation Instructions for Compatible Cylinder Head Gasket Set for 50cc Dirt Pit Motorcycles (1981-2017)

Tools Required:

1. Socket Set - Various sizes for removing bolts.
2. Torque Wrench - To ensure proper tightening of bolts.
3. Screwdrivers - Both flathead and Phillips for various fasteners.
4. Pliers - For gripping and manipulating components.
5. Gasket Scraper - To clean the surfaces before installation.
6. Clean Rag - For wiping surfaces and ensuring cleanliness.
7. Engine Assembly Lubricant - To lightly coat gaskets if recommended.
8. Oil Drain Pan - To catch any oil that may leak during the process.
9. Gloves and Safety Goggles - For personal protection.
10. Digital Torque Sensor (Optional) - For precise torque measurements.

Installation Steps:

1. Preparation:

   • Ensure you have all the required tools.
   • Disconnect the battery and drain the engine oil into an oil drain pan.

2. Remove the Old Cylinder Head Gasket:

   • Carefully remove the cylinder head cover and any hoses or components that may hinder access.
   • Use the gasket scraper to clean old gasket material from the cylinder head and engine block surfaces.

3. Inspect Surfaces:

   • Check the mating surfaces for any damage or warping. If they appear damaged, repair or replace the parts as necessary.

4. Place the New Gasket:

   • Position the new cylinder head gasket on the engine block. Ensure it aligns properly with all holes and passages.

5. Reinstall the Cylinder Head:

   • Place the cylinder head back on top of the gasket and align it correctly.

6. Tighten Bolts:

   • Using the socket set, begin tightening the head bolts in the specified sequence (usually from the center outwards).
   • Use a torque wrench to tighten bolts to the manufacturer's recommended specifications.

7. Reassemble Other Components:

   • Reinstall any hoses, covers, or components that were removed earlier.

8. Final Checks:

   • Ensure all fasteners are securely tightened and there are no tools left in the workspace.
   • Reconnect the battery and refill the engine oil.

9. Start the Engine:

   • Start the engine and check for any leaks around the gasket area after the initial running.

Conclusion:
Follow these steps carefully for a successful installation of the compatible cylinder head gasket set. Ensure safety procedures are followed, and enjoy the enduring performance of your 50cc dirt pit motorcycle!
