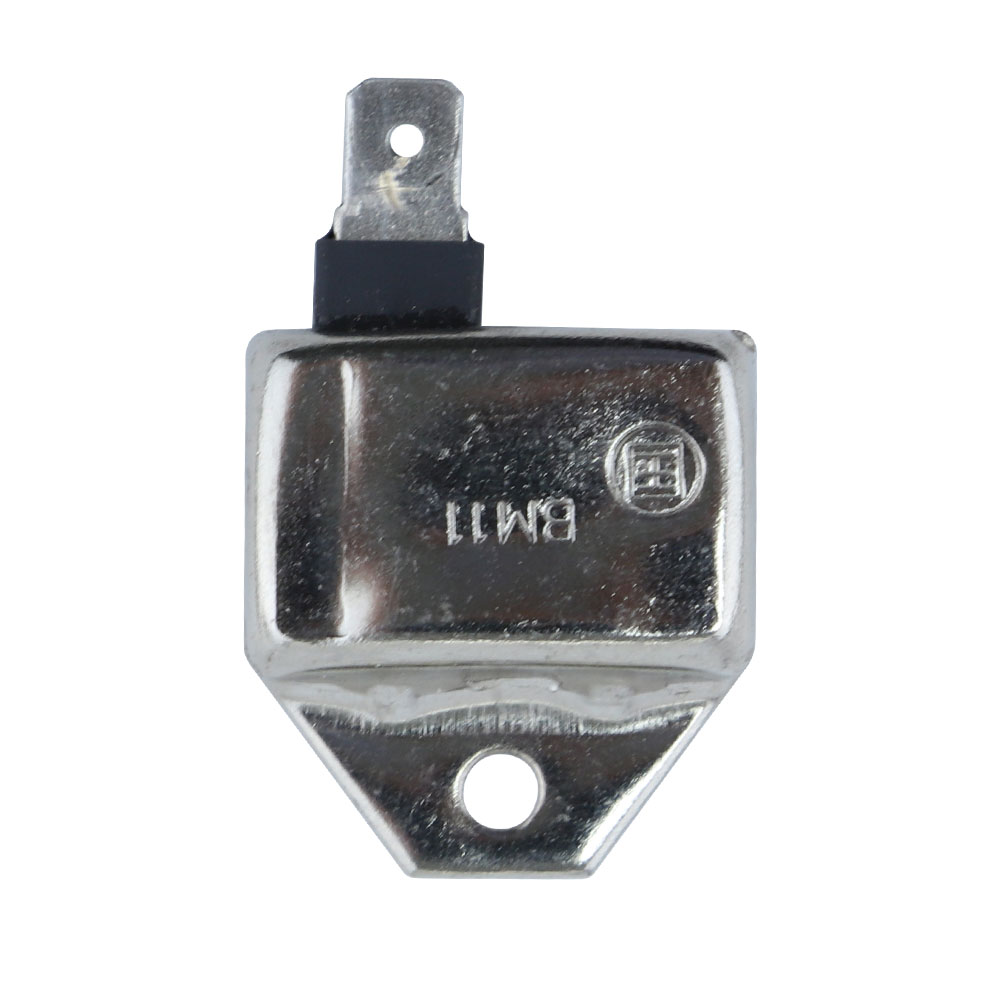

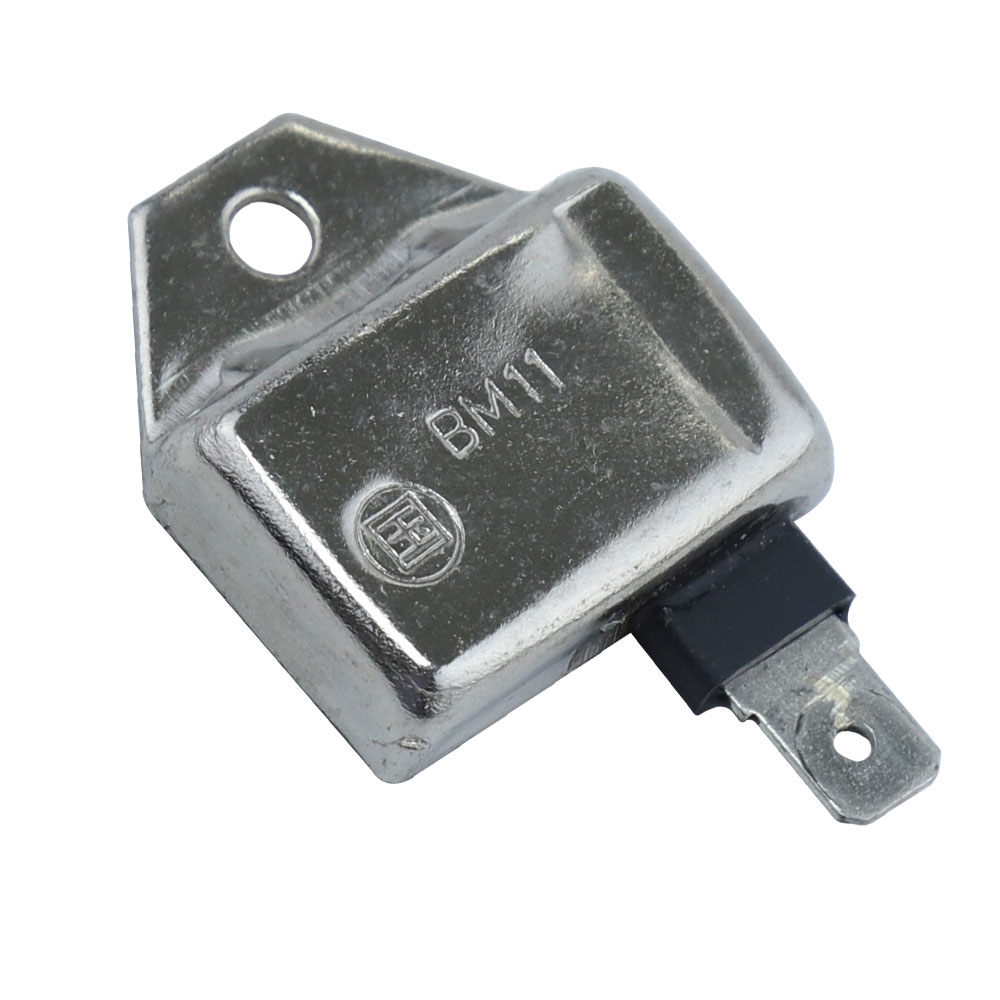

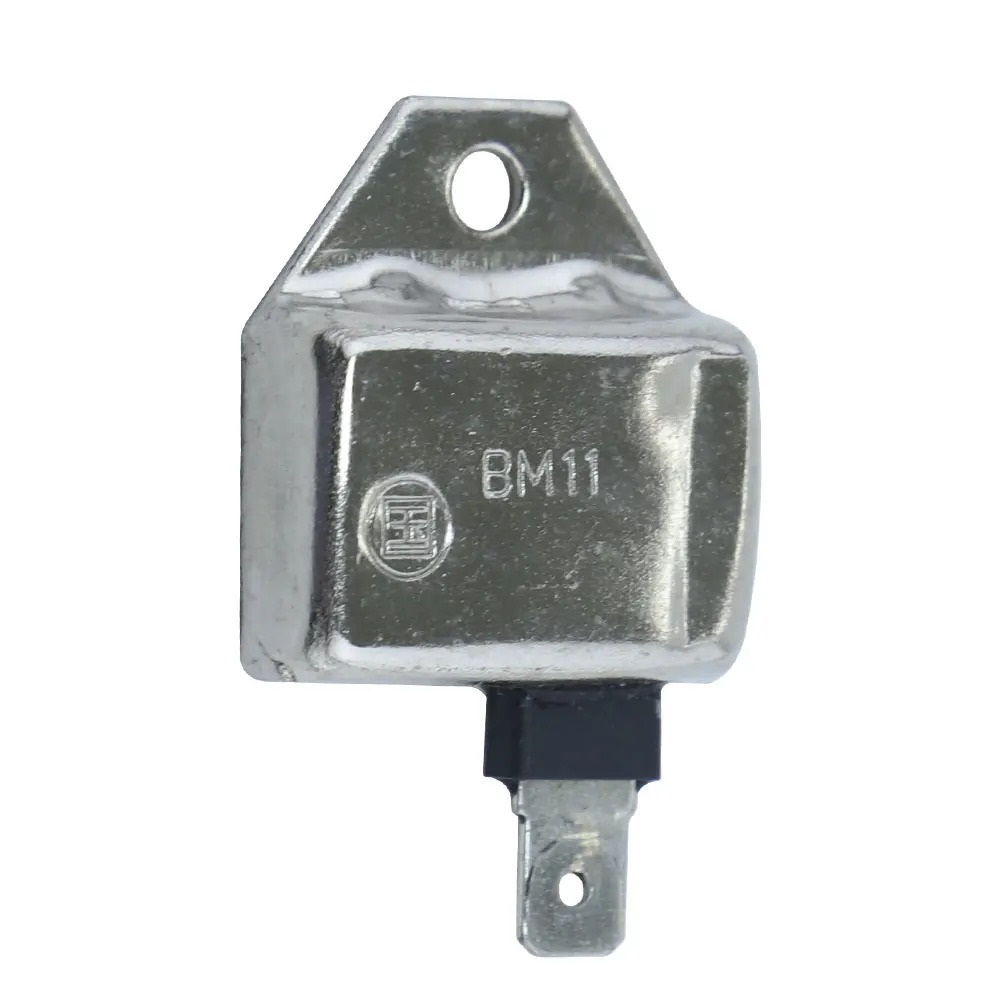

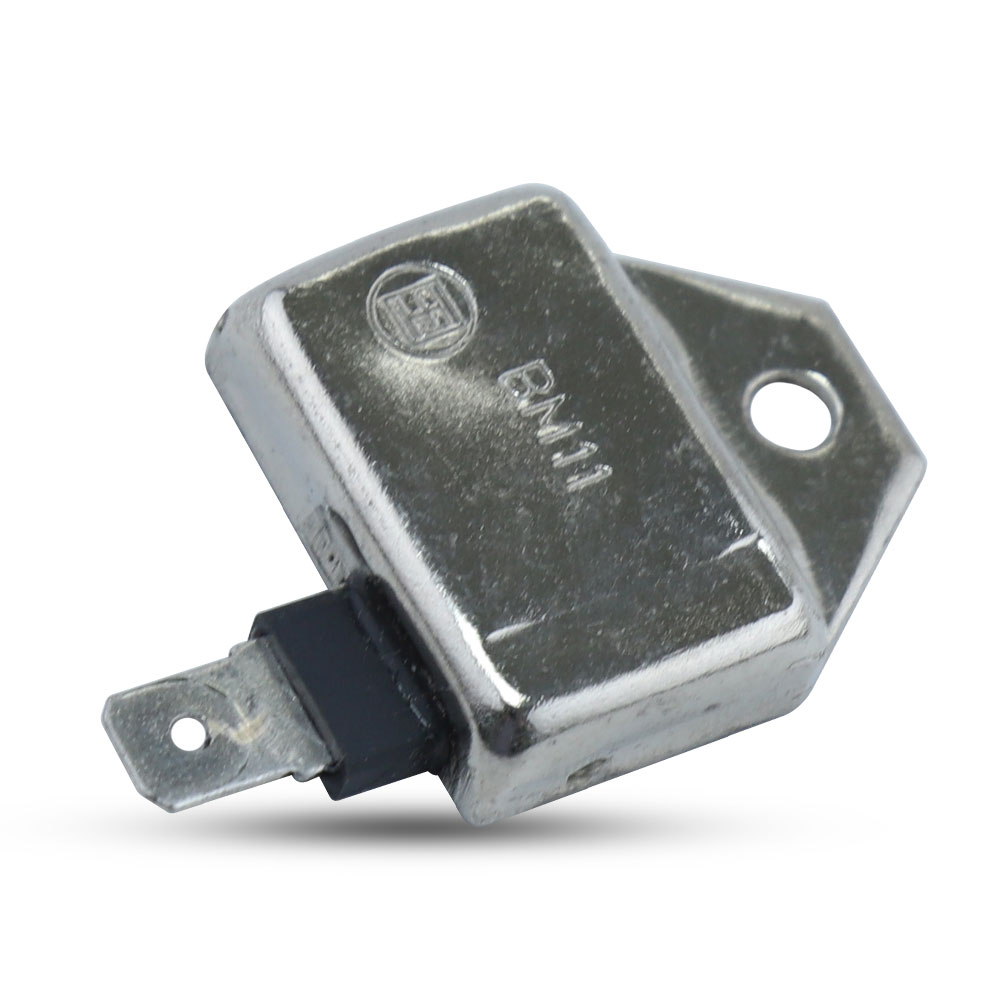

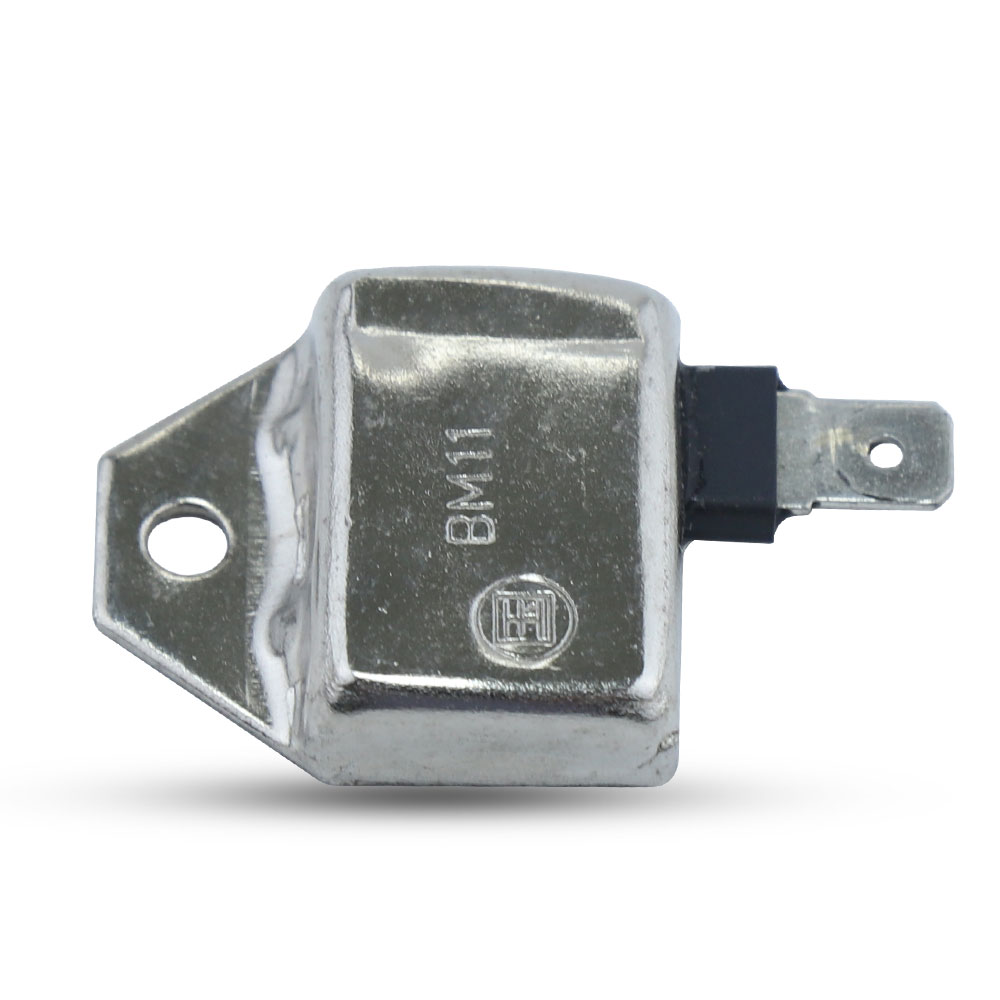

Product Installation Instructions for Igniter Ignition Module

Compatible Models: 21119-2161, 21119-2095, K M73484, M70114

Installation Overview:

This Igniter Ignition Module is designed for various agricultural equipment. It ensures compatibility across multiple models, providing reliable ignition performance to enhance engine efficiency and reduce failure rates.

Tools Required:

Before starting the installation process, please gather the following tools:

1. Socket Set: For removing and securing bolts.
2. Wrench Set: To access screws and nuts.
3. Screwdriver Set: Both flathead and Phillips for various screws.
4. Pliers: To handle cables and connectors.
5. Electrical Tape: For securing connections.
6. Wire Stripper/Cutter: For preparing electrical wires if necessary.

Installation Steps:

1. Safety First: Ensure the agricultural equipment is turned off and adequately grounded before starting the installation.

2. Remove the Old Ignition Module:

   • Locate the existing ignition module.
   • Use the socket set and wrench to disconnect the fasteners holding the module in place.
   • Carefully disconnect any electrical connectors.

3. Prepare the New Igniter Ignition Module:

   • Inspect the new module for any damage before installation.
   • Ensure all connectors and wires are in good condition.

4. Install the New Module:

   • Position the new Igniter Ignition Module in place.
   • Secure it with the appropriate bolts and screws using the socket and wrench set.
   • Reconnect all electrical connectors, ensuring a snug fit.

5. Testing the Installation:

   • Turn on the equipment and check for proper operation.
   • Monitor the engine performance to ensure the ignition module is functioning correctly.

6. Final Touches:

   • Use electrical tape to secure any loose connections.
   • Dispose of the old ignition module responsibly.

Conclusion:

Following these installation instructions, you can efficiently and effectively install the Igniter Ignition Module. Its durable design ensures long-lasting performance under the demanding conditions of agricultural equipment. For any further assistance, consult the equipment’s manual or seek professional help.
