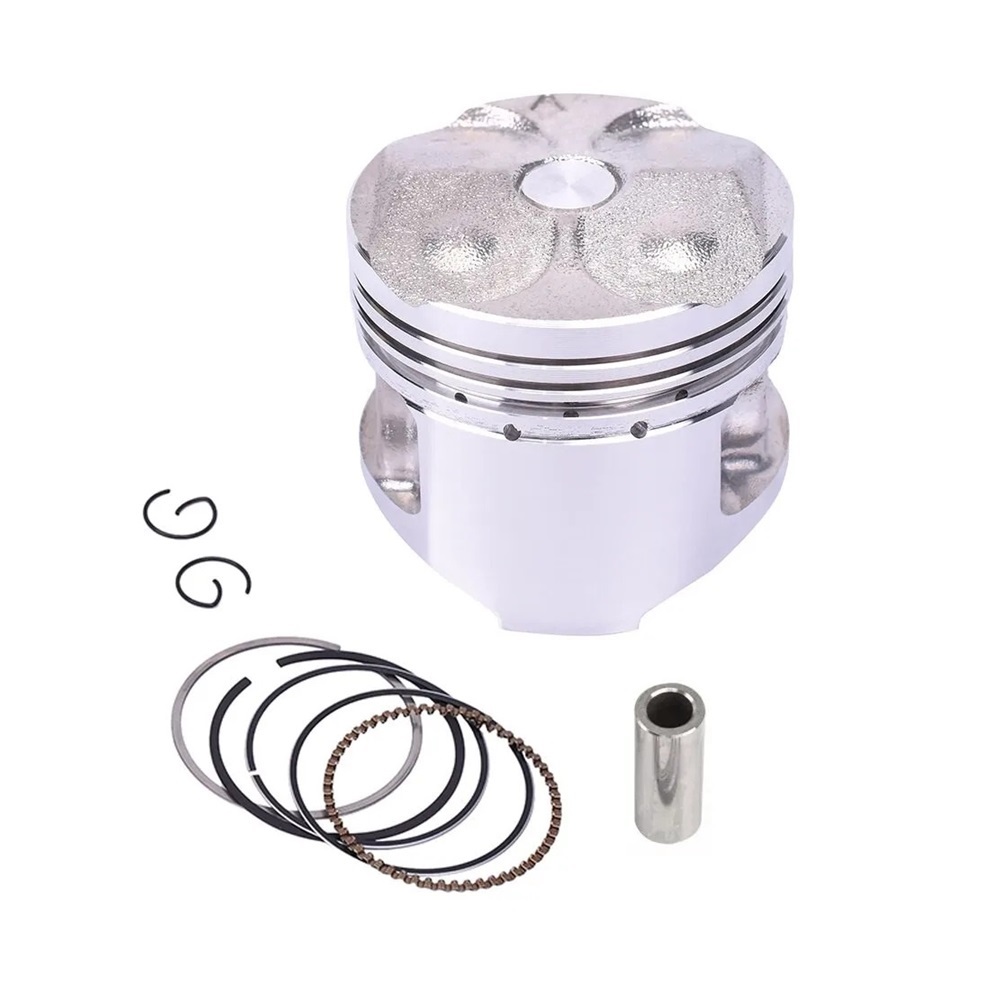

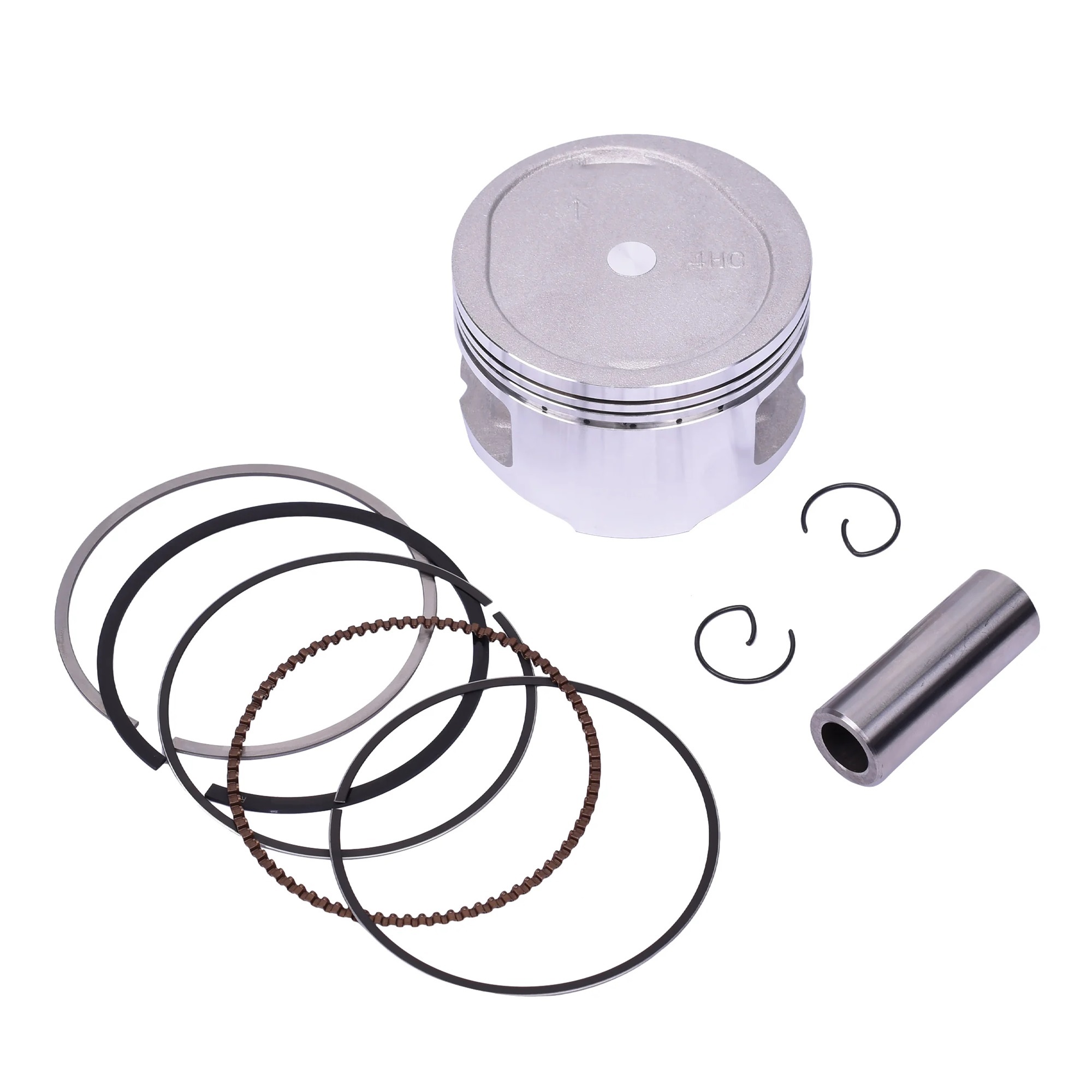

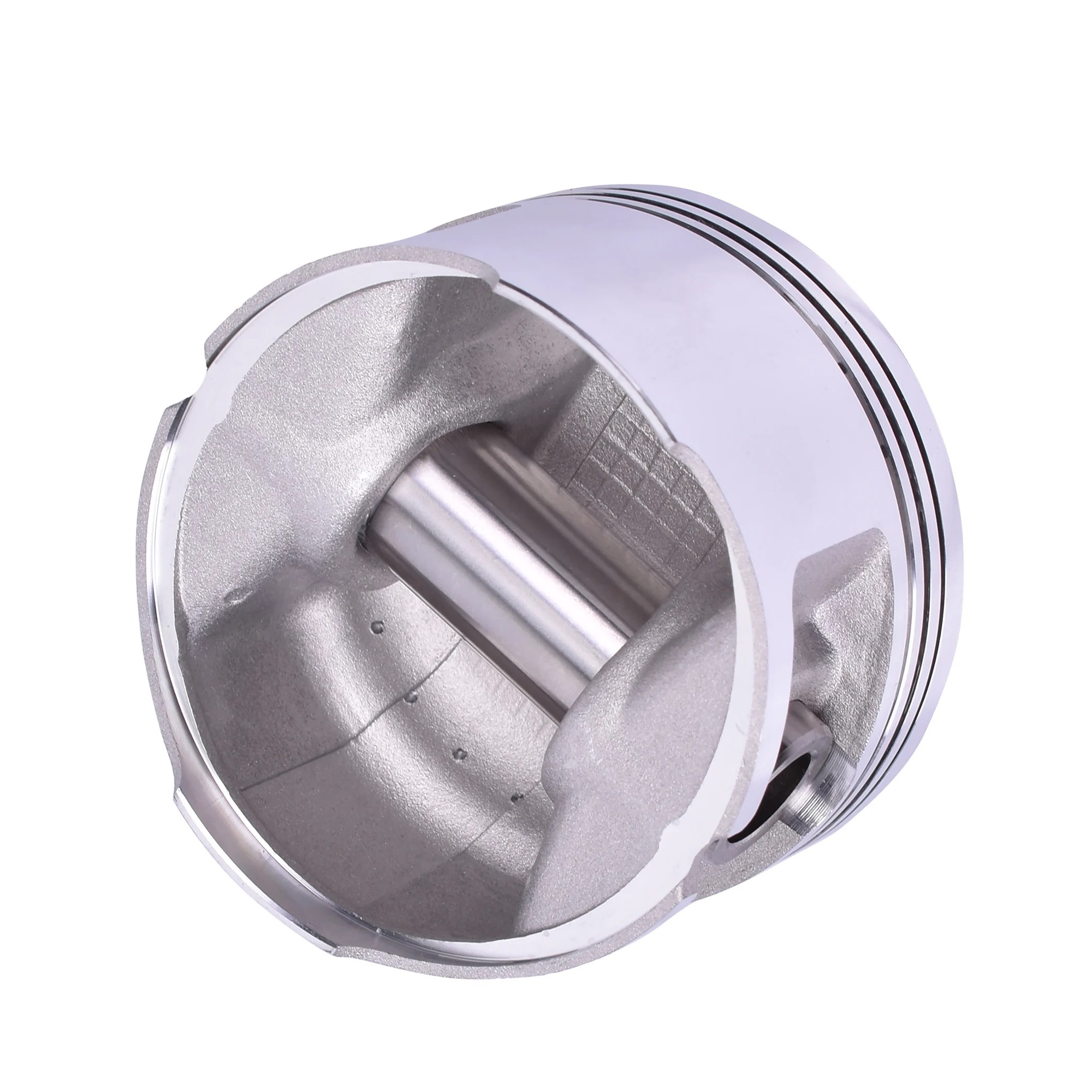

Product Installation Instructions for Motorcycle Piston Rings Kit for 250CC Engine

Tools Required:

1. Socket Wrench Set - For removing and tightening bolts on the engine.
2. Torque Wrench - To ensure bolts are tightened to the manufacturer’s specified torque settings.
3. Piston Ring Compressor Tool - Essential for safely installing the piston rings onto the piston.
4. Feeler Gauge - To check the gap between the piston rings and the cylinder wall.
5. Wrench Set - For adjusting other components as necessary during the installation process.
6. Pliers - To assist with any clip installation or removal.
7. Clean Rags - For cleaning the engine components before installation.
8. Lubricating Oil - To lubricate the piston and rings before installation, ensuring smooth operation.
9. Container for Small Parts - To hold screws, clips, and other small items during the installation process.

Installation Steps:

1. Preparation:

   • Ensure that you have all the required tools and that the work area is clean and organized.

2. Remove the Old Piston and Rings:

   • Use the socket wrench to remove the cylinder head, then detach the piston from the connecting rod.
   • Carefully take out the old piston rings from the piston.

3. Clean the Components:

   • Clean the cylinder wall and piston thoroughly using clean rags to remove any debris or old oil.

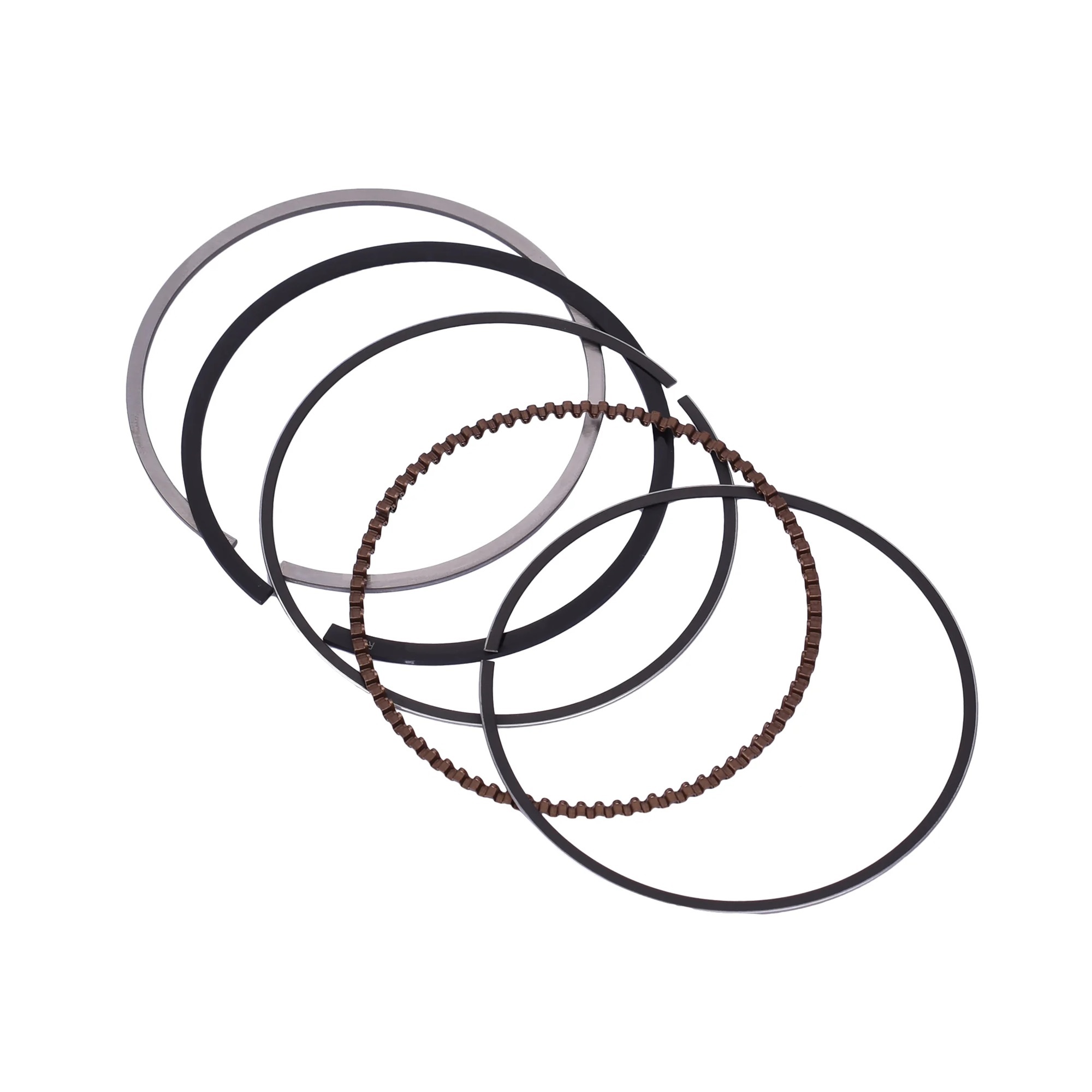

4. Install the New Piston Rings:

   • Use the piston ring compressor tool to help install the new rings onto the piston.
   • Ensure the rings are properly seated and aligned.

5. Lubricate the Components:

   • Apply a light coat of lubricating oil to the piston and rings to prevent any dry start after installation.

6. Reassemble the Engine:

   • Insert the piston back into the cylinder, ensuring the correct orientation.
   • Reattach the connecting rod and tighten the bolts using the torque wrench as per the specifications.

7. Final Check:

   • Check the movement of the piston and ensure there is no binding.

8. Reinstall the Cylinder Head:

   • Once everything is in place, reinstall the cylinder head and any other components removed during disassembly, ensuring everything is secured properly.

By following these installation instructions and utilizing the recommended tools, you can effectively install the Motorcycle Piston Rings Kit for optimal engine performance.
