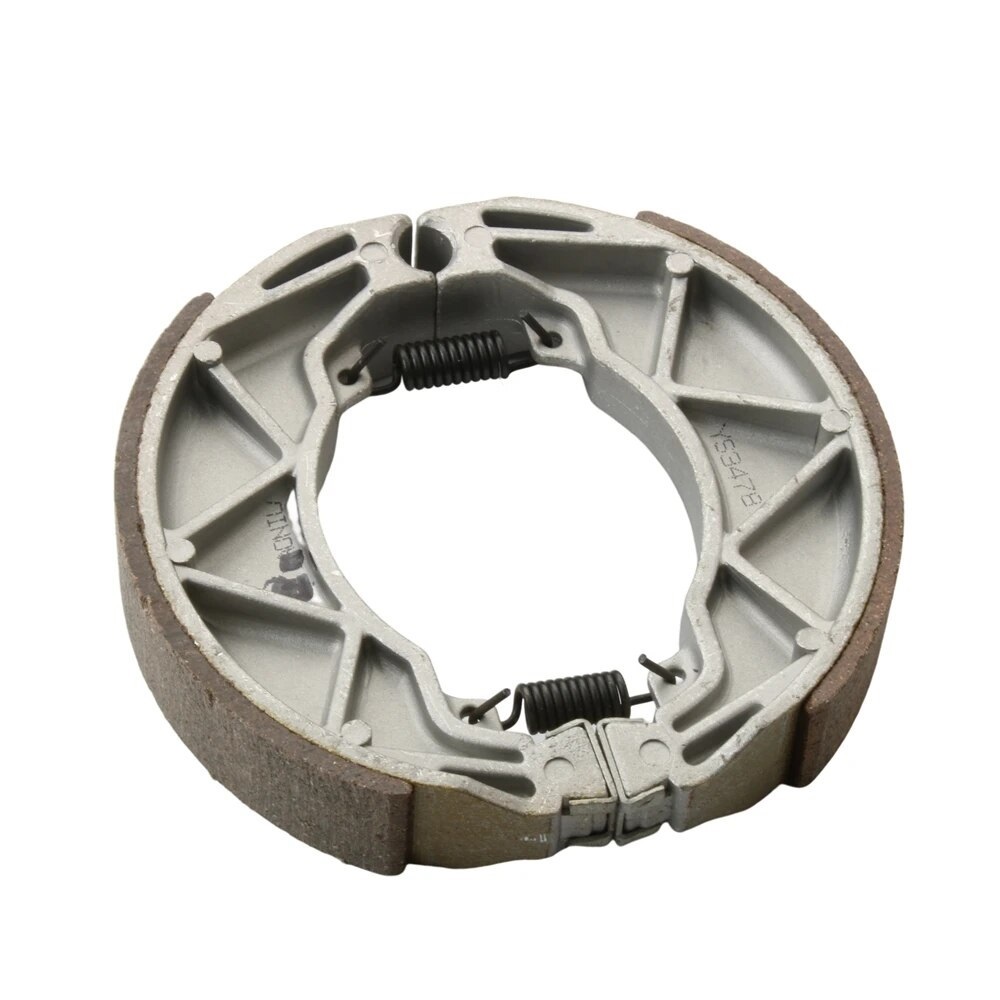

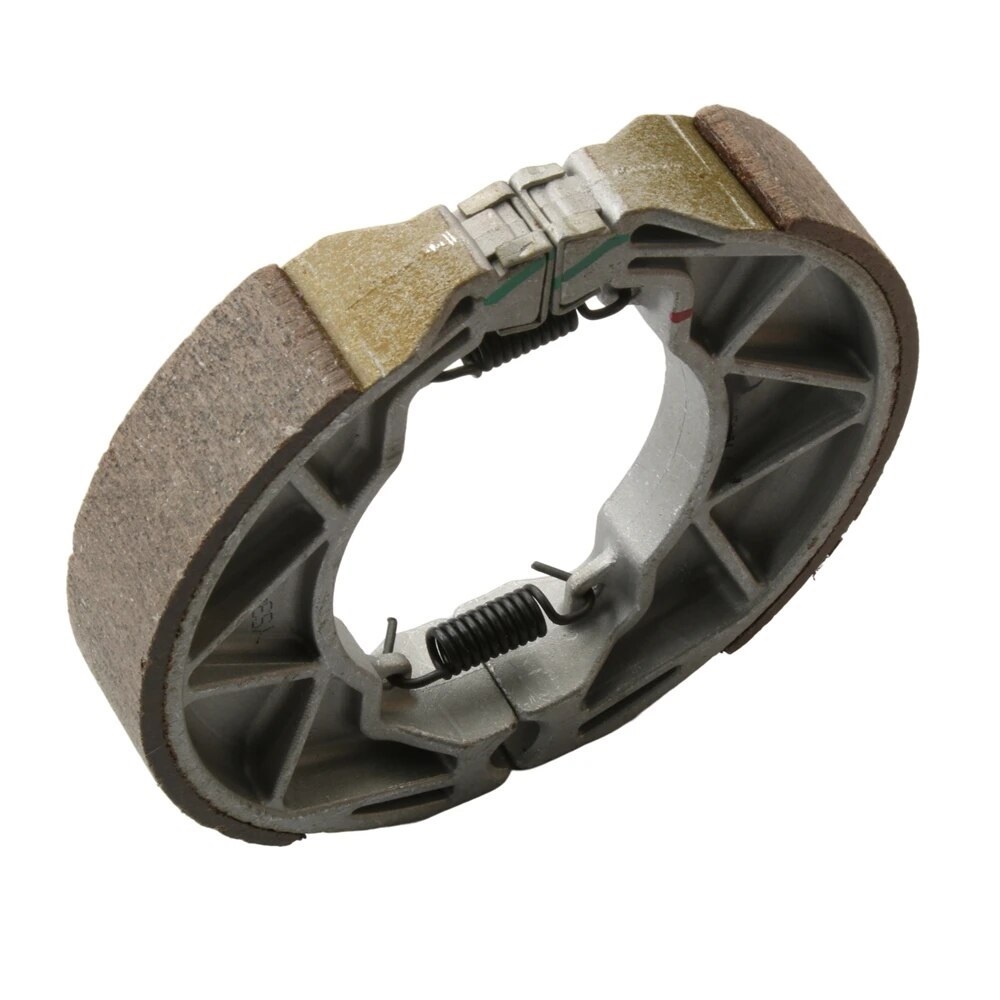

Product Installation Instructions for Universal Brake Shoe Set

Model Numbers: 225120421, 56294R
Compatible with: Various 125cc and 150cc motorcycle models

Tools Required:

1. Screwdriver Set:

   • Flathead screwdriver
   • Phillips screwdriver

2. Wrench Set:

   • Adjustable wrench or appropriate size box-end wrenches for axle nut

3. Pliers:

   • Needle-nose pliers may be helpful for removing springs and securing components

4. Torque Wrench:

   • To ensure that bolts are tightened to the manufacturer's specifications

5. Brake Cleaner:

   • To clean the brake assembly before installation

6. Shop Towels or Rags:

   • For cleaning and wiping down components

7. Gloves:

   • To keep your hands clean and protect them during installation

Installation Steps:

1. Preparation:

   • Ensure your motorcycle is on a stable surface.
   • Utilize a bike stand or jack to lift the motorcycle for ease of access to the rear brake assembly.

2. Remove the Wheel:

   • Use the appropriate wrench to remove the axle nut and then detach the wheel from the motorcycle.

3. Take Off the Old Brake Shoes:

   • Use the screwdriver and pliers to remove any retaining clips or springs holding the old brake shoes in place.
   • Carefully take off the old brake shoes.

4. Clean the Brake Assembly:

   • Use brake cleaner and shop towels to clean the brake assembly, removing any dust or debris.

5. Install the New Brake Shoes:

   • Position the new brake shoes in the drum, ensuring they are aligned correctly.
   • Reattach the retaining clips and springs using pliers to secure the shoes in place.

6. Reattach the Wheel:

   • Place the wheel back onto the axle.
   • Tighten the axle nut securely with the wrench, using a torque wrench if necessary.

7. Final Check:

   • Spin the wheel to ensure it moves freely and check that the brakes are functioning properly.

8. Test Ride:

   • Take a short test ride to ensure that the new brake shoes are functioning correctly and providing stable braking performance.

Caution:
Always refer to the motorcycle’s owner manual for specific instructions and torque specifications related to your model. If you are unsure about any steps, it’s advisable to seek professional assistance.

Now you're ready to enjoy your enhanced riding safety with the new Universal Brake Shoe Set!
