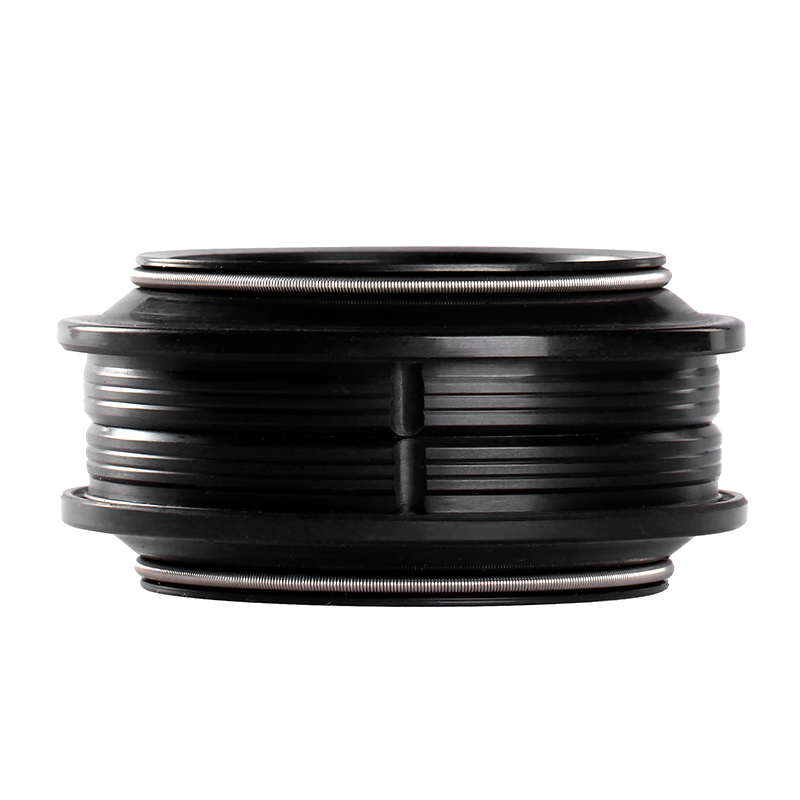

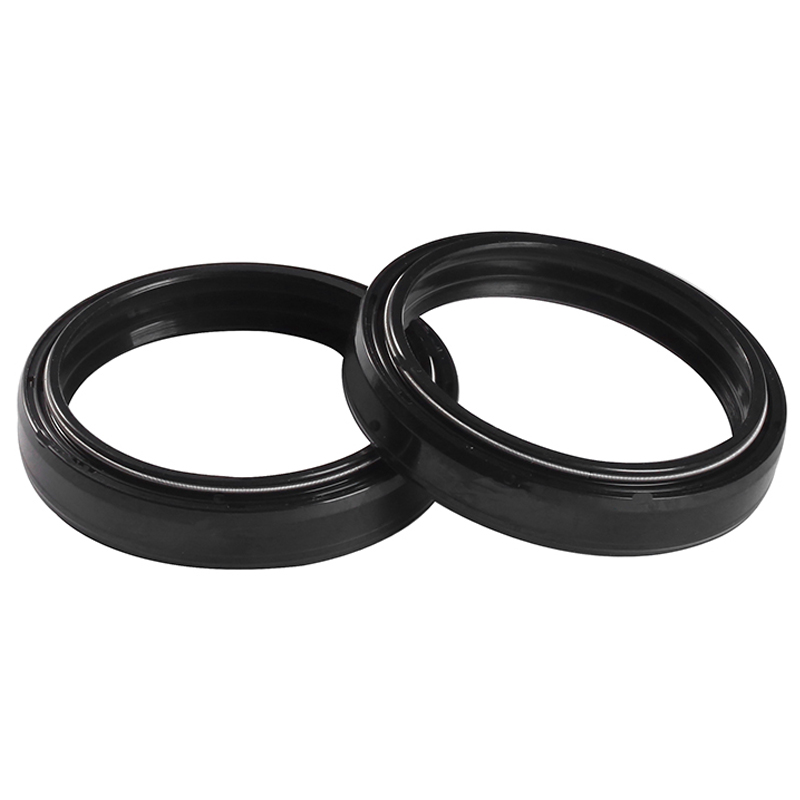

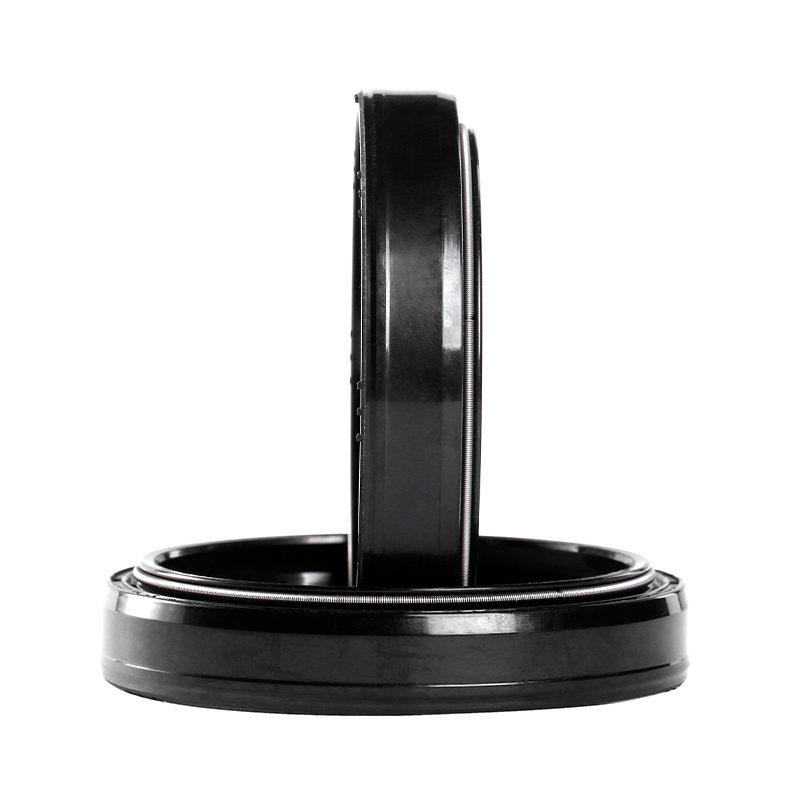

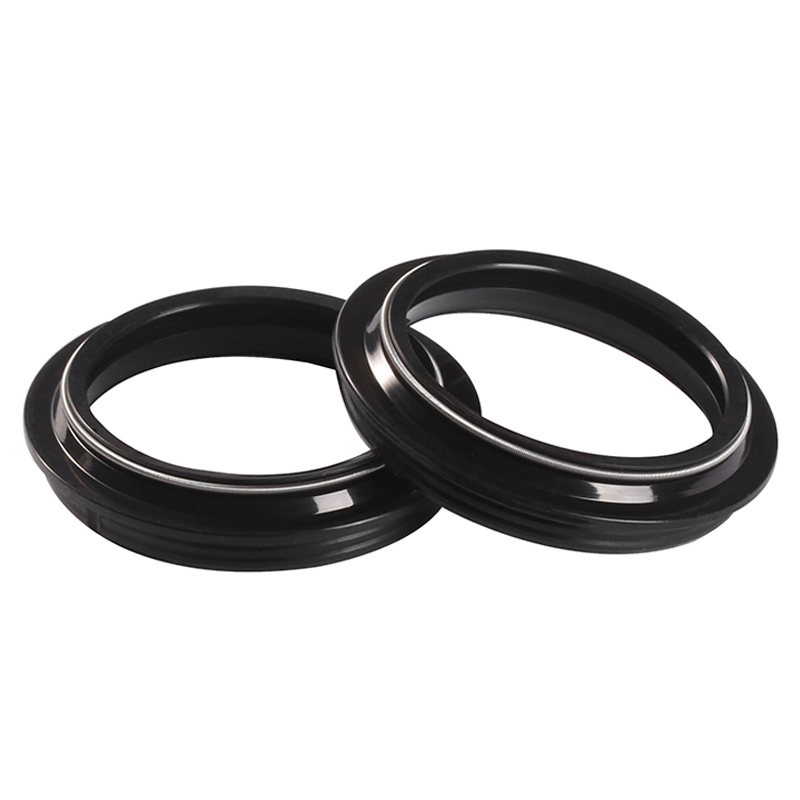

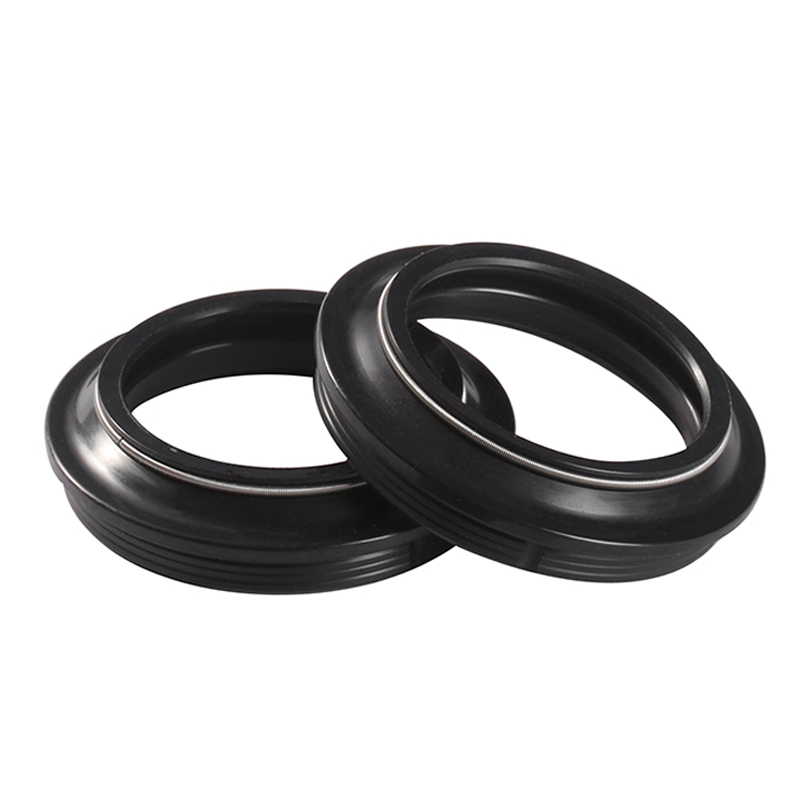

Product Installation Instructions for 37x49x8 Front Fork Oil Seal Dust Cover

Compatibility

• Suitable for 125cc motorcycles from 2007-2010, 4-Stroke EN EU3 compatible parts.
• Fits various 125cc single-cylinder motorcycles.
• Compatible with most 4-Stroke motorcycles.

Tools Required

To install the front fork oil seal dust cover, you will need the following tools:

1. Flat-head Screwdriver – For prying and removing old seals.
2. Phillips-head Screwdriver – For removing screws if applicable.
3. 18mm Socket Wrench – For loosening and tightening nuts on the fork.
4. Rubber Mallet – To gently tap the new dust cover into place without damaging it.
5. Cleaning Cloth – To clean the fork stanchions and surrounding areas before installation.
6. Grease – To lubricate the seals and ensure a proper fit.

Installation Steps

1. Prepare the Motorcycle:

   • Securely lift the front of the motorcycle using a stand or jack.
   • Ensure the motorcycle is stable and won't tip over during the installation.

2. Remove the Front Wheel:

   • Use the socket wrench to loosen and remove the axle nuts.
   • Carefully take out the axle and remove the front wheel.

3. Take Off the Forks:

   • Remove any necessary components (like fender or brake calipers) for clear access to the forks.
   • Unscrew the bolts holding the forks in place, then gently slide the forks out of the triple clamps.

4. Remove Old Oil Seal Dust Covers:

   • Carefully pry off the old dust covers using the flat-head screwdriver.
   • Clean any residual grease or dirt from the stanchion.

5. Install New Dust Cover:

   • Apply a thin layer of grease to the new dust cover and the sealing surface of the fork.
   • Align the new dust cover with the fork and carefully push it into place.
   • Use the rubber mallet to gently tap the dust cover until it is fully seated.

6. Reinstall Forks:

   • Carefully slide the forks back into the triple clamps.
   • Secure them by tightening the bolts to the manufacturer’s specifications.

7. Reattach Front Wheel:

   • Replace the front wheel and secure it with the axle.
   • Tighten the axle nuts with the socket wrench.

8. Final Check:

   • Check all components are secure and ensure nothing is loose.
   • Test the motorcycle’s front suspension briefly to confirm proper installation.

Note

Always refer to your motorcycle's service manual for specific torque specifications and further instructions.

With the new dust cover installed, your motorcycle will have improved protection against dust and debris, ensuring smoother performance!
