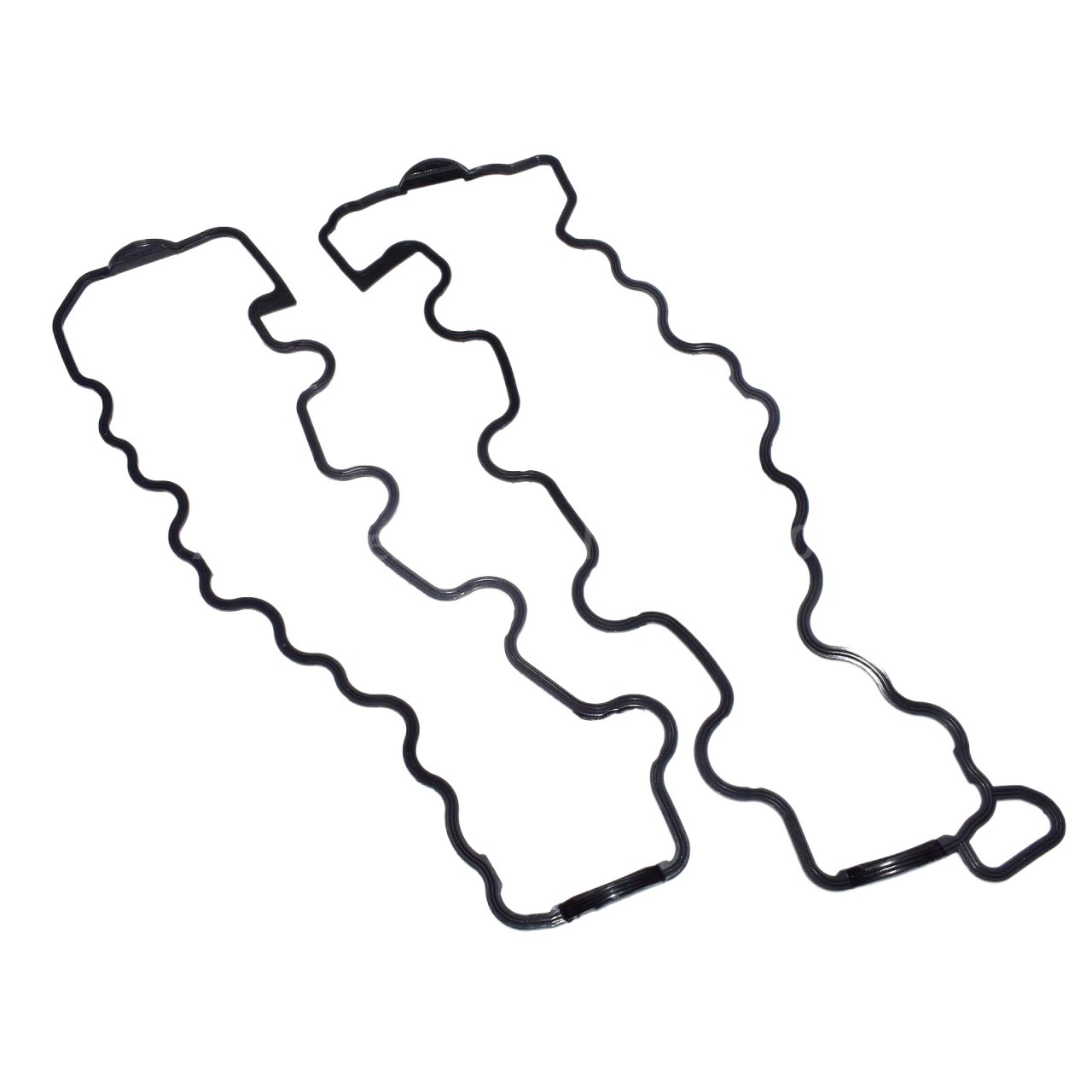

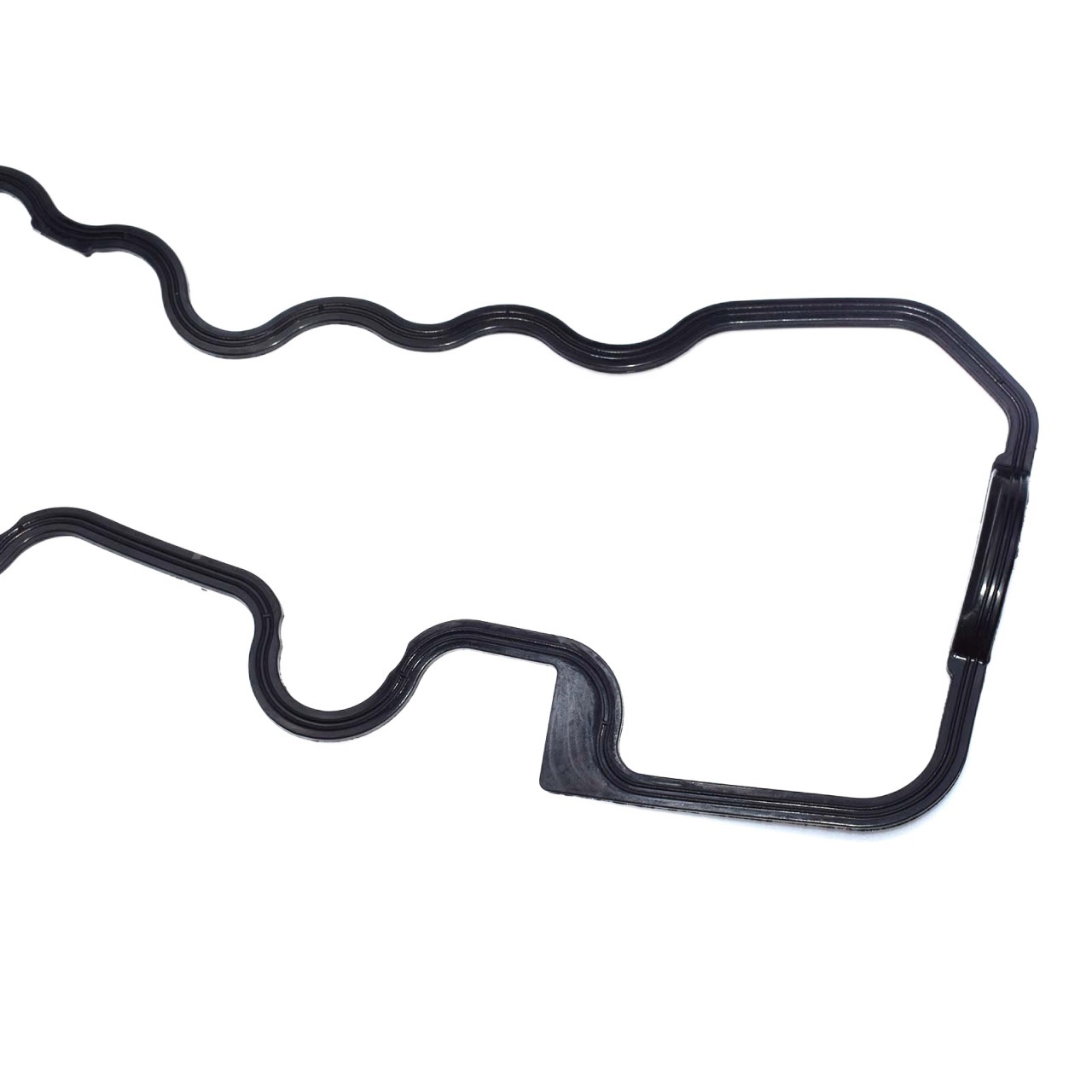

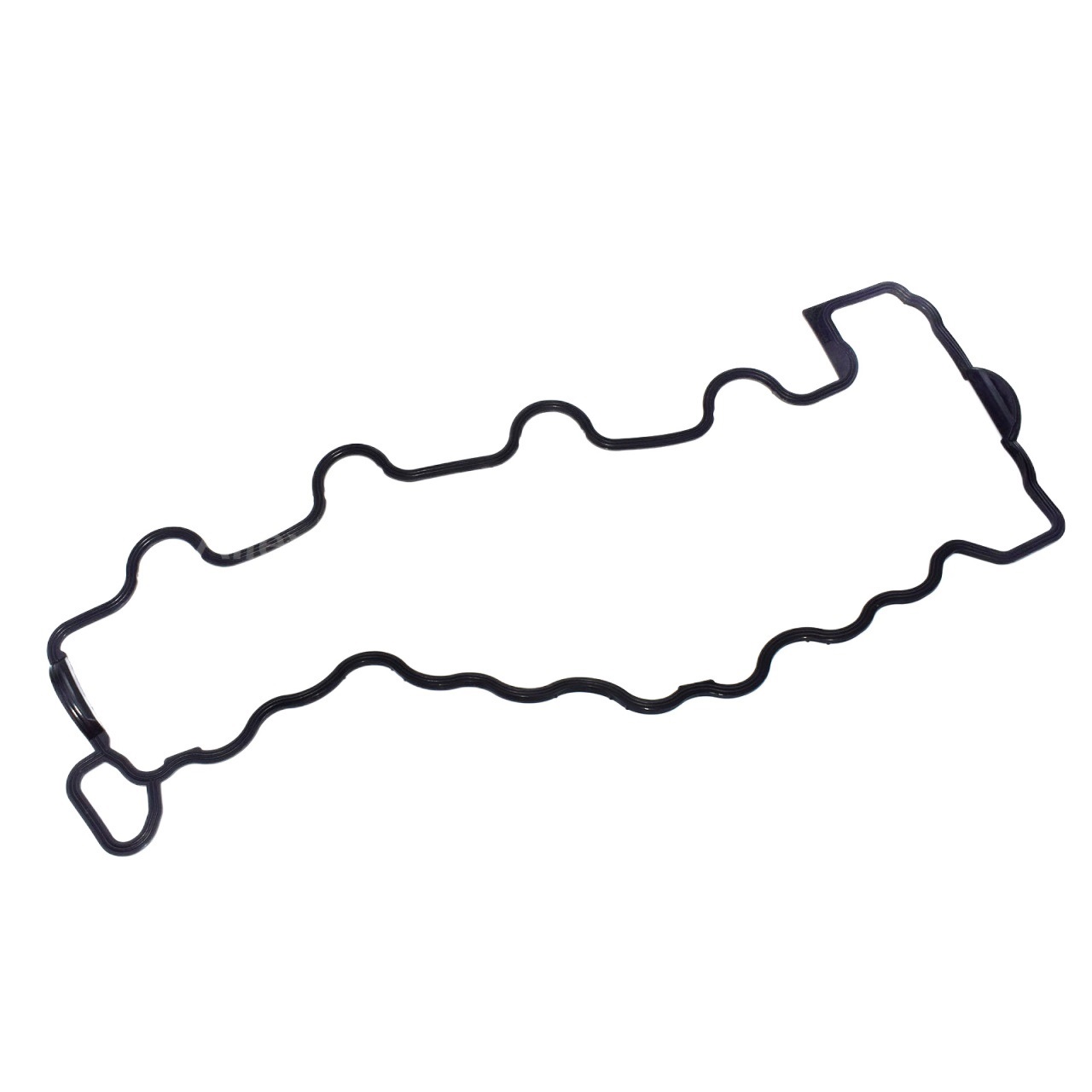

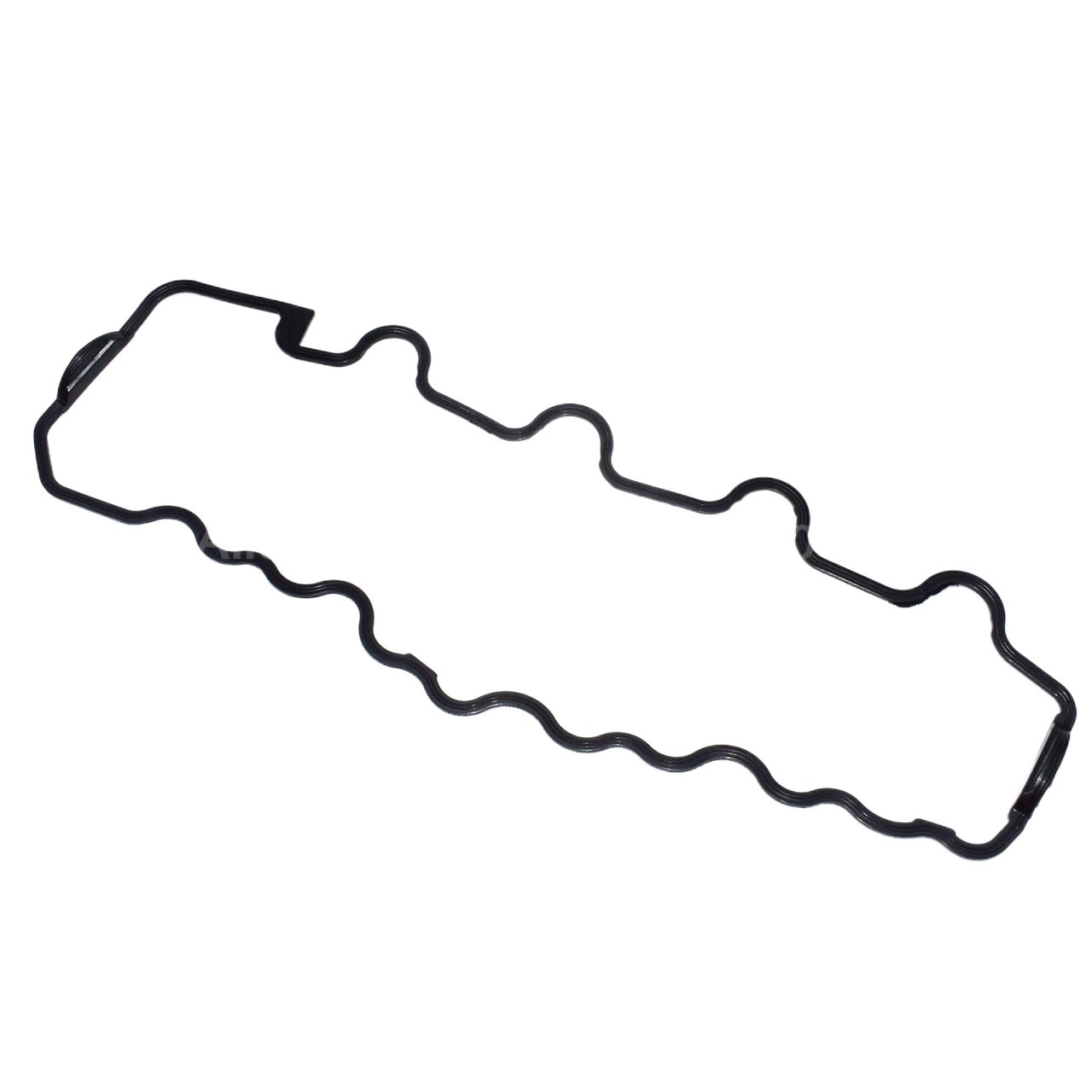

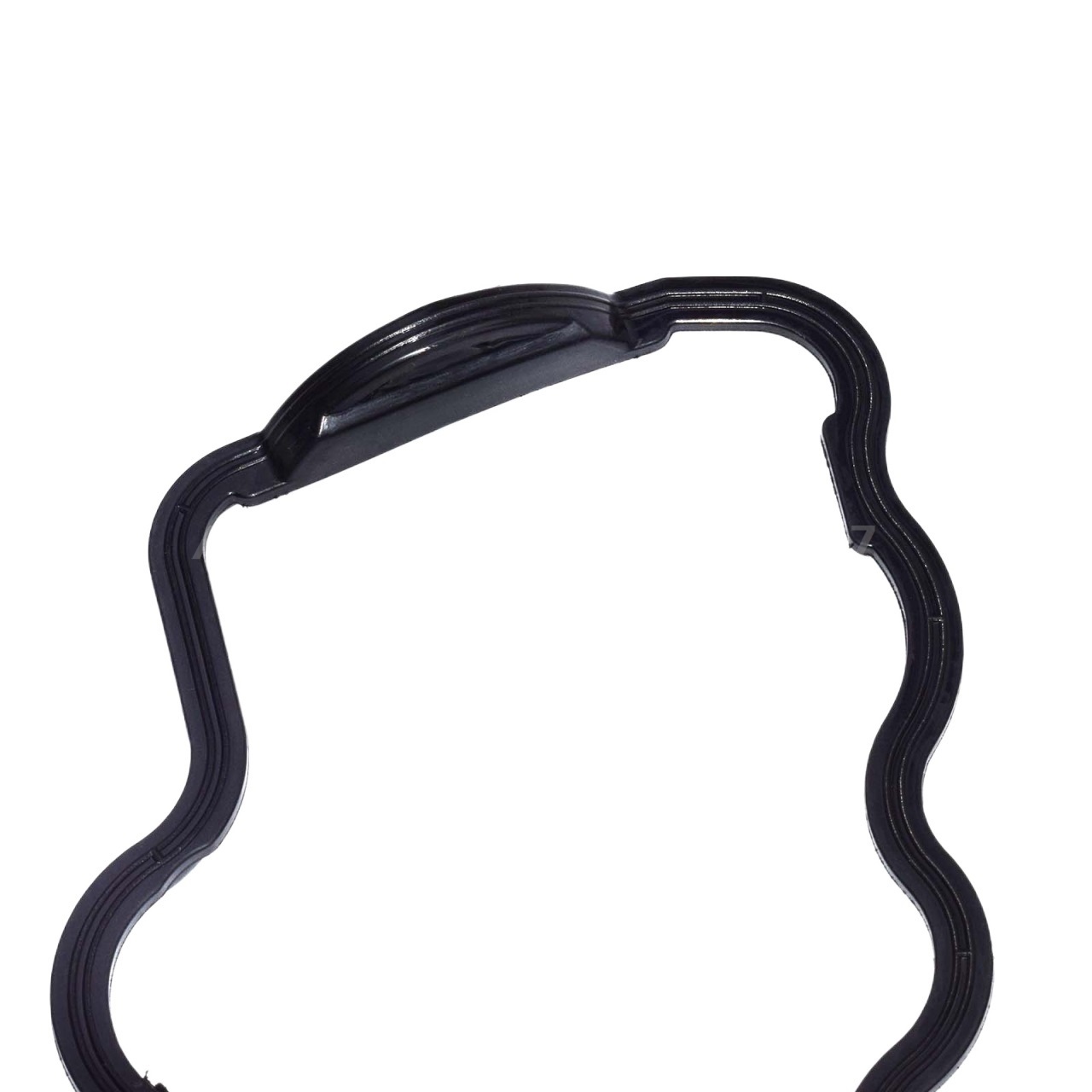

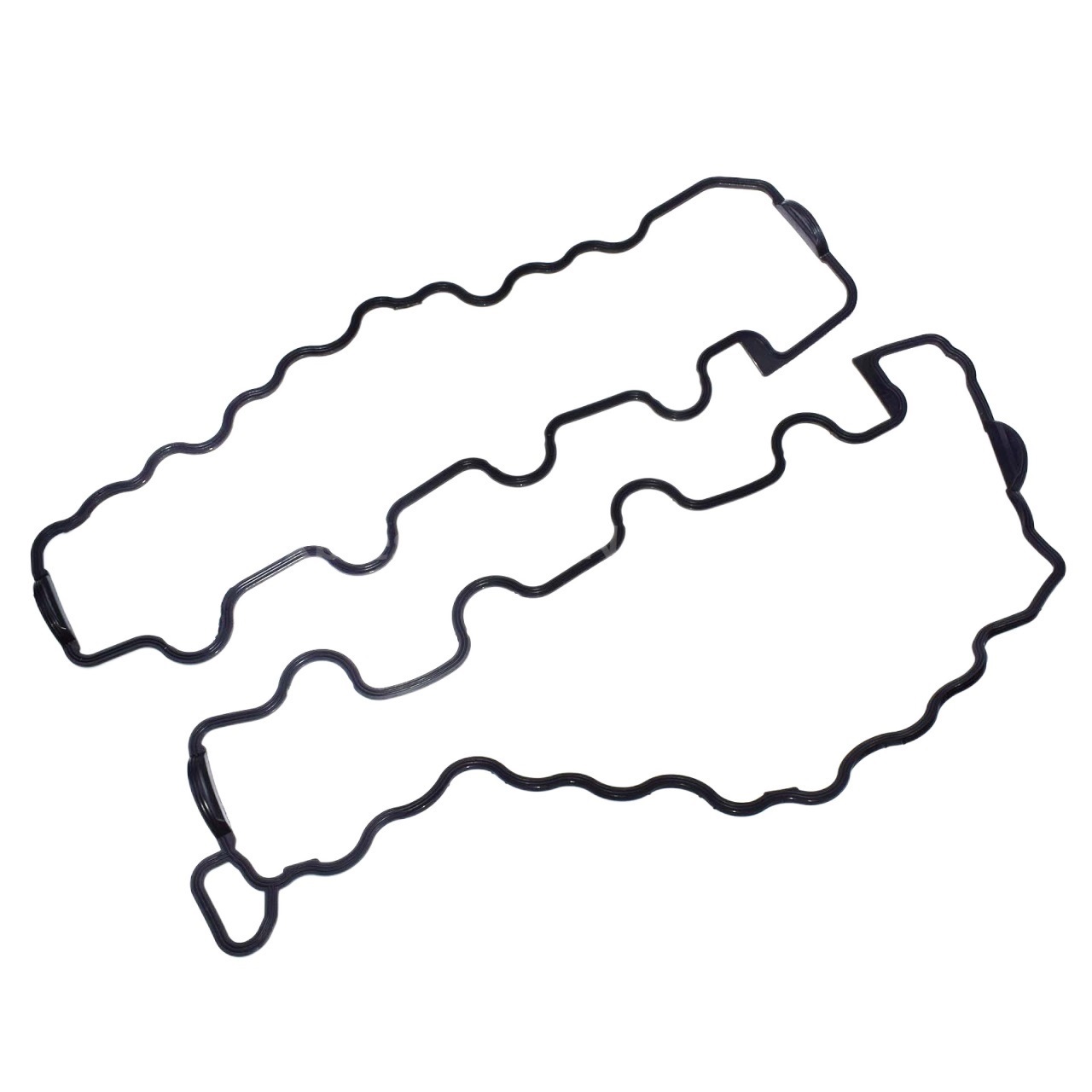

Installation Instructions for Left Right Engine Valve Cover Gaskets (Compatible with C208 Models)

Compatibility:
These valve cover gaskets are designed specifically for C208 models and ensure a precise fit.

Materials Required:

• High-quality valve cover gaskets (1 or 2 piece option)
  -Socket wrench set
  -Torque wrench
• Screwdrivers (flathead and Phillips)
  -Pliers
  -Clean rags or paper towels
• Engine degreaser (optional, for cleaning)
• RTV silicone sealant (optional)

Installation Steps:

1. Preparation:

   • Ensure the engine is cool to prevent burns.
   • Disconnect the negative terminal of the battery to avoid any electrical issues during installation.

2. Remove Old Valve Cover:

   • Locate and remove any components that obstruct access to the valve cover (e.g., air intake hoses, ignition coils).
   • Use a socket wrench to remove the bolts securing the valve cover.
   • Carefully lift off the old valve cover, being cautious of any remaining oil and debris.

3. Clean the Surface:

   • Thoroughly clean the mating surfaces of the engine and the old gasket material using a scraper or a clean rag.
   • Use engine degreaser if necessary to ensure a completely clean surface.

4. Install New Gasket:

   • Position the new valve cover gasket on the valve cover or the engine surface, depending on the design.
   • Ensure the gasket is seated properly without any twists or misalignments.

5. Reinstall Valve Cover:

   • Carefully place the valve cover back onto the engine, aligning it with the bolt holes.
   • Hand-tighten the bolts to hold the cover in place, ensuring even pressure.

6. Torque the Bolts:

   • Using a torque wrench, tighten the valve cover bolts to the manufacturer’s specifications in a crisscross pattern to ensure even distribution of pressure.

7. Reassemble Components:

   • Reconnect any components removed earlier (e.g., air intake hoses, ignition coils).
   • Ensure all connections are secure and appropriately seated.

8. Final Checks:

   • Reconnect the negative battery terminal.
   • Start the engine and check for any oil leaks around the new gaskets.
   • Monitor engine performance to ensure everything is functioning correctly.

Note:
If using RTV silicone sealant, apply a thin bead around the edges of the gasket before installation for added sealing performance, but this step is typically optional with high-quality gaskets.

Conclusion:
Following these instructions will help ensure a successful installation of your new valve cover gaskets. If you encounter any difficulties, consult your vehicle's service manual or seek professional assistance.
