Motorcycle Fork Oil Seal Dust Cover Installation Instructions

Tools Required:

• Flathead screwdriver
• Phillips screwdriver
  -Socket wrench set
  -Torque wrench
  -Clean rags or towels
• Fork seal driver tool (optional but recommended)
• Grease or fork oil (for lubrication)

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable stand to prevent it from falling over during the installation process.
   • Gather all the necessary tools listed above.

2. Remove Front Wheel:

   • Use a socket wrench to loosen and remove the front axle nut.
   • Carefully slide out the front axle and remove the front wheel from the fork.

3. Remove Forks:

   • Loosen the pinch bolts on the triple tree using a socket wrench.
   • Carefully slide the forks out of the triple tree and set them on a clean flat surface.

4. Disassemble Forks:

   • Unscrew the top cap of the fork using the appropriate socket wrench or tool.
   • Allow the fork oil to drain completely into a clean container.

5. Remove Old Dust Covers and Seals:

   • Use a flathead screwdriver to carefully pry off the old dust covers and oil seals.
   • Make sure not to damage the fork tubes during this process.

6. Clean Components:

   • Use clean rags or towels to wipe down the fork tubes and ensure they are free from dirt and debris.

7. Install New Dust Cover:

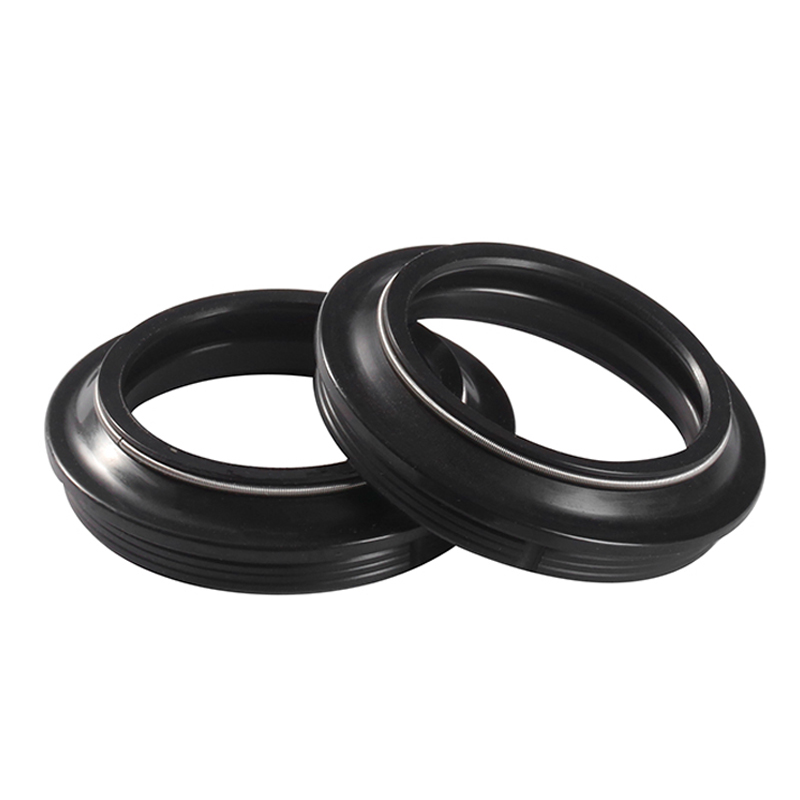

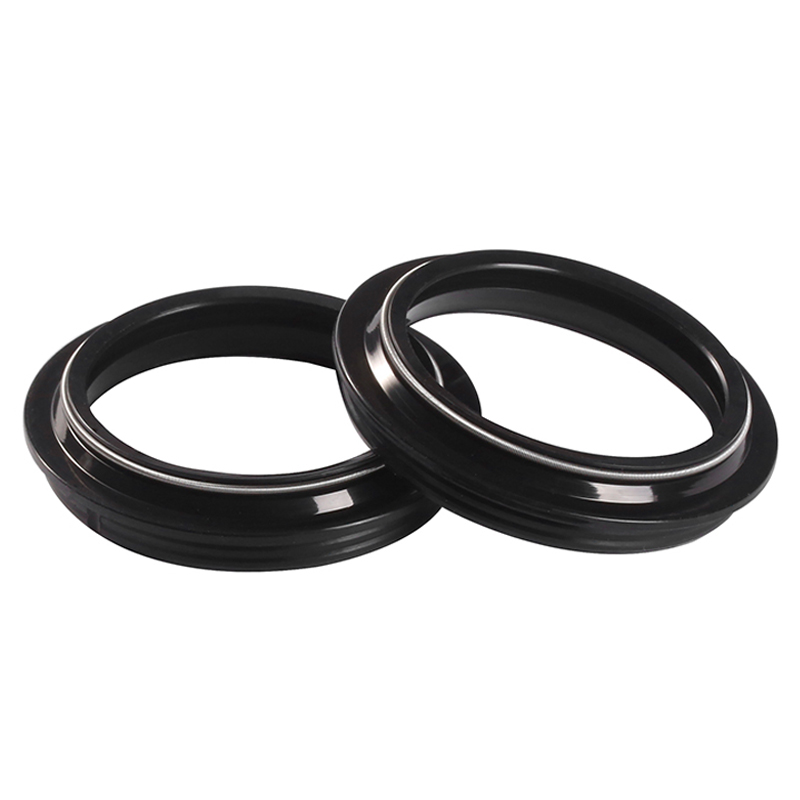

   • Take the new Motorcycle Fork Oil Seal Dust Cover (43X53X9.5) and apply a small amount of grease or fork oil to the edge for easier installation.
   • Carefully slide the dust cover onto the fork tube until it is fully seated.

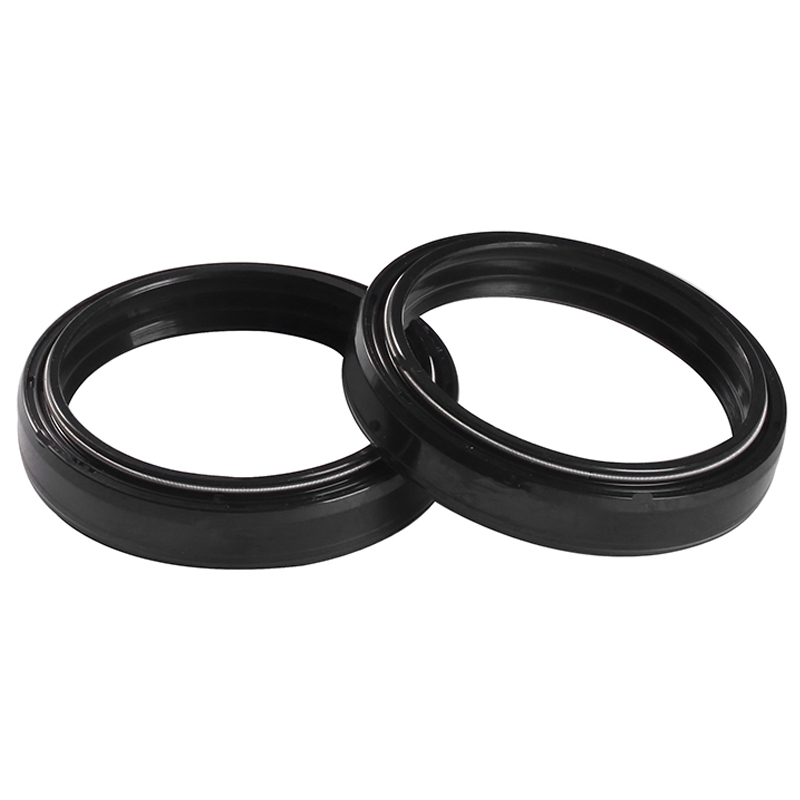

8. Insert New Oil Seal:

   • Using a fork seal driver tool (if available), carefully install the new oil seal into the fork leg.
   • Ensure it is flush and properly aligned.

9. Reassemble Forks:

   • Refill the fork with the recommended fork oil according to your motorcycle's specifications.
   • Replace the top cap and tighten it securely.

10. Reattach Forks:

    • Slide the forks back into the triple tree.
    • Tighten the pinch bolts using a torque wrench to ensure they are secure.

11. Reinstall Front Wheel:

    • Position the front wheel back into the forks and insert the front axle.
    • Tighten the axle nut securely using a socket wrench.

12. Final Check:

    • Perform a visual inspection to ensure everything is properly installed.
    • Take the motorcycle off the stand and check for any unusual noises or leaks.

Maintenance Tips:

• Regularly check the dust covers and seals for wear and tear.
• Replace as necessary to keep the fork system in optimal working condition and extend the life of your motorcycle.

Enjoy a smooth riding experience with your newly installed Motorcycle Fork Oil Seal Dust Cover!
