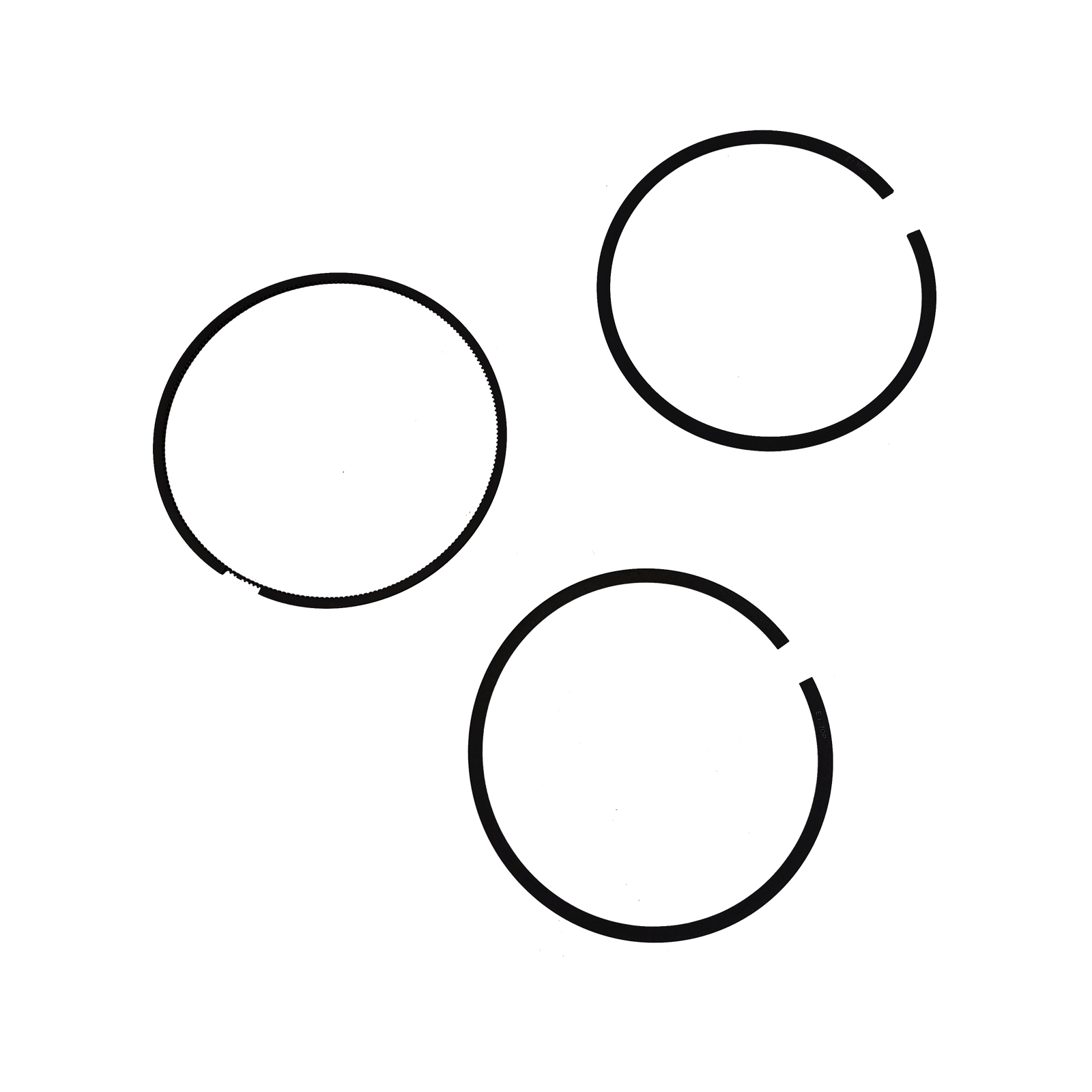

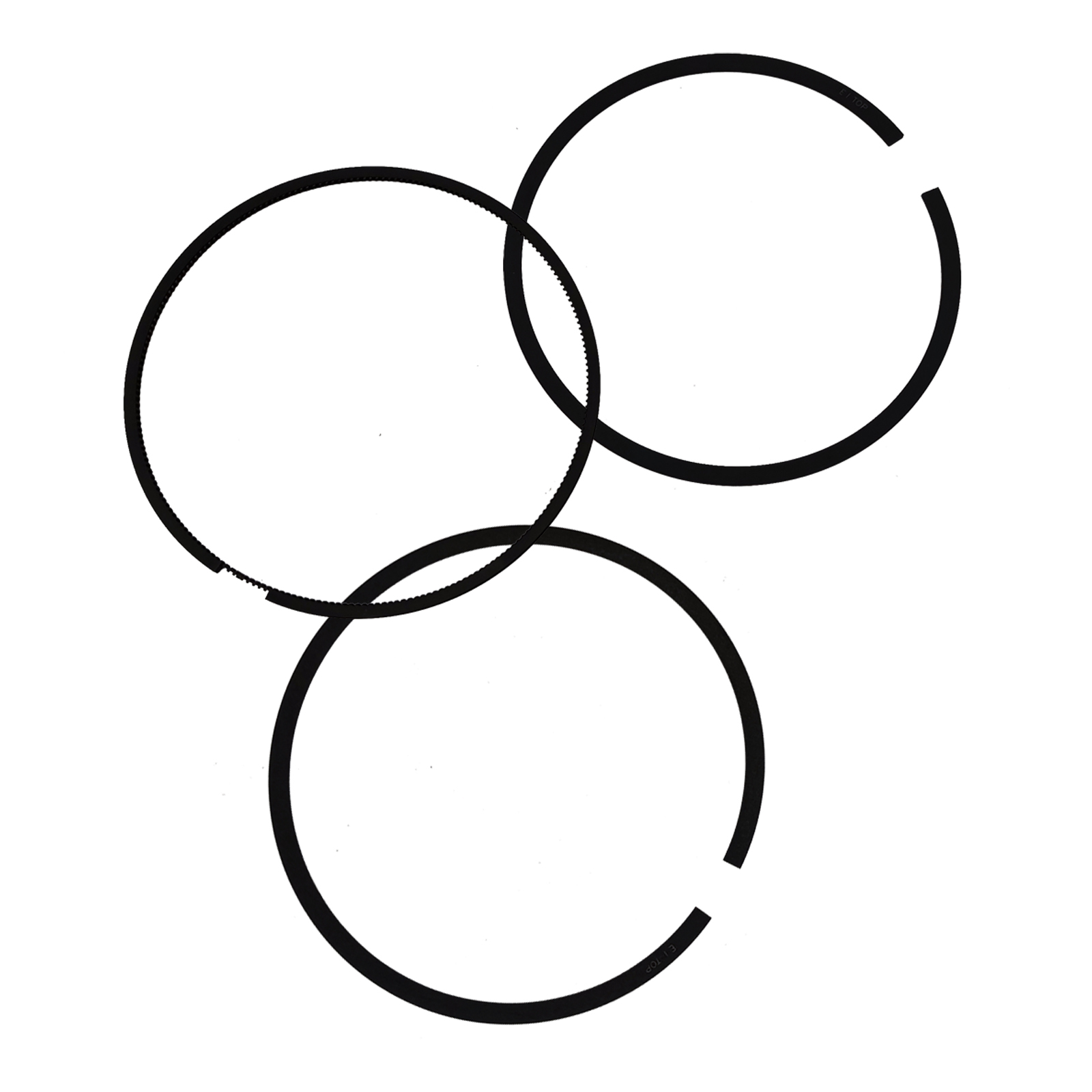

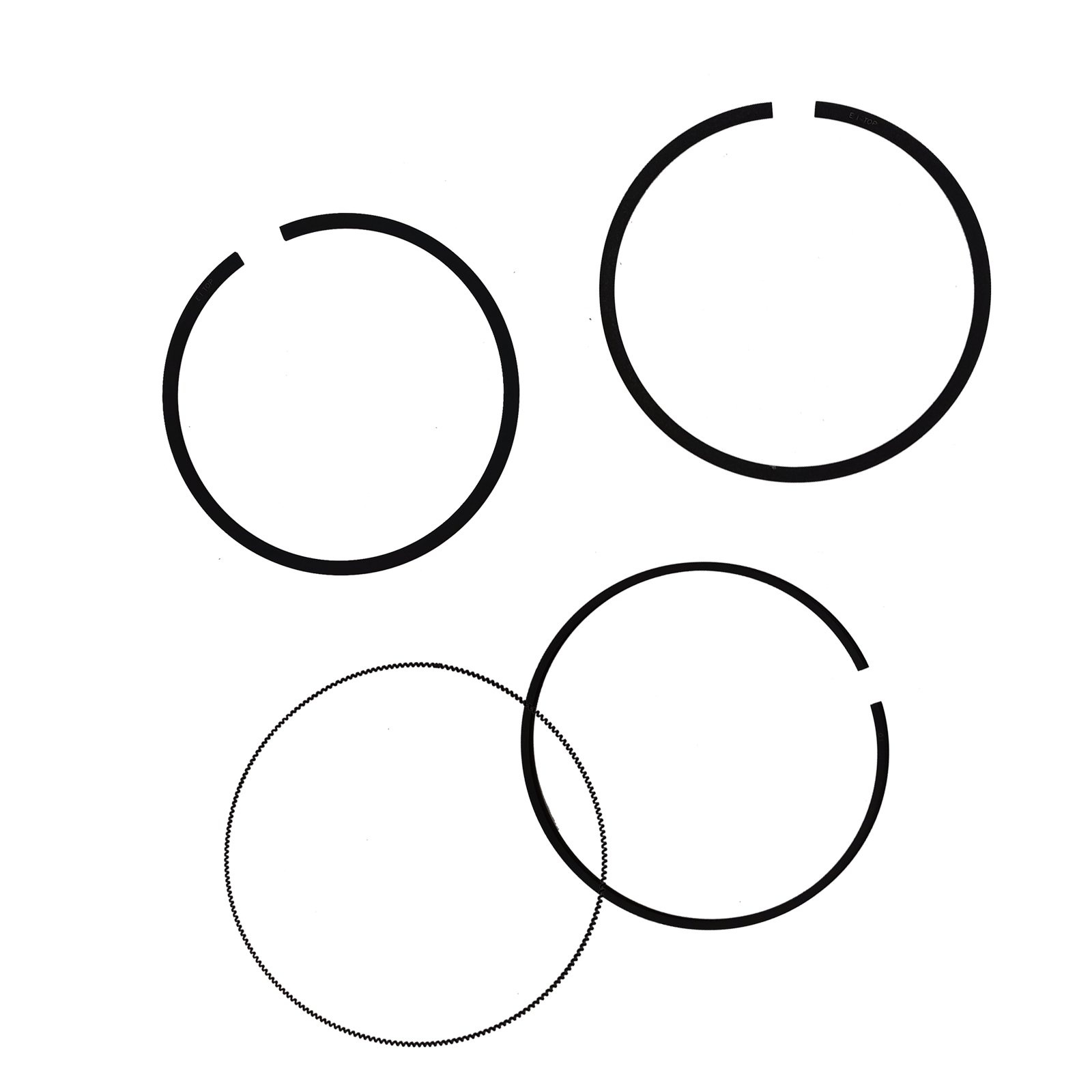

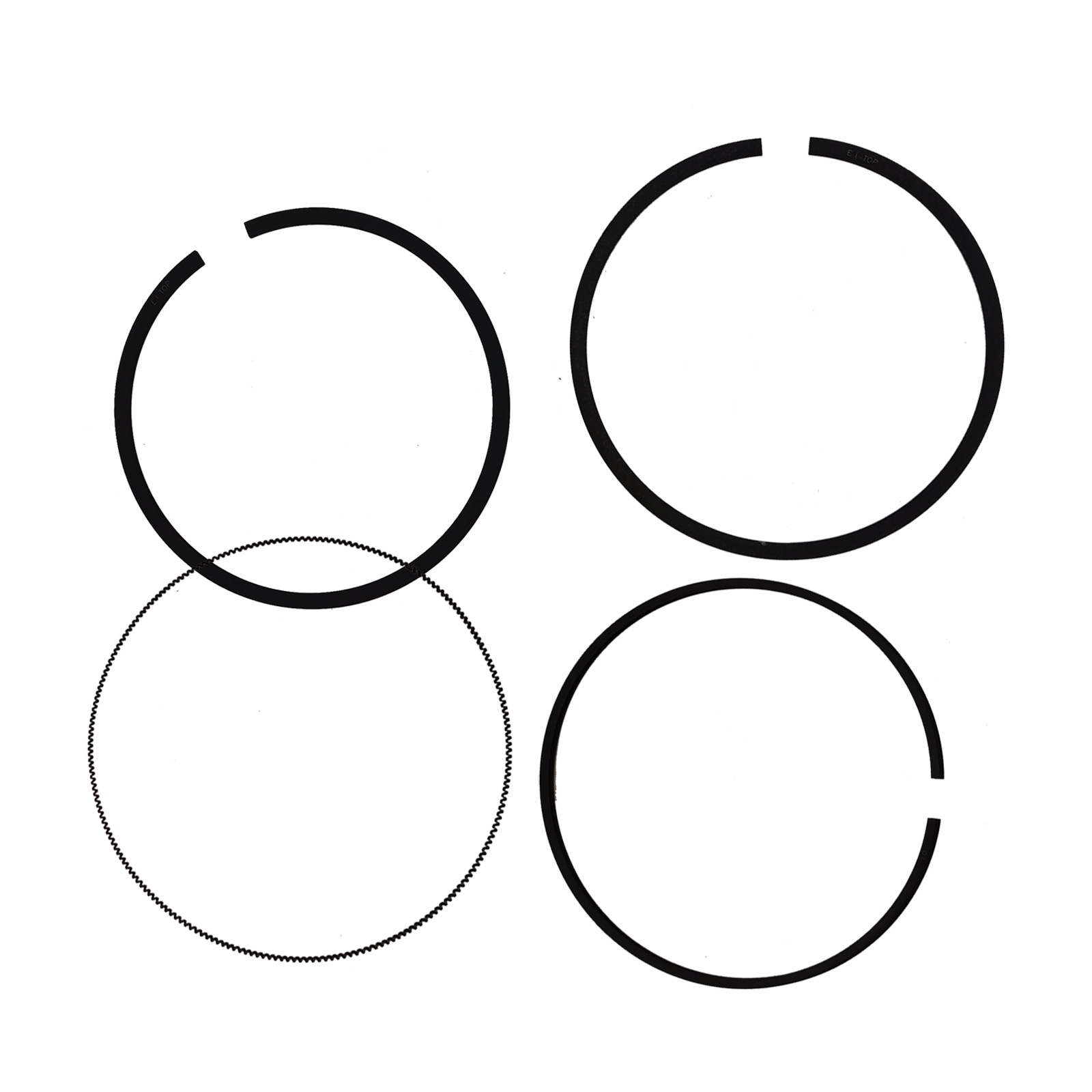

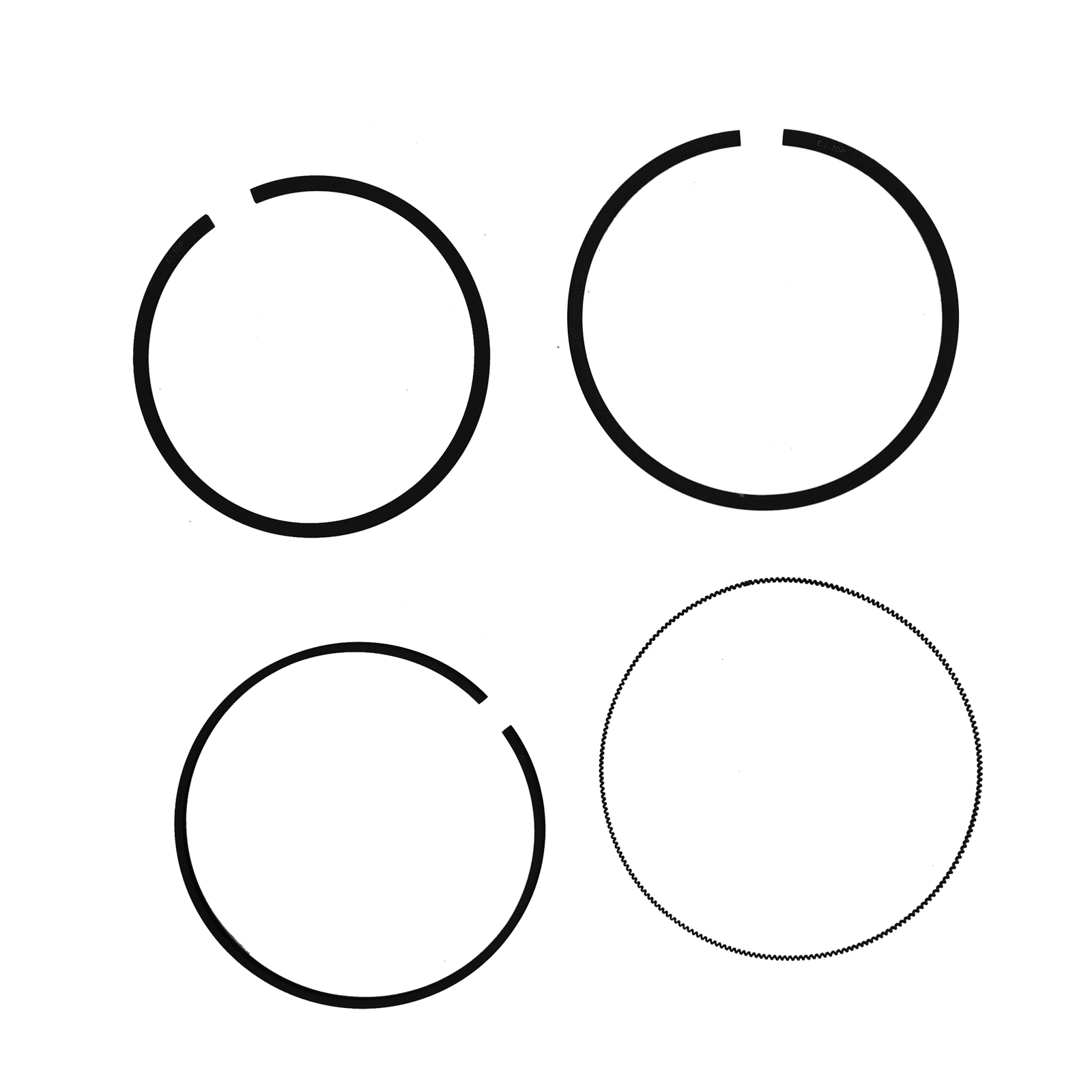

Product Installation Instructions for Piston Ring Set for 4TEC RXP RXT Supercharged

Overview:
This Piston Ring Set is designed specifically for 4TEC RXP/RXT supercharged models 1503, 130, 155, 215, 255, and 260. It enhances engine performance by optimizing cylinder compression and is easy to install.

Tools Required:

1. Torque wrench
2. Socket set (including 10mm, 12mm, and 14mm sockets)
3. Screwdriver set (Philips and flathead)
4. Piston ring compressor tool
5. Cylinder hone (optional, for better surface preparation)
6. Clean rags or lint-free cloths
7. Engine oil (for lubrication)
8. Safety gloves and goggles

Installation Steps:

1. Preparation:

   • Ensure the engine is cool and the vehicle is on a stable work surface.
   • Disconnect the battery to prevent any electrical issues.

2. Remove the Cylinder Head:

   • Use the appropriate socket to unfasten the bolts securing the cylinder head.
   • Carefully lift the head off and place it on a clean surface.

3. Remove Old Piston Rings:

   • With the piston still in the cylinder, use the piston ring compressor tool to remove the old piston rings.
   • Gently slide off the old rings and clean the piston grooves using a lint-free cloth.

4. Install New Piston Rings:

   • Carefully place the new piston rings into their respective grooves. Ensure the gap openings are staggered according to the manufacturer's specifications.
   • Use the piston ring compressor tool to compress the rings for installation.

5. Reinstall the Piston:

   • If necessary, hone the cylinder walls for better surface preparation.
   • Lubricate the piston and rings with engine oil to ensure smooth operation.
   • Insert the piston back into the cylinder, ensuring proper alignment.

6. Reattach the Cylinder Head:

   • Place the cylinder head back onto the engine block.
   • Secure it with the bolts, tightening them to the manufacturer's torque specifications.

7. Final Checks and Reconnect Battery:

   • Inspect the engine for any loose parts or leaks.
   • Reconnect the battery and start the engine to check for proper operation.

Maintenance Tips:
Regularly check and replace the piston rings as part of engine maintenance to ensure optimal performance and reduce wear and tear.

Safety Precautions:
Always wear safety gloves and goggles when working on the engine to protect yourself from potential hazards.
