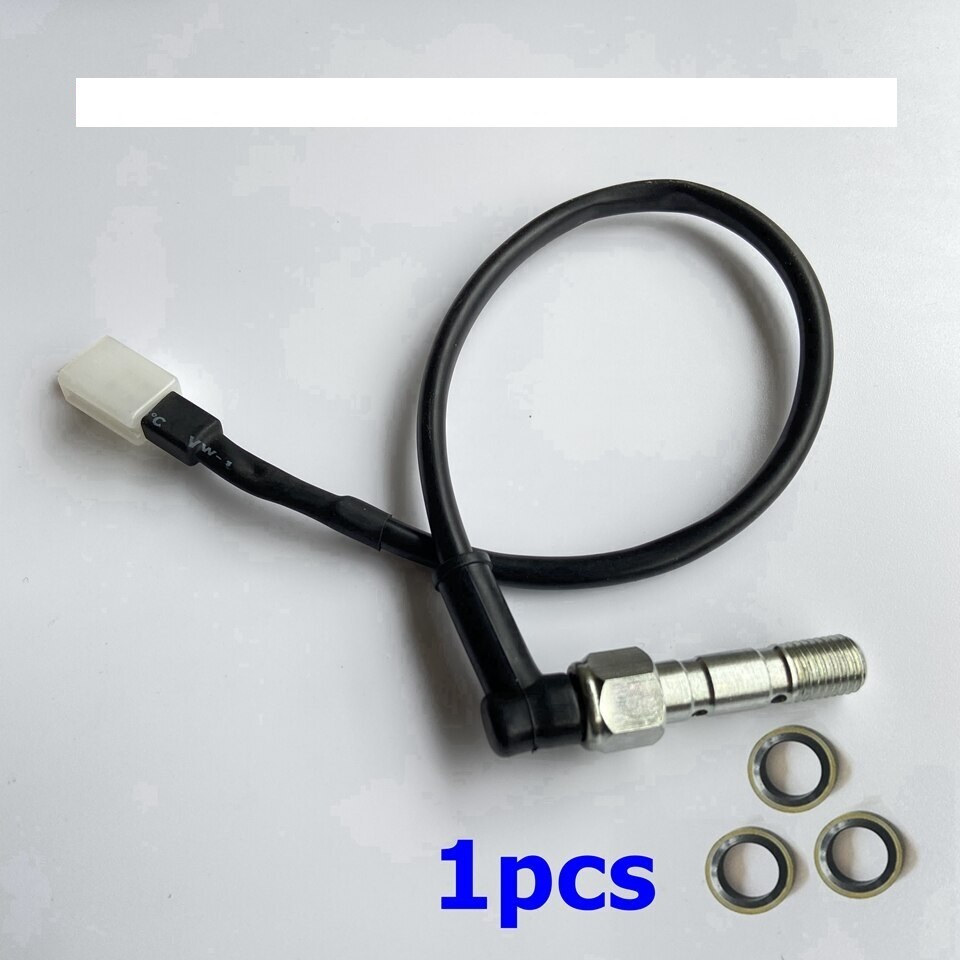

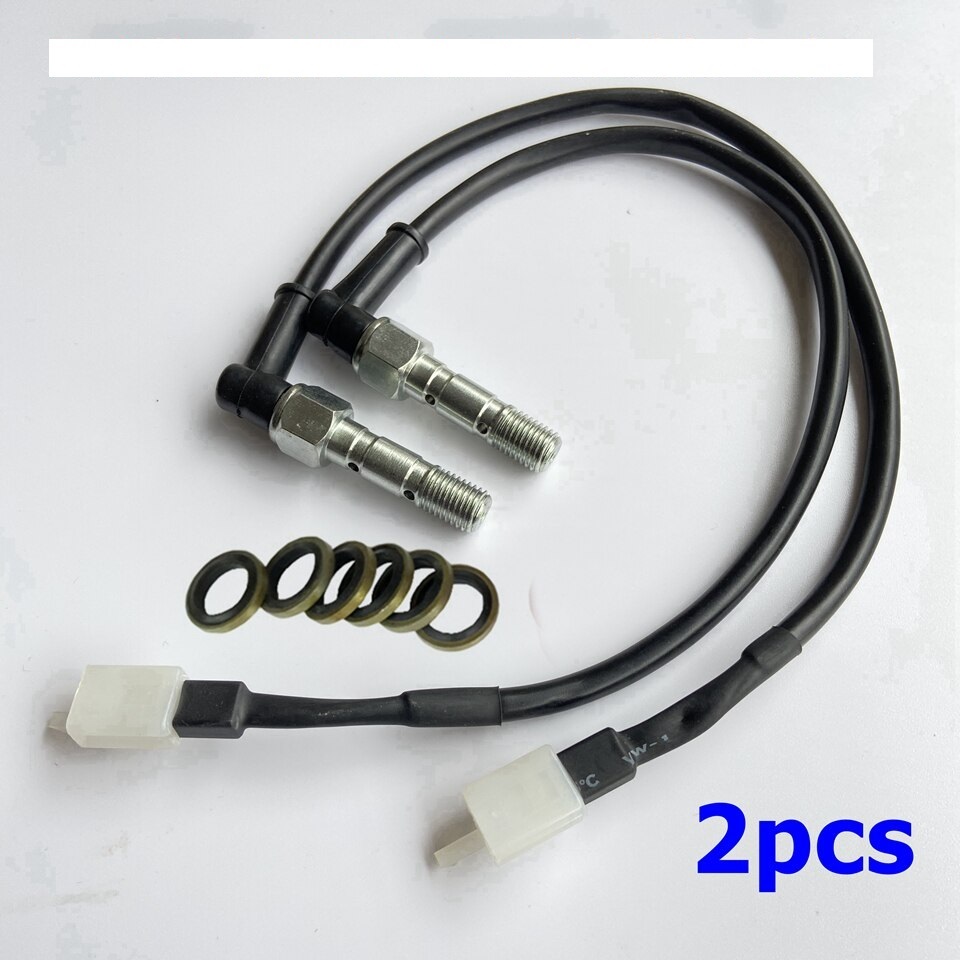

Installation Instructions for Hydraulic Motorcycle Banjo Bolt Brake Pressure Light Switch

Tools Required:

1. Wrench Set (to remove and install the banjo bolt)
2. Torque Wrench (to ensure proper tightening of the banjo bolt)
3. Flathead Screwdriver (if needed for wiring adjustments)
4. Wire Strippers (if you need to connect or repair wires)
5. Electrical Tape (for securing connections)
6. Clean Cloth (for cleaning the area around the installation site)
7. Safety Glasses (to protect your eyes during installation)

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and the ignition is off.
   • Disconnect the motorcycle battery to avoid any electrical issues.

2. Remove the Existing Banjo Bolt:

   • Locate the current banjo bolt on the brake caliper.
   • Use the appropriate wrench to carefully loosen and remove the existing banjo bolt. Be cautious as brake fluid may leak out.

3. Install the New Brake Pressure Light Switch:

   • Take the new brake pressure light switch and ensure the M10 x 1.25mm thread matches the caliper.
   • Apply a small amount of thread sealant if required (consult manufacturer instructions).
   • Install the new switch by threading it into the caliper. Use your hand to tighten initially.

4. Torque the Banjo Bolt:

   • Using a torque wrench, tighten the banjo bolt to the manufacturer's recommended torque specifications to prevent leaks.

5. Connect the Wiring:

   • Follow the motorcycle’s wiring diagram to connect the new switch wires. If necessary, strip the wire ends for a secure connection.
   • Use electrical tape to wrap and secure the wire connections, ensuring no exposed wires.

6. Recheck Everything:

   • Clean any spills, and ensure all connections are tight.
   • Reconnect the motorcycle battery.

7. Test the Installation:

   • Turn on the motorcycle and test the brake light to ensure it activates when the brakes are applied.

8. Final Check:

   • Inspect the installation for any signs of leaks or loose connections.

By following these instructions, you will successfully install the Hydraulic Motorcycle Banjo Bolt Brake Pressure Light Switch, enhancing your motorcycle’s safety features. Enjoy your ride!
