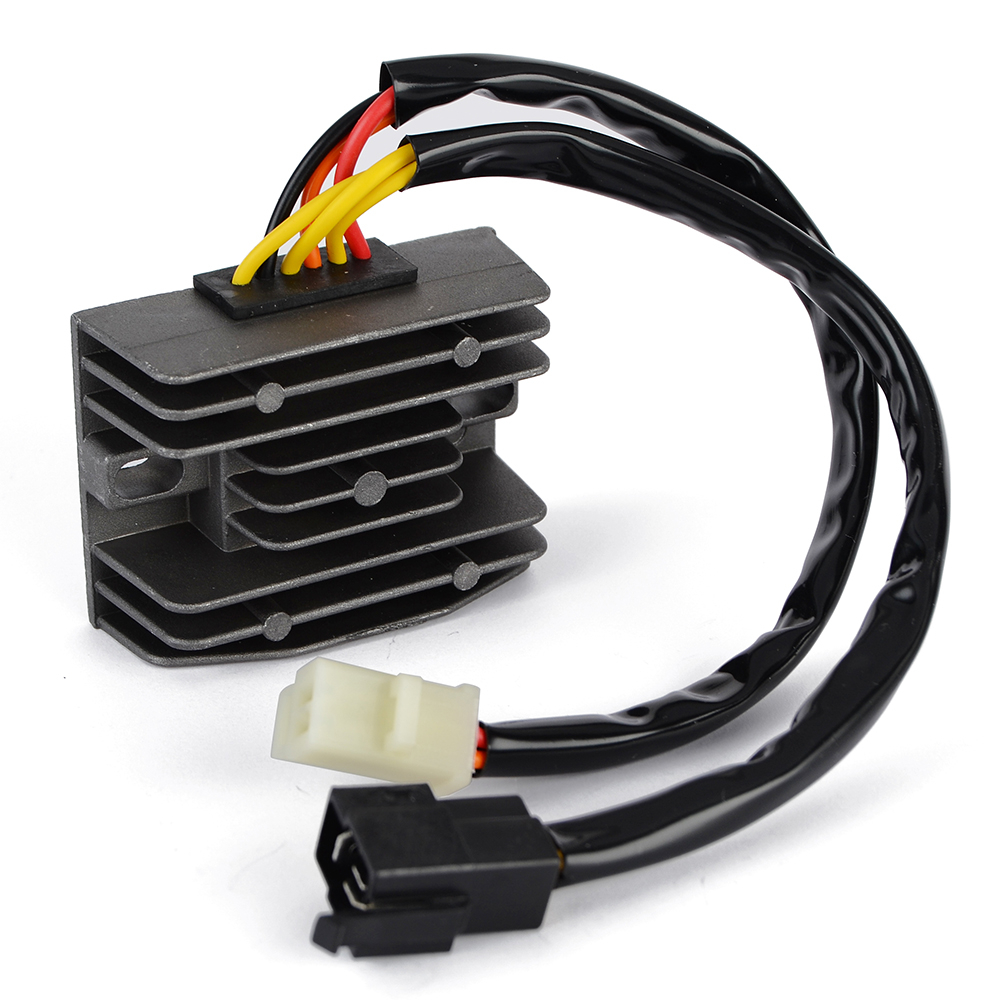

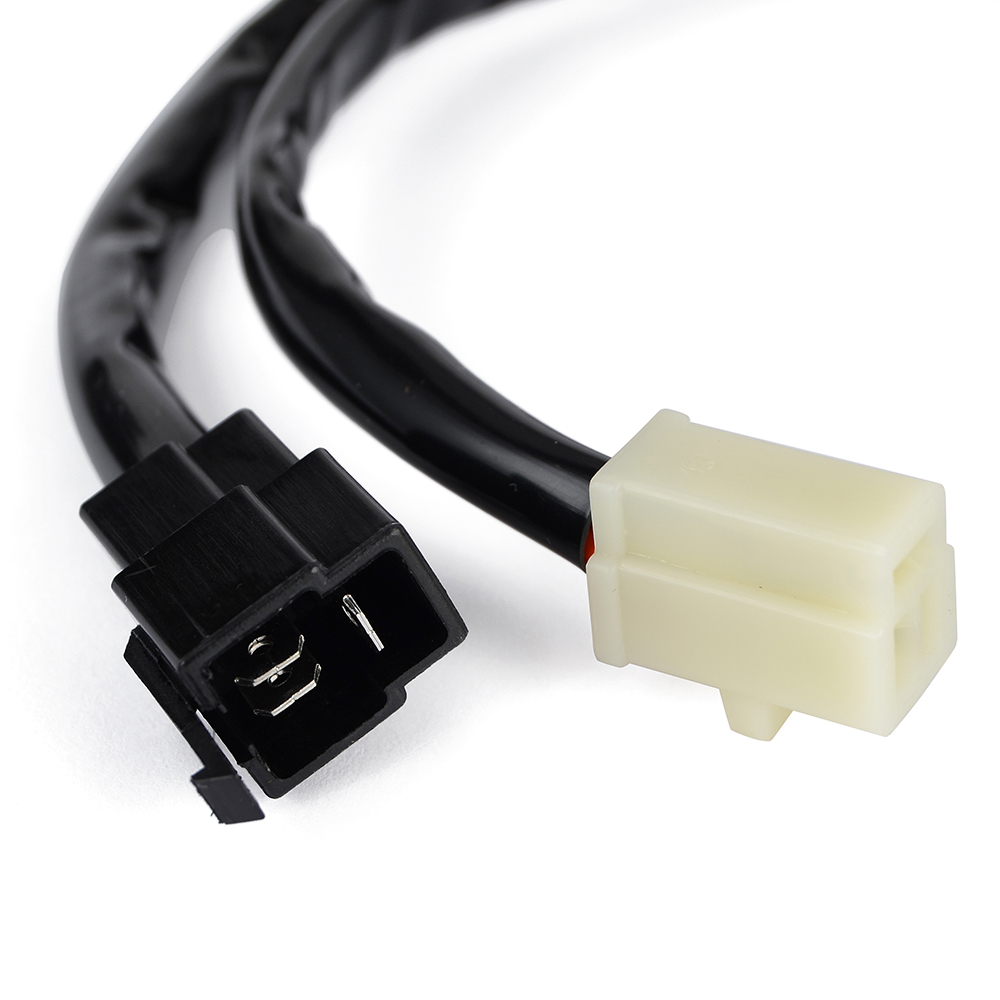

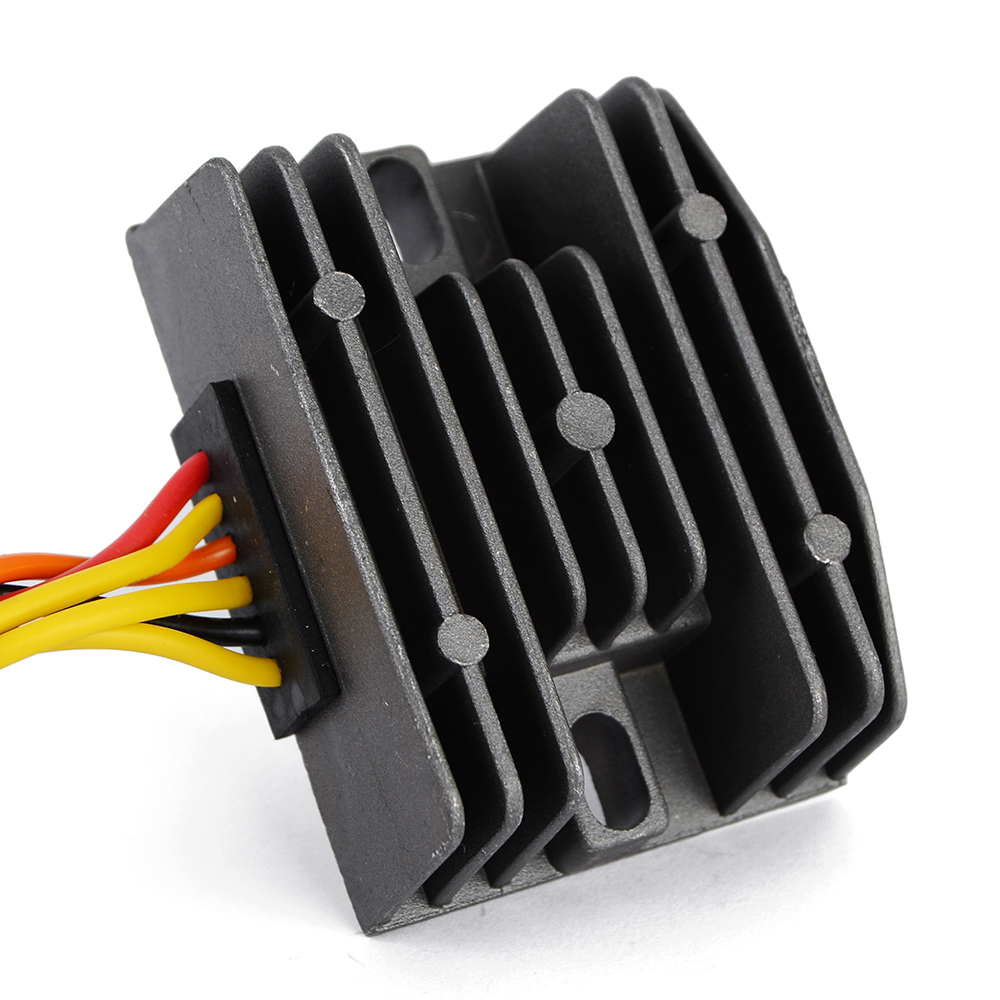

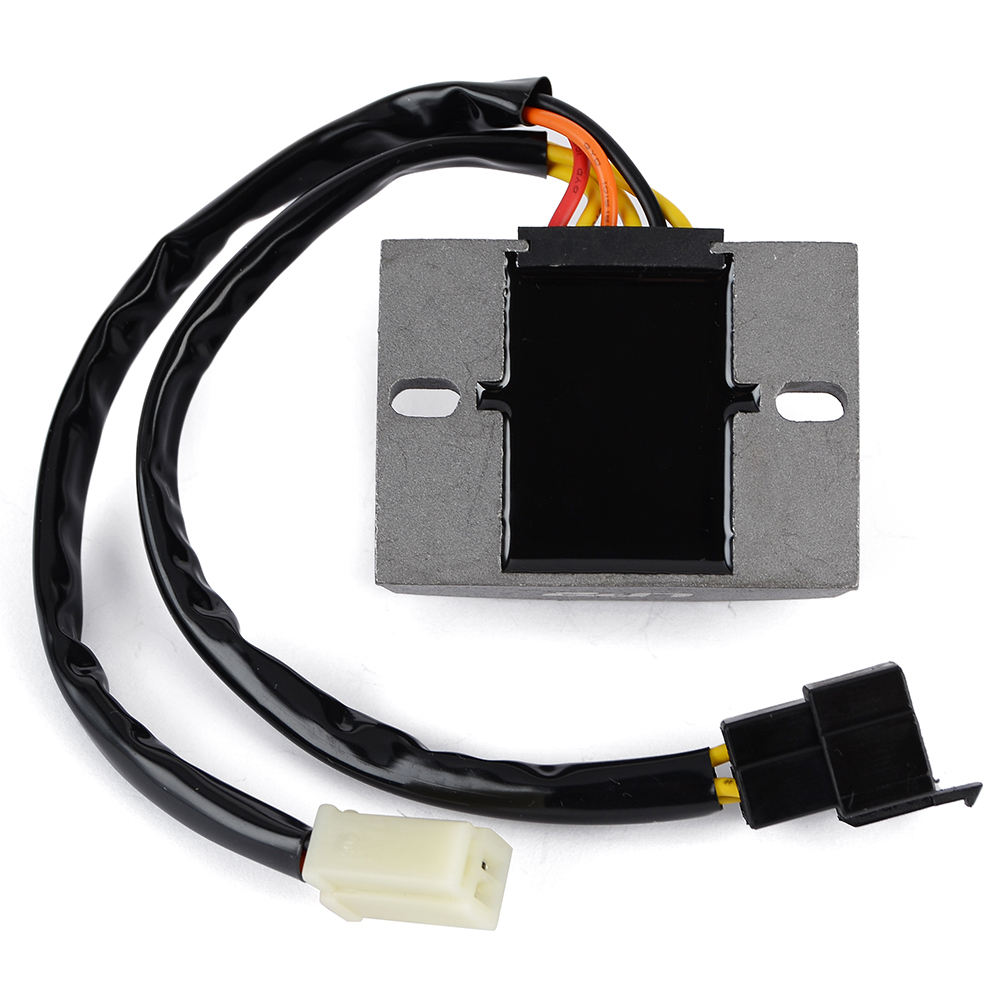

Product Installation Instructions for Regulator Rectifier Compatible with 32800-42A00

Tools Required:

1. Socket Wrench Set - To remove and install bolts and nuts.
2. Screwdriver Set - Both flathead and Phillips for various screws.
3. Wire Cutters/Strippers - To cut and strip any wiring if needed.
4. Electrical Tape - For securing and insulating any exposed wires.
5. Multimeter (Optional) - To check voltage and ensure proper installation.
6. Safety Goggles - To protect your eyes during installation.

Installation Steps:

1. Preparation:

   • Ensure that the motorcycle is on a stable surface and turned off.
   • Disconnect the battery by removing the negative terminal to prevent short circuits.

2. Remove the Old Rectifier:

   • Locate the existing regulator rectifier on your motorcycle. It is usually near the battery or under the seat.
   • Use the socket wrench to remove any screws or bolts securing the old rectifier.
   • Carefully disconnect the wiring harness from the old rectifier.

3. Install the New Regulator Rectifier:

   • Take the new regulator rectifier and connect it to the wiring harness. Ensure that you match the colors of the wires correctly.
   • Secure the new rectifier using the same screws or bolts you removed earlier.

4. Reconnect the Battery:

   • Reconnect the motorcycle battery, starting with the positive terminal followed by the negative terminal.
   • Make sure all connections are tight and secure.

5. Testing:

   • Turn on the motorcycle and let it idle for a few minutes.
   • Use a multimeter to check the voltage at the battery terminals. You should see a voltage reading within the normal range for your motorcycle.

6. Final Checks:

   • Inspect all connections and make sure there are no exposed wires. Use electrical tape to cover any exposed areas.
   • Ensure that the installation is neat, and everything is secured properly.

Note:

For best results and safety, if you are not confident in performing this installation, it is recommended to seek help from a professional mechanic. Always refer to your motorcycle's manual for specific information regarding your model.

Enjoy your ride with the new regulator rectifier!
