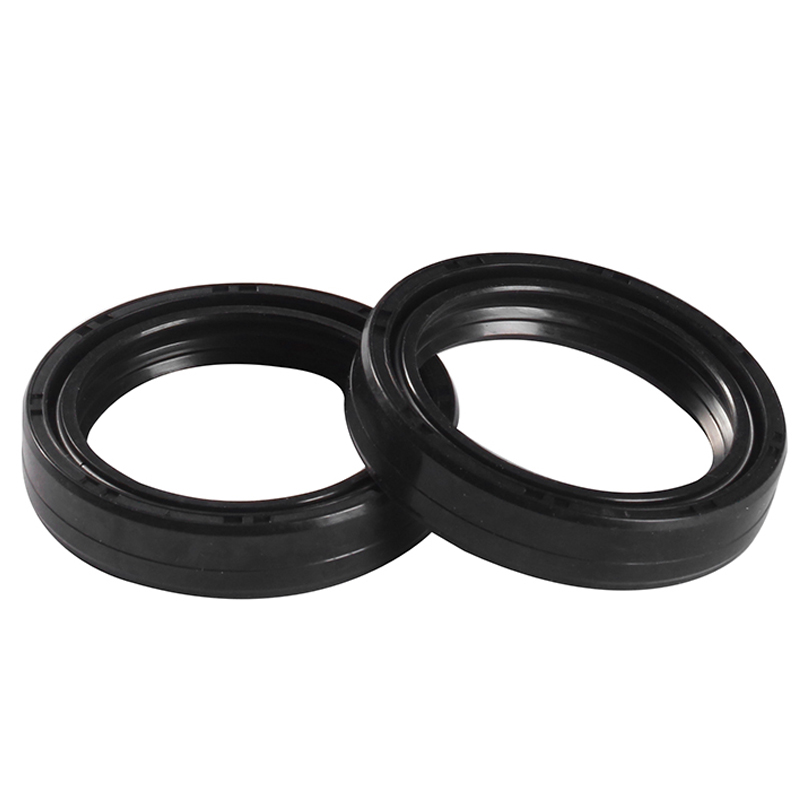

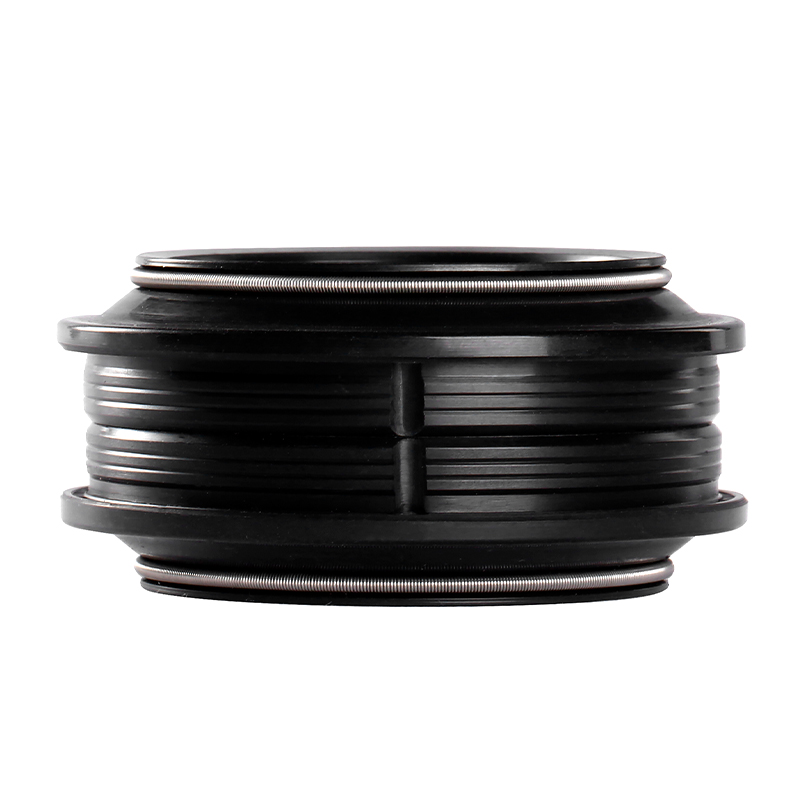

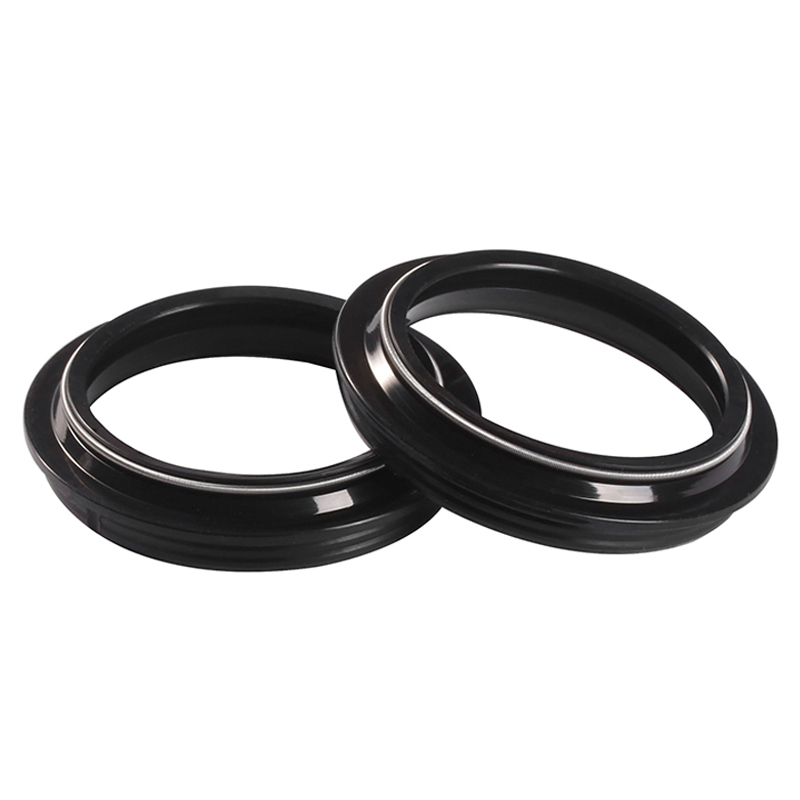

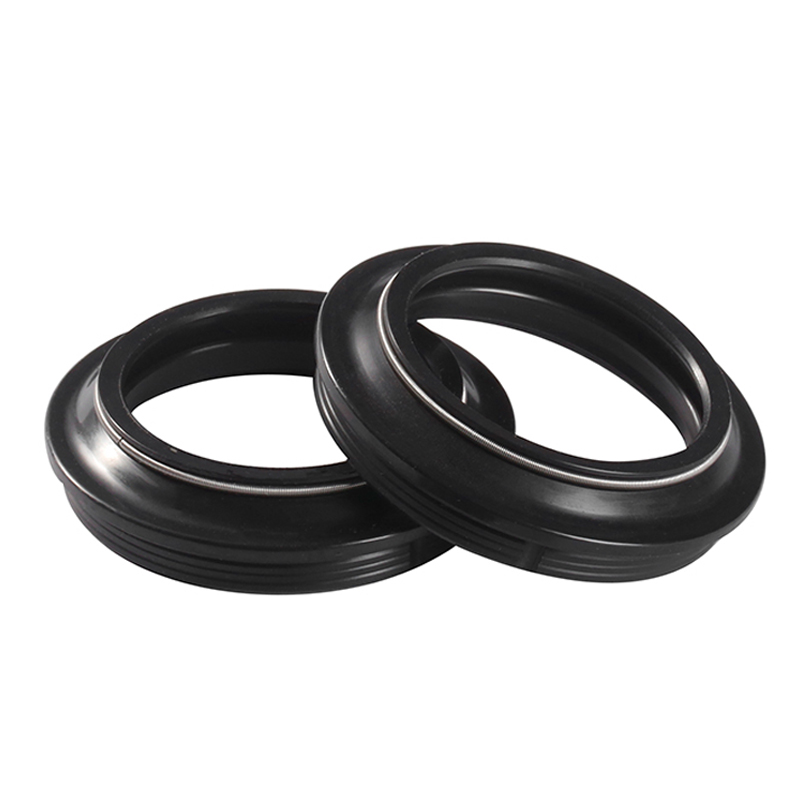

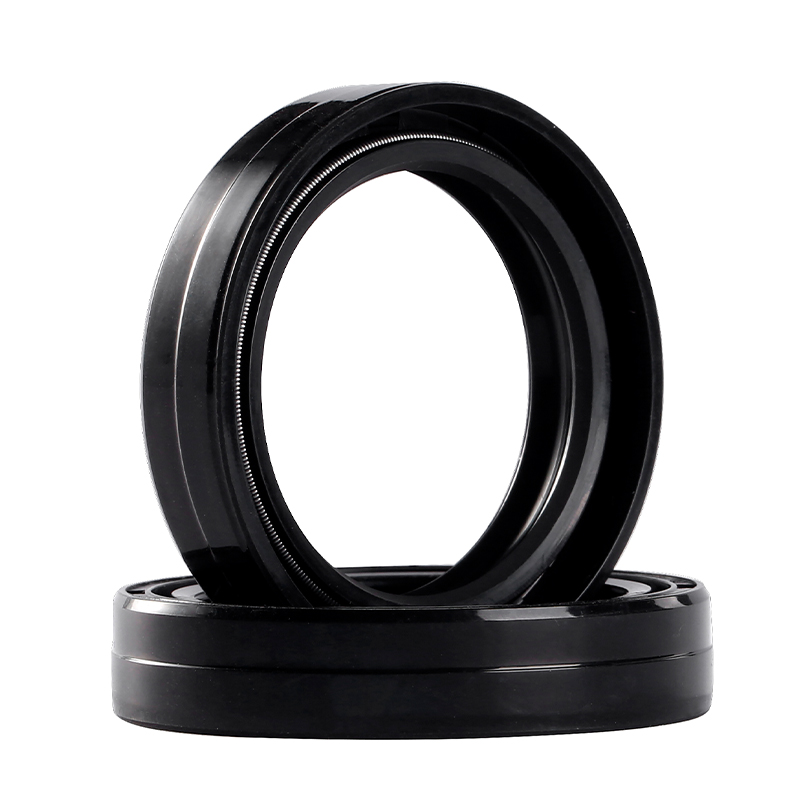

Product Installation Instructions for Front Fork Oil Seal Dust Cover

Compatibility:
This dust cover is compatible with multiple motorcycle models from 2003 to 2017.

Dimensions:

• Size: 43x54x11 mm

Benefits:

• Provides effective protection against dust and dirt, enhancing the lifespan and performance of motorcycle your's front forks.

Installation Instructions:

Tools Required:

1. Socket wrench set
2. Screwdriver set
3. Pliers
   4.Clean cloth or rag
4. Lubricant (optional)
5. Torque wrench (optional)

Installation Steps:

1. Preparation:

   • Ensure your motorcycle is placed on a stable surface and secure it on a stand if necessary.
   • Gather all the tools mentioned above.

2. Remove the Front Wheel:

   • Use a socket wrench to remove the front wheel.
   • Carefully detach any brake components that may obstruct wheel removal.

3. Remove the Forks:

   • Loosen and remove the fork clamps using the appropriate sized socket wrench.
   • Gently pull the forks out from the motorcycle frame.

4. Disassemble the Old Dust Cover:

   • Inspect the old dust cover and carefully pry it off using a flathead screwdriver or pliers.
   • Clean the area where the old cover was seated with a clean rag to remove any dirt or debris.

5. Install the New Dust Cover:

   • Take your new front fork oil seal dust cover and align it properly with the fork.
   • Gently press it into place, ensuring it fits snugly. If needed, you can apply a small amount of lubricant for easier installation.

6. Reassemble the Forks:

   • Once the new dust cover is installed, reinsert the forks back into the motorcycle frame.
   • Tighten the fork clamps securely using the socket wrench.

7. Reinstall the Front Wheel:

   • Reattach the front wheel, ensuring it is aligned correctly.
   • Secure any brake components that were removed.

8. Final Checks:

   • After everything is reassembled, check for any loose parts and ensure everything is properly tightened.
   • Optional: Use a torque wrench to achieve the manufacturer’s specified torque settings.

9. Test Ride:

   • Once the installation is complete, take your motorcycle for a short test ride to ensure everything is functioning smoothly.

Enjoy your enhanced motorcycle performance with the new front fork oil seal dust cover!
