Product Installation Instructions for 4 Ball Joints (Upper & Lower) Compatible with ATV 350 400 450 660 700

Tools and Materials Needed:

1. Tools:

   • Socket wrench set (including 10mm, 12mm, and 14mm sockets)
   • Ratchet
     -Torque wrench
   • Ball joint separator or pickle fork
   • Pry bar (optional)
     -Screwdriver set
   • Hammer
   • Safety glasses
   • Gloves

2. Materials:

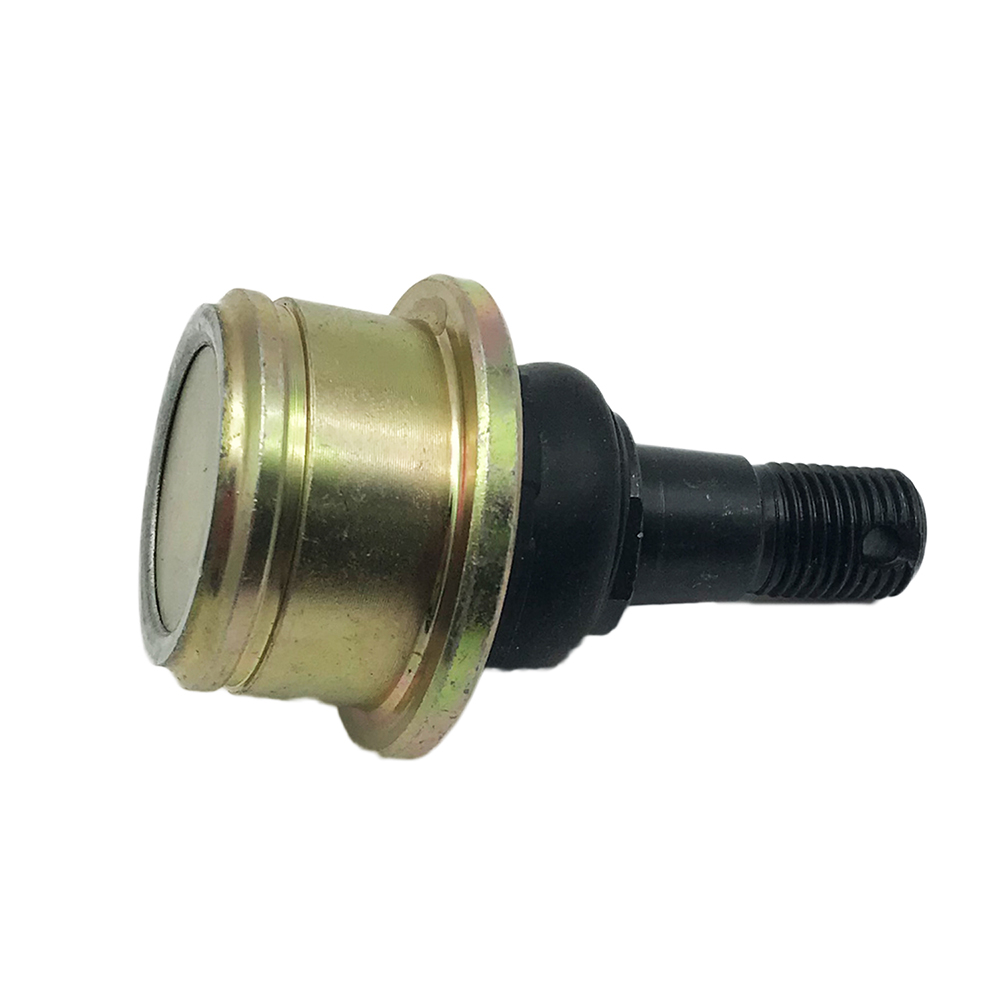

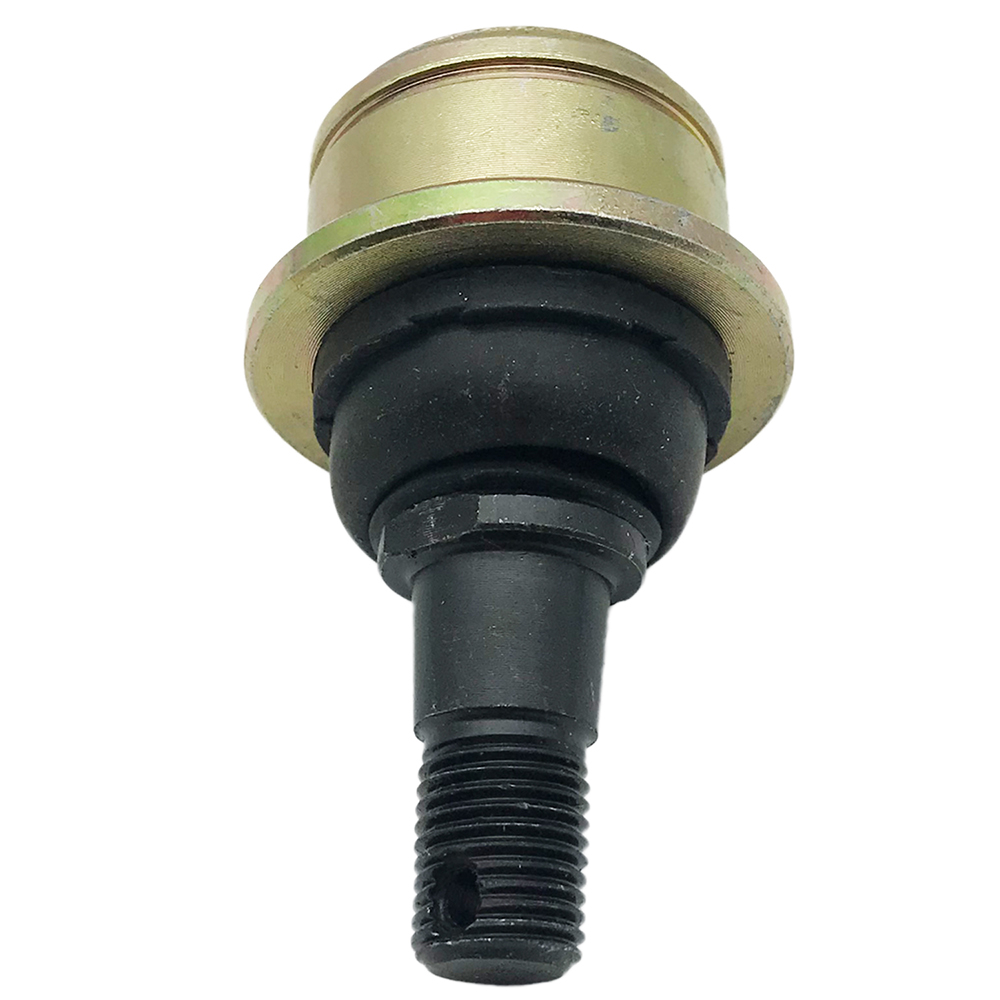

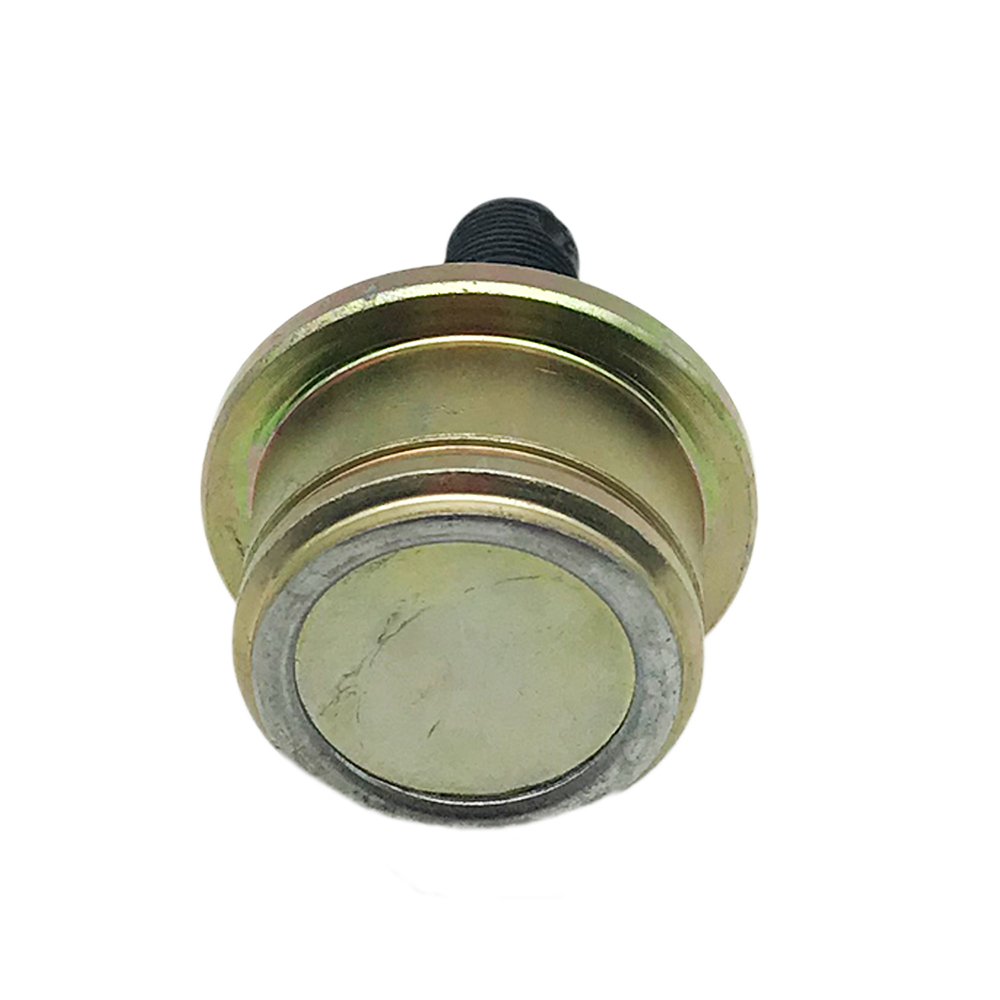

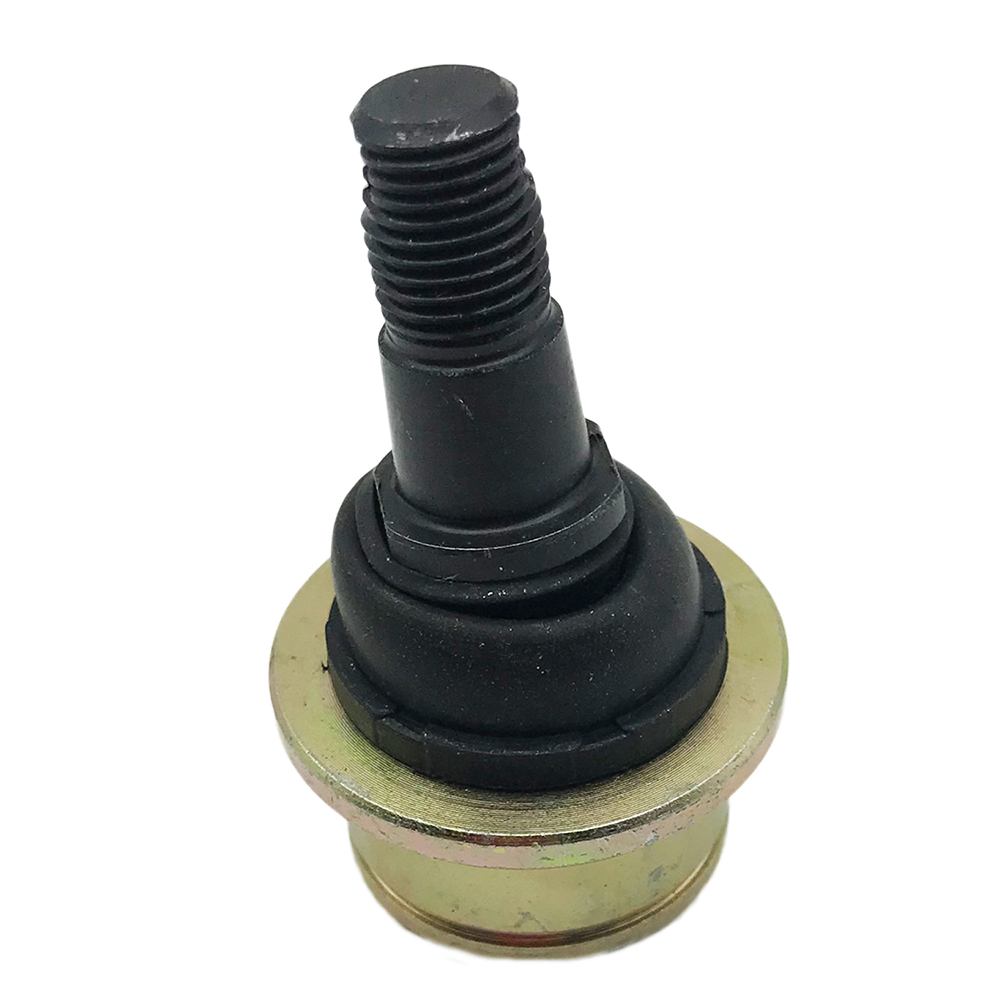

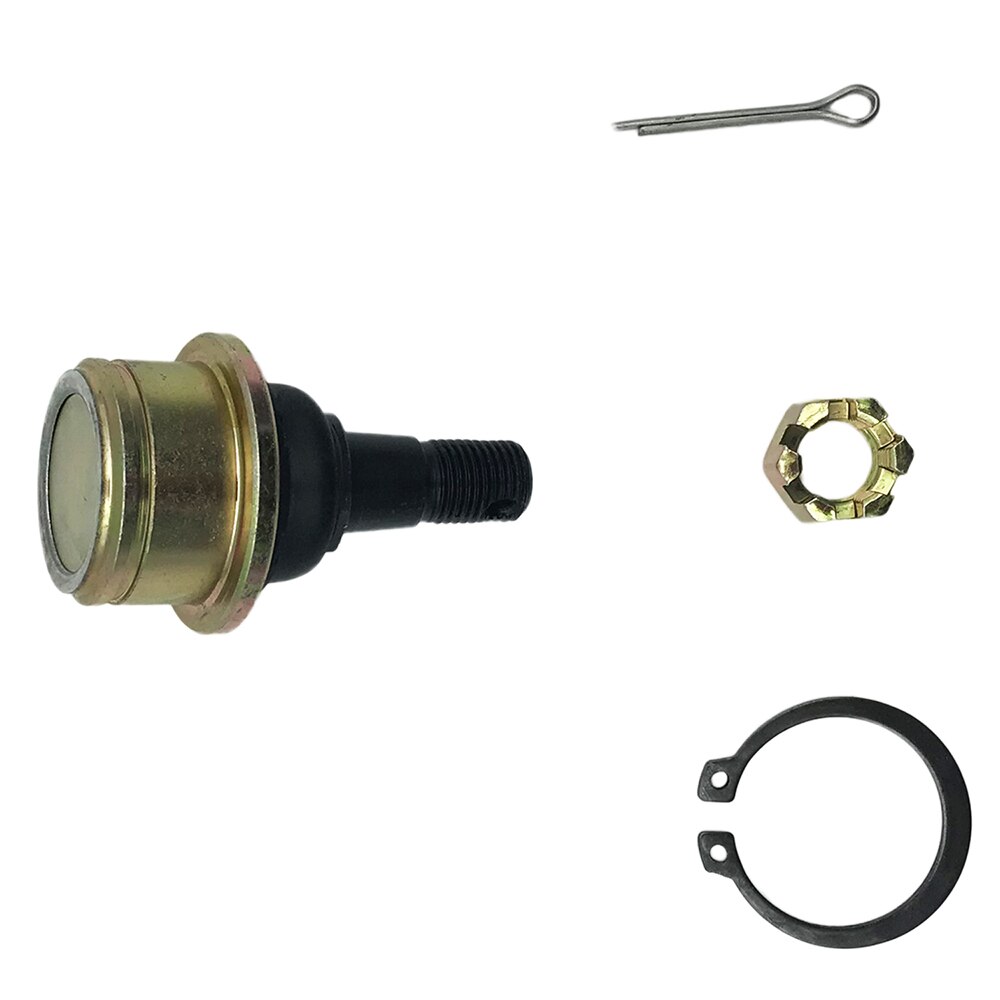

   • New ball joints (upper and lower)
   • Grease (for lubricating the new ball joints)
     -Clean rags
   • Thread-locking compound (optional but recommended)

Installation Steps:

1. Preparation:

   • Ensure the ATV is parked on a flat surface and secure it with wheel chocks.
   • Disconnect the negative terminal of the battery to prevent any electrical issues.

2. Remove the Wheel:

   • Using the appropriate socket, loosen the lug nuts and remove the front wheel where you will be replacing the ball joints.

3. Access the Suspension Components:

   • Locate the suspension system to find the ball joints. Depending on your ATV model, you may need to remove additional components such as the caliper or brake rotor for better access.

4. Remove Old Ball Joints:

   • Use the ball joint separator or pickle fork to detach the old ball joints from the control arms. Be cautious to avoid damaging surrounding components.
   • If necessary, use a hammer to gently tap the separator for easier removal.

5. Install New Ball Joints:

   • Apply grease to the new ball joints to ensure smooth operation.
   • Position the new ball joints in the control arms and secure them according to your ATV’s specifications.
   • If using a thread-locking compound, apply it to the threads of the bolts before tightening.

6. Reassemble the Suspension:

   • Reattach any components that were removed (such as the caliper or brake rotor).
   • Reinstall the wheel and hand-tighten the lug nuts.

7. Final Torque:

   • Use a torque wrench to tighten the lug nuts to the manufacturer’s recommended specifications.

8. Reconnect Battery:

   • Reconnect the negative terminal of the battery.

9. Test the ATV:

   • Before heading out, do a quick inspection of your work. Take the ATV for a short test drive to ensure everything functions properly.

Safety Tips:

• Always wear safety glasses and gloves while working on your ATV.
• Ensure the vehicle is securely lifted and supported if using a jack.

By following these instructions and having the necessary tools ready, you can successfully replace the ball joints on your ATV, improving its performance and safety. Enjoy your ride!
