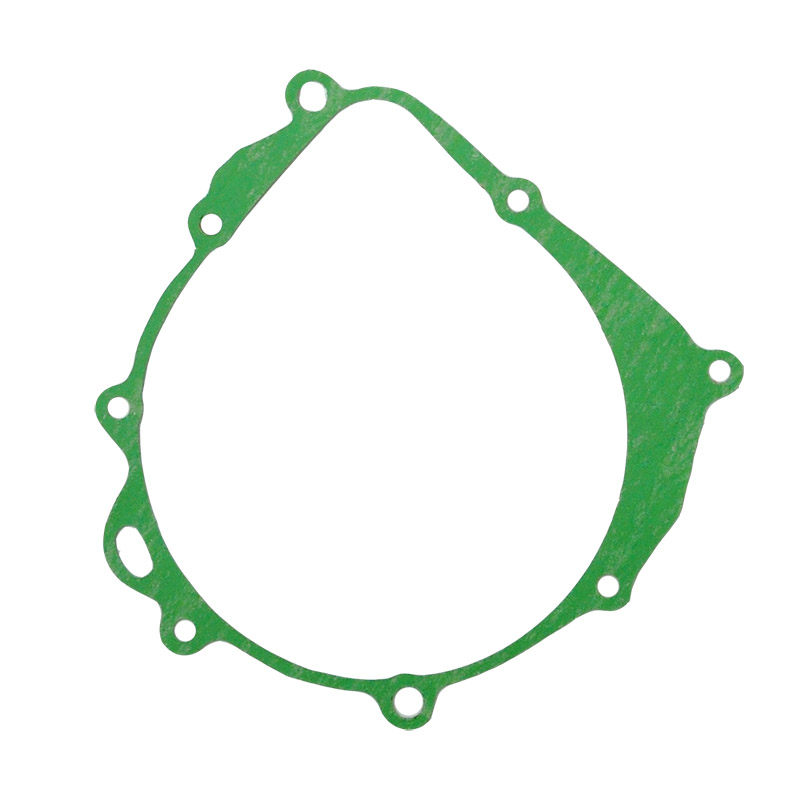

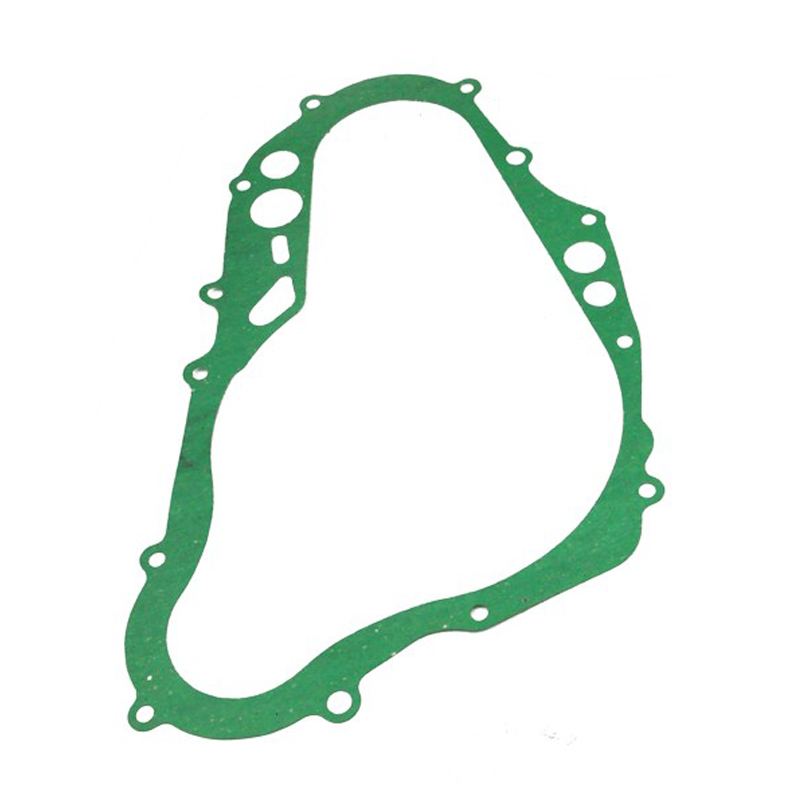

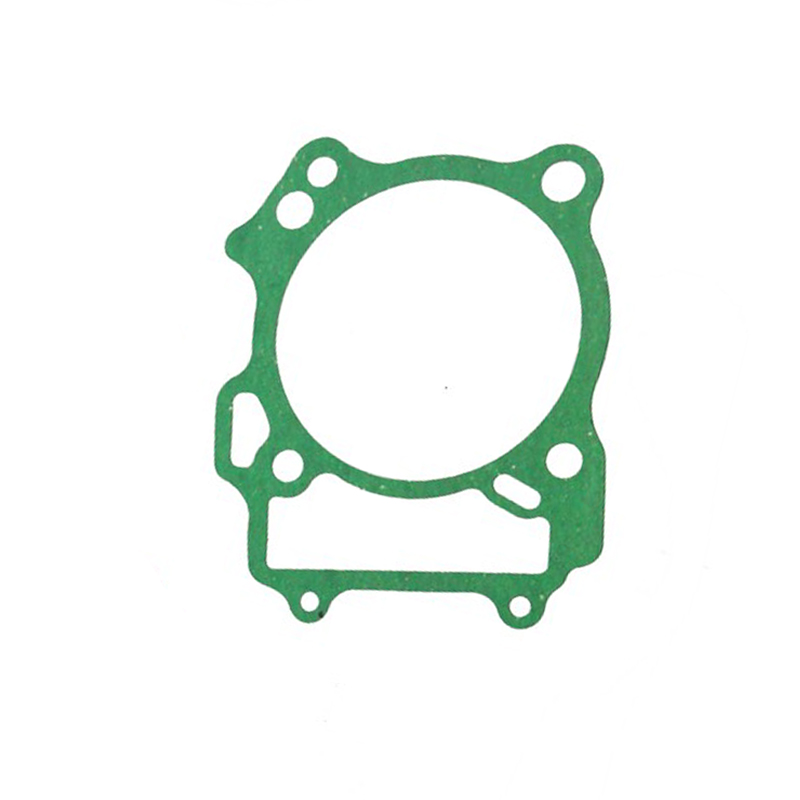

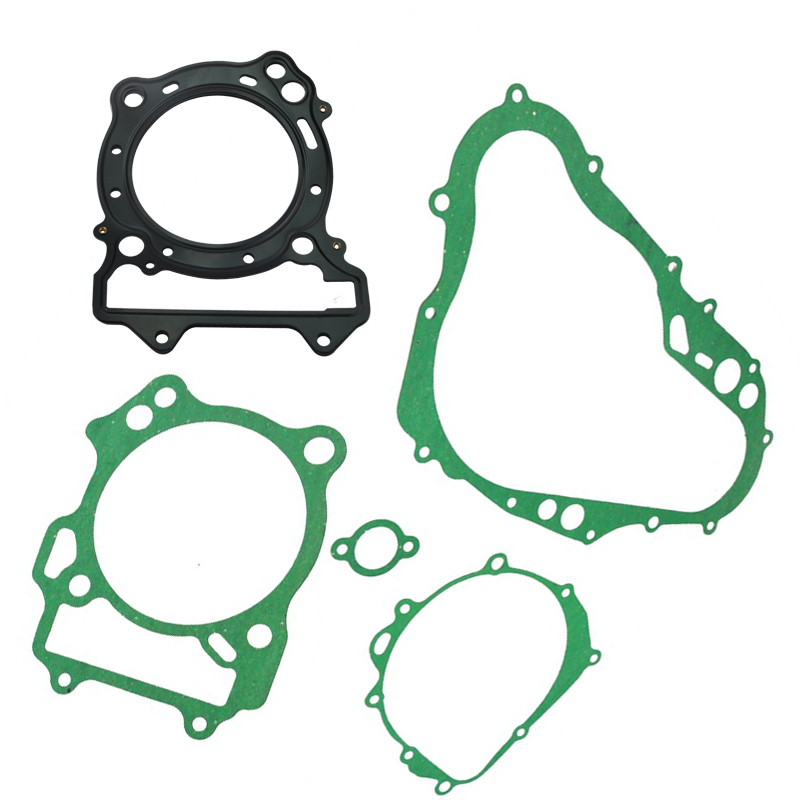

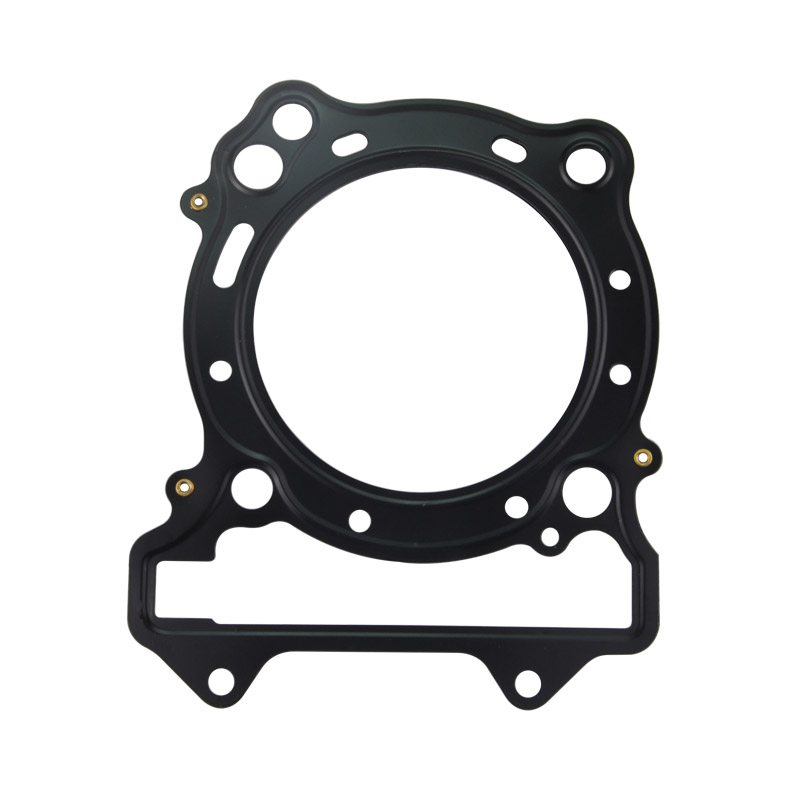

Product Installation Instructions for Gasket Set for Engine Cylinder Crankcase and Clutch Cover Compatible with DRZ 400 Motorcycles (2000-2020)

Necessary Tools:

1. Socket Set (including metric sizes)
2. Torque Wrench
3. Screwdrivers (both Phillips and flathead)
4. Pliers
5. Gasket Scraper or Razor Blade
6. Clean Cloths or Rags
7. Engine Oil or Grease (for lubrication)
8. Safety Goggles
   9.Gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and secure it using a motorcycle stand.
   • Make sure the engine is cool before starting the installation.

2. Remove Existing Components:

   • Using the appropriate socket size, remove the bolts from the clutch cover and crankcase carefully.
   • Gently pry off the clutch cover and the crankcase to avoid damaging the surfaces.
   • Remove any remnants of the old gasket using a gasket scraper or razor blade.

3. Clean Surfaces:

   • Thoroughly clean the mating surfaces of the crankcase and clutch cover with clean cloths or rags to ensure no debris or old gasket material remains.

4. Install New Gaskets:

   • Carefully place the new gaskets from the gasket set onto the clean surfaces of the crankcase and clutch cover.
   • Ensure that the gaskets are properly aligned with bolt holes and other components.

5. Reassemble Components:

   • Position the clutch cover back onto the crankcase.
   • Hand-tighten the bolts to hold the assembly in place.

6. Torque Bolts:

   • Using the torque wrench, tighten the bolts to the manufacturer's specified torque settings to ensure a proper seal.

7. Final Checks:

   • Double-check all bolts for tightness and ensure that everything is correctly aligned.

8. Testing:

   • Start the engine and allow it to run for a few minutes.
   • Check for any leaks around the gasket areas to confirm proper installation.

9. Cleanup:

   • Dispose of any old parts and clean your tools after the installation is complete.

Safety Note:
Always wear safety goggles and gloves when performing repairs to protect yourself from injuries.

Conclusion:
This gasket set installation provides a comprehensive solution to ensure your DRZ 400 runs efficiently and prevents oil leaks. Follow these steps carefully to achieve the best results.
