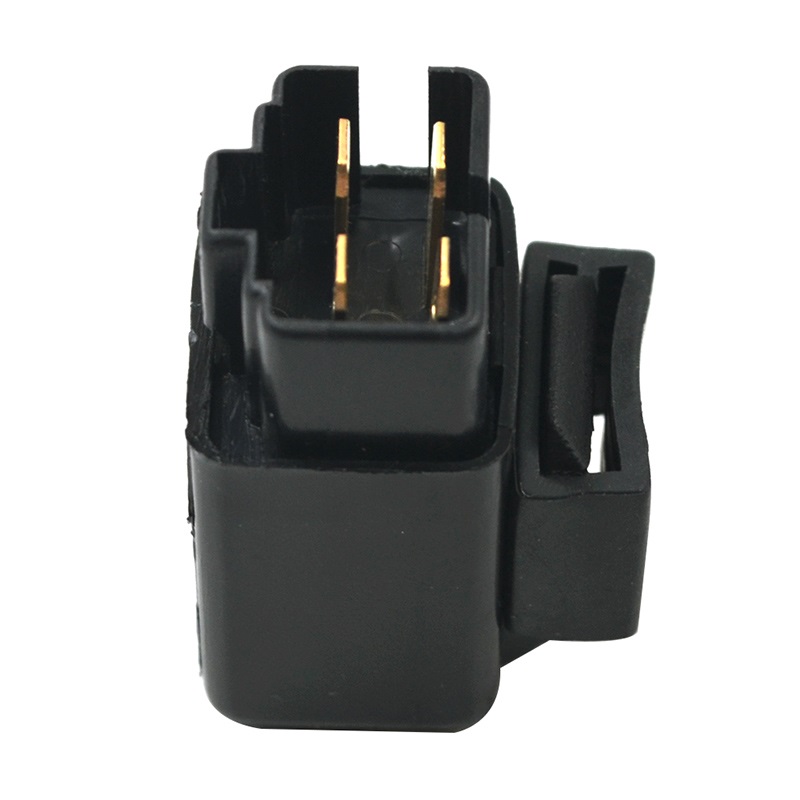

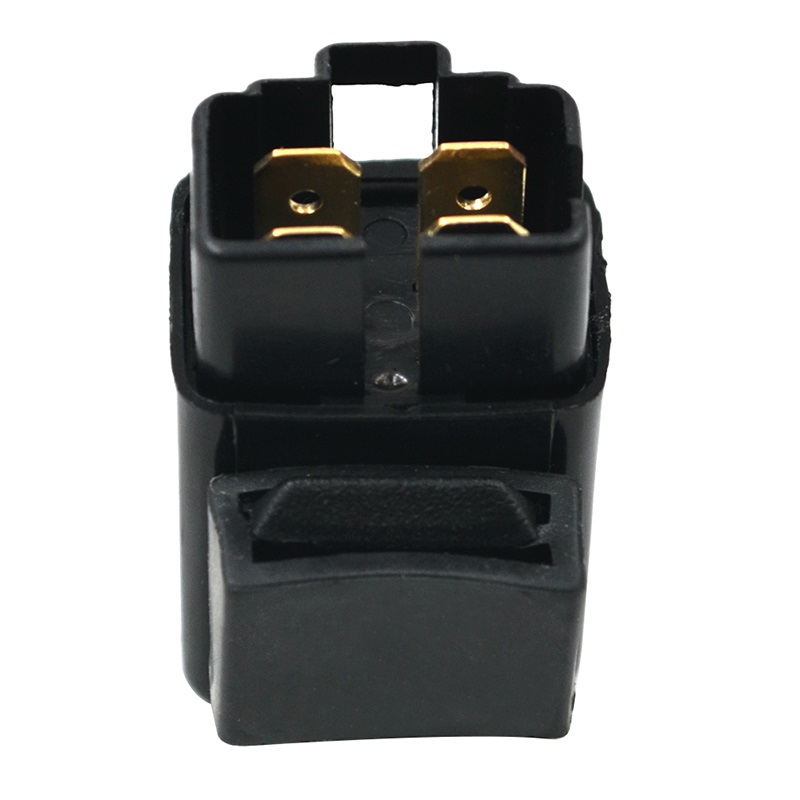

Product Installation Instructions for Starter Relay Solenoid for Motorcycles

Compatibility:
This starter relay solenoid is compatible with various motorcycle models, including 1RL819509200, 1RL819509100, 29U819509200, and 29U819509300. Ensure that your motorcycle model matches before installation.

Tools Required:
To successfully install the starter relay solenoid, you will need the following tools:

1. Socket Wrench Set
   for removing and tightening bolts and nuts.

2. Screwdrivers (Flathead and Phillips)
   for loosening or tightening screw connections.

3. Wire Stripper/Cutter
   for any necessary adjustments to the wiring.

4. Pliers
   for gripping and manipulating wires or components.

5. Multimeter (optional)
   to test electrical connections before and after installation.

6. Safety Gear (Gloves and Goggles)
   to protect yourself during installation.

Installation Steps:

1. Preparation:
   Ensure the motorcycle is on a stable surface and the ignition is turned off. Disconnect the battery to avoid any electrical shorts.

2. Locate the Old Relay:
   Identify the location of the original starter relay solenoid on your motorcycle based on your model's manual.

3. Remove the Old Relay:
   Use the socket wrench to loosen and remove the bolts securing the old starter relay. Disconnect the wiring harness carefully.

4. Connect the New Relay:
   Position the new starter relay solenoid in the same location as the old one. Connect the wiring harness according to the original layout.

5. Secure the Relay:
   Use the socket wrench to fasten the new starter relay solenoid securely.

6. Reconnect the Battery:
   Reattach the battery terminals and ensure all connections are tight.

7. Test the Installation:
   Turn on the ignition and start the motorcycle to ensure the relay is functioning correctly.

8. Final Checks:
   Double-check all connections and ensure there are no loose wires or components.

Conclusion:
With this starter relay solenoid, enjoy improved engine performance and enhanced riding experience. The installation process is designed for ease, allowing DIY users to complete it without the need for professional tools or assistance.
