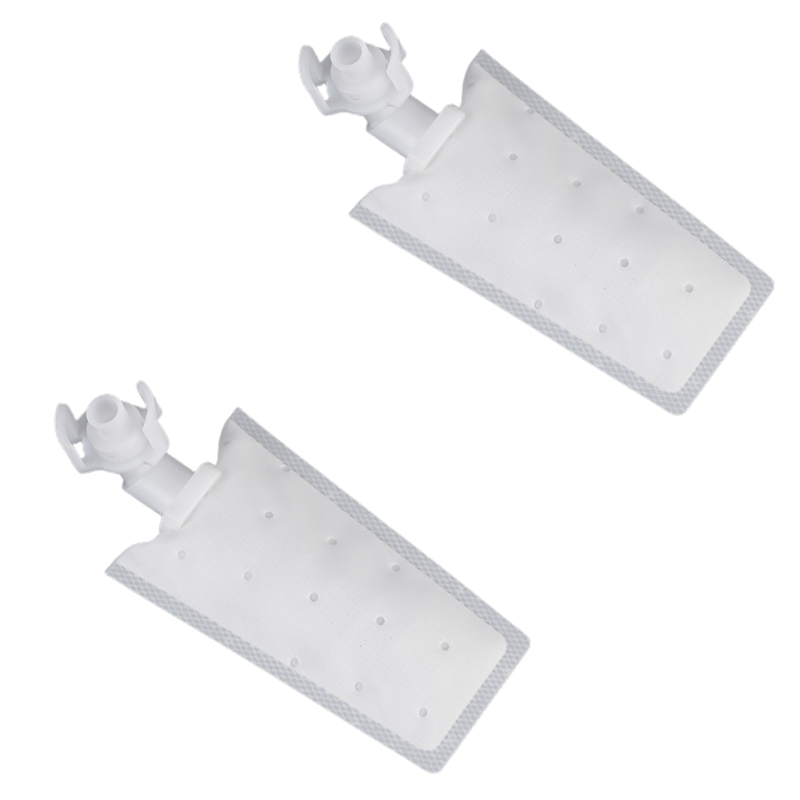

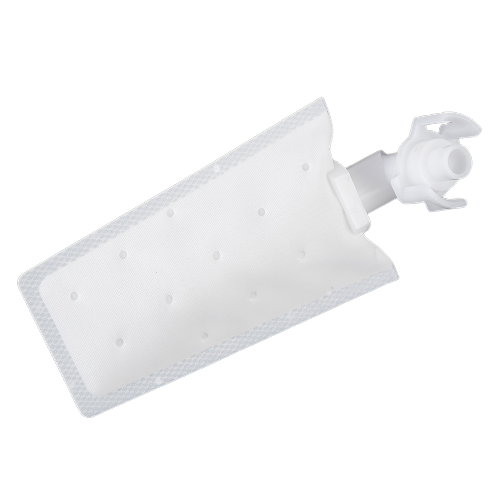

Product Installation Instructions for Fuel Pump Strainer Compatible with YFM550, YFM700, and YXM700 Viking 700 (2006-2018)

Preparation:

Before you begin the installation, ensure you have the following tools and materials ready:

Tools Required:

1. Socket Wrench Set
2. Screwdriver Set (Phillips and Flathead)
3. Pliers
4. Fuel Line Disconnect Tool (if necessary)
5. Clean Cloth or Paper Towels
6. Safety Goggles
   7.Gloves
7. Container to catch any spilled fuel

Installation Steps:

1. Safety First:
   a. Ensure the vehicle is parked on a flat surface and the engine is turned off.
   b. Disconnect the negative battery terminal to prevent any electrical issues.
   c. Wear safety goggles and gloves for protection.

2. Access the Fuel Pump:
   a. Locate the fuel pump access panel or the fuel tank. You may need to remove the seat or rear panel of the vehicle.
   b. Use the socket wrench to remove any bolts securing the access panel or tank.

3. Disconnect the Fuel Lines:
   a. Carefully disconnect the fuel lines from the fuel pump. Use the fuel line disconnect tool if necessary.
   b. Place a container underneath to catch any spilled fuel.

4. Remove the Old Fuel Pump Strainer:
   a. Locate the fuel pump strainer attached to the fuel pump.
   b. Gently remove the old strainer by pulling it off the pump. Ensure no debris enters the pump.

5. Install the New Fuel Pump Strainer:
   a. Take the new fuel pump strainer and ensure it aligns correctly with the pump.
   b. Firmly push the new strainer onto the fuel pump until it fits securely.

6. Reconnect the Fuel Lines:
   a. Carefully reconnect the fuel lines to the fuel pump, ensuring they are secure and leak-free.
   b. Check that all connections are tight.

7. Reassemble the Access Panel or Fuel Tank:
   a. Replace the access panel or secure the fuel tank back into position.
   b. Use the socket wrench to reattach any bolts removed earlier.

8. Reconnect the Battery:
   a. Reconnect the negative battery terminal.
   b. Ensure all tools and materials are cleared from the work area.

9. Test the Installation:
   a. Turn the ignition key to the "on" position (without starting the engine) to allow the fuel pump to prime.
   b. Check for any leaks around the fuel pump and fuel lines.

10. Final Check:
    a. Start the engine and listen for proper operation.
    b. Ensure the vehicle runs smoothly without any warning lights on the dashboard.

Conclusion:
You have successfully installed the new fuel pump strainer. Enjoy enhanced performance and improved fuel efficiency in your vehicle! If you encounter any issues, consult a professional mechanic for assistance.
