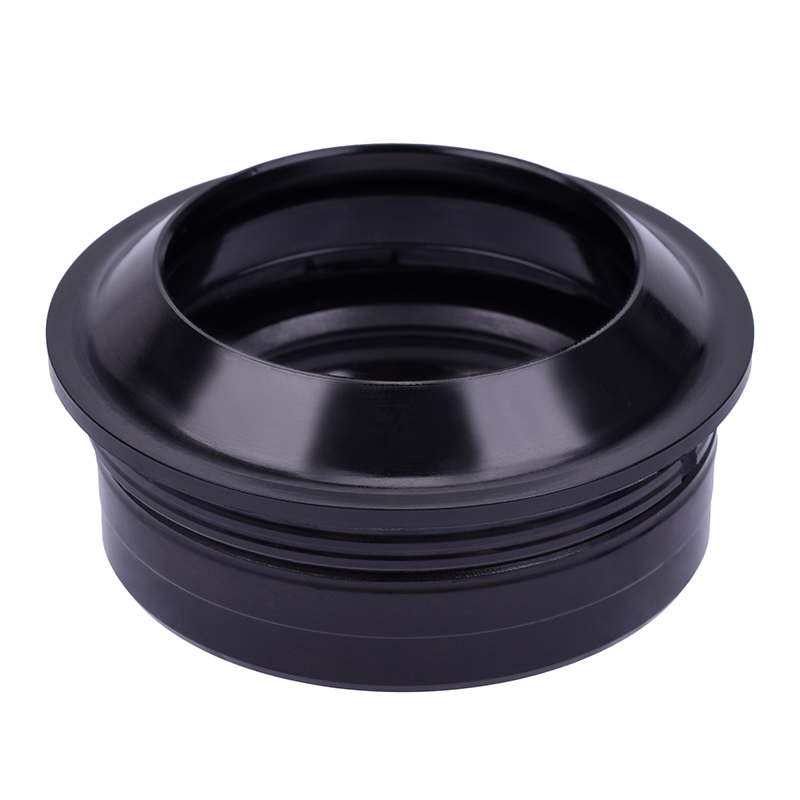

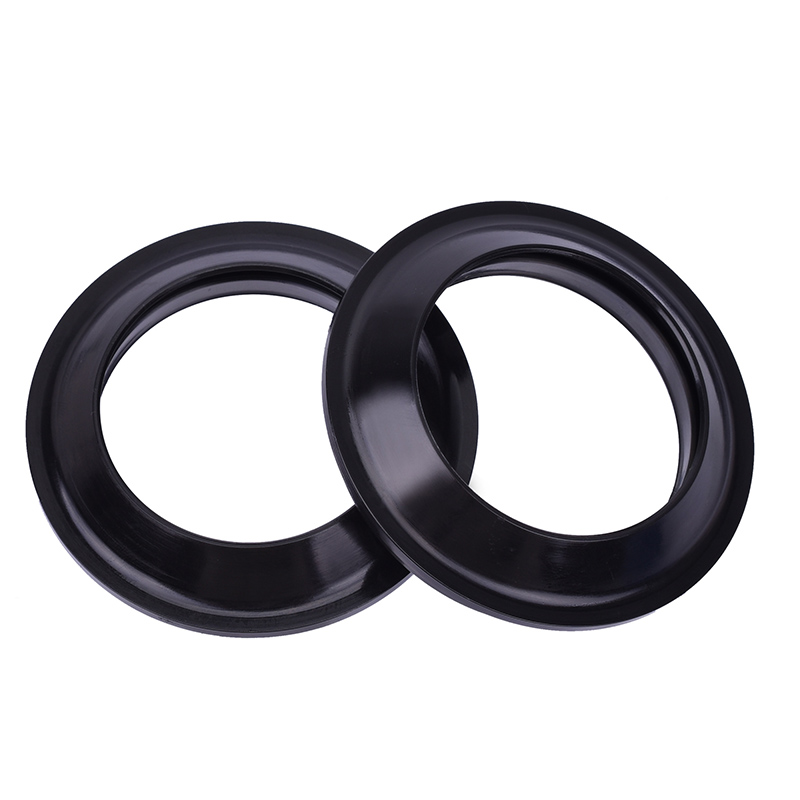

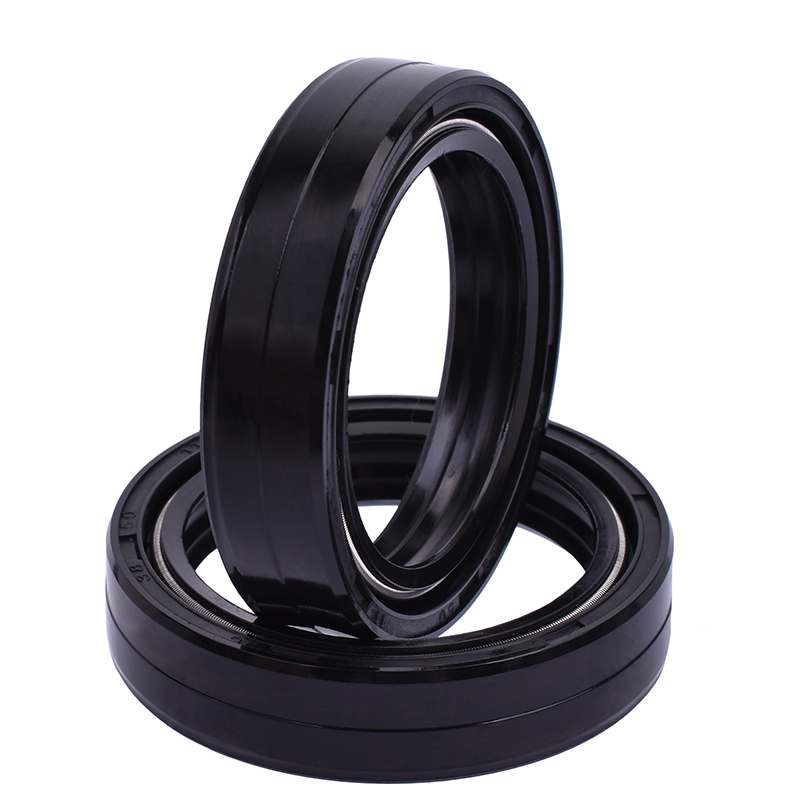

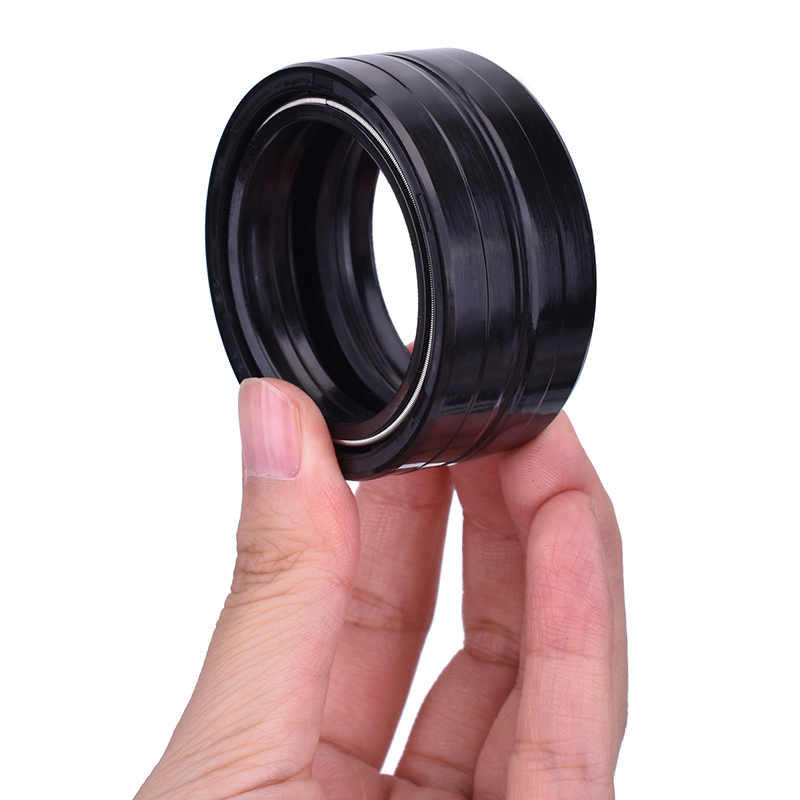

Installation Instructions for 38x50x11 Front Fork Dust Seal and Oil Seal

Compatible Motorbike Models:
Compatible with various motorbike models: 80, 125, 250, 200, 600, 650, 1000, 1100, 750, and 900.

Tools Required:

1. Socket Wrench Set: To remove and install bolts and nuts on the front fork assembly.

2. Torque Wrench: To ensure proper torque specifications are met during reassembly.

3. Flathead and Phillips Screwdriver: For any screws that may need to be removed.

4. Pliers: For gripping and pulling components if necessary.

5. Seal Puller Tool (Optional): To help remove the old seals if they are difficult to extract.

6. Pastry Knife or Utility Knife: For carefully scraping away old sealant or dirt.

7. Rag or Clean Cloth: To clean surfaces and remove old oil or dirt.

8. Grease: Ensure that you have fresh grease to apply on the seals for better fitting.

9. Safety Glasses and Gloves: To protect your eyes and hands during the installation process.

Installation Steps:

1. Preparation:

   • Ensure you have all the necessary tools mentioned above.
   • Work in a clean, well-lit area and ensure the motorbike is on a stable stand.

2. Remove the Front Fork:

   • Use the socket wrench to loosen and remove the front axle and any components securing the front fork.
   • Carefully slide the fork tubes out of the triple clamp.

3. Remove Old Seals:

   • Using a seal puller or flathead screwdriver, carefully pry out the old dust seal and oil seal from the fork.

4. Clean the Fork Tubes:

   • Wipe the surface of the fork tubes with a rag to remove dirt and oil. Ensure the area is clean before installing the new seals.

5. Install New Seals:

   • Apply a thin layer of grease to the new seals for easy installation.
   • Carefully insert the new oil seal followed by the dust seal into the fork tube, ensuring they sit flush.

6. Reinstall the Front Fork:

   • Slide the fork back into the triple clamp and securely fasten all components using the socket wrench.
   • Make sure to use the torque wrench to tighten to the manufacturer’s specifications.

7. Final Check:

   • Check all connections and seals for proper fit.
   • Ensure there are no leaks and the fork moves smoothly.

Conclusion:
Your new front fork dust and oil seals are now installed. Regularly check their condition to ensure optimal performance and longevity of your motorcycle's front suspension system. Enjoy a smoother and more stable ride!
