Product Installation Instructions for Carburetor Rebuild Repair Kit for FZS600 FZS 600 Fazer (1998-2003)

Tools and Materials Needed:

1. Basic Tools:

   • Flathead screwdriver
   • Phillips screwdriver
   • Adjustable wrench
   • Socket set (various sizes)
     -Pliers
     -Torque wrench

2. Specialized Tools:

   • Carburetor cleaning kit (including brushes and cleaning solvent)
   • Vacuum gauge (optional, for precise tuning)

3. Safety Equipment:

   • Safety glasses
   • Gloves
   • Rags or paper towels (for clean-up)

4. Replacement Parts:

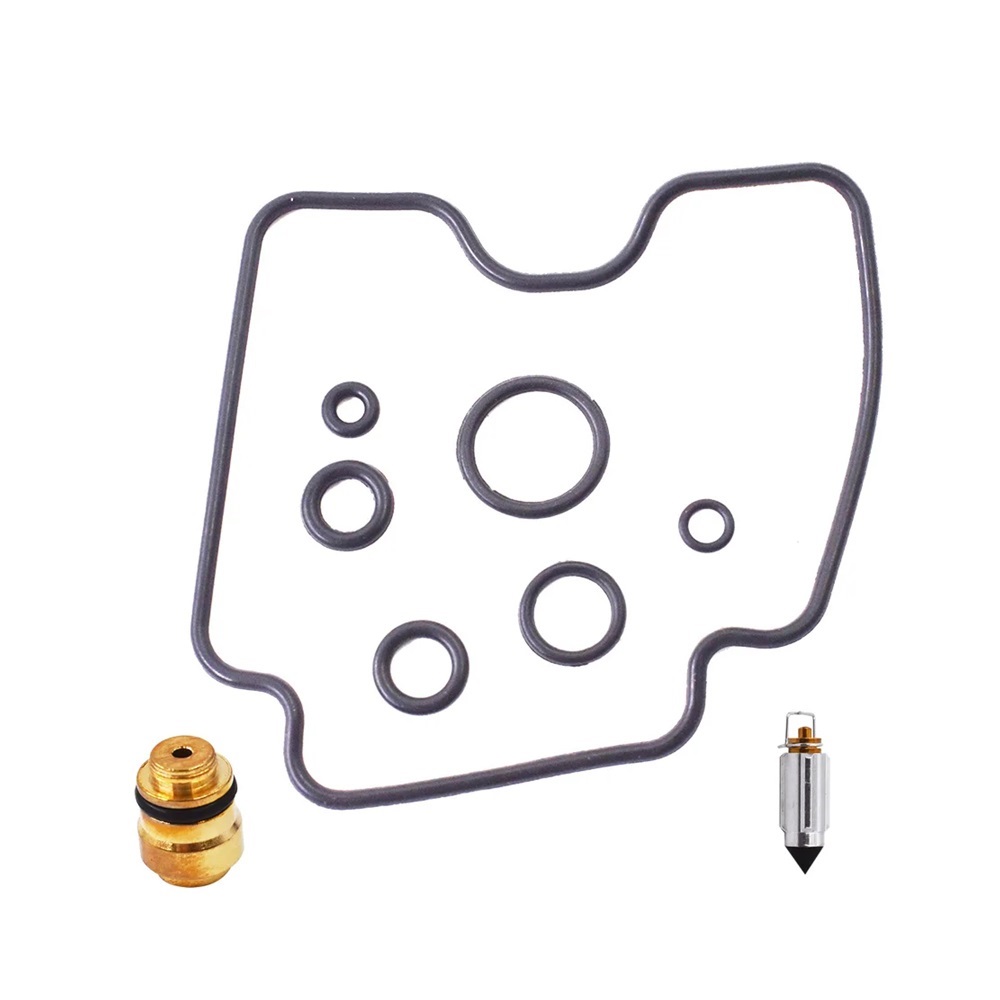

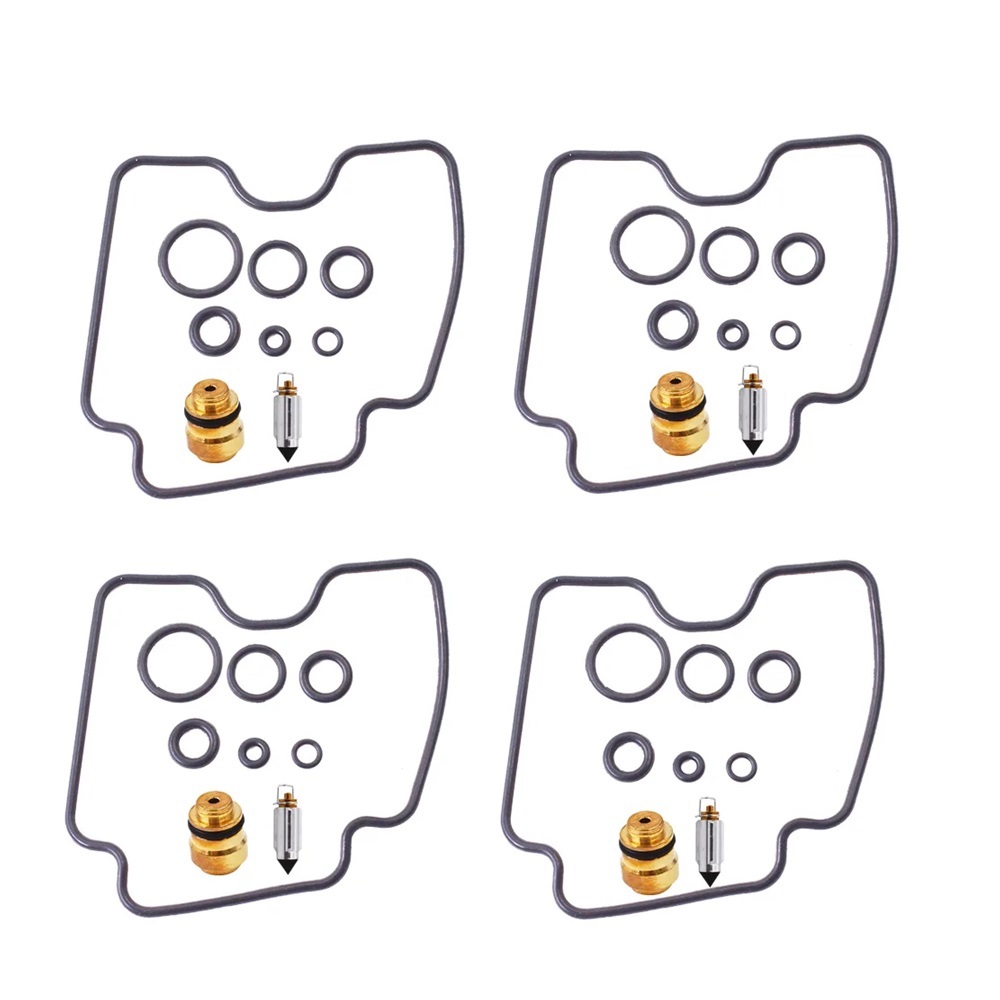

   • Carburetor rebuild kit (included in your purchase)
   • Gasket sealant (if necessary)

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is parked on a flat surface and the engine is cool.
   • Disconnect the battery to avoid any electrical issues during the process.

2. Remove the Carburetor:

   • Locate the carburetors on your FZS600.
   • Disconnect the throttle and choke cables.
   • Detach fuel lines and any electrical connections.
   • Unscrew the mounting bolts and carefully remove the carburetor from the motorcycle.

3. Disassemble the Carburetor:

   • Take the carburetor to a clean workspace.
   • Carefully disassemble the carburetor, noting the order of parts for reassembly.
   • Clean all components using the carburetor cleaning kit to remove any dirt and debris.

4. Replace the Parts:

   • Refer to the installation guide included with your kit for specific parts.
   • Carefully replace old gaskets, O-rings, and any other components that come with the rebuild kit.
   • Reassemble the carburetor using the notes taken during disassembly.

5. Reinstall the Carburetor:

   • Align the carburetor back onto the mounting points and secure it using the bolts.
   • Reconnect the throttle and choke cables, fuel lines, and electrical connections.

6. Final Checks:

   • Reconnect the battery.
   • Check for any leaks in the fuel lines and around gaskets.
   • Start the engine to ensure that everything is functioning correctly.

7. Tune Your Carburetor:

   • If applicable, use the vacuum gauge to fine-tune the carburetor for optimal performance.

Tips:

• Always follow the manufacturer's guidelines when working on your motorcycle.
• If unsure about any step, consult a professional mechanic for assistance.
• Keep the workspace organized to prevent losing small components.

By following these instructions, you can successfully install the Carburetor Rebuild Repair Kit and enhance the performance of your FZS600 Fazer. Happy riding!
