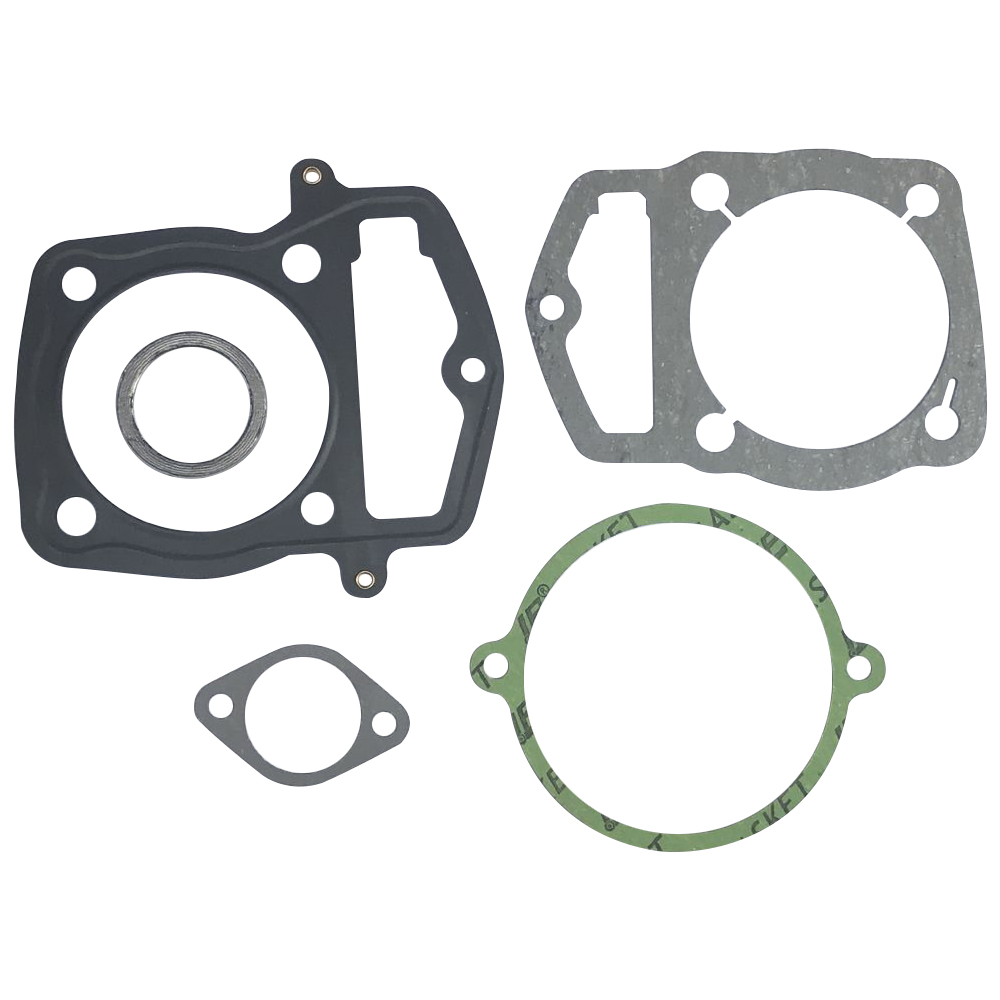

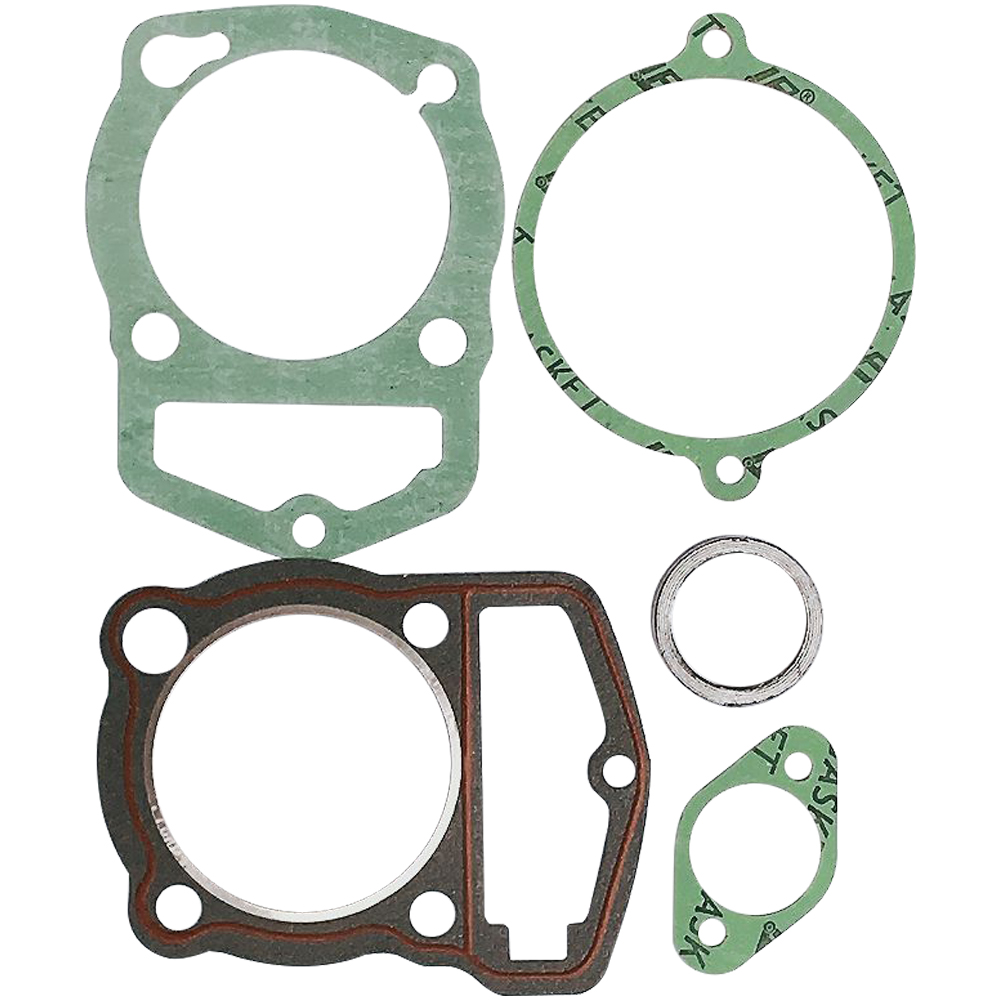

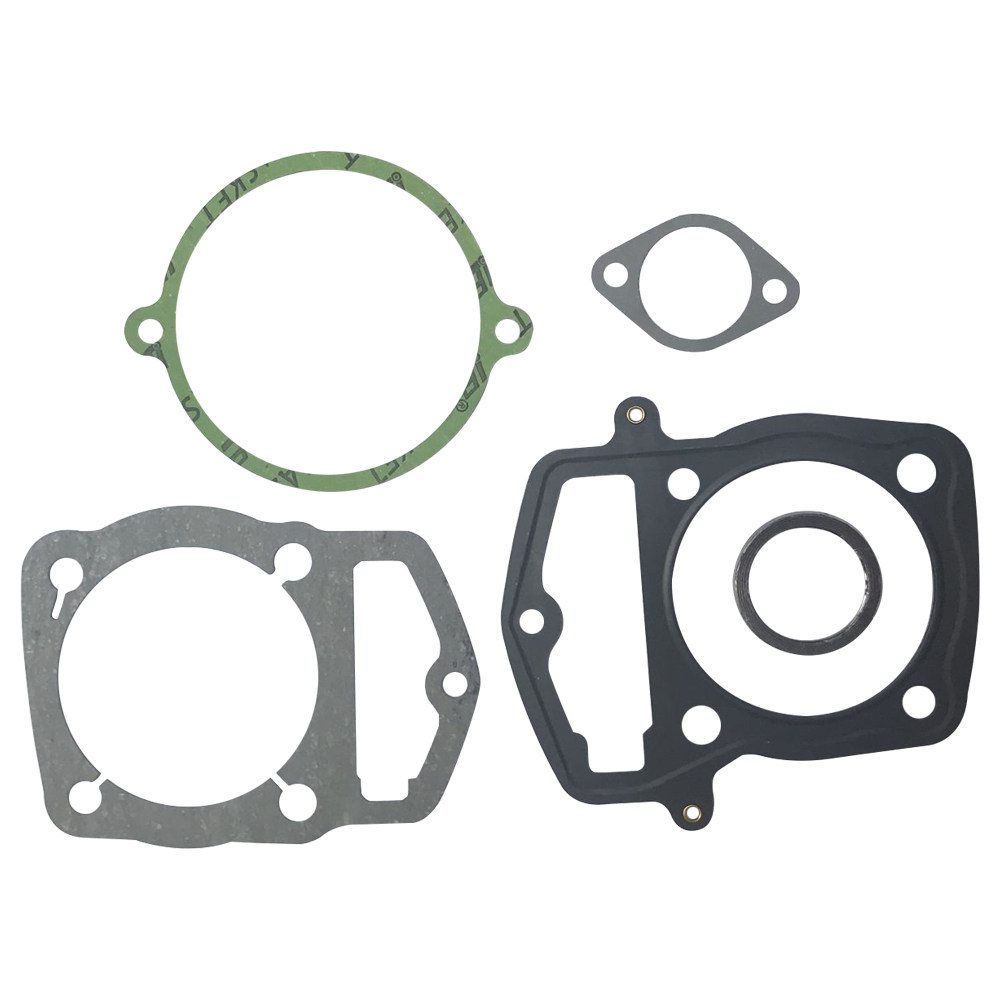

Product Installation Instructions for Motorcycle Engine Crankcase Covers and Cylinder Gasket Kit Set for CRF230F Compatible Models

Introduction:
Thank you for choosing our Motorcycle Engine Crankcase Covers and Cylinder Gasket Kit Set. This product is designed for perfect compatibility with CRF230F and its compatible models. Follow the instructions below to ensure a successful installation.

Tools Required:
Before starting the installation, ensure you have the following tools ready:

1. Socket Set: (including appropriate sizes for your motorcycle’s bolts)
2. Torque Wrench: To ensure the bolts are tightened to the manufacturer’s specifications.
3. Screwdrivers: Both flathead and Phillips for various screws.
4. Pliers: For gripping and removing stubborn parts if necessary.
5. Gasket Scraper: To remove old gasket material from the surfaces.
6. Clean Rag: For cleaning surfaces before installation.
7. Engine Oil: For lubricating new seals and gaskets before installation.
8. Safety Goggles and Gloves: For personal protection during the installation process.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable and level surface.
   • Disconnect the battery and drain any fluids if necessary.
   • Use the clean rag to wipe any dirt or debris from the work area.

2. Remove Old Parts:

   • Using the appropriate socket size, carefully remove the bolts holding the crankcase cover and cylinder head.
   • Carefully lift off the old crankcase cover and cylinder head, ensuring no debris falls into the engine.
   • Use the gasket scraper to remove any remaining gasket material from the engine surfaces.

3. Install New Gaskets:

   • Place the new gaskets from the kit onto the cleaned surfaces of the crankcase and cylinder head.
   • Ensure they are properly aligned and fitted on all edges.

4. Mount New Covers:

   • Position the new crankcase cover and cylinder head onto the gaskets.
   • Hand-tighten the bolts to hold the covers in place.

5. Torque Bolts:

   • Utilize the torque wrench to tighten the bolts to the manufacturer’s specified torque settings. This will ensure a secure fit without damaging the gaskets.

6. Final Checks:

   • Double-check all bolts for tightness and ensure no tools are left in the vicinity of the engine.
   • Reconnect the battery and refill any fluids that were drained.

7. Testing:

   • Start the motorcycle and let it run for a few minutes.
   • Check for any leaks around the new gaskets and ensure the engine operates smoothly.

Conclusion:
With these instructions, you should be able to successfully install the Motorcycle Engine Crankcase Covers and Cylinder Gasket Kit Set. By regularly maintaining your engine components, you can enhance performance and reduce oil leaks. Thank you for choosing our product!
