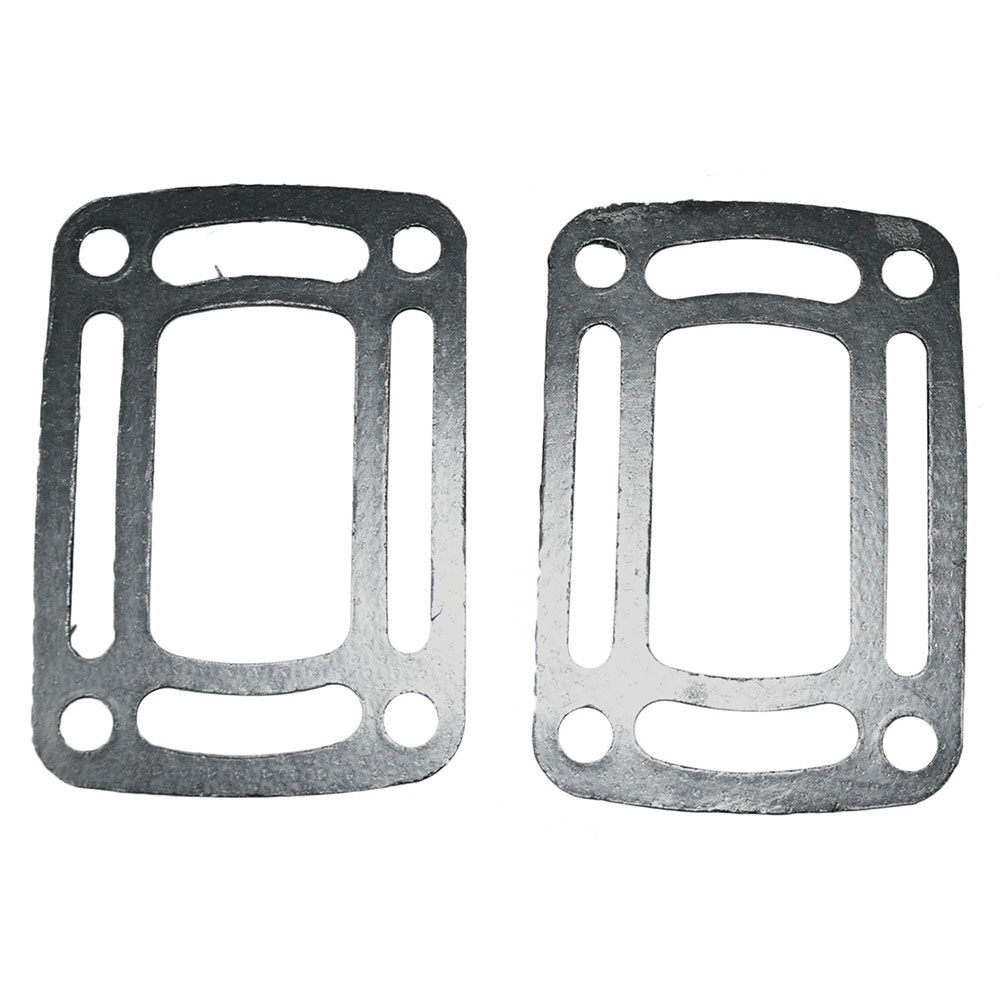

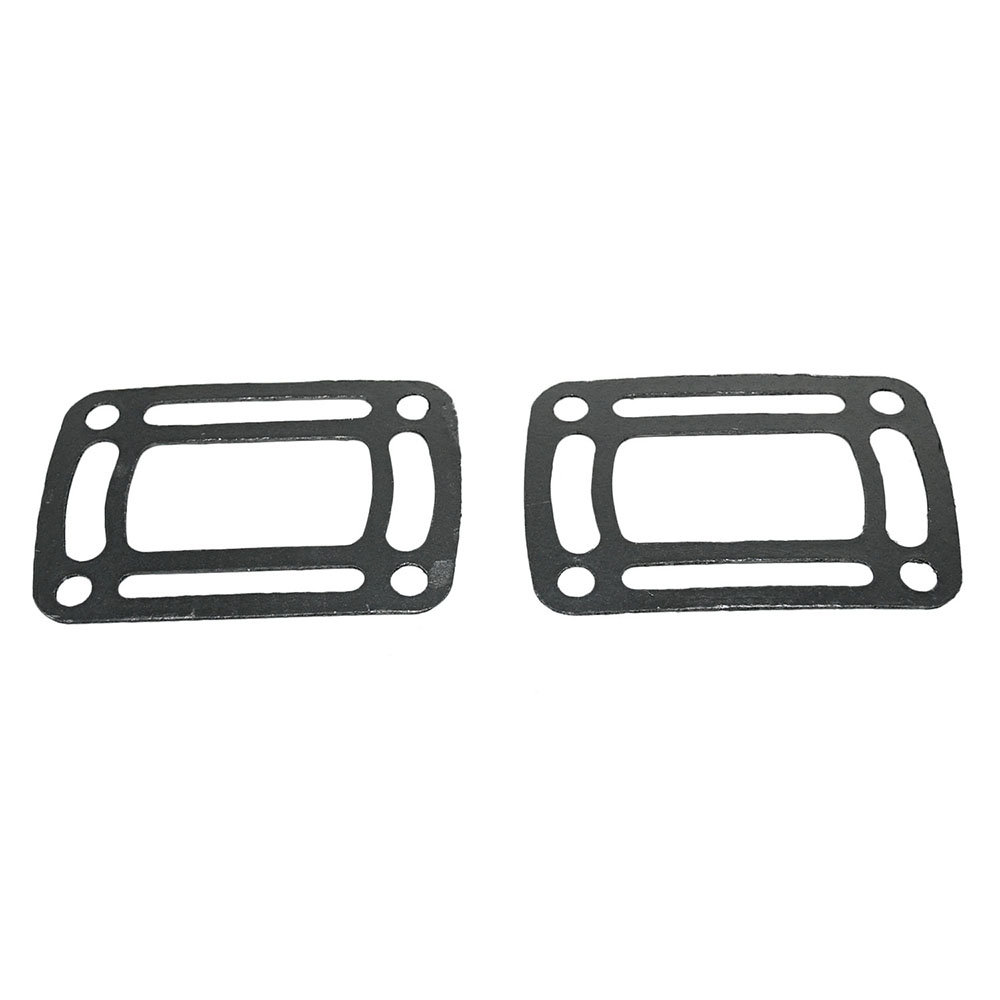

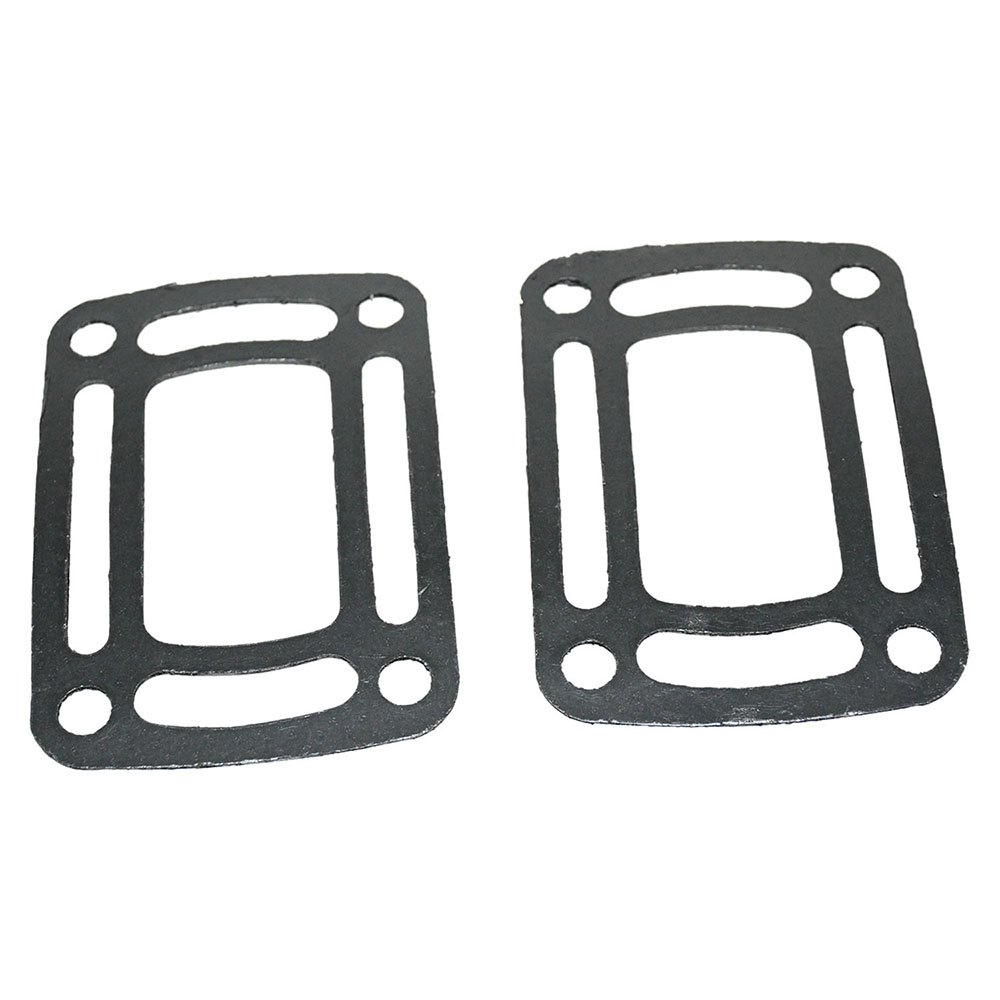

Installation Instructions for Exhaust Elbow Riser Gaskets

Compatible Models: 18-0943, 3850496, 3863191

Tools Required:

1. Socket Set - To remove and install bolts securing the exhaust elbow.
2. Torque Wrench - To ensure that bolts are tightened to the manufacturer's specifications.
3. Ratchet - For quick and easy access to bolts in tight spaces.
4. Gasket Scraper - To clean the surface before installation, ensuring a proper seal.
5. Wrench Set - For additional leverage and access to stubborn bolts.
6. Brake Cleaner or Degreaser - To clean the mounting surface of any residue or old gasket material.
7. Rags or Paper Towels - For cleaning spills and wiping surfaces.
8. Safety Goggles - To protect your eyes from debris during the installation.
9. Gloves - To protect your hands from sharp edges and chemicals.

Installation Steps:

1. Preparation: Ensure that the engine is turned off and cooled down. Disconnect the battery.

2. Remove the Old Gasket: Use the gasket scraper to carefully remove the old gasket from the exhaust elbow and fittings. Clean the surfaces thoroughly with brake cleaner or degreaser.

3. Inspect Surfaces: Check the exhaust elbow and the area it mounts to for any signs of wear or damage. Ensure that the surfaces are smooth and free of scratches.

4. Position the New Gasket: Place the new gasket in position on the surface of the exhaust elbow. Ensure that it aligns correctly with the bolt holes.

5. Attach the Exhaust Elbow: Carefully position the exhaust elbow over the gasket. Ensure that it lines up correctly with the corresponding mounting surface.

6. Install Bolts: Hand-tighten the bolts to hold the exhaust elbow in place. Then use the socket set and ratchet to tighten the bolts gradually in a crisscross pattern to ensure even pressure.

7. Torque the Bolts: Use the torque wrench to tighten the bolts to the manufacturer's specifications.

8. Final Checks: Once everything is tightened, inspect the installation for any gaps or misalignment.

9. Reconnect the Battery: Once all checks are done, reconnect the battery and start the engine to ensure there are no leaks.

10. Test Drive: Take a short drive to ensure everything is functioning correctly and check for leaks again.

Following these instructions will help you install your Exhaust Elbow Riser Gaskets efficiently and effectively, ensuring optimal performance and longevity.
