Carburetor Nozzle Atomizer Jet Set Installation Instructions

Overview:
The Carburetor Nozzle Atomizer Jet Set is designed specifically for PWK style carburetors to enhance performance and throttle response. This installation guide provides essential steps and tools needed for a successful installation.

Tools Required:

1. Flathead screwdriver
2. Phillips screwdriver
3. Socket wrench set (8mm-10mm)
4. Pliers
5. Torque wrench
6. Carburetor cleaning kit (optional, for maintenance)
7. Soft cloth or paper towels
8. Safety goggles
   9.Gloves

Installation Steps:

1. Preparation:

   • Ensure the engine is cool and the vehicle is in a safe working environment.
   • Disconnect the battery to prevent any electrical short circuits.

2. Removing the Carburetor:

   • Locate the carburetor on your vehicle.
   • Carefully disconnect any air intake ducts and throttle cables.
   • Use the socket wrench to remove the bolts securing the carburetor to the intake manifold.
   • Gently lift the carburetor off and place it on a clean work surface.

3. Disassembling the Carburetor:

   • Use the flathead screwdriver to remove the bowl cover and access the jet assembly.
   • Take note of the current jet configuration for reference later.

4. Installing the New Nozzle Atomizers:

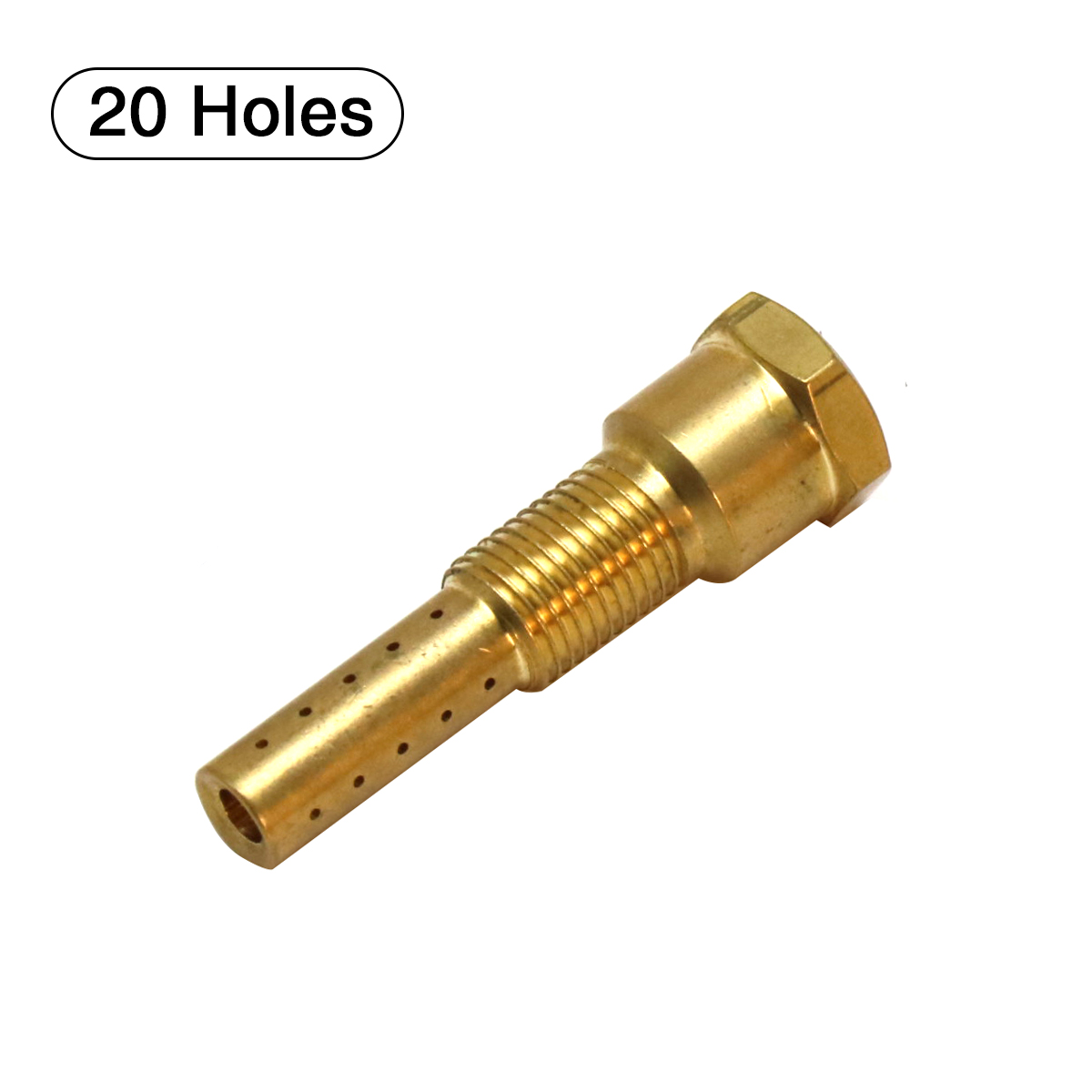

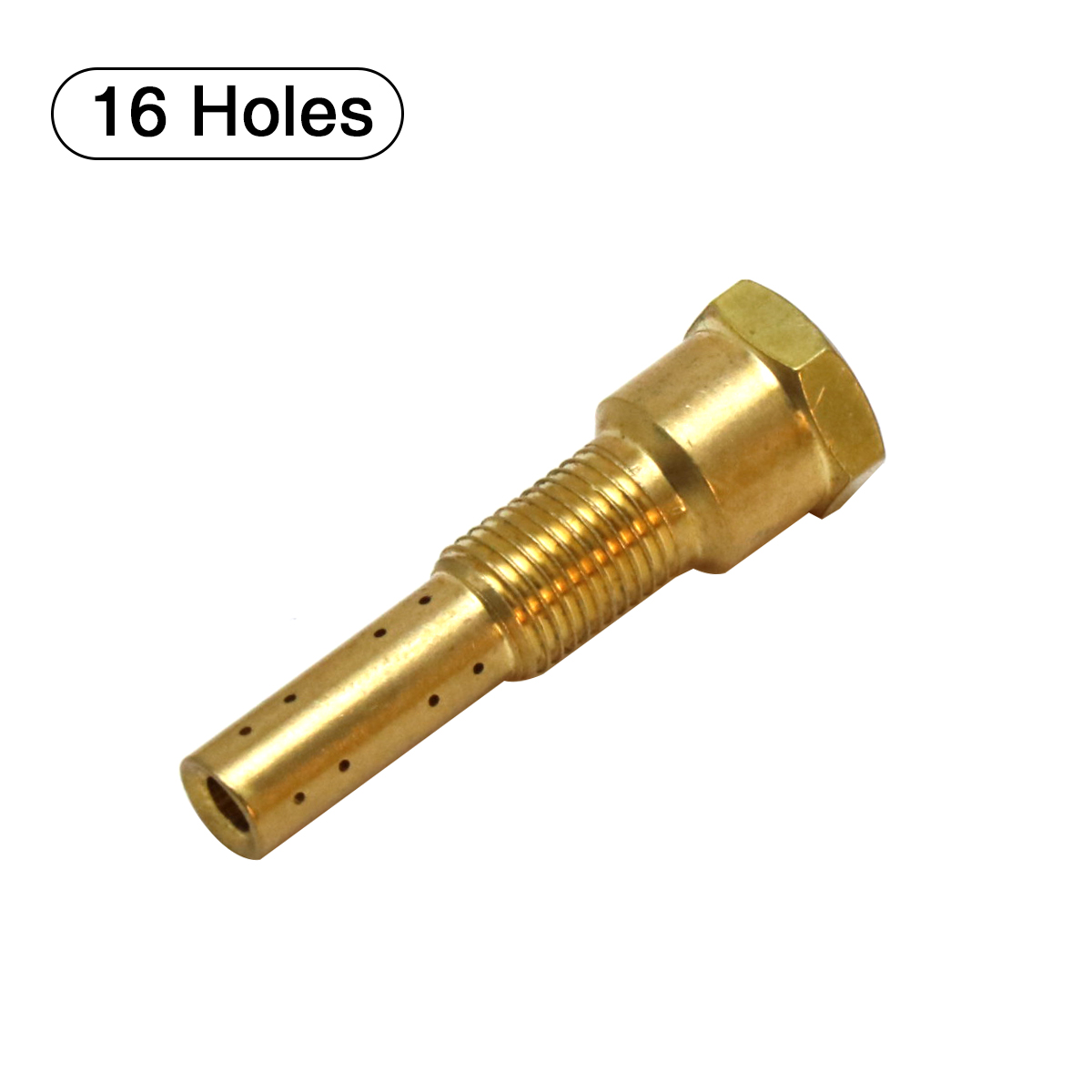

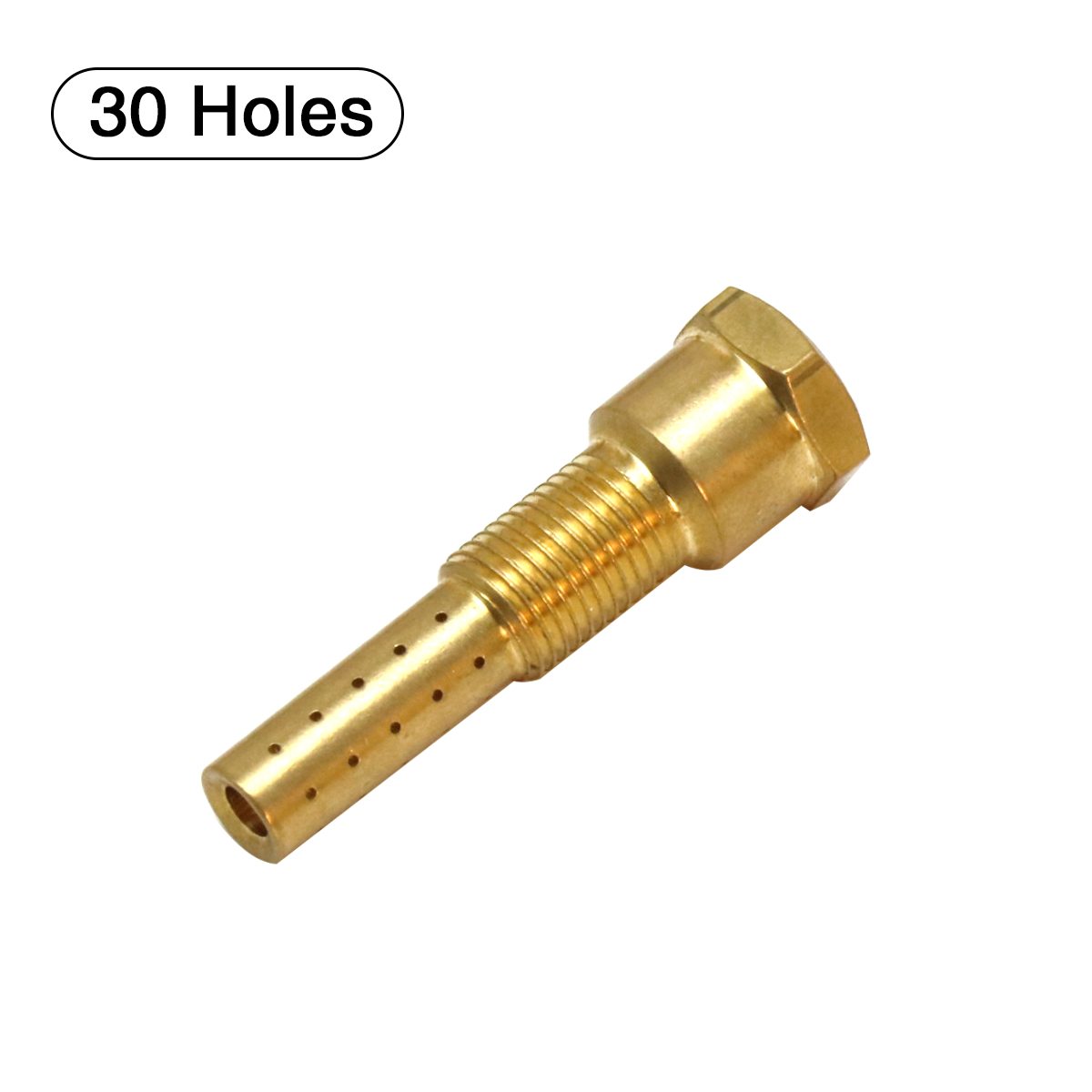

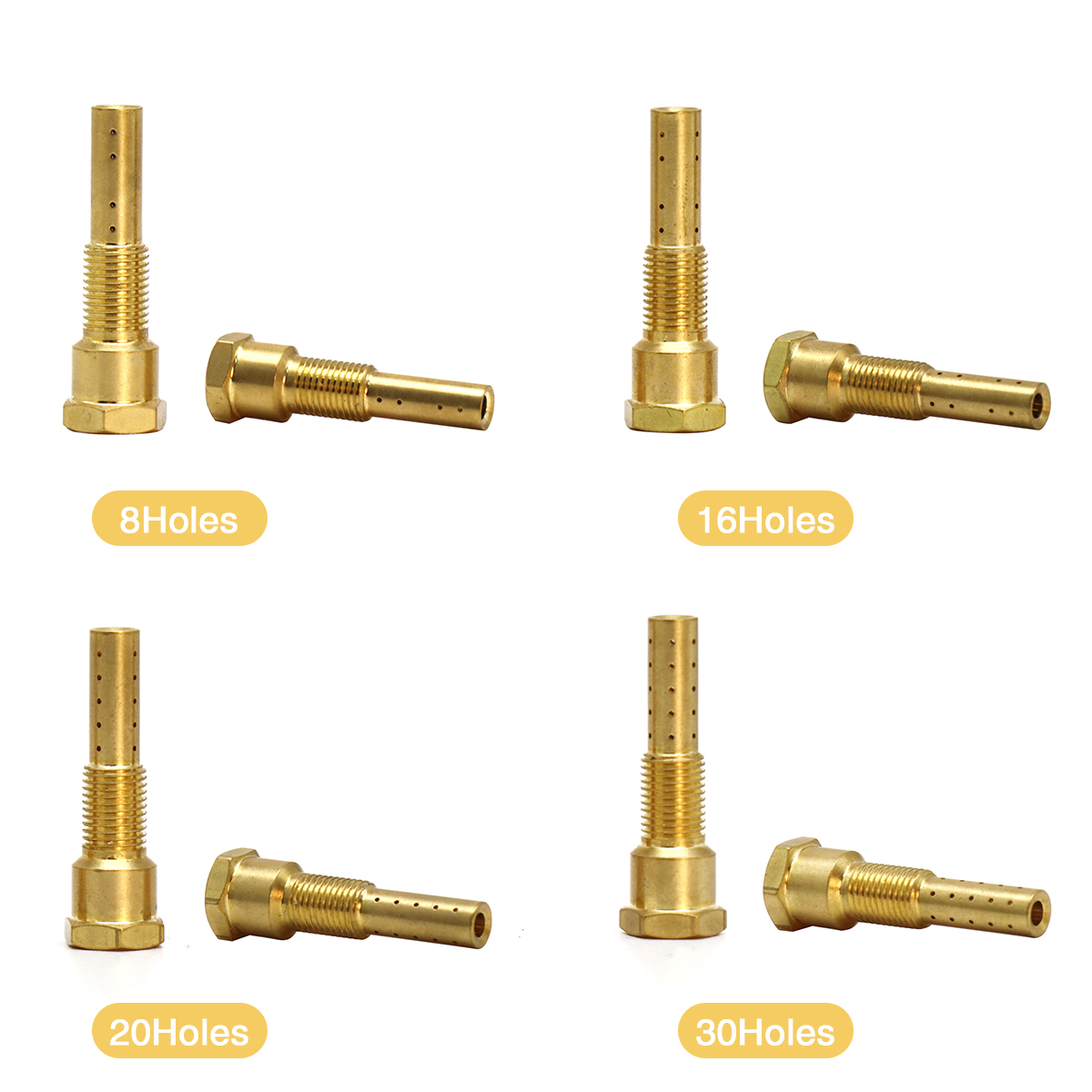

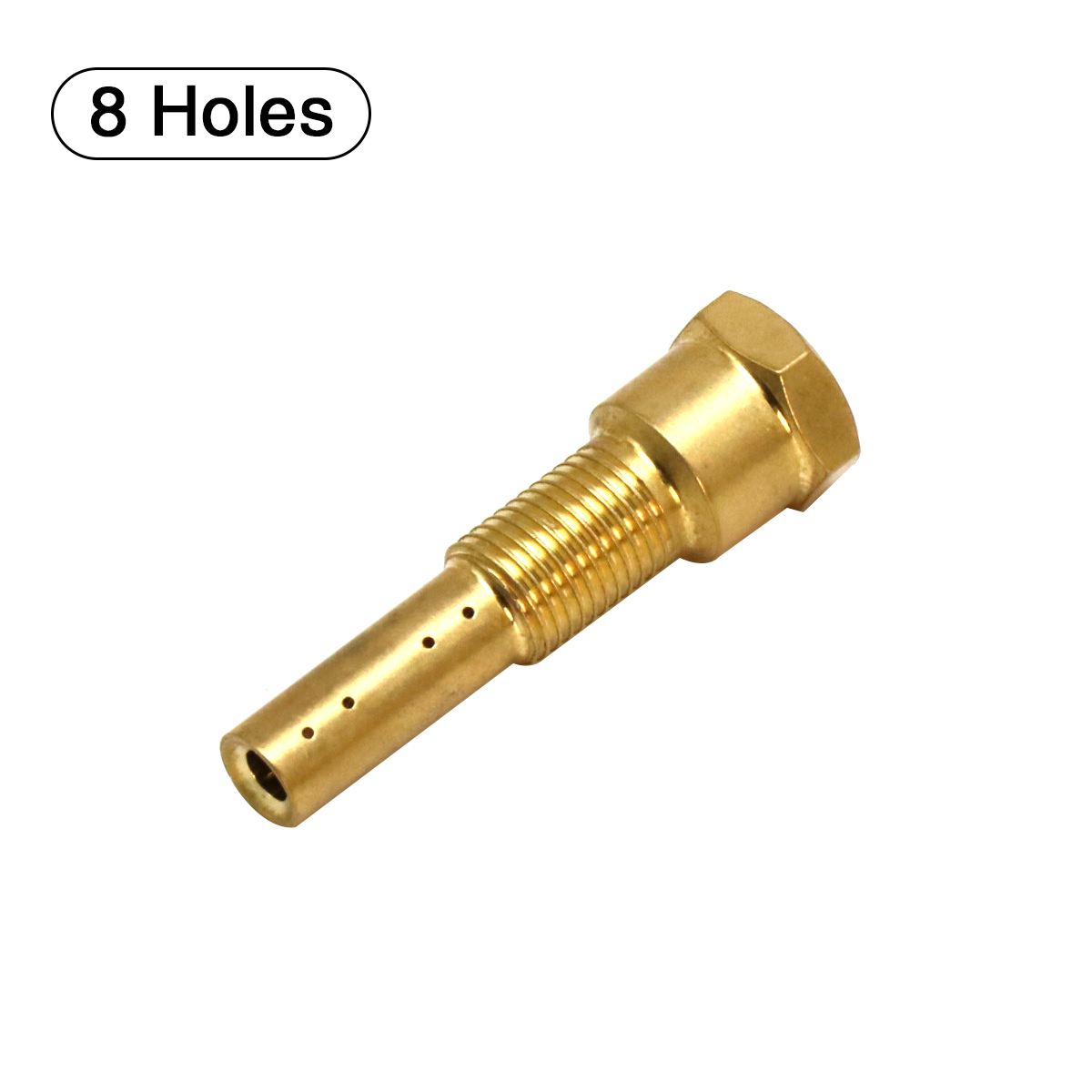

   • Select the desired nozzle atomizer jet (8, 16, 20, or 30 holes) based on your performance needs.
   • Carefully install the new atomizer into the carburetor according to the manufacturer's instructions.
   • Ensure it is seated properly and tight to avoid any leaks.

5. Reassembling the Carburetor:

   • Replace the bowl cover and tighten the screws evenly.
   • Make sure all gaskets and seals are in good condition; replace if necessary.

6. Reinstalling the Carburetor:

   • Position the carburetor back onto the intake manifold.
   • Secure it with the bolts previously removed, ensuring to use a torque wrench to tighten to manufacturer's specifications.

7. Reconnecting Components:

   • Reattach any air intake ducts and throttle cables that were disconnected.
   • Ensure all connections are secure and well fitted.

8. Final Checks:

   • Reconnect the battery.
   • Start the engine and check for any leaks around the carburetor.
   • Allow the engine to warm up and ensure smooth idle and responsive throttle.

Conclusion:
Install the Carburetor Nozzle Atomizer Jet Set carefully by following these steps and using the recommended tools. This upgrade is designed to enhance your vehicle's performance, making it an excellent addition for racing applications. Always ensure safety practices are observed during the installation process.
