Product Installation Instructions for Air Filter Compatible with Hatz 1B20 1B20R B-Series Tamper Engine

Tools Needed:

1. Flathead Screwdriver - For loosening and tightening any clamps or screws.
2. Phillips Screwdriver - For screws that may require a cross-slot driver.
3. Clean Cloth - To wipe any debris or dust from the engine compartment.
4. Safety Gloves - To protect your hands while working on the engine.
5. Vacuum Cleaner (Optional) - For removing any loose debris from the air filter housing.

Installation Steps:

1. Safety First:

   • Ensure that the engine is turned off and has cooled down completely before beginning the installation.

2. Locate the Air Filter Housing:

   • Find the air filter housing on the Hatz 1B20, 1B20R, or B-Series tamper engine. This is typically a round or rectangular compartment secured with screws or clamps.

3. Remove the Existing Air Filter:

   • Use the appropriate screwdriver to remove any screws or loosen clamps holding the air filter in place. Carefully take out the old air filter and set it aside.

4. Clean the Air Filter Housing:

   • Use a clean cloth to wipe out any dust or debris from the air filter housing. If available, use a vacuum cleaner to ensure it is clean.

5. Install the New Air Filter:

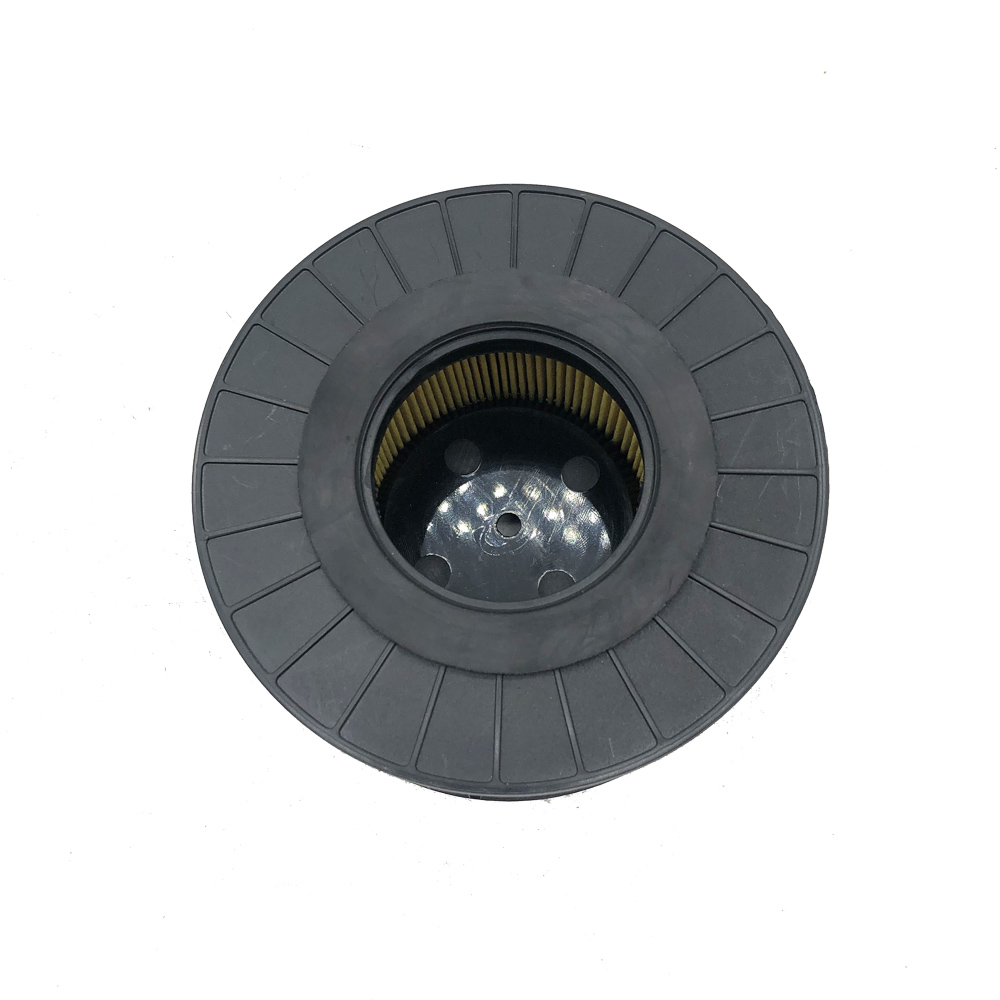

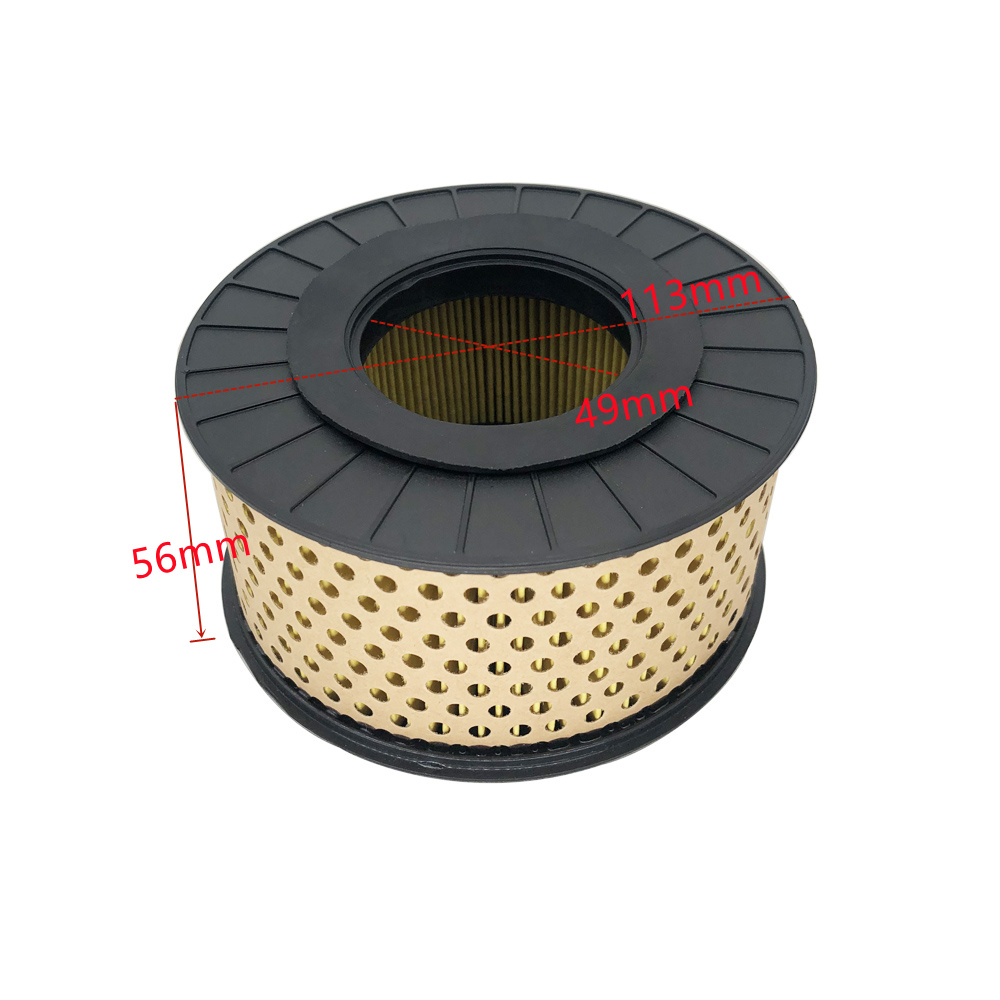

   • Take the new air filter compatible with OEM 50469000 and place it into the housing. Ensure that it is seated properly and fits snugly.

6. Secure the Air Filter Housing:

   • Reattach any screws or clamps that were removed in step 3. Make sure everything is tightened securely to prevent any air leaks.

7. Final Check:

   • Double-check to ensure the air filter is installed correctly and that all components are secured in place.

8. Start the Engine:

   • Start the engine and listen for any unusual noises. Ensure that the engine runs smoothly before operating.

Conclusion:

Congratulations! You have successfully installed the air filter for your Hatz 1B20, 1B20R, or B-Series tamper engine. Enjoy improved performance and extended engine life with your new filter.
