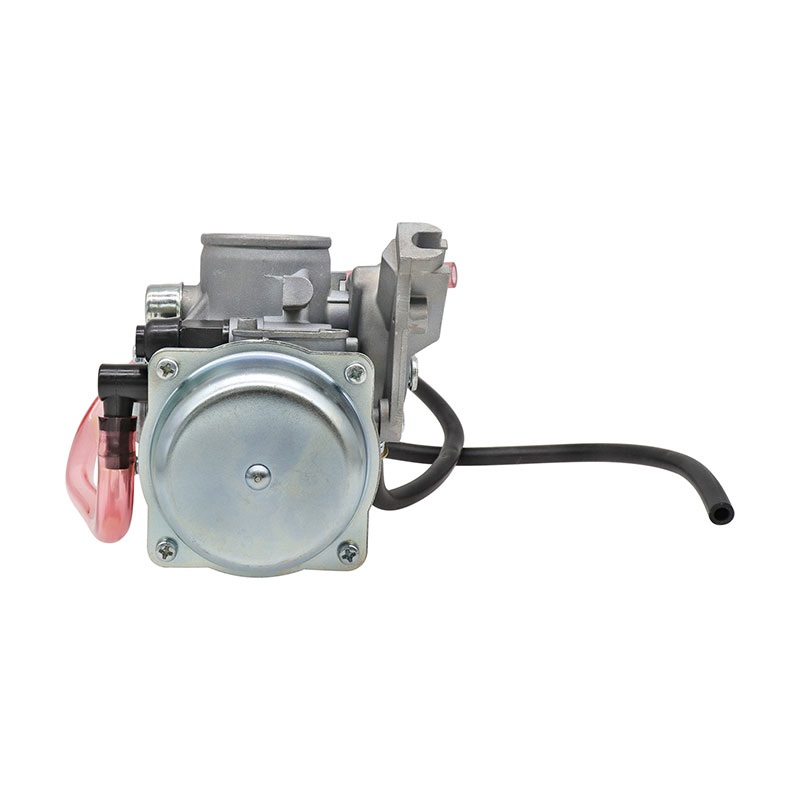

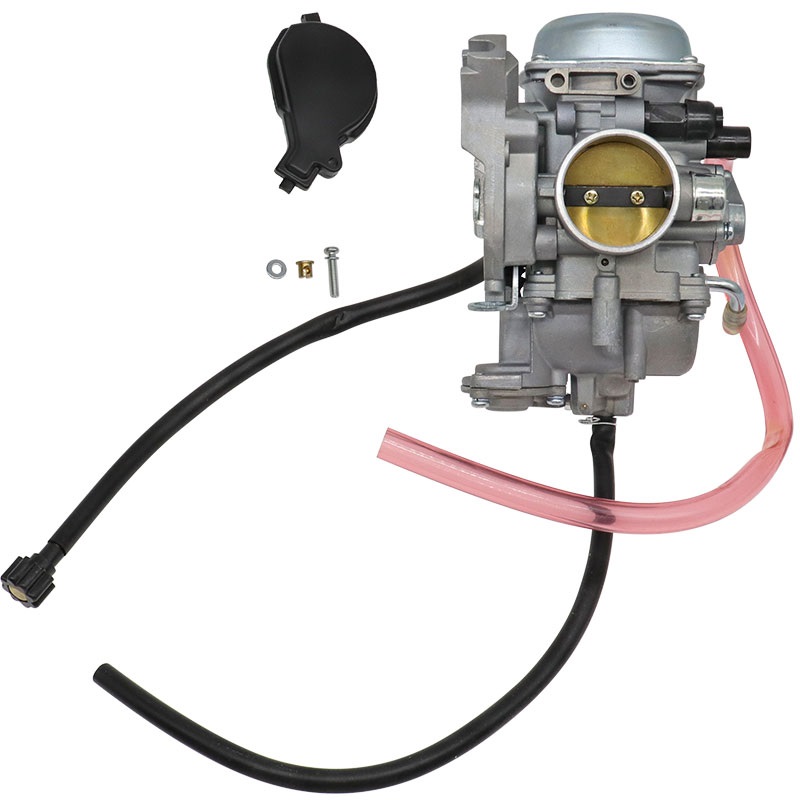

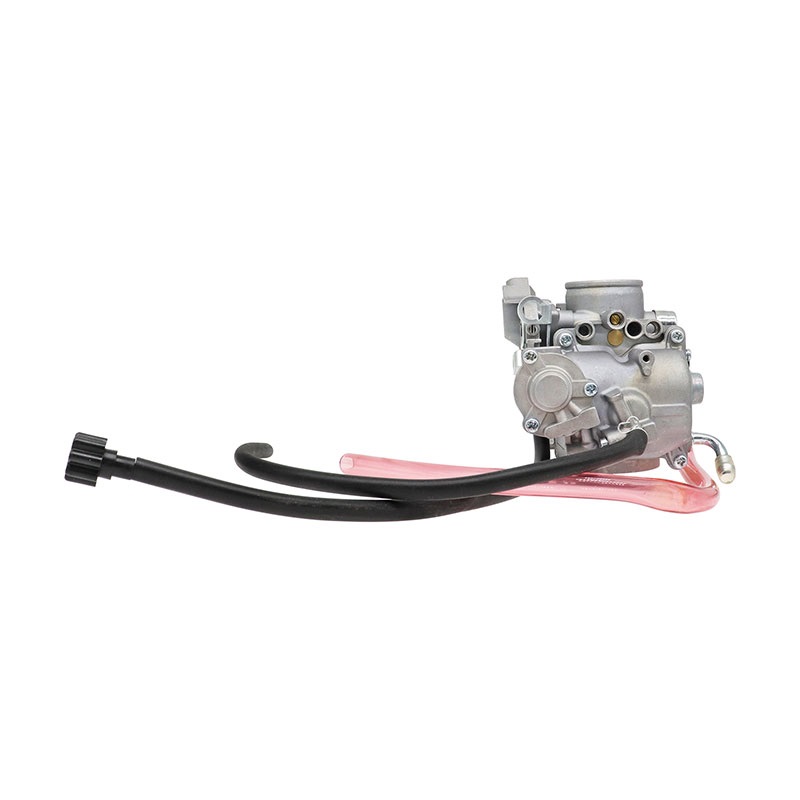

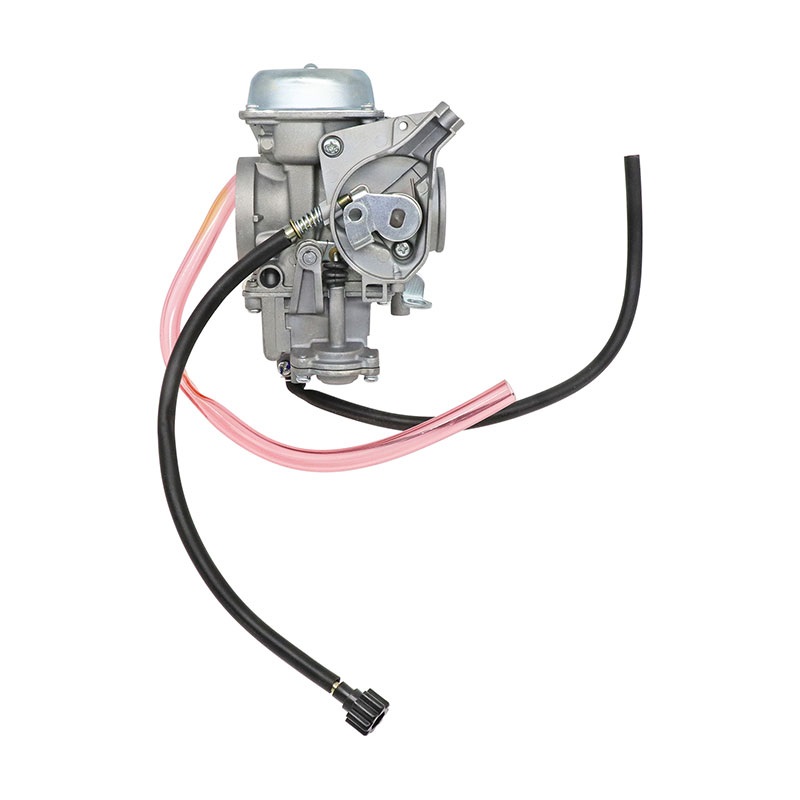

Installation Instructions for Carburetor Compatible with 2003 ATV 500 4X4 4WD TBX TRV

Tools Required:

1. Screwdriver Set (both flathead and Phillips)
2. Socket Wrench Set
3. Pliers
4. Adjustable Wrench
5. Fuel Line Clamps (optional for fuel line management)
6. Shop Towers or Rags (for cleanup)
7. Safety Goggles (to protect eyes during installation)
8. Gloves (to protect hands)

Installation Steps:

1. Preparation:

   • Ensure that the ATV is on a stable surface and the engine is cool.
   • Disconnect the battery to ensure safety during the installation.

2. Remove the Old Carburetor:

   • Use the screwdriver to remove any screws securing the air intake and throttle cables.
   • Carefully detach the fuel line using pliers, ensuring to clamp it to prevent any fuel leaks.
   • Remove any mount bolts using the socket hurtch and pull the old carburetor off the engine.

3. Install the New Carburetor:

   • Position the new carburetor in place, aligning it with the mounting points on the engine.
   • Secure it using the mount bolts and socket wrench.
   • Reconnect the fuel line carefully and ensure there are no leaks.

4. Reconnect the Throttle Cable:

   • Attach and secure the throttle cable and air intake as per the original configuration.
   • Tighten any screws securely with the screwdriver.

5. Check Connections:

   • Double-check all connections to ensure everything is tightened and secured.
   • Ensure that there are no loose parts.

6. Reconnect the Battery:

   • Reconnect the battery and check the throttle response briefly to ensure it operates smoothly.

7. Final Inspection:

   • Start the ATV and allow it to idle for a few minutes.
   • Check for any leaks around the carburetor and fuel lines.
   • Test the acceleration under various conditions to confirm performance enhancements.

Safety Tips:

• Always wear safety goggles and gloves during installation.
• Be cautious of sharp edges and hot components.
• Clean up any spilled fuel immediately.

By following these instructions and ensuring you have the required tools, you'll be able to successfully install the new carburetor and enhance your ATV's performance. Enjoy your outdoor adventures!
