Product Installation Instructions for Engine Crankcase Clutch Cylinder Head Gasket Kits for 250CC Models (1980-1983)

Preparation

Before you begin the installation, please gather the following tools and materials:

Tools Required:

1. Socket set (including 8mm, 10mm, and 12mm sockets)
2. Wrench set (including adjustable wrench)
3. Torque wrench
4. Screwdriver set (flathead and Phillips)
5. Pliers
6. Gasket scraper or razor blade
   7.Clean rags
7. Engine oil (for lubricating gaskets)
8. Torque specification chart (for proper torque settings)

Materials Needed:

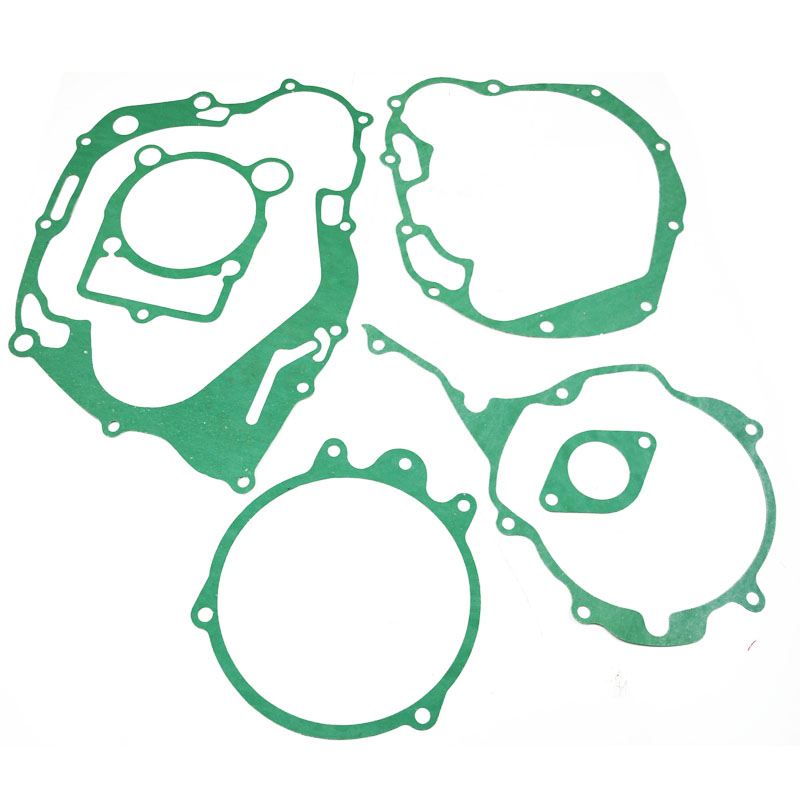

1. Engine Crankcase Clutch Cylinder Head Gasket Kit (including all gaskets and seals)
2. Engine assembly lubricant
3. Cleaning solvent (if needed)

Installation Steps

1. Preparation of Work Area:

   • Ensure the work area is clean and well-lit. Gather all your tools and materials for easy access.

2. Remove Existing Components:

   • Start by removing any fairings or covers that obstruct access to the engine components.
   • Disconnect the battery to prevent any electrical issues during the installation.
   • Carefully remove the old gaskets and seals using a gasket scraper or razor blade. Take caution not to scratch the mating surfaces.

3. Clean Mating Surfaces:

   • Thoroughly clean the surfaces where new gaskets will be installed. Use a cleaning solvent and clean rags to ensure proper adhesion of the new gaskets.

4. Install New Gaskets:

   • Apply a light coat of engine oil or assembly lubricant to the new gaskets to enhance sealing and ease installation.
   • Place the new crankcase, clutch, or cylinder head gaskets into position, ensuring they align properly with bolt holes.

5. Reassemble Components:

   • Reinstall any components that were removed, starting with the cylinder head or crankcase cover.
   • Tighten bolts in a crisscross pattern as specified in the torque specification chart to ensure even pressure.

6. Final Inspection:

   • Double-check all connections, ensuring that bolts and seals are secure.
   • Reconnect the battery.

7. Testing:

   • Start the engine and allow it to run for a few minutes. Monitor for any leaks or irregular noises.
   • Perform a final check to ensure everything is functioning correctly.

Notes

• Always refer to your vehicle’s service manual for specific torque settings and procedures related to your model.
• If you encounter any issues during installation, consider consulting a professional mechanic for assistance.

Your Engine Crankcase Clutch Cylinder Head Gasket Kit installation is now complete! Enjoy the enhanced performance of your 250CC model.
